Fitment
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled

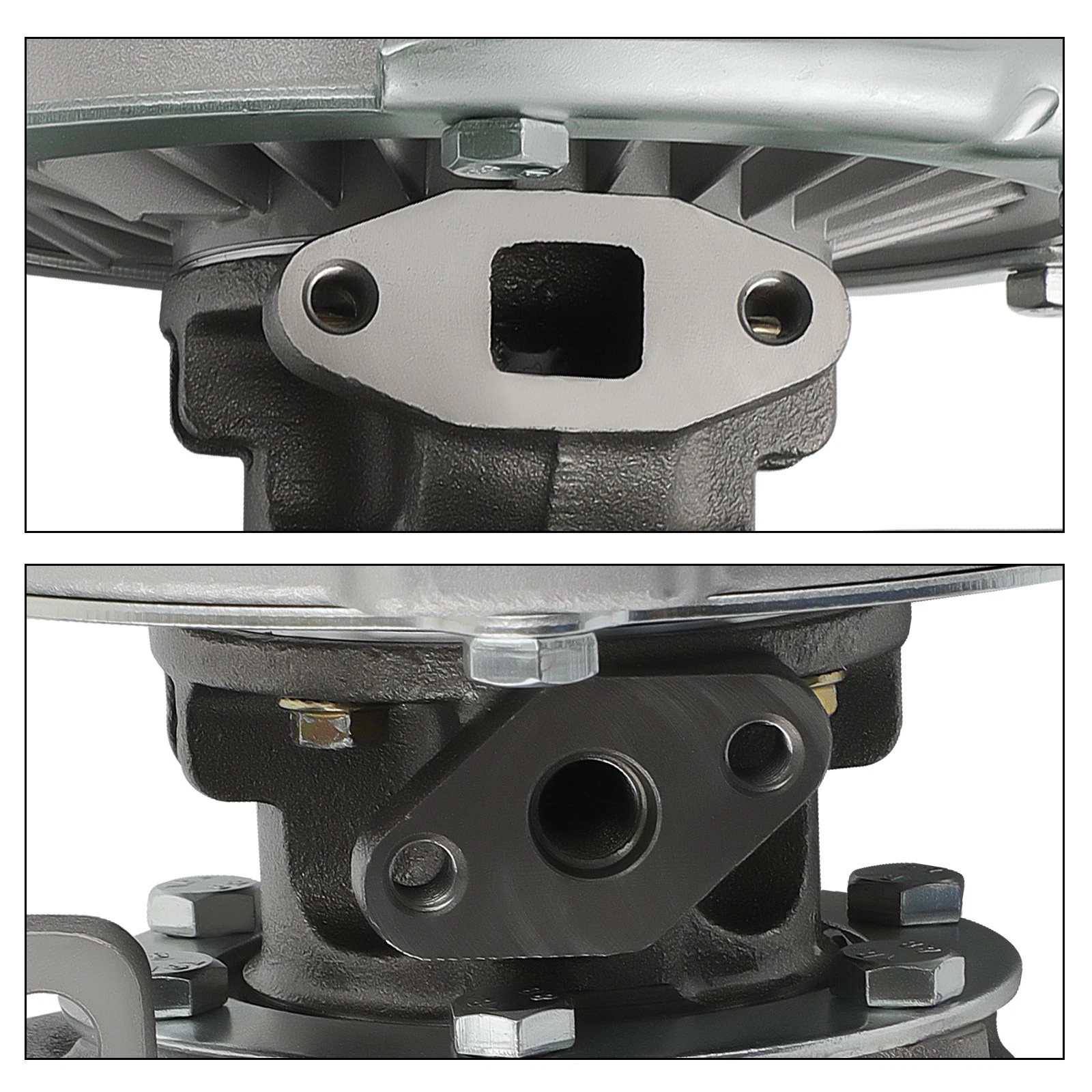

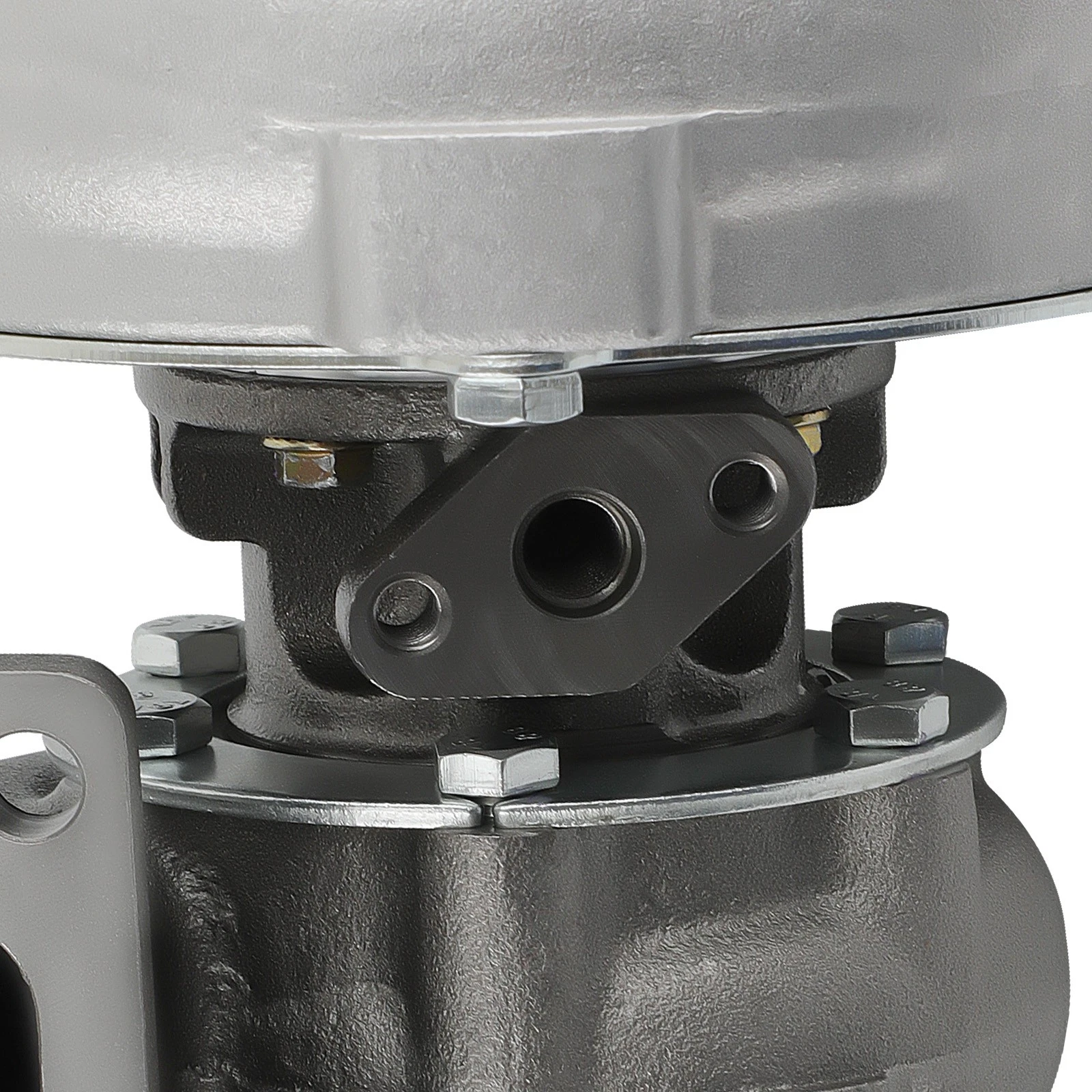

Oil Inlet: M121.25 & 2M81.25

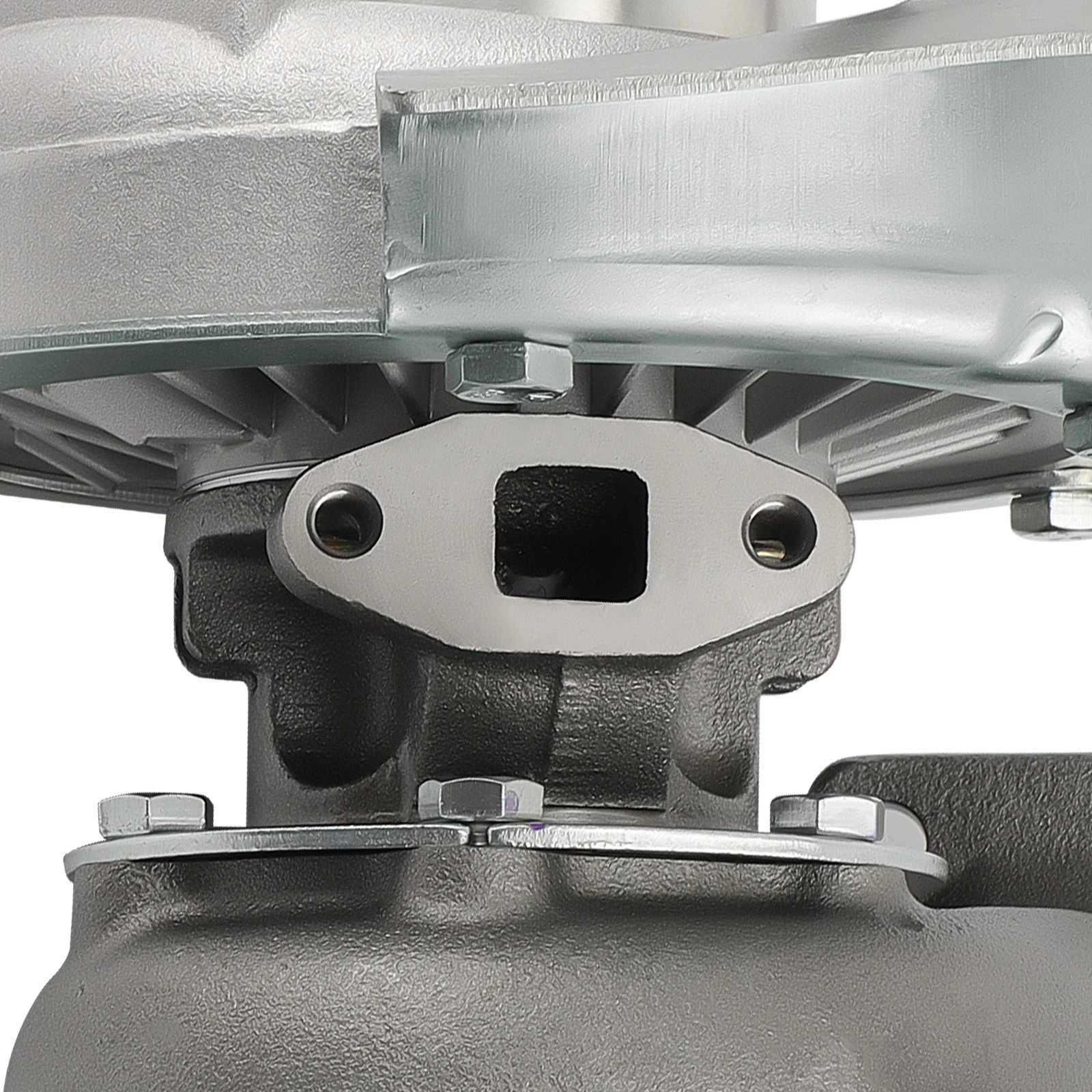

Oil Outlet: 2M8*1.25

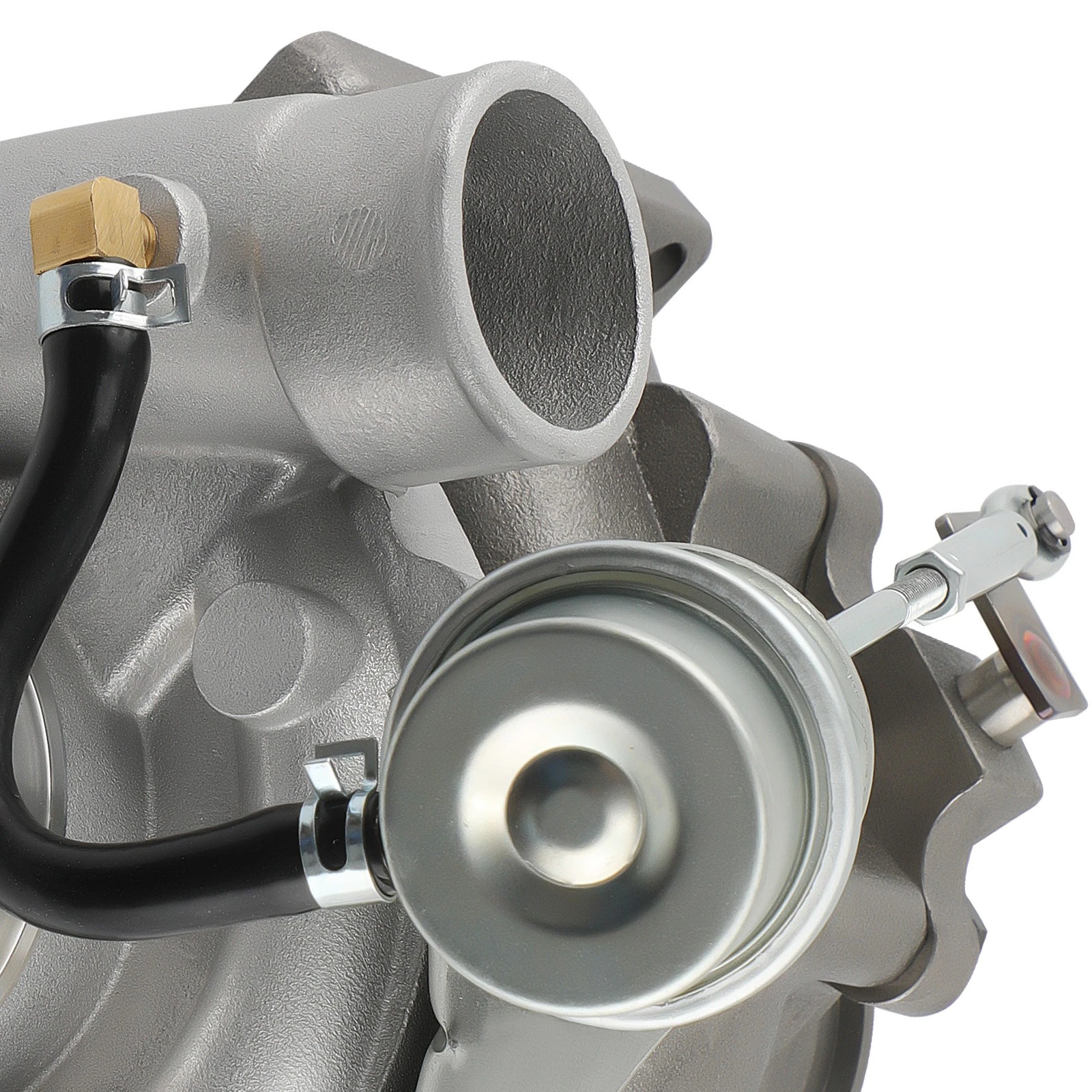

Wastegate:With Wastegate
Thrust Bearings: 270 Degrees
Turbo Type: Individual
Condition:  Brand New

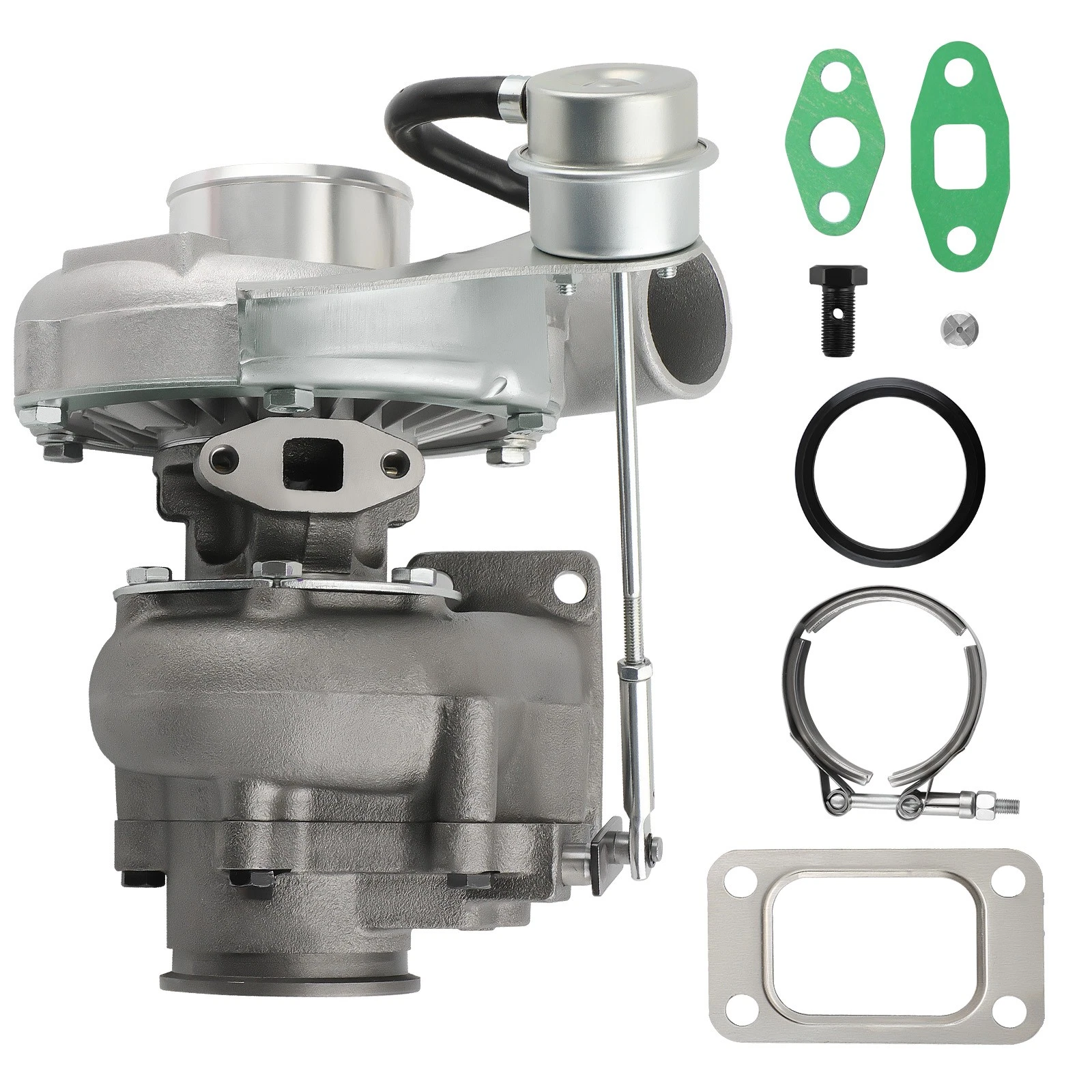

Accessories: You will get exactly as shown as picture above

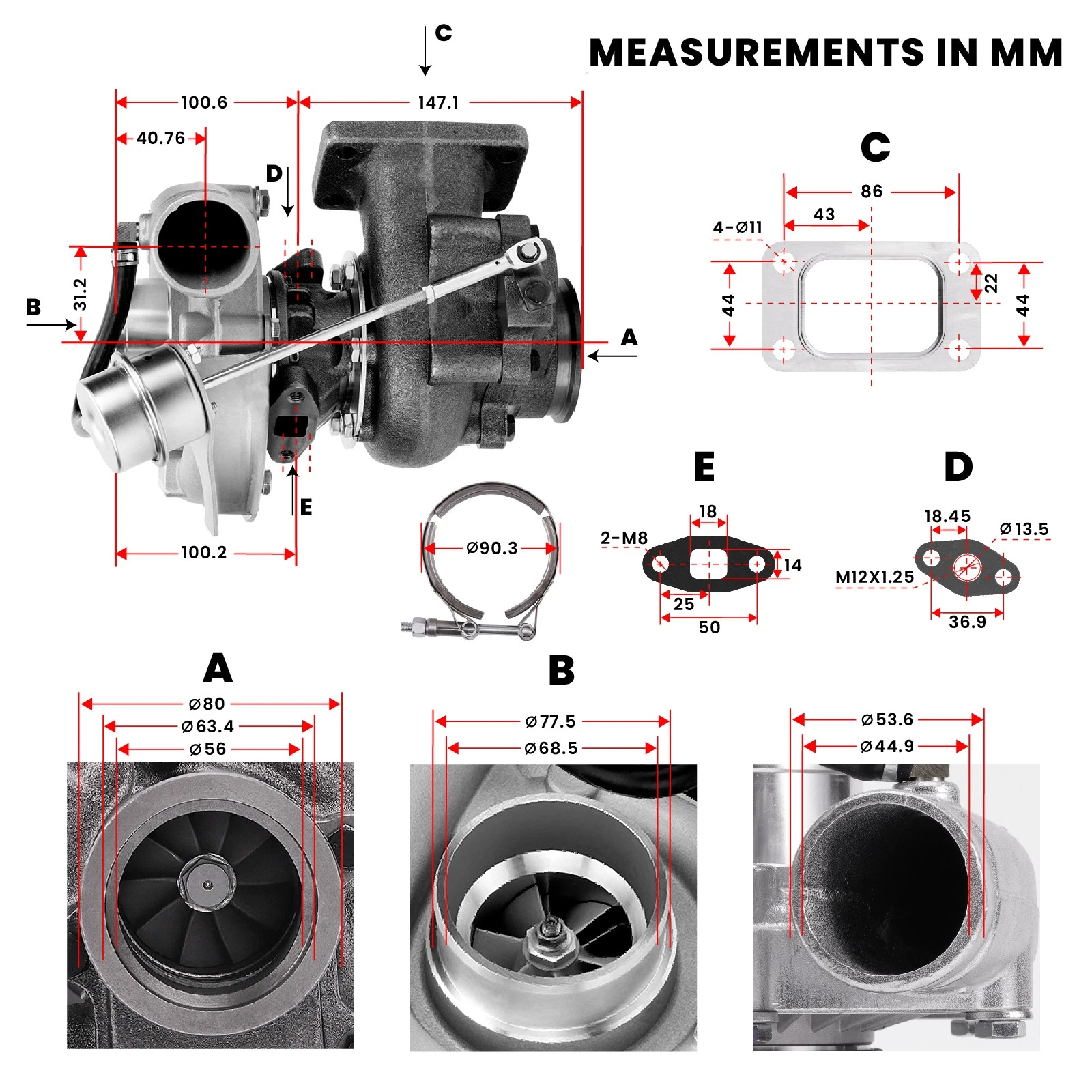

Specification

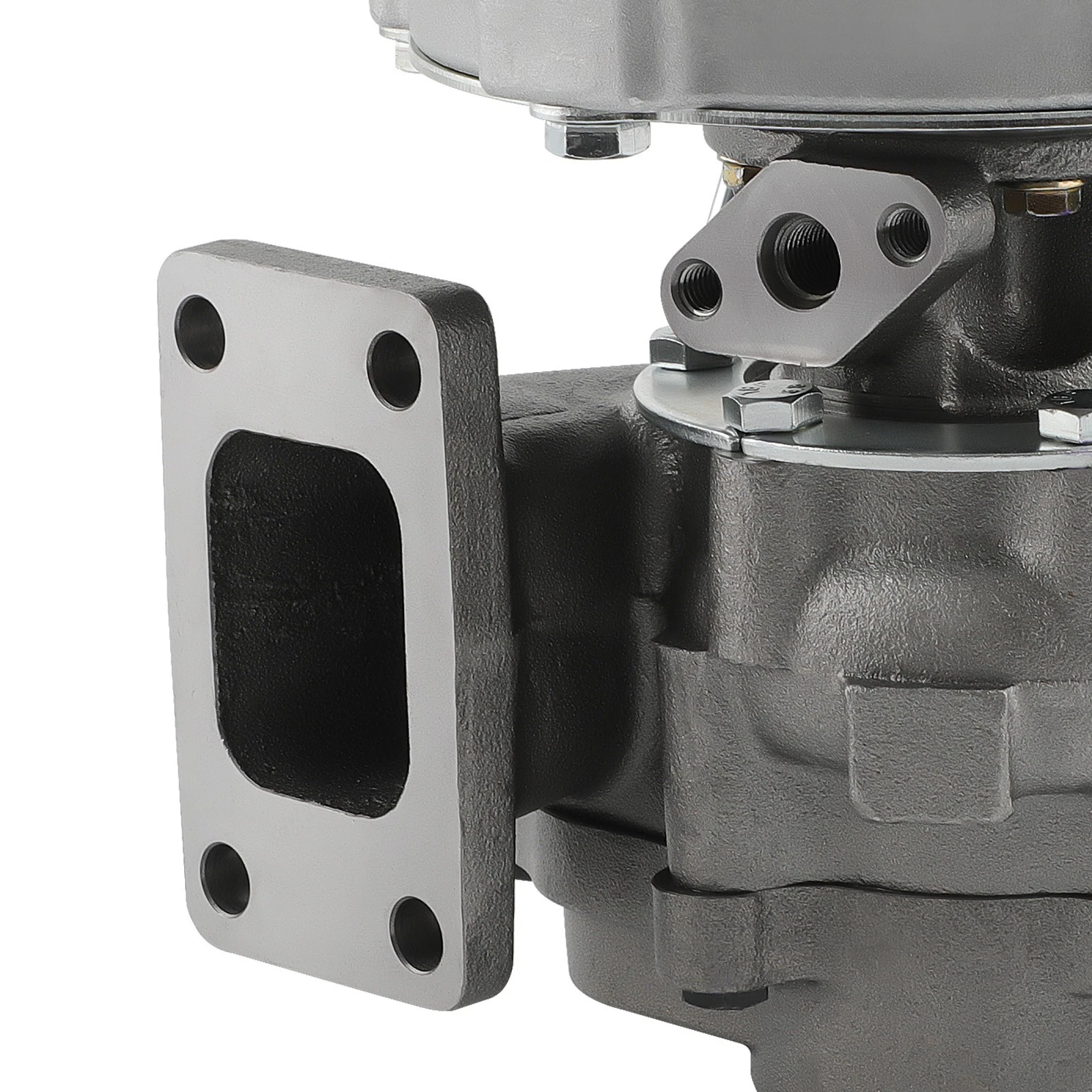

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

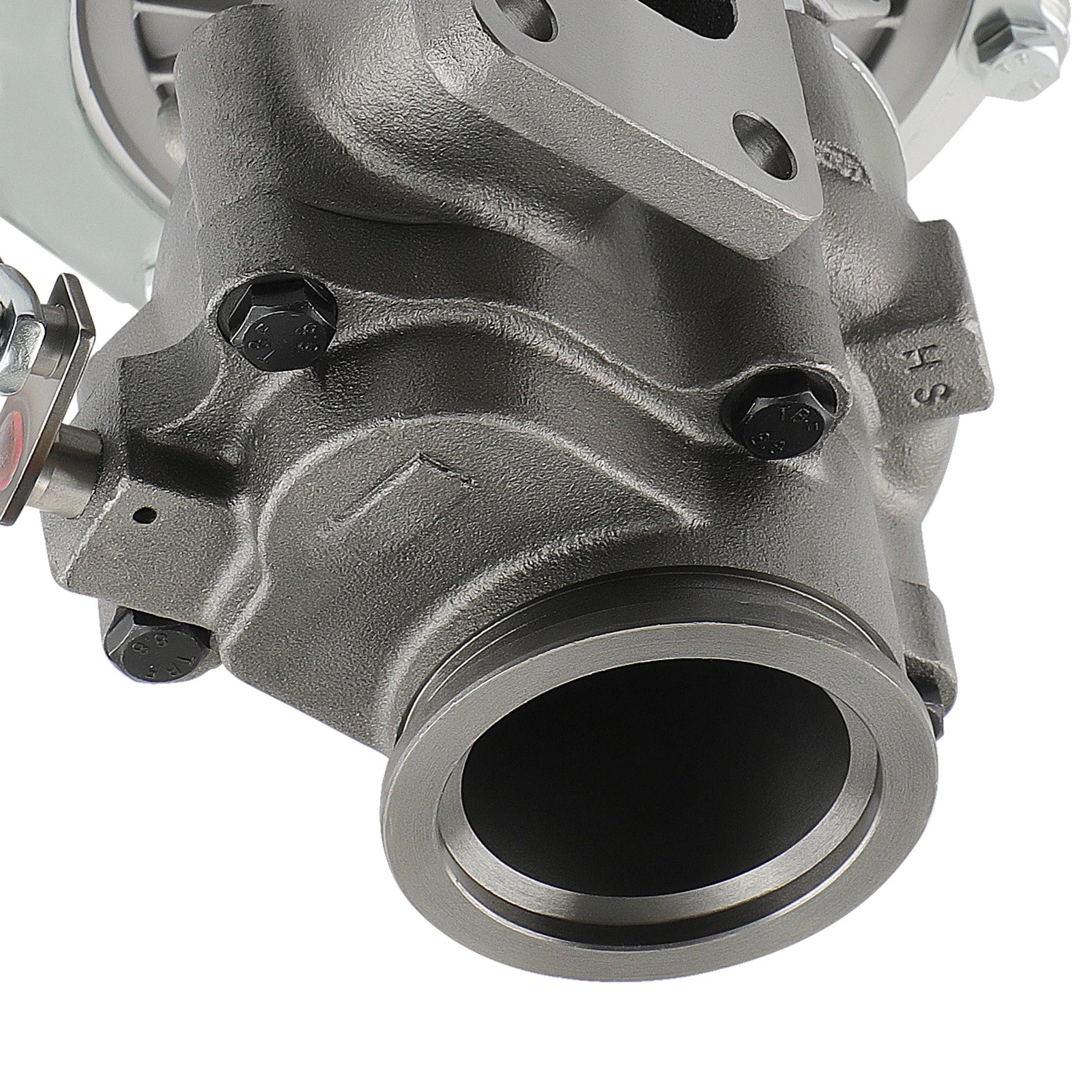

Exhaust Outlet  Flange: V-Band Flange  (ID/OD: 2.5"/3.1")
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Turbine exhaust  outlet : 79mm
Turbine exhaust inlet:44.7mm(length)/85.8mm(width)

Compressor outlet:78 mm
Compressor inlet:51.5 mm
Compressor Trim: 48.1

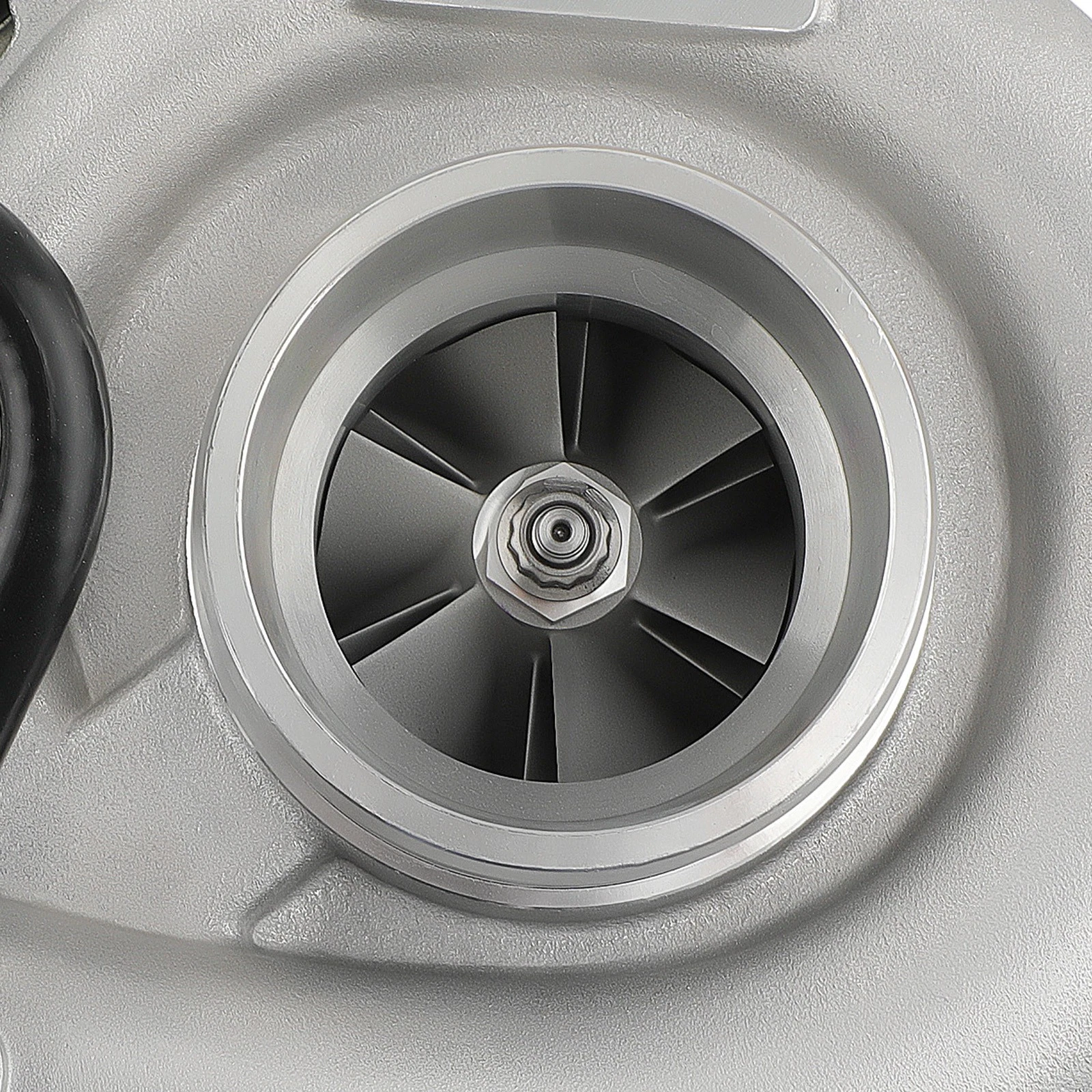

Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing

*Product Material*
Turbine housing :Ductile iron QT450-10 - temperature resistant up to 700
Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900
Compressor housing:ZL104 aluminum with lightweight
Compressor wheel/blades:Cast aluminium blades – superior air tightness & corrosion resistance

*Product Features*
Cost-effective turbo increase 20-40% power for your car
Rich experience in turbo production and own factory
High-Speed oil seal ring and Precision clearance
Built for durability and strength

*Technology Advantage*
100% balancing Test by TURBOTECHNICS VSR3
G3-min-Flow VNT Turbo testing
Advanced Actuator Tester/Programmer

SKU MTV-maX-145
Brand MAX
Shipping Weight 9.1800kg
Shipping Width 0.280m
Shipping Height 0.300m
Shipping Length 0.240m
Shipping Cubic 0.020160000m3
