This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
2.5" 64mm Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.

Fitment
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled

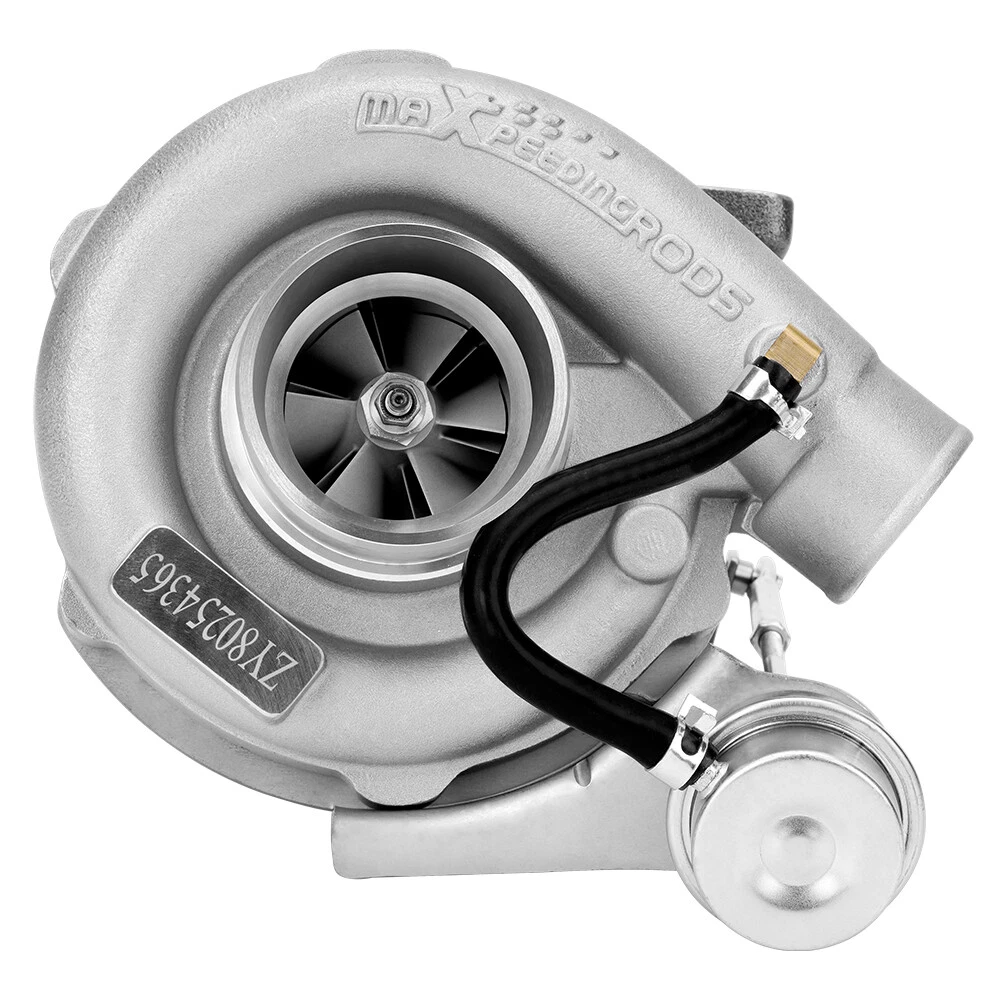

Specification

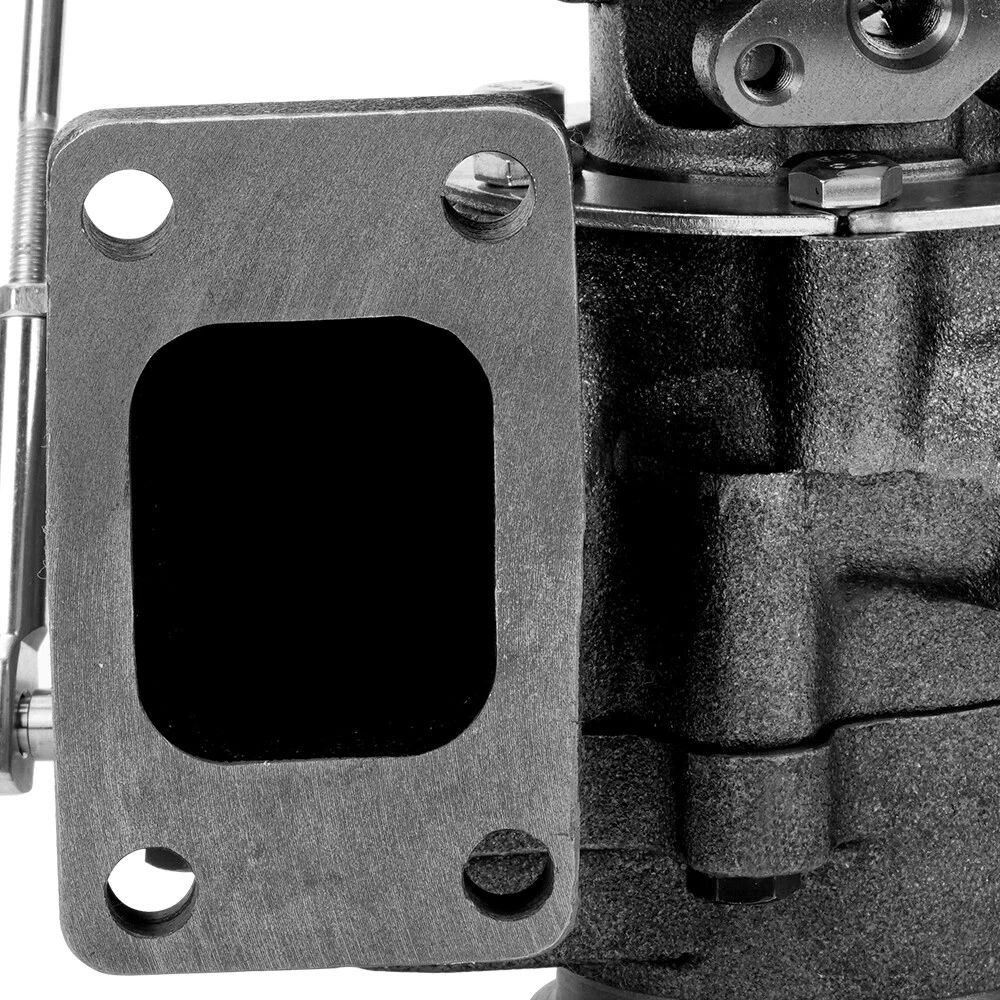

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

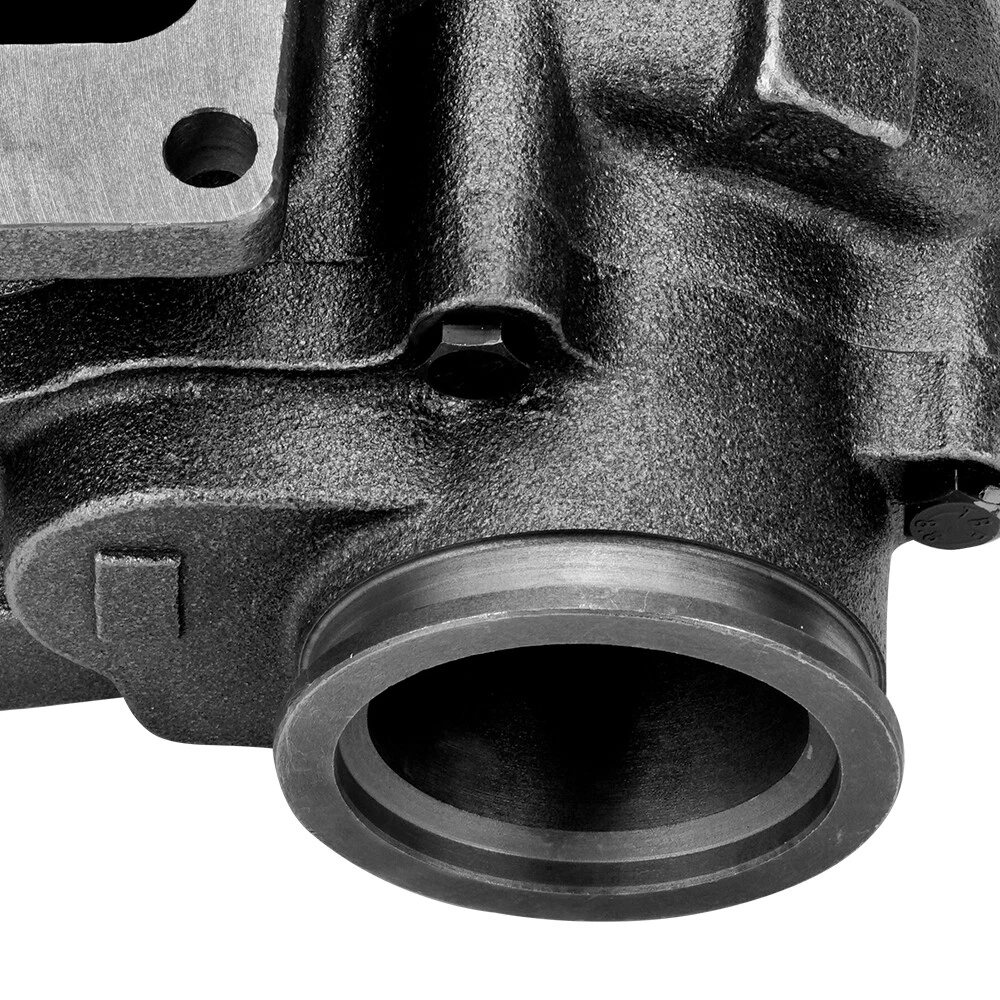

Exhaust Outlet Flange: V-Band Flange
Turbine Trim: 73
Turbine Inducer Diameter:  65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63

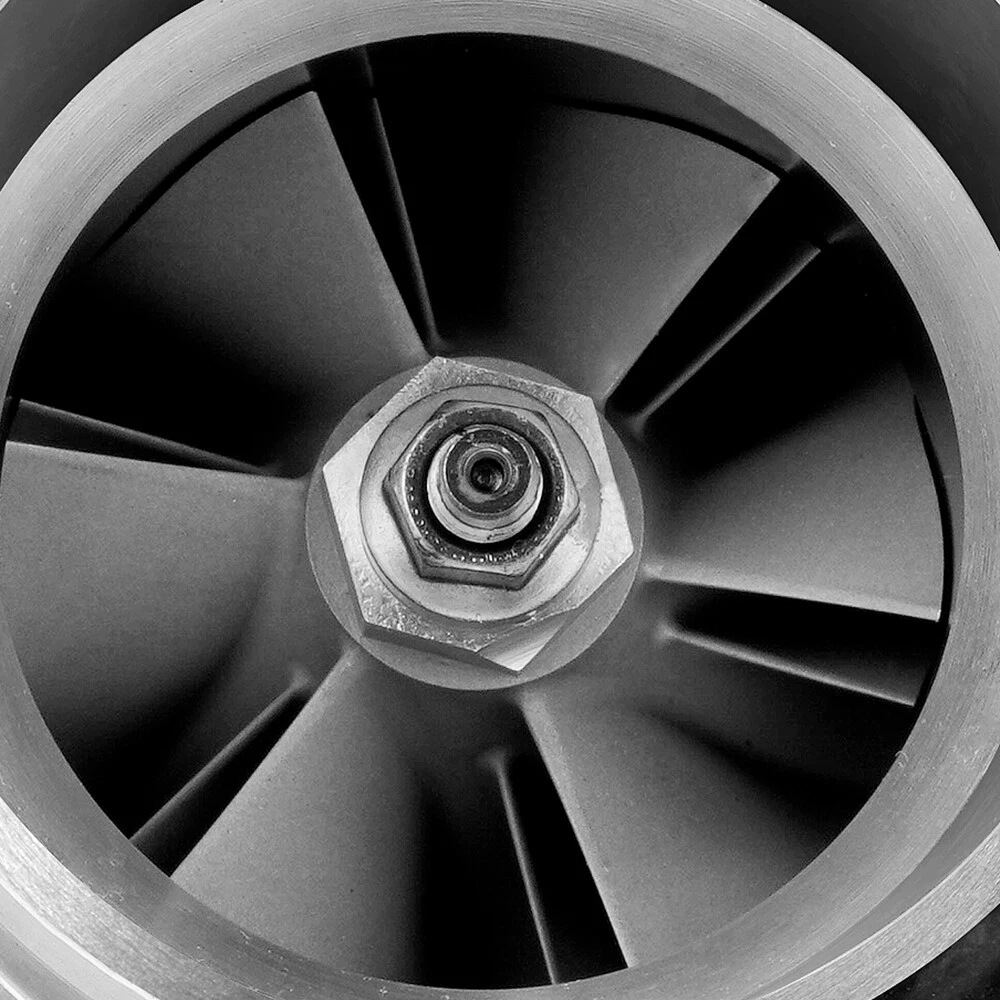

Compressor Trim: 55
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Internal Wastegate: Yes

Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
100% brand new  Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

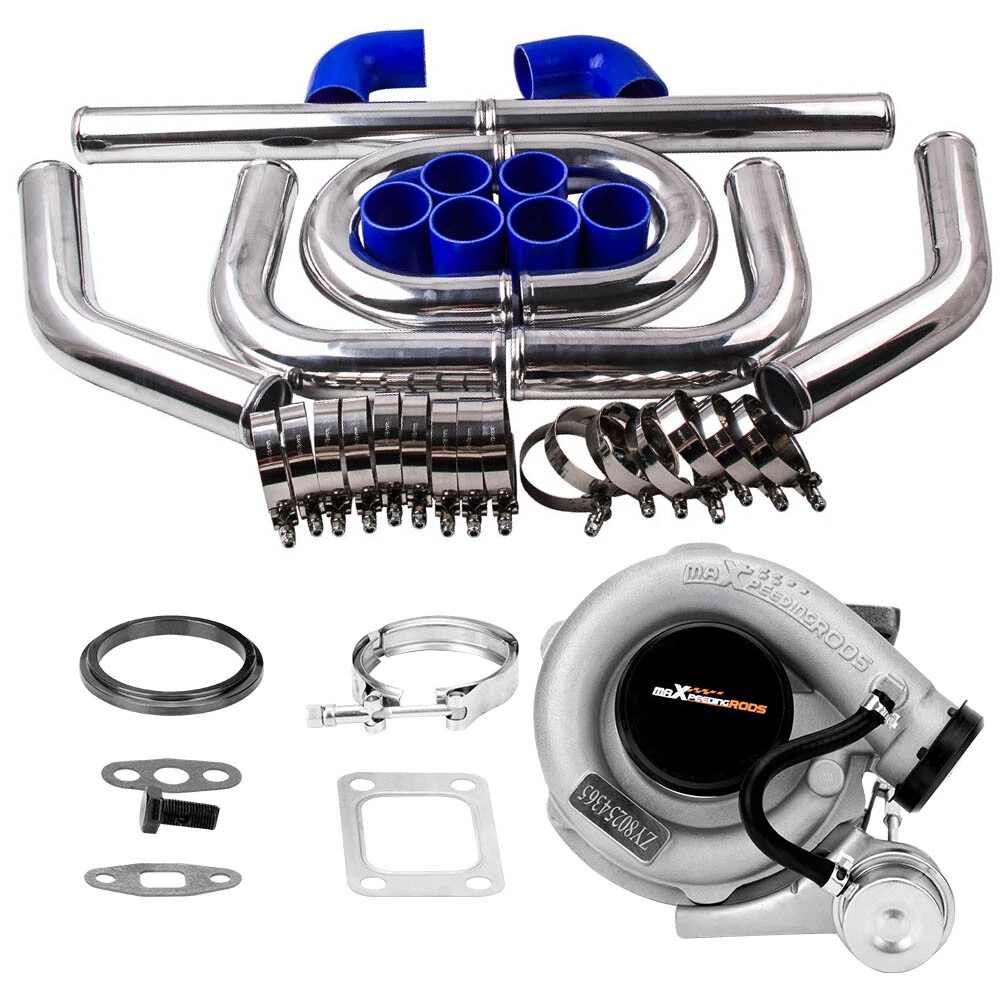

Package Including

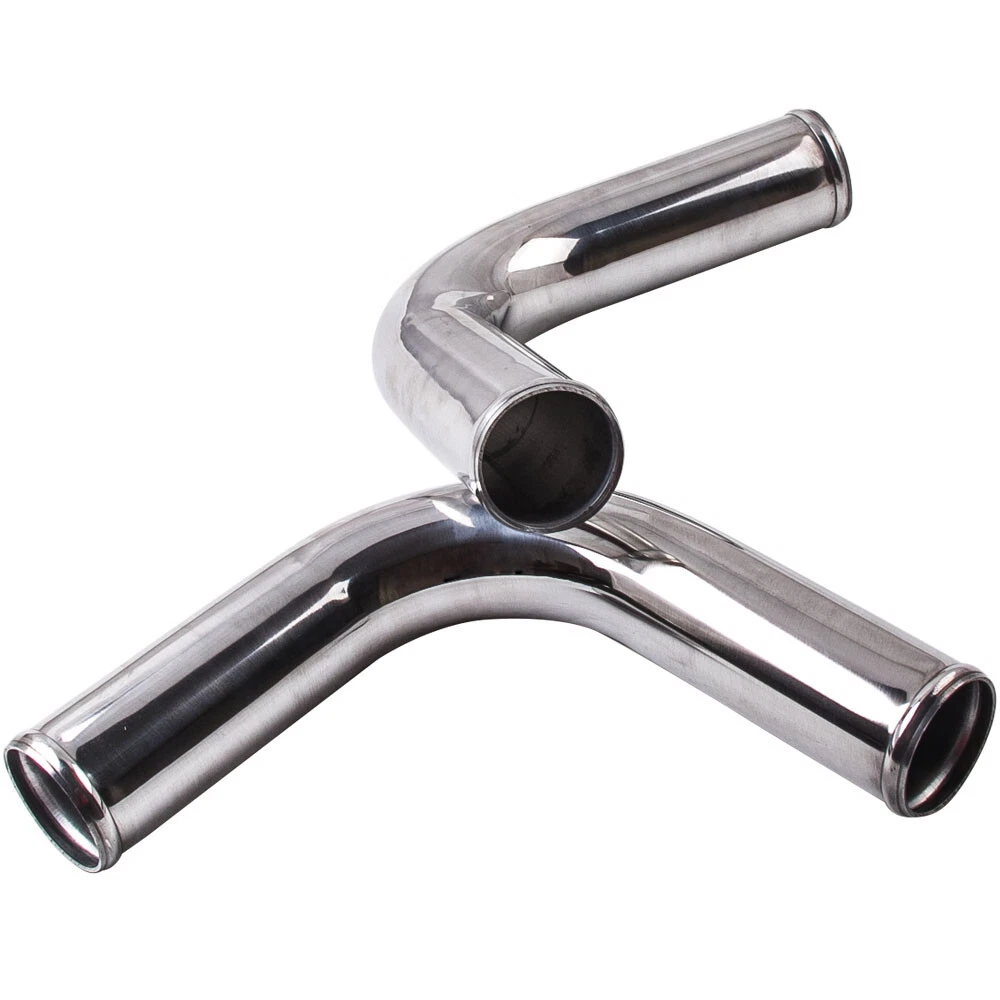

2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"

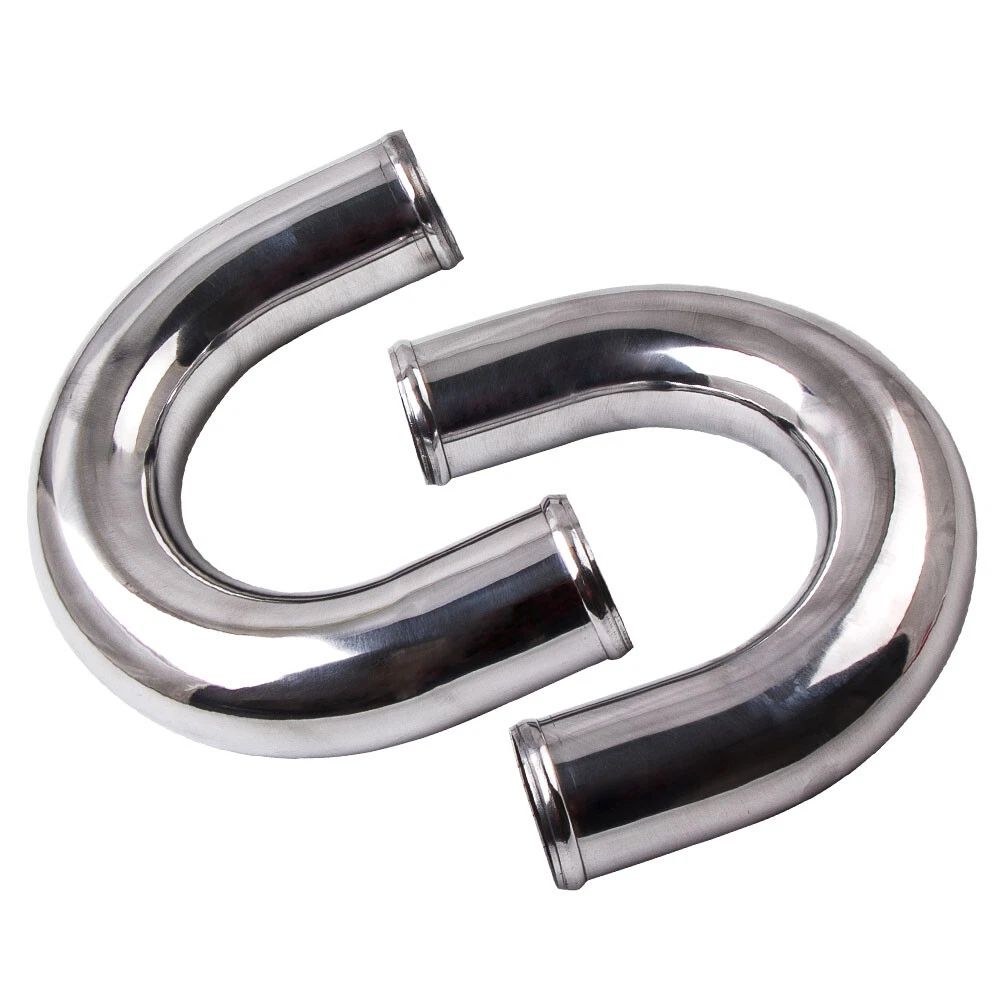

2x U Aluminum Pipe×2 2.5"

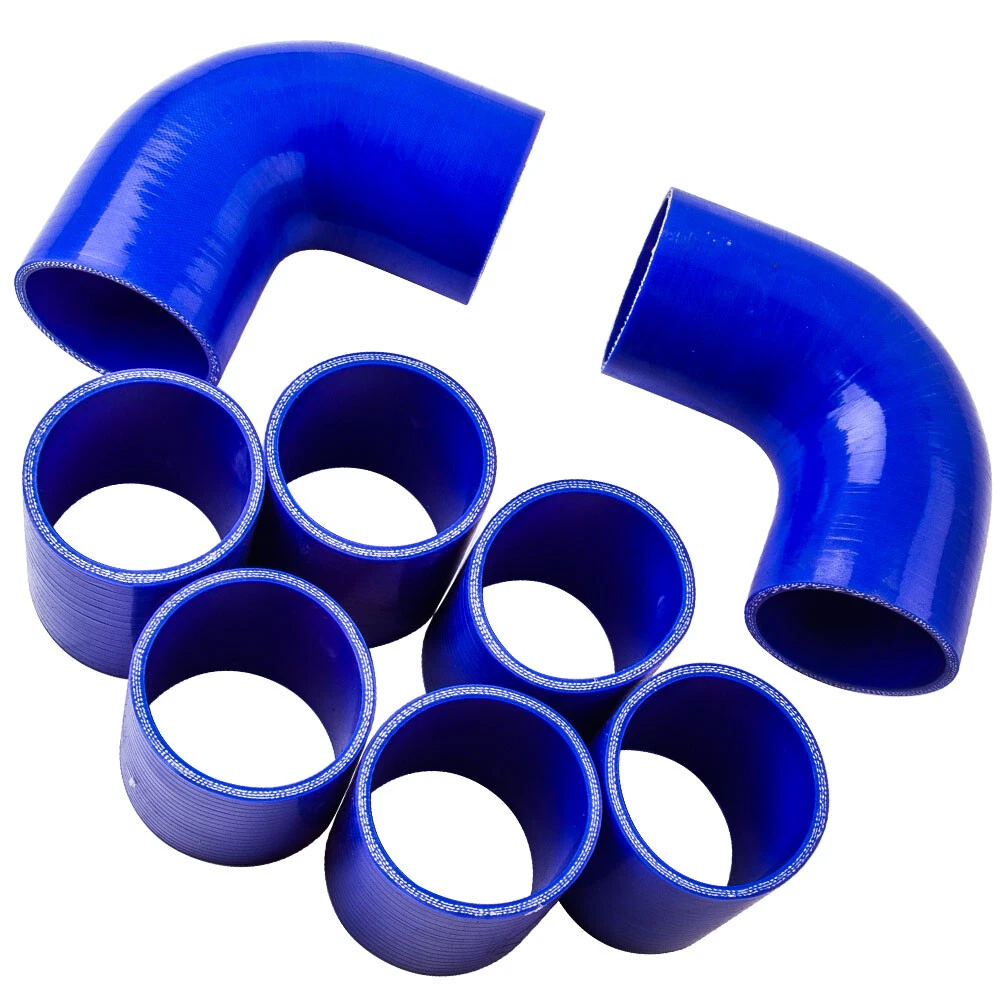

6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
1x Turbo and gaskets

Note
Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
This is universal application turbo, so modification might be required for some vehicles
Professional installation is highly recommended (No Instruction Included)

SKU MTV-maX-045
Brand MAX
