This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

Fitment
Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adapter is needed).
Perfect for all 1.5L-2.0L engine, for all 4 cylinder
Horse Power: Boost Horse Power up to 350BHP

Specification
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60

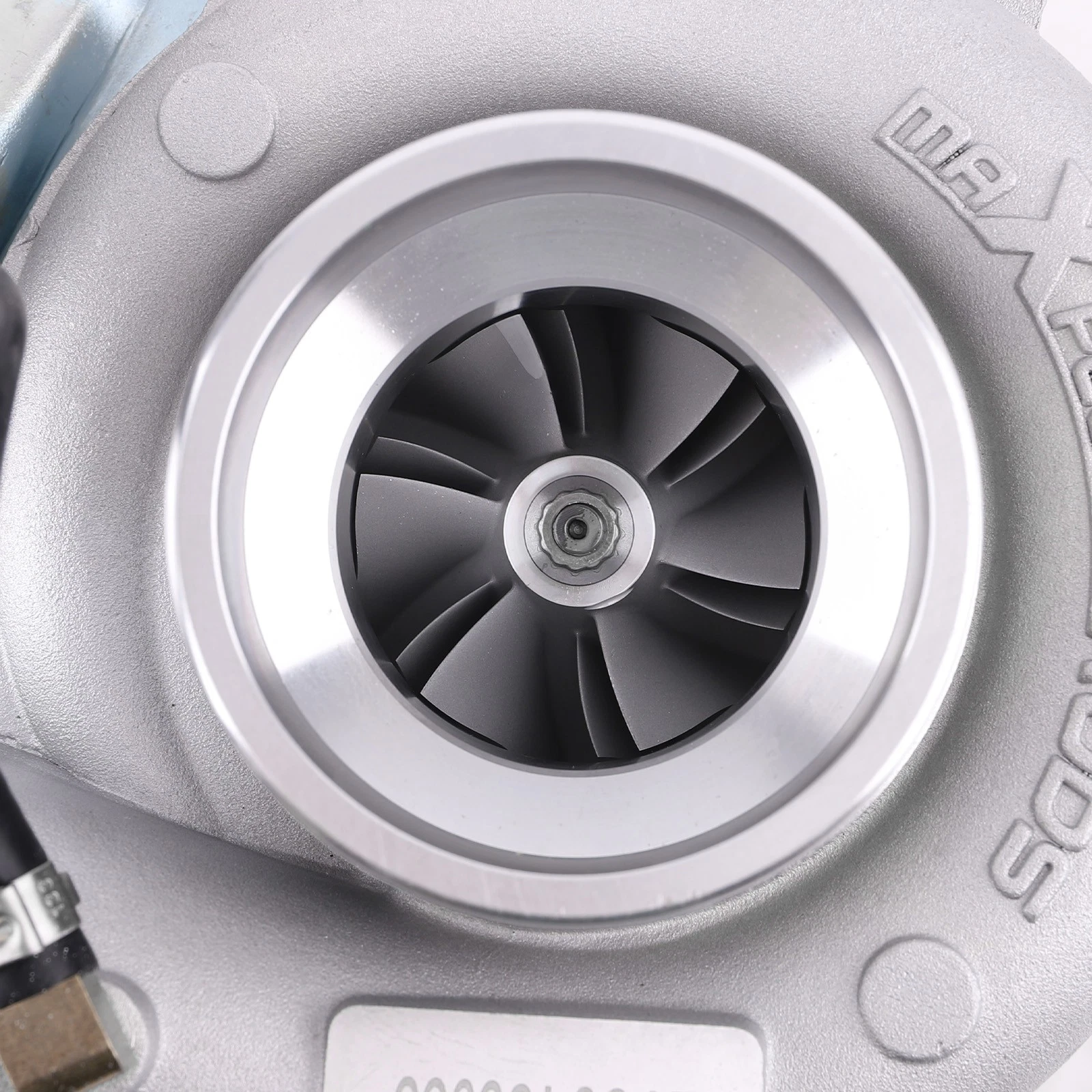

Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil

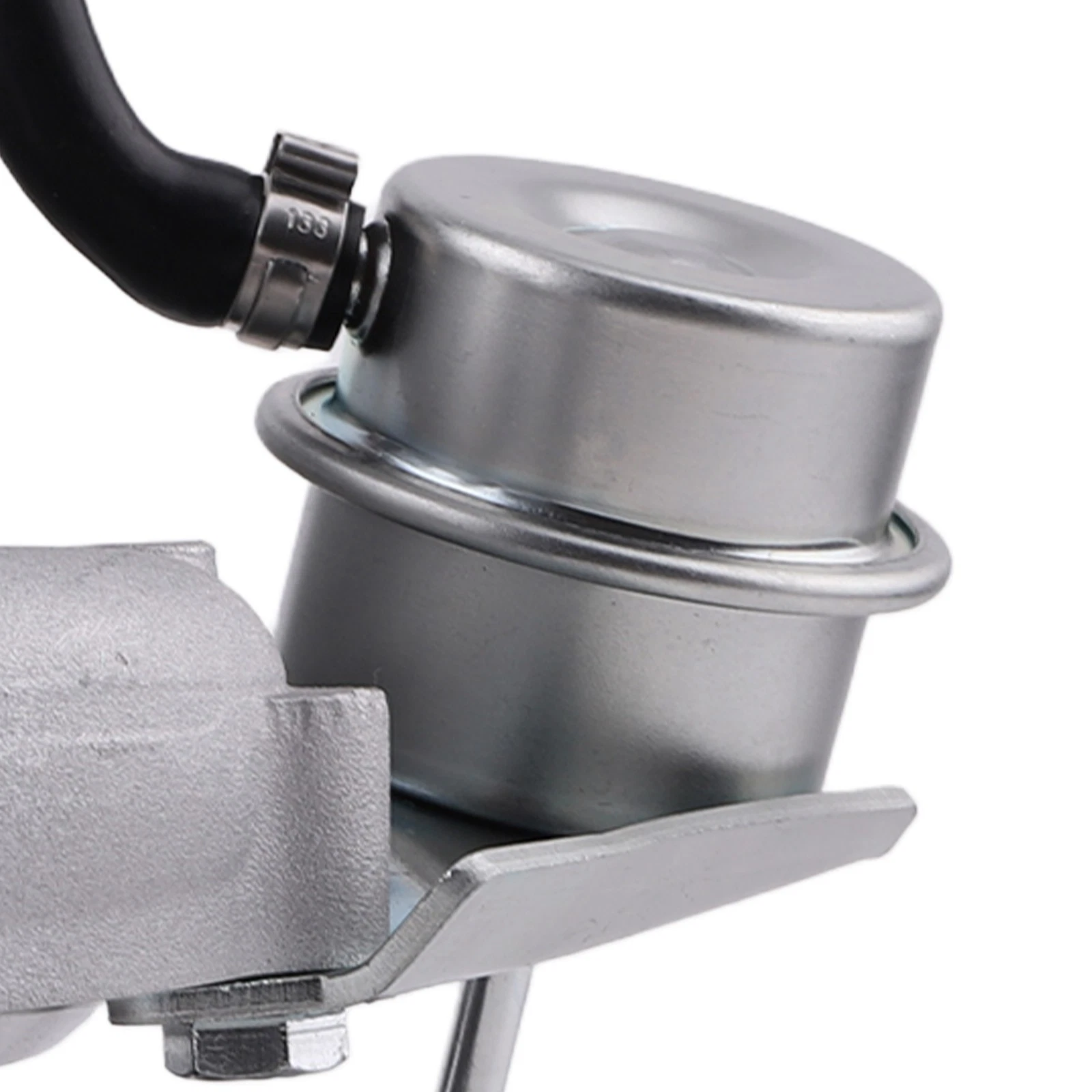

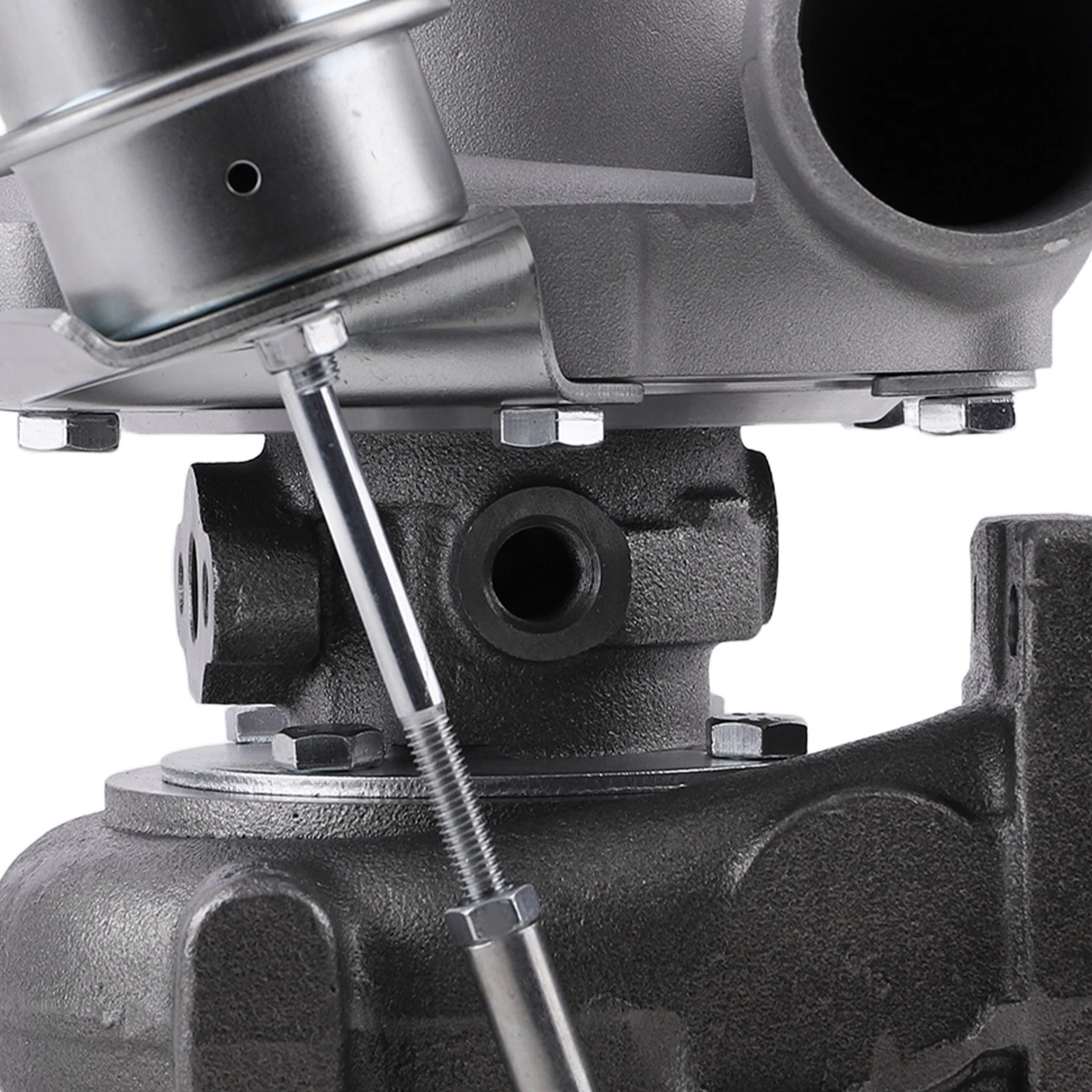

Wastegate: with Wastegate
Oil Restrictor: Yes
Oil Restrictor Size: inside diameter 2mm

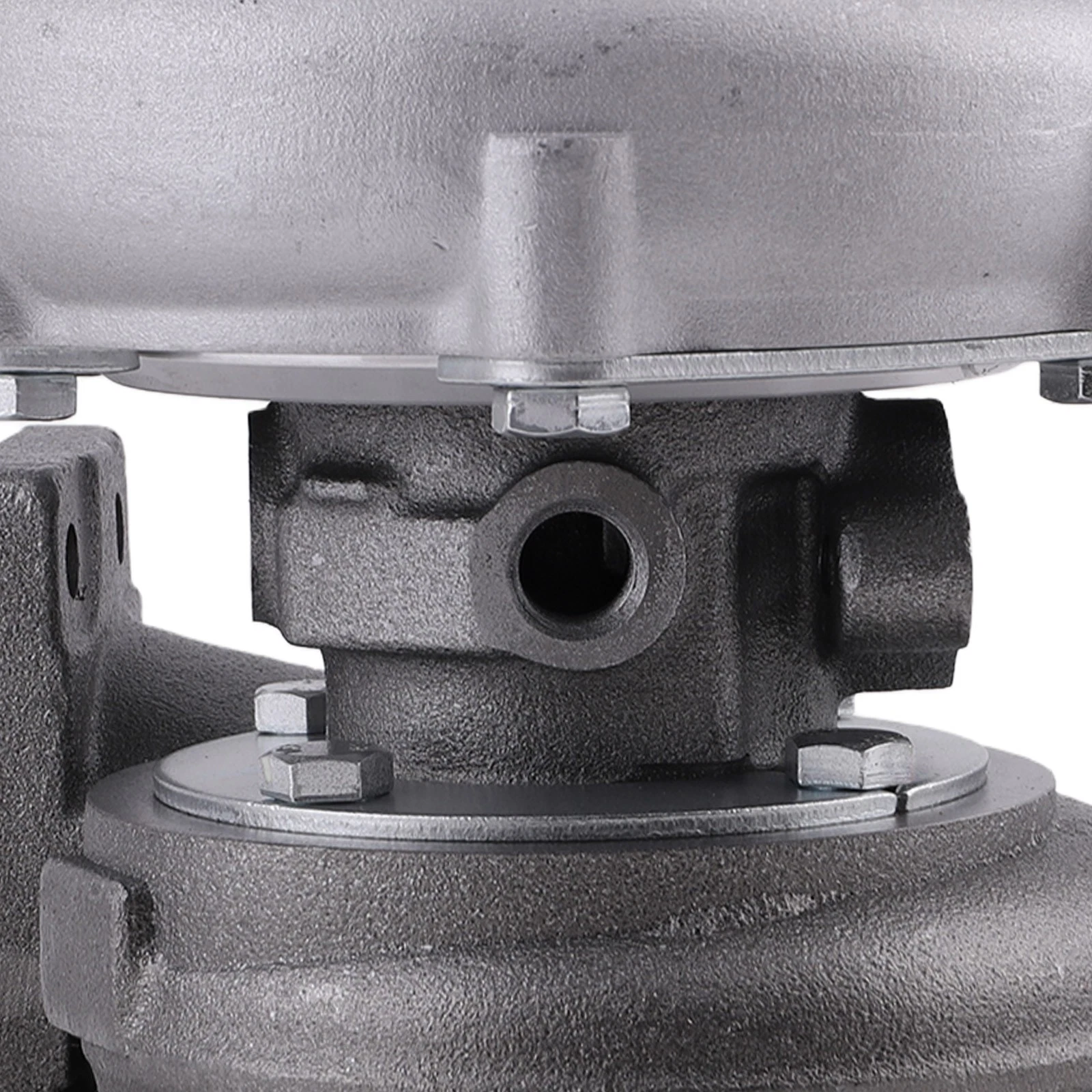

Oil Feed Size: 12mm
Oil Inlet: M121.25

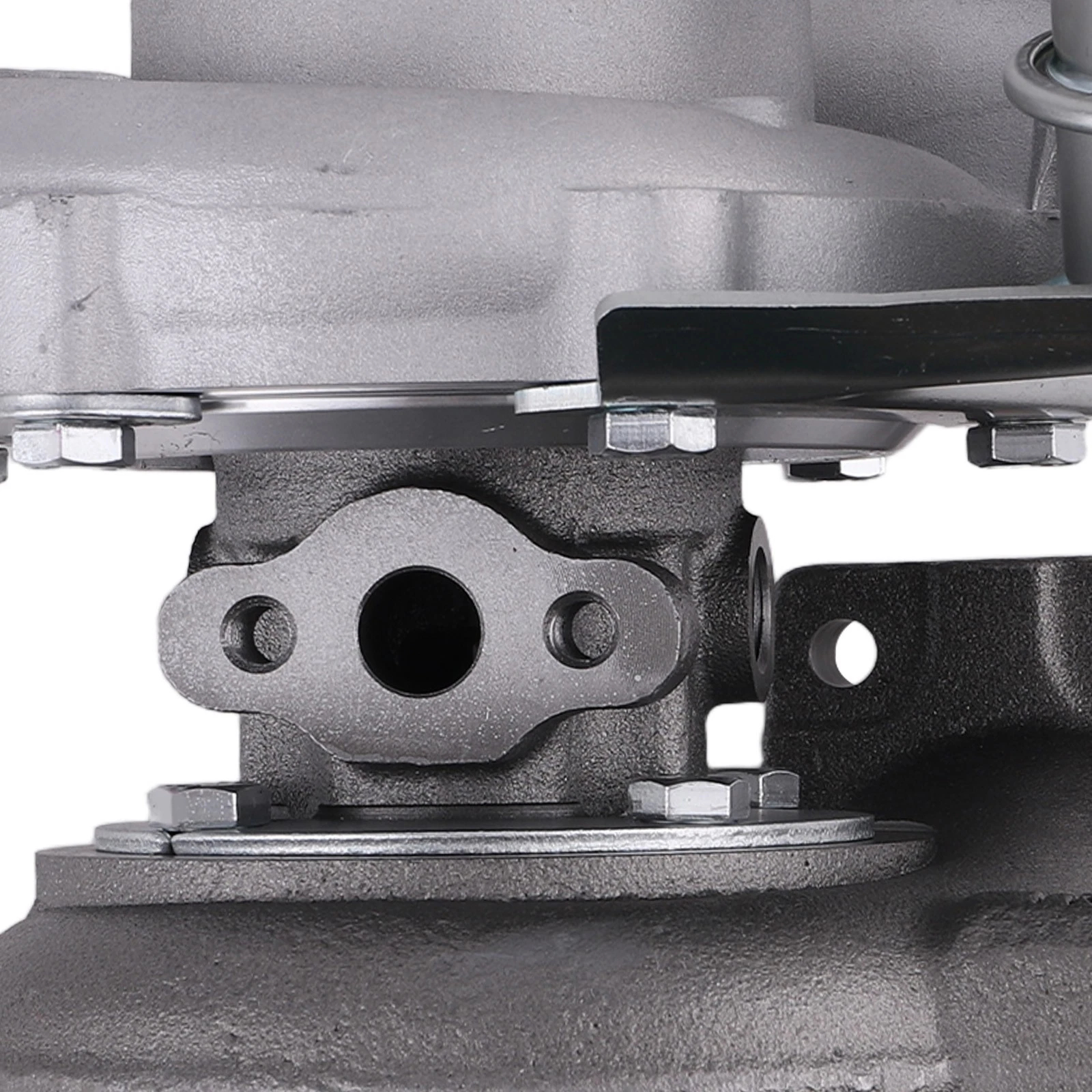

Oil Drain Size: 14mm
Oil Outlet: M14 & 2M81.25
Oil Drain Thread Pitch: 40mm
Water Thread Size: M141.5
Horse Power: Boost Horse Power up to 350BHP

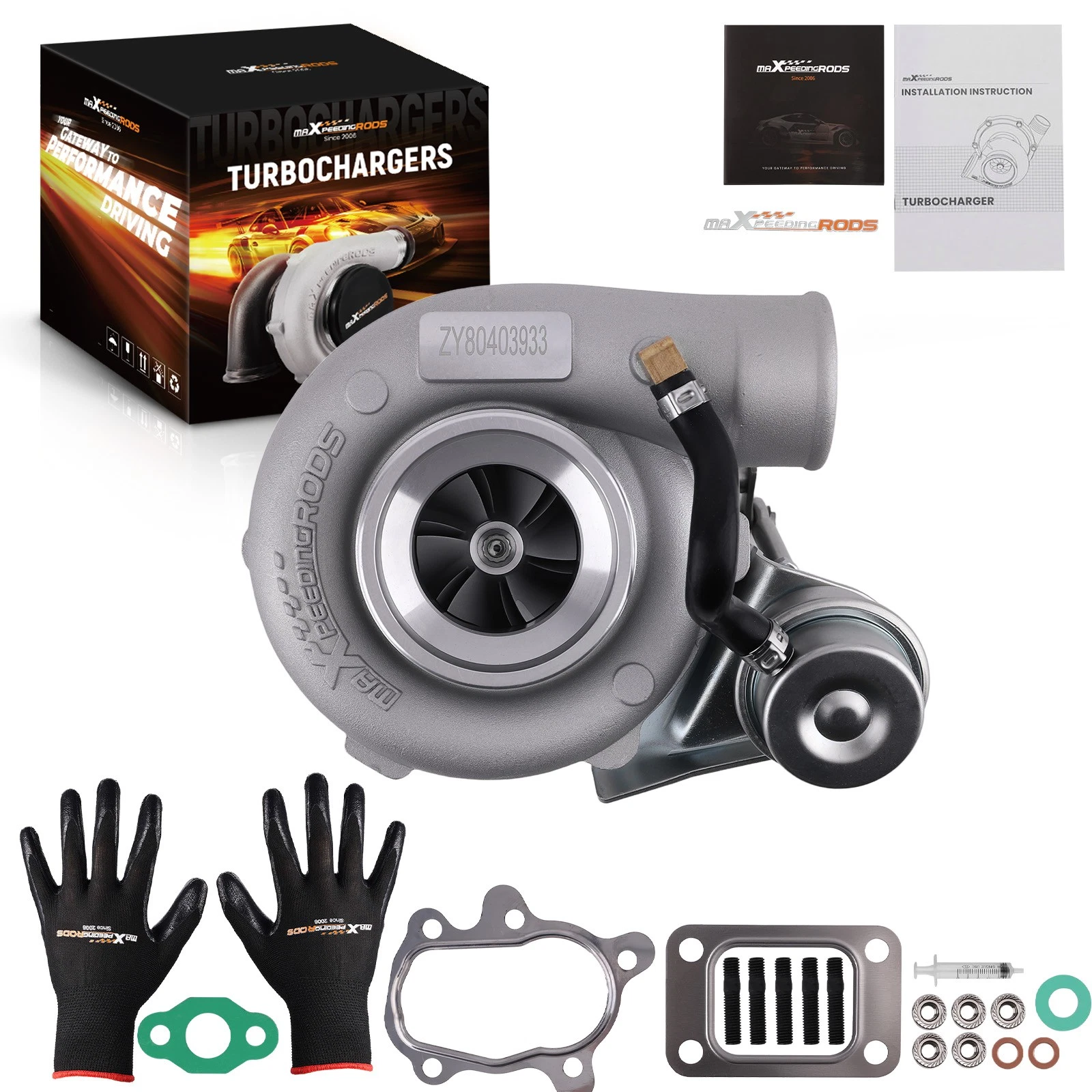

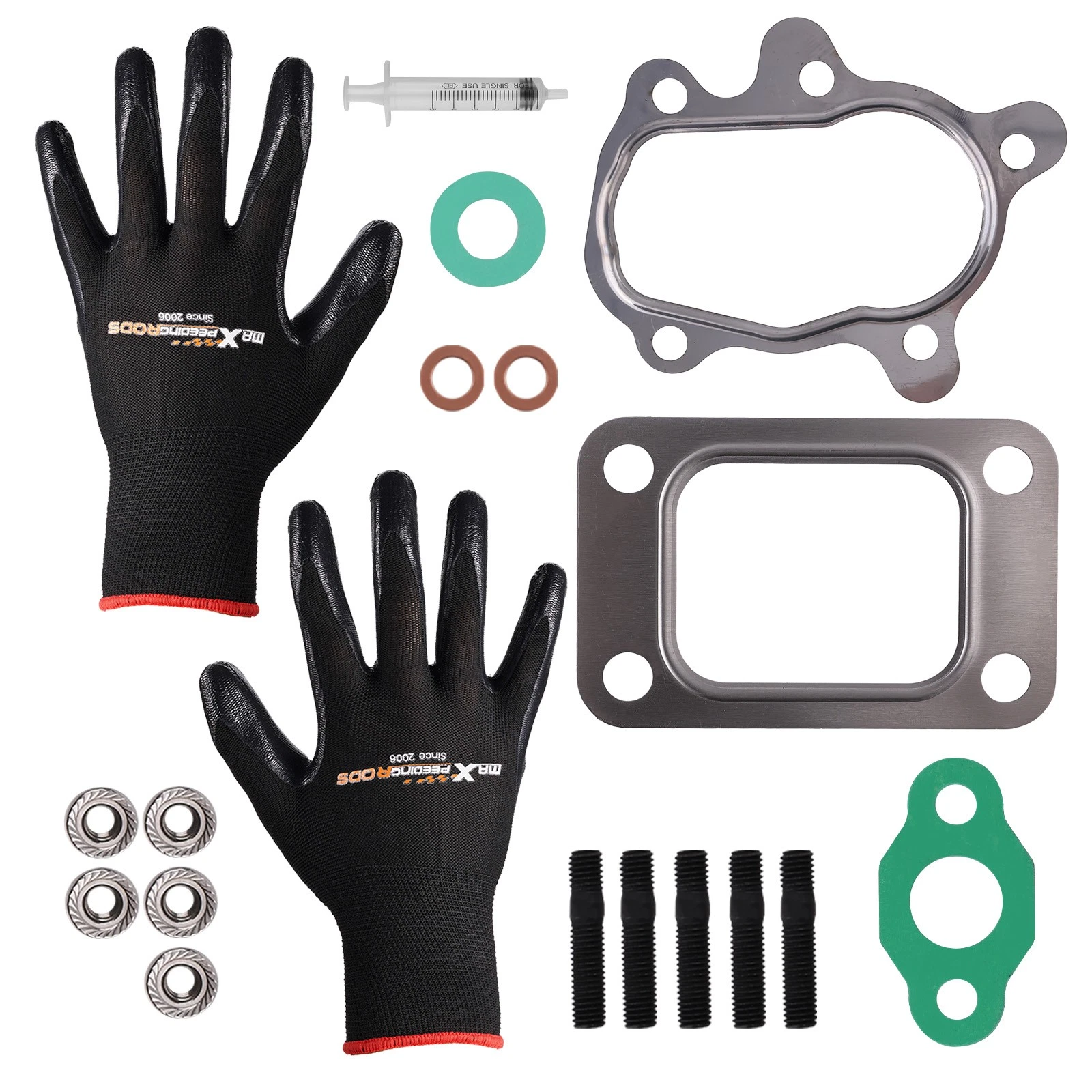

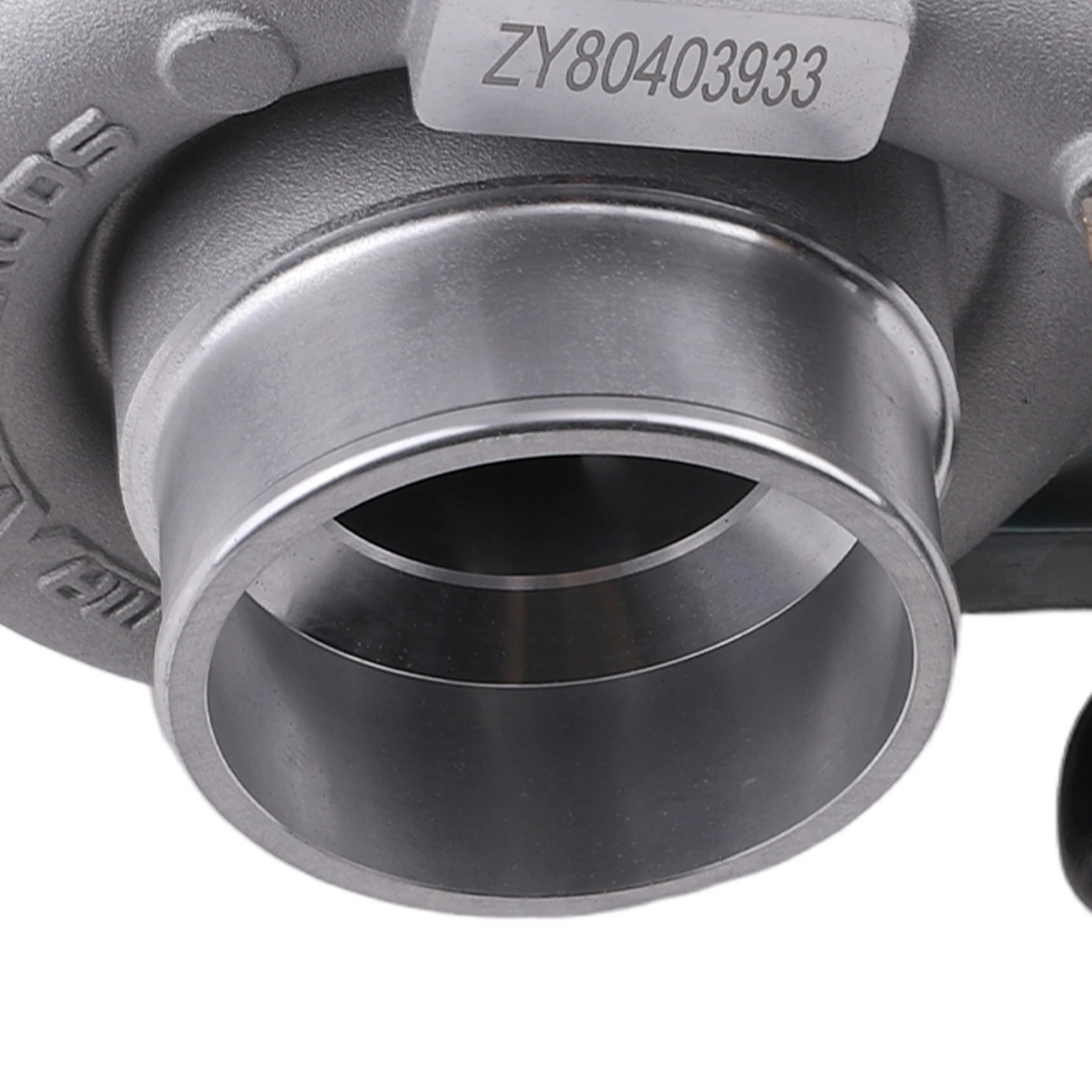

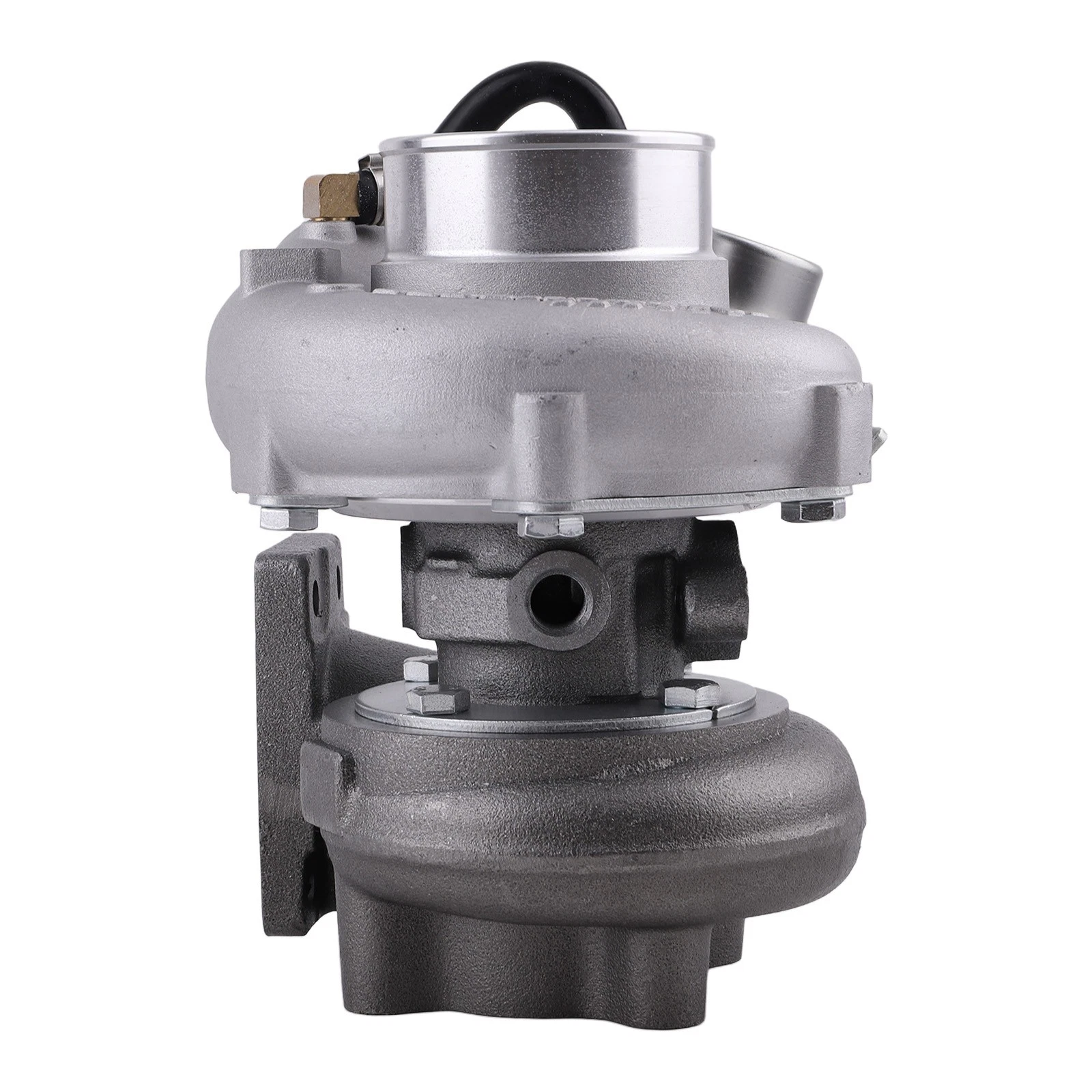

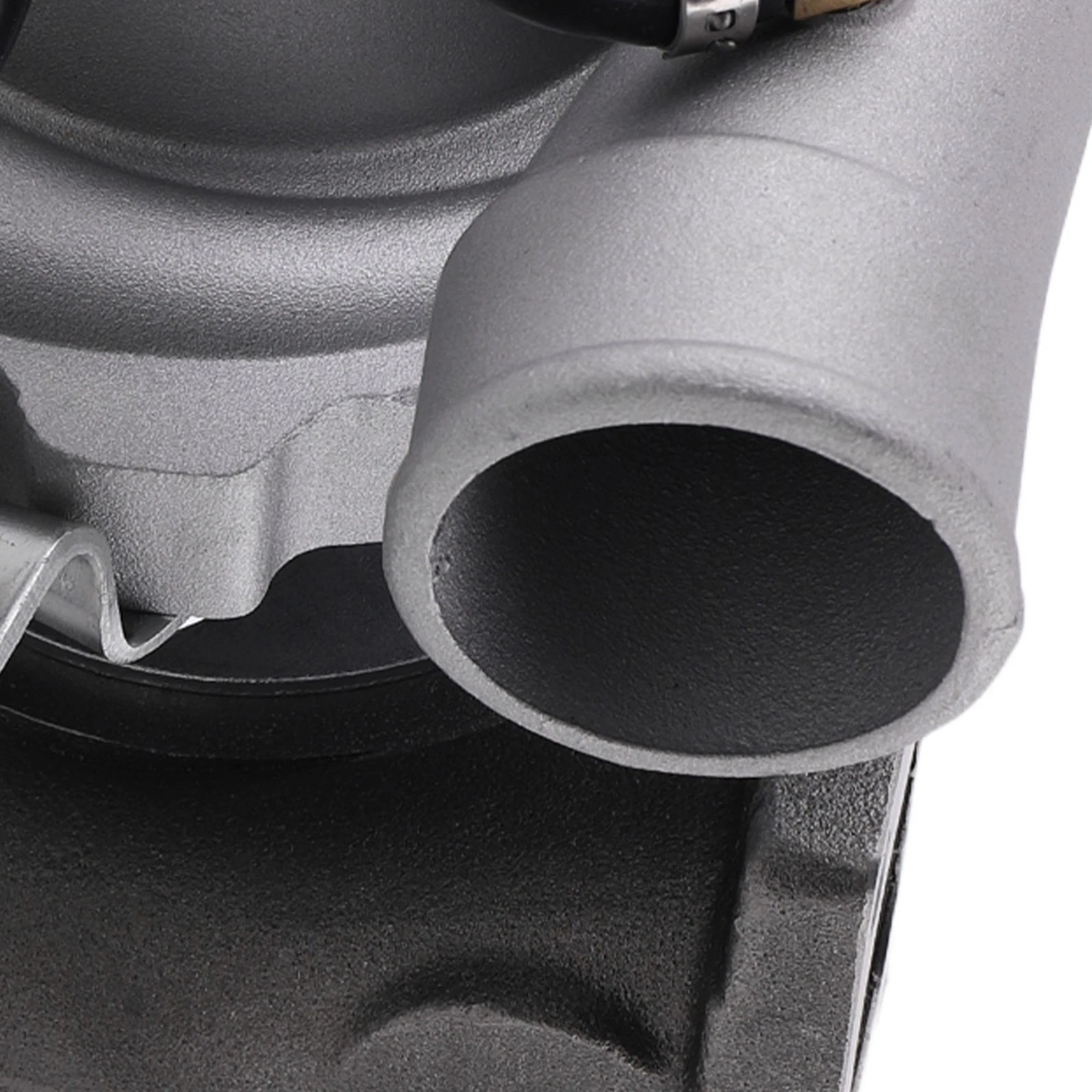

Accessories: You will get exactly as shown as picture above

Note
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Gasoline car must install a water cooling device to avoid overheating.
Ensure exhaust outlet are well sealed by welding
The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

SKU MTV-maX-046
Brand MAX
