Fitment

For Citroen Berlingo 1.6 HDi engine: DV6B DV6ATED4 1560 ccm 55 Kw - 75Ps 1996-2008,
For Citroen Berlingo 1.6 HDi engine DV6B DV6ATED4 1560 ccm 66 Kw - 90PS 1996-2008,
For Citroen C3 1.6 HDi engine DV6B DV6ATED4 1560 ccm 66 Kw - 90PS 2005-2011,
For Citroen C4 1.6 HDi engine  DV6ATED4 1560 ccm 66 Kw - 90PS 2004-2008,
For Citroen Jumpy 1.6 HDi engine DV6B DV6ATED4 1560 ccm 66 Kw - 90PS 1995-2007,
For Citroen Xsara 1.6 HDi engine DV6B DV6ATED4 1560 ccm 66 Kw - 90PS 1997-2006,
For Peugeot 207 1.6 HDi engine DV6ATED4 1560 ccm 66 Kw - 90PS 2005-2012,
For Peugeot 307 1.6 HDi engine DV6ATED4 1560 ccm 66 Kw - 90PS 2004-2008,
For Peugeot 308 I 1.6 HDi FAP engine DV6ATED4 1560 ccm  66 Kw - 90PS 2007-2011,
For Peugeot Expert 1.6 HDi FAP engine DV6UTED4 1560 ccm 66 Kw - 90PS 2007-2012,
For Peugeot Partner 1.6 HDi engine DV6ATED4 DV6B 1560 ccm 55 Kw - 75PS 2002-2008,
For Peugeot Partner 1.6 HDi engine DV6ATED4 DV6B 1560 ccm 66 Kw - 90PS 2002-2008,
For Ford Fiesta VI 1.6 TDCi engine DV6ATED4 1560 ccm 66 Kw - 90PS 2002-2008,
For Ford C-MAX 1.6 TDCi engine DV6ATED4 1560 ccm 66 Kw - 90PS 2003-2007,
For Ford Focus II 1.6 TDCi engine HHDA 1560 ccm  66 Kw - 90PS 2005-2010,
For Ford Fusion 1.6 TDCi engine DV6ATED4 1560 ccm 66 Kw - 90PS 2004-2008,
For Volvo S40 / V50 1.6L Engine DV6B DV6ATED4 1996-2008

Please NOTE this item does not fit 110hp or 109ps engine
DOES NOT fit vehicle with OE: 806291-1/2/3/5
NOTE: Features a Mechanical Actuator, NOT an Electronic Actuator.

Only suitable for 75/90 HP, please confirm the information before purchasing

Specification

Turbo Model：TD025
Engine Code：DV6ATED4/ DV6B / DV6UTED4

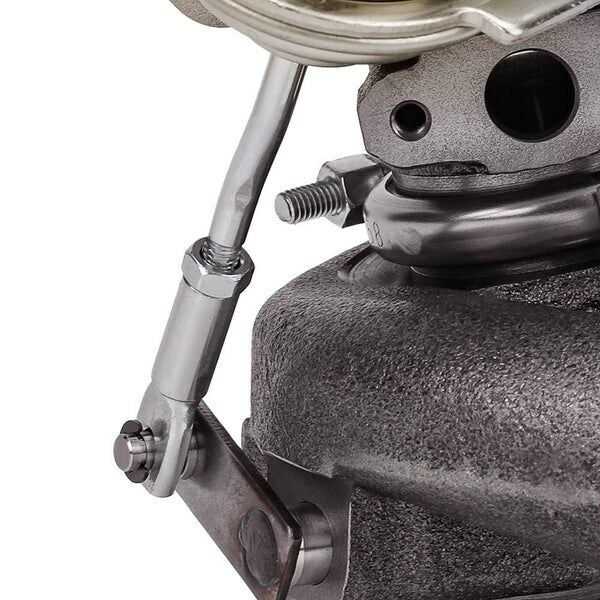

Actuation: Vacuum
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 90HP
Condition: Brand New

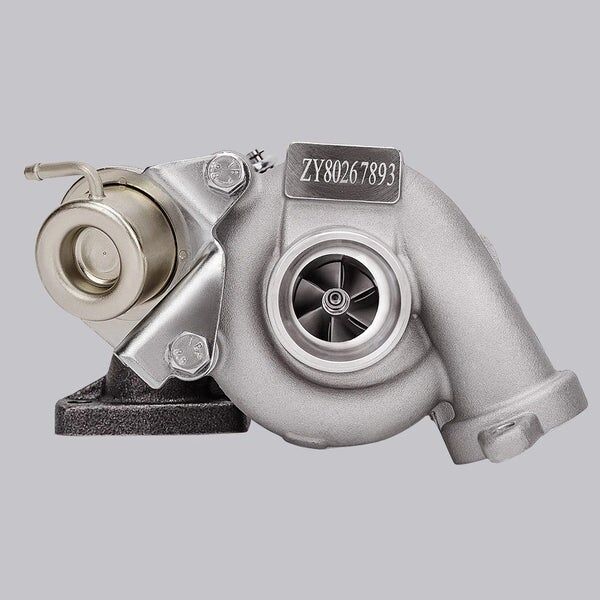

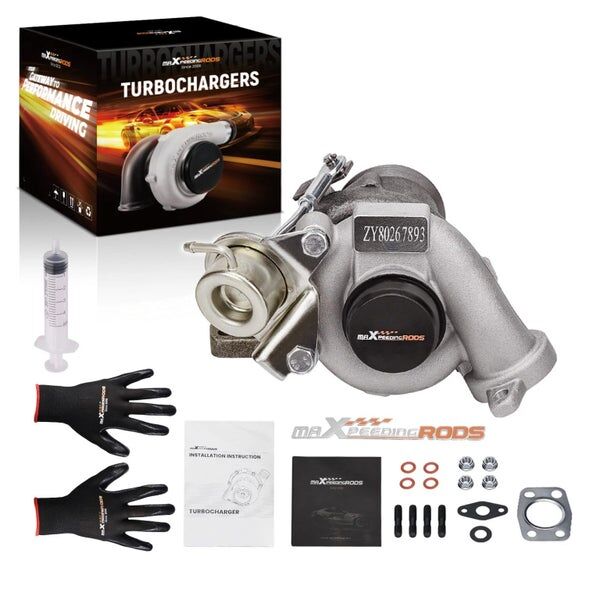

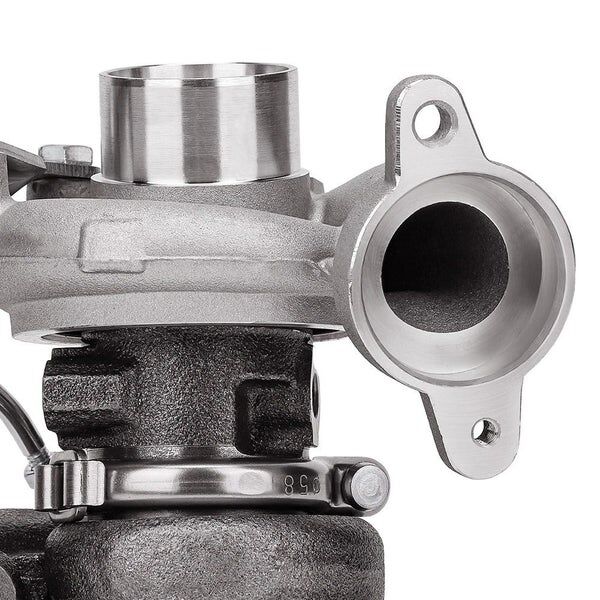

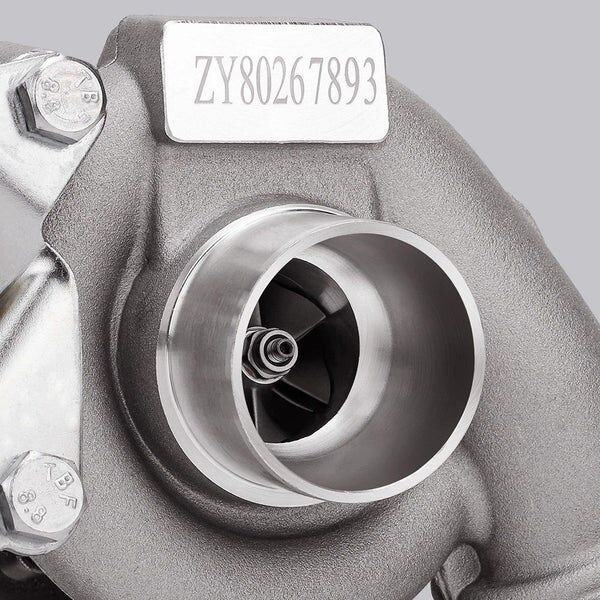

Accessories: You will receive the parts exactly as shown in the picture above.


Part Numbers

49173-07508 49173-07507  49173-07506  49173-07504  49173-07503
49173-07502  49173-07522  49173-07516  49173-07527  49173-07528
49173-07513 , 49173-07514 , 49173-07517
49173-07518 , 49173-07523 , 49173-07524
49173-07526 , 49173-07527，49173-56201
54359707000 , 5435 970 7000 , 5435-970-7000
54359887000 , 5435 988 7000 , 5435-988-7000
0375K5 , 0375Q2 , 0375Q3 , 0375N5
0375J0 , 0375Q5 , 0375Q4 , 0375N0
1684949 , 1335262 , 1441254 , 1479841
1523337 , 71793889 , 71793891 , 71794229
9682881380 , 9685293080 , 9657603780
9670371380 , 9657530580 , 9662371080
9682881780 , 3M5Q6K682DD , 3M5Q6K682DE
3M5Q6K682DC , 3M5Q6K682DA , 3M5Q6K682DB
3M5Q-6K682-DD , 3M5Q-6K682-DE , 3M5Q-6K682-DA
3M5Q-6K682-DB , 3M5Q-6K682-DC

Feature

1. OEM-quality and size with little modification
2. Turbine housing uses cast iron withstand temperatures up to 700
3. Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900
4. Cast aluminium blades with good gas tightness and corrosion resistance
5. The volute is made of nodular cast iron, which can withstand 700 degrees high temperature, and its tensile strength is as high as 450MPa.
6. 100% BALANCING TEST:
This Turbocharger you will receive has been balanced using the VSR machine technology.

​Notice
Please confirm your old turbo part number matches up with one of the part numbers above
Professional installation is highly recommended (No Instruction Included)
