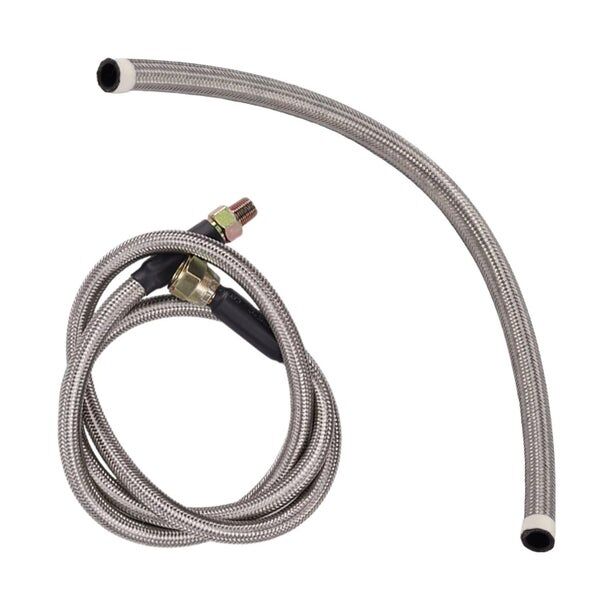

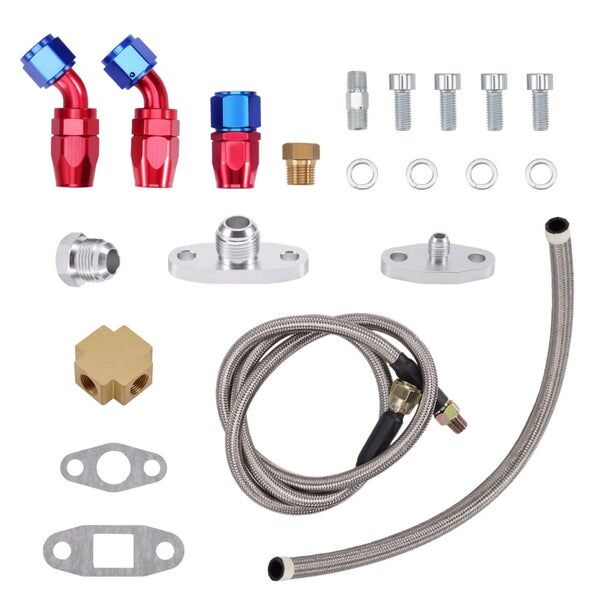

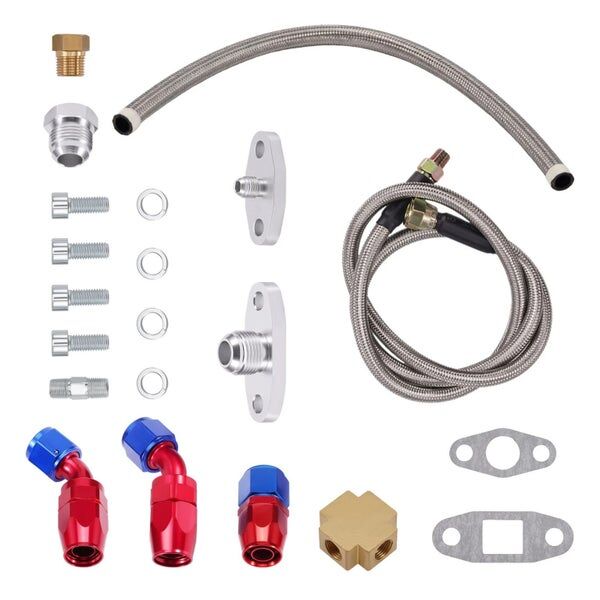

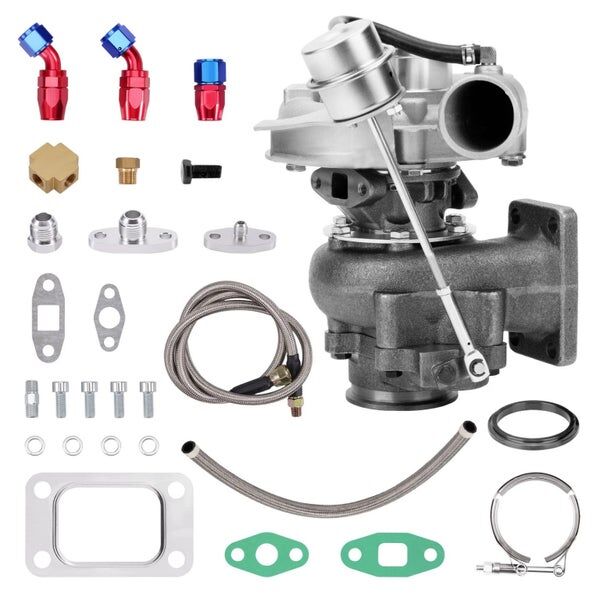

Turbo Oil Feed Line + Turbo Oil Feed Line:

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm

* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

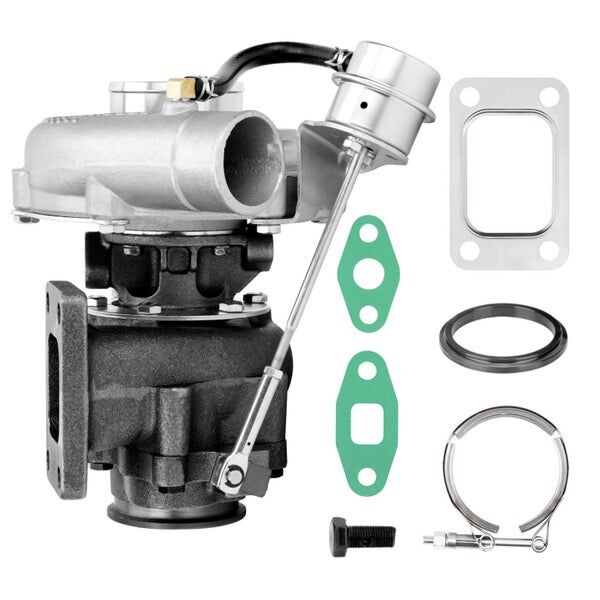

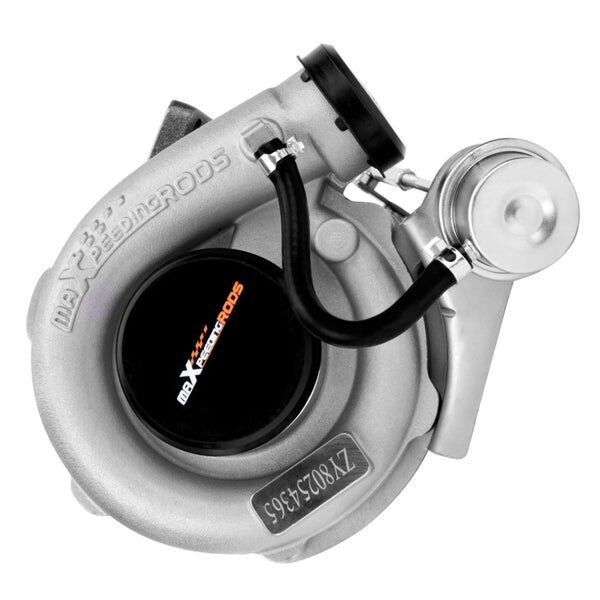

T3 Turbocharger:

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled



Specification

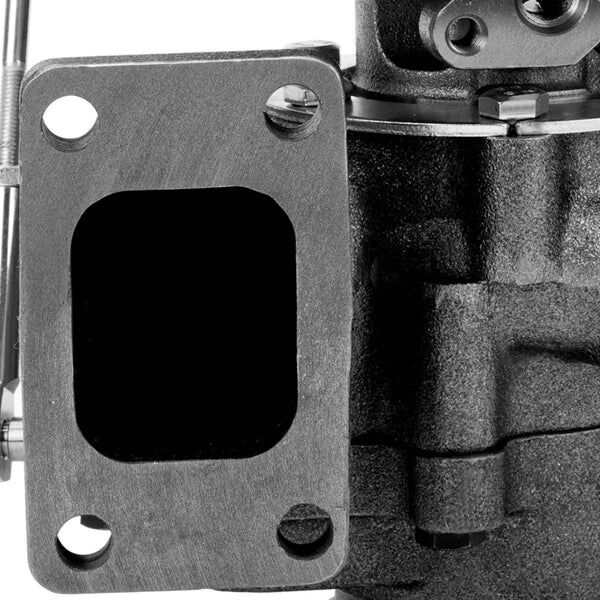

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet () Flange: V-Band Flange
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Turbine exhaust  outlet : 79mm
Turbine exhaust inlet:44.7mm/85.8mm


Compressor outlet:78 mm

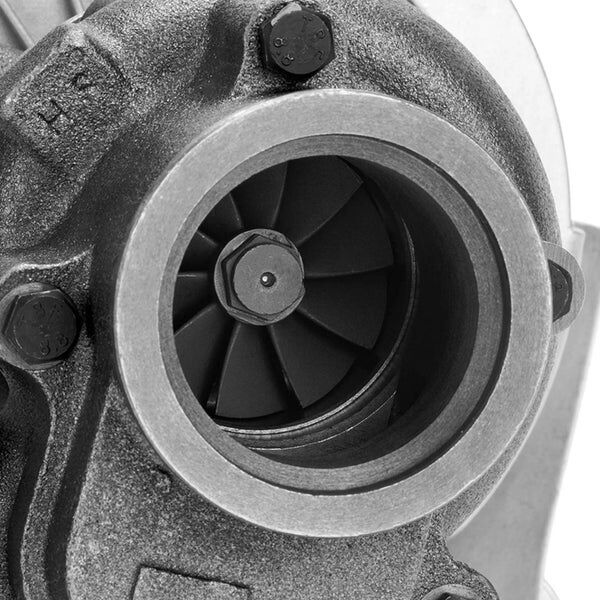

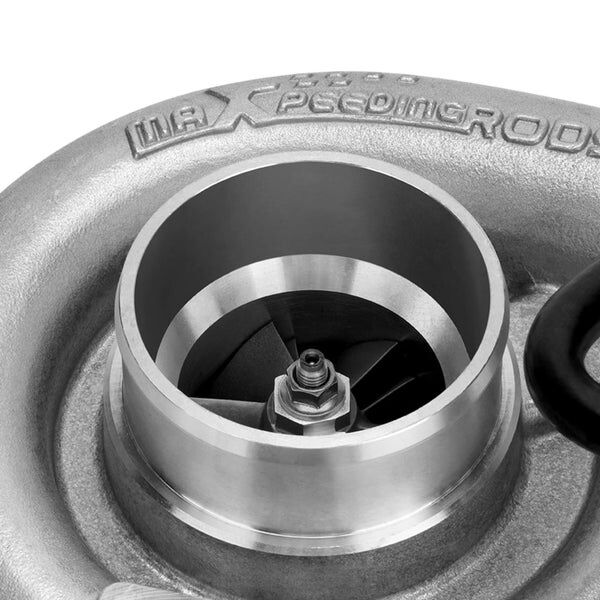

Compressor inlet:51.5 mm
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Internal Wastegate: Yes

SKU MTV-maX-373
Brand MAX PEEDING RODS
