NOTE: Lacking of oil will casue turbocharger shaft play and damage , please adjust your oil pressure & make sure turbochager is fully lubricated.

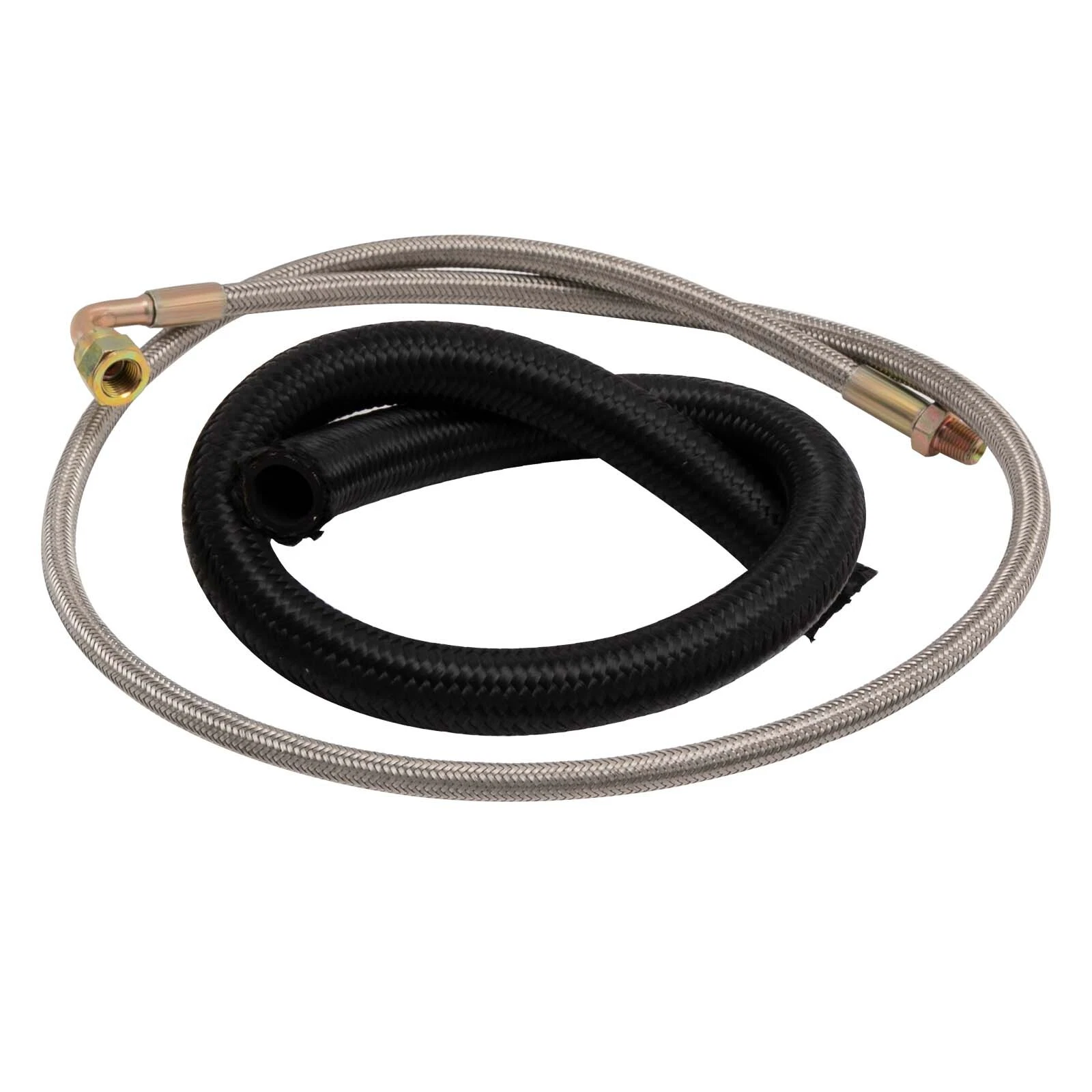

Oil Feed Oil Return Lines Details
Oil feed/inlet: M107/16-24
Oil drian/outlet: 2M8*1.25

Fitment
Bigger HP Applications, perfect for all 4/6 cylinder and 3.0L-6.0L engines

Specification
Turbine Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm

Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish:Matte
Wastegate:Without Wastegate
Oil feed/inlet: M107/16-24
Oil Outlet: M14.1 & 2M81.25
Water inlet/outlet: M14 1.5
Maximum PSI: 22
Condition: Brand New
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

Accessories:

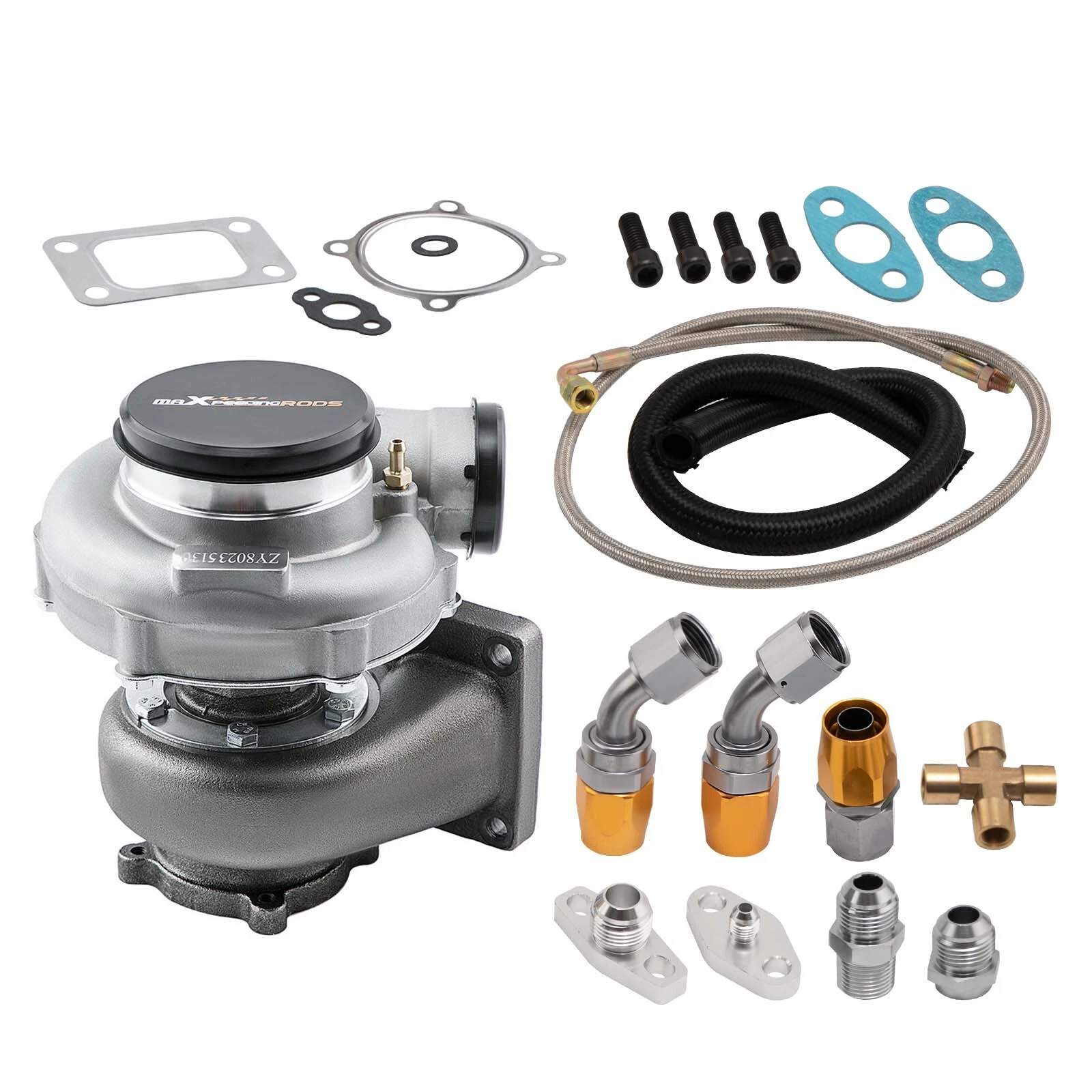

You will get exactly as shown in the picture above

Notes:
Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
This is universal application turbo, so modification might be required for some vehicles.

SKU MTV-maX-058
Brand MAX
