Bigger HP Applications, perfect for all 4/6 cylinder and 2.5L-6.0L engines
HP: Capable of Boosting Horse Power up to 600HP

Fitment
For Honda K20, H22, F22 Engines
For Nissan SR20DET, RB20/25,
For Toyota 1JZ/2JZ, 7MGTE.
For Twin Turbos Applications for SBC, for LSx,
For Ford 4.6, 5.0 Engines

Please confirm that there is enough space in your car to install this turbo.

Specification
Turbine Side:

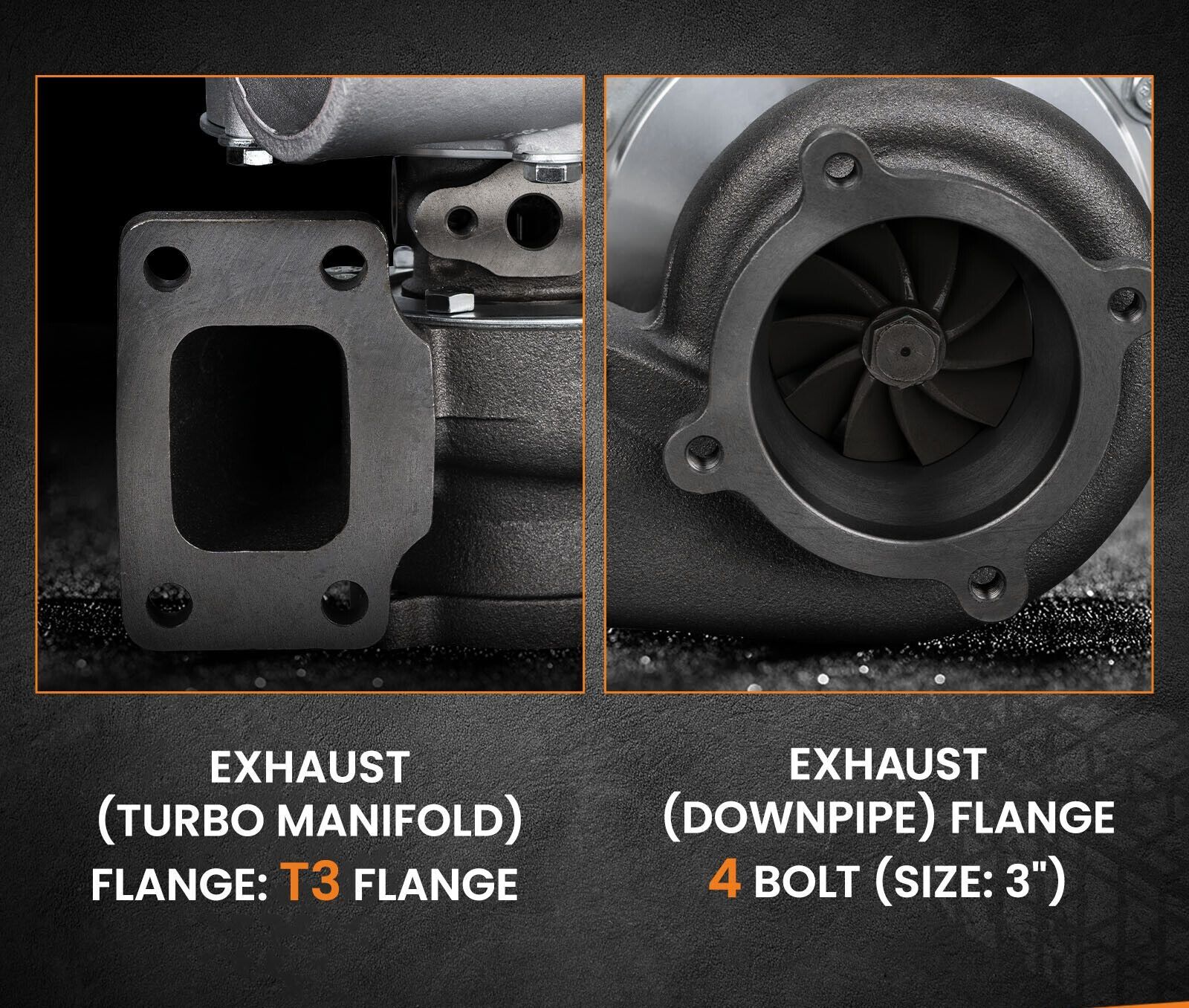

Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 62mm
Turbine Exducer Diameter: 68.4mm

Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7

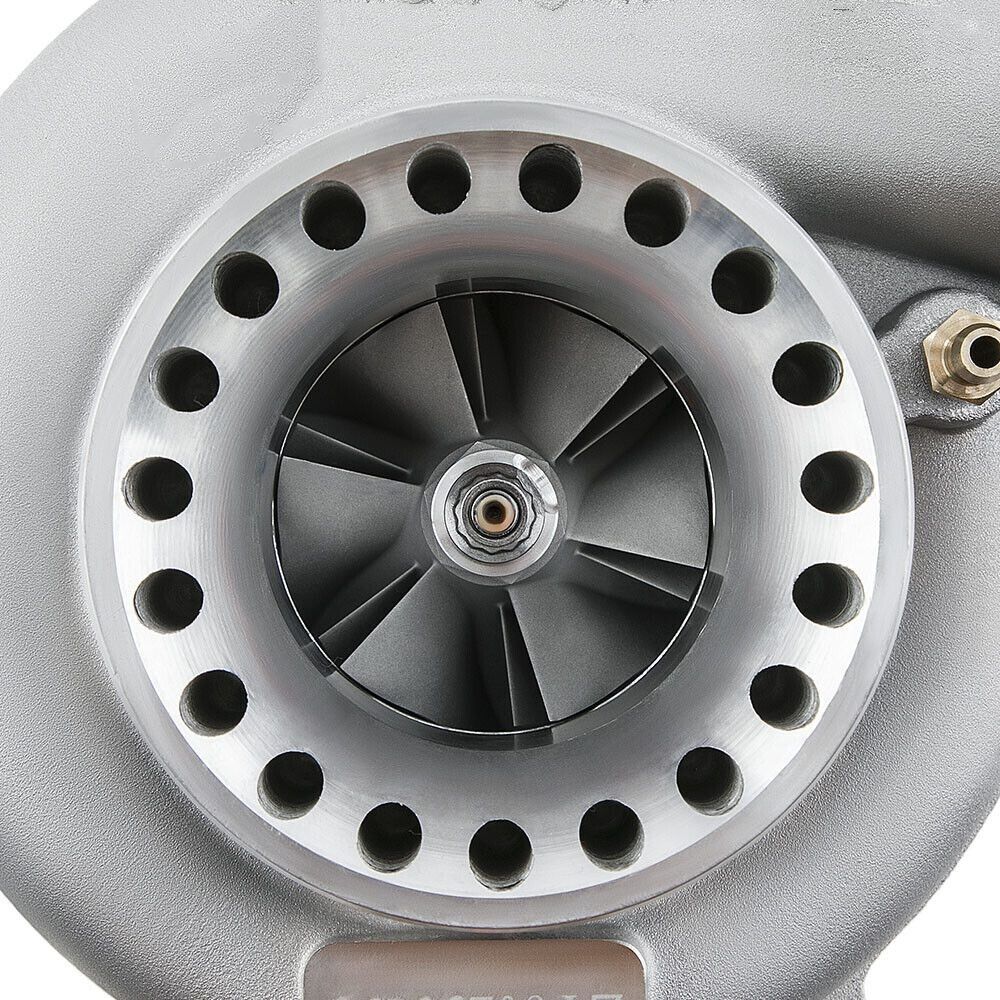

Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree

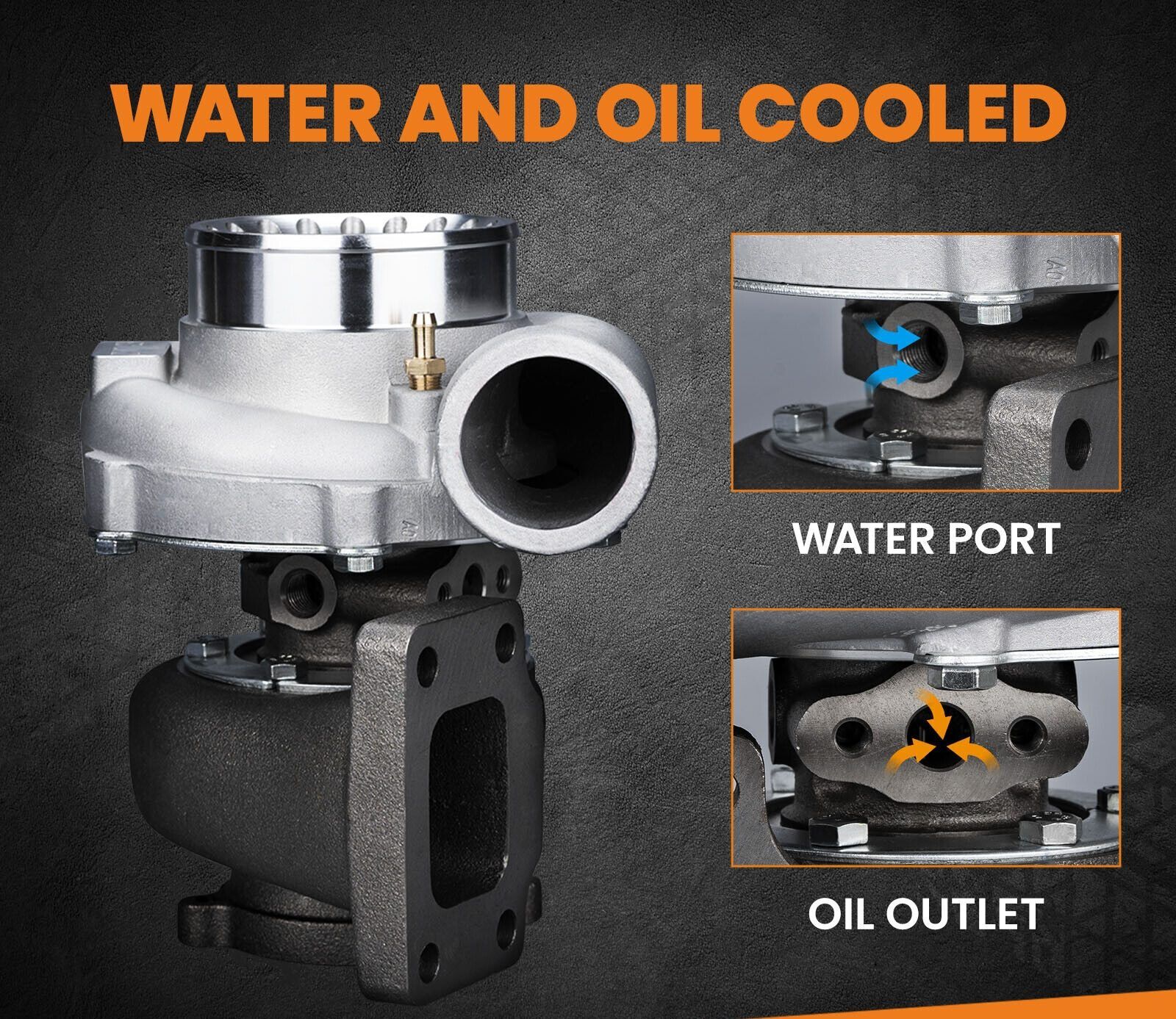

Cooling Type: Water + Oil Cooling

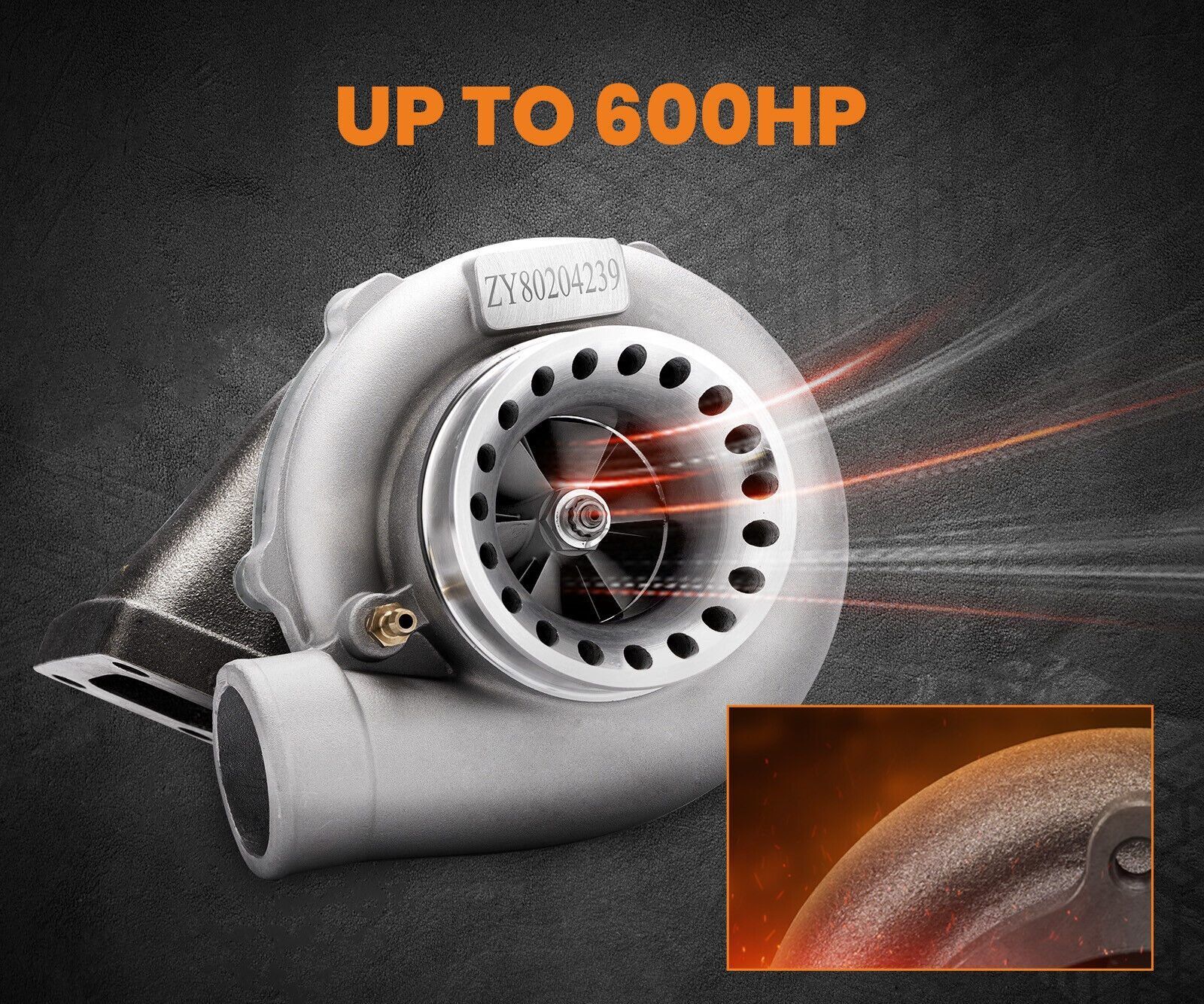

Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish:Matte
Wastegate:Without Wastegate
Oil feed/inlet: M107/16-24
Oil Outlet: M14.1 & 2M81.25
Water inlet/outlet: M14 1.5
Maximum PSI: 22

Note
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Gasoline car must install a water cooling device to avoid overheating.
Ensure exhaust outlet are well sealed by welding
The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
This Turbo is not vehicle specific.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated!

SKU GGT3582-NVL
Brand MAX
Shipping Weight 8.7000kg
Shipping Width 27.900m
Shipping Height 30.100m
Shipping Length 23.600m
Shipping Cubic 0.019819044m3
