Fitment

For Nissan Patrol Safari Y60 GR Petrol 4.2L TB42 TB42S TB42E
For Nissan Patrol Safari Y60 GR Petrol 4.5L TB45 TB45S TB45E
For Nissan Patrol Safari Y60 GR GQ Diesel Turbo Diesel 4.2L TD42
For Nissan Patrol Safari Y61 GR Diesel 4.2L TD42 TD422 TD42T3

Specification

For 1.5L to 2.5L  any 4/6 cylinder engine up to 400+ HP
Maximum 18PSI

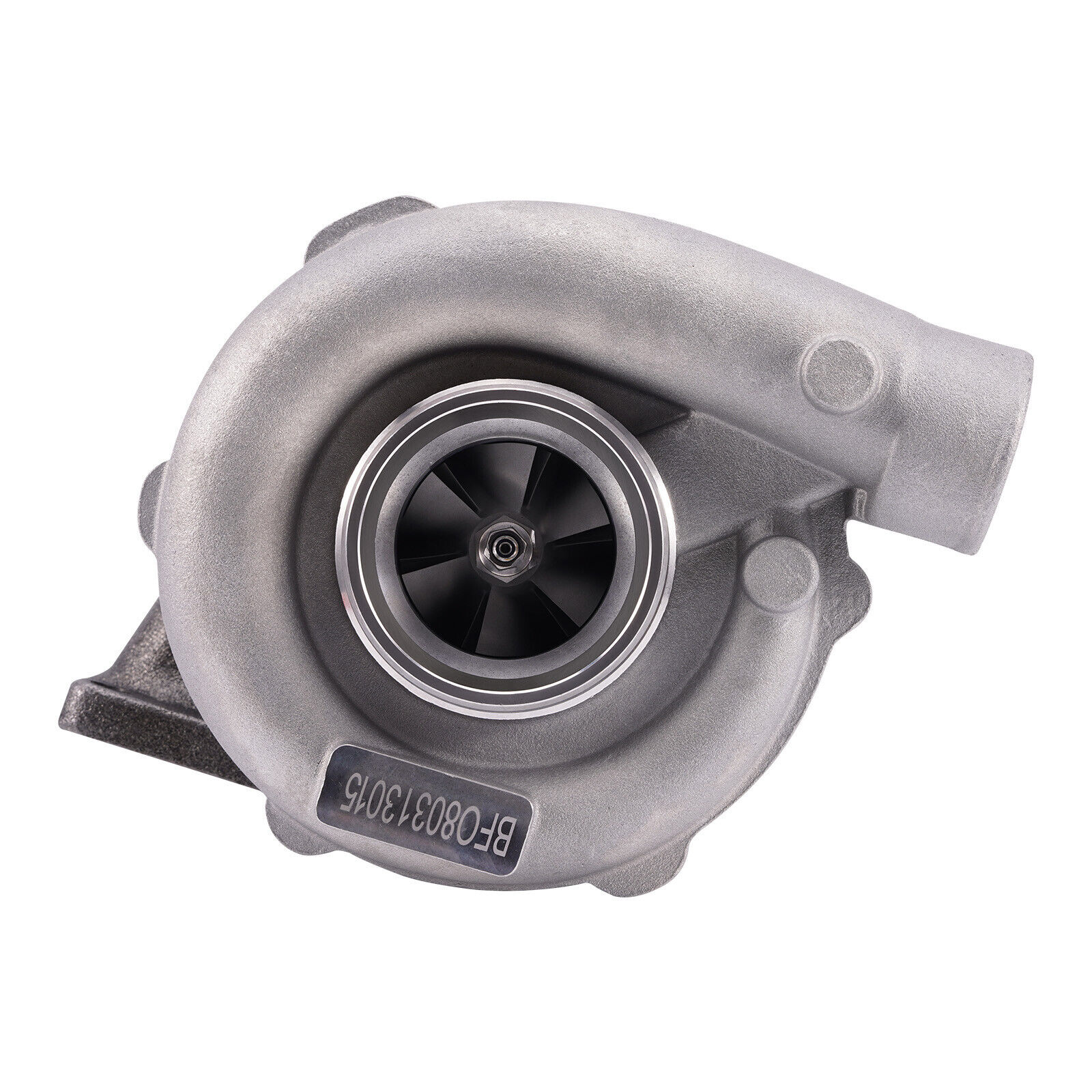

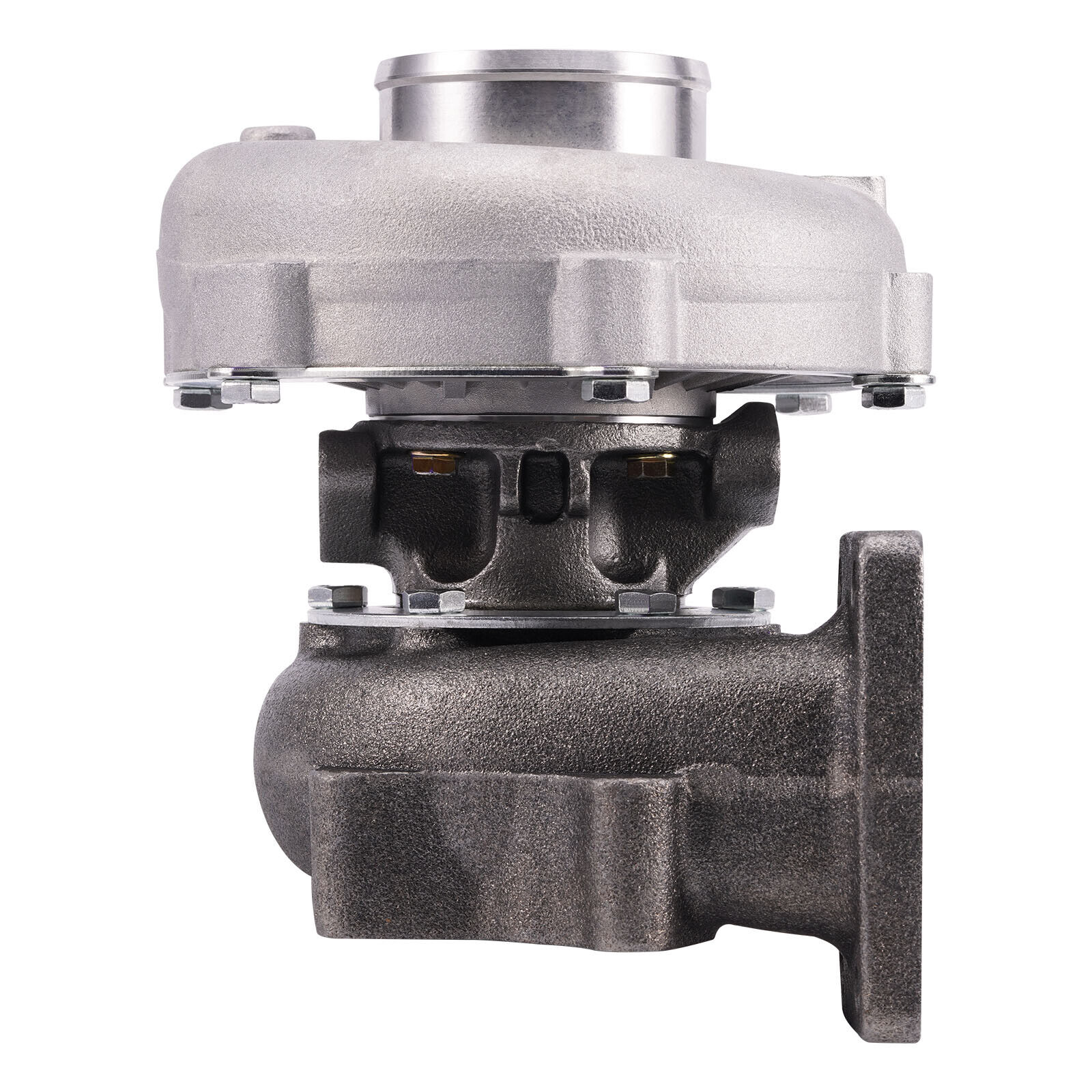

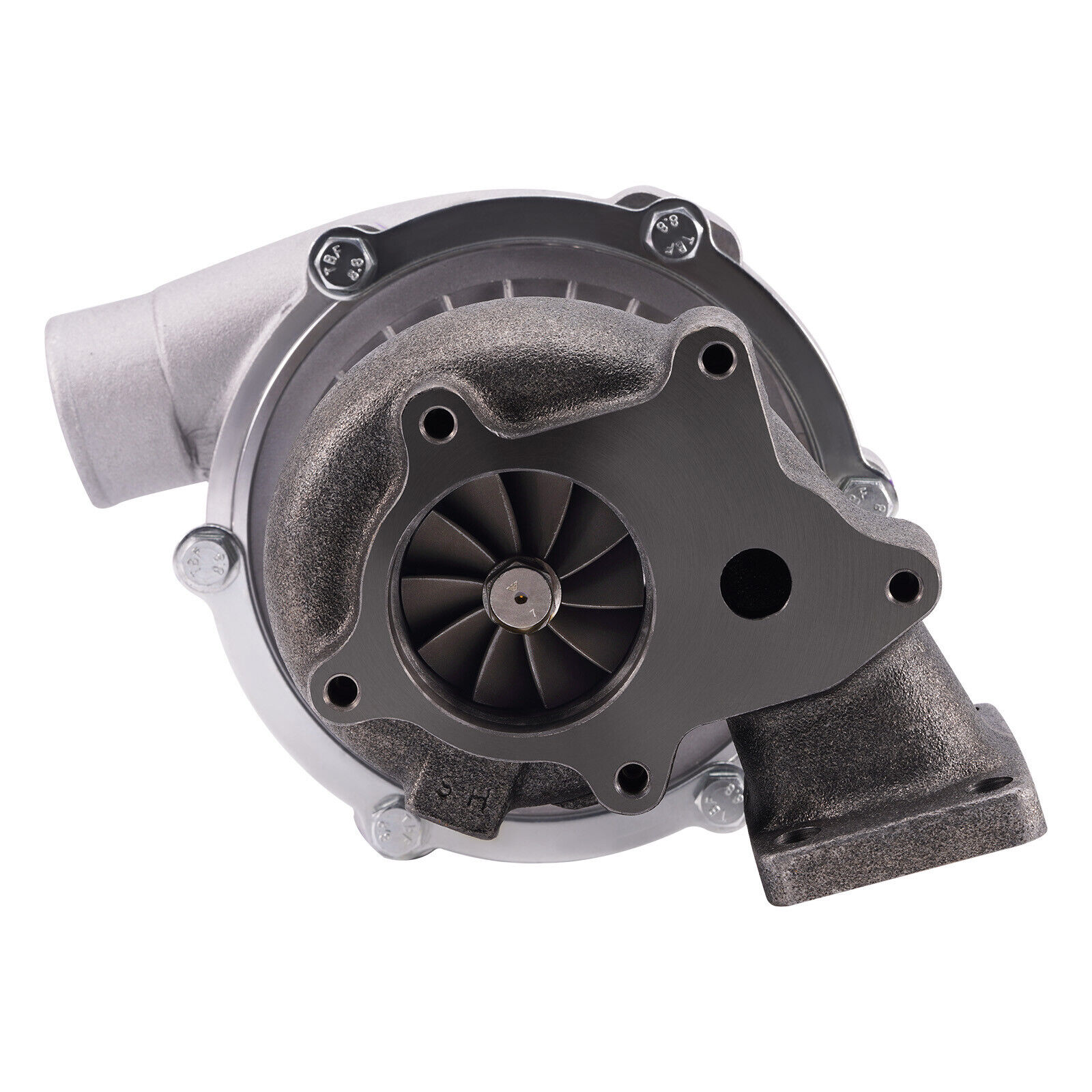

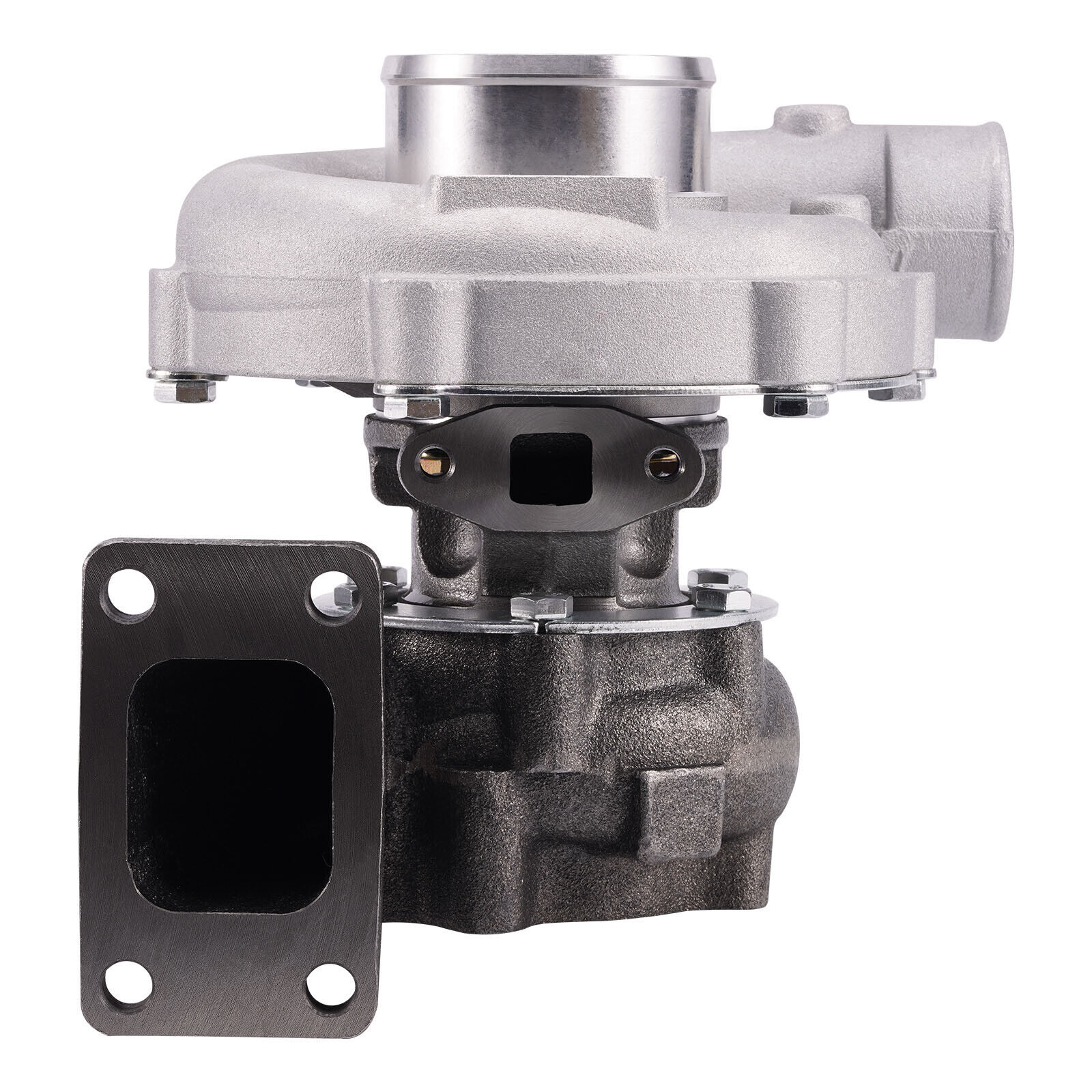

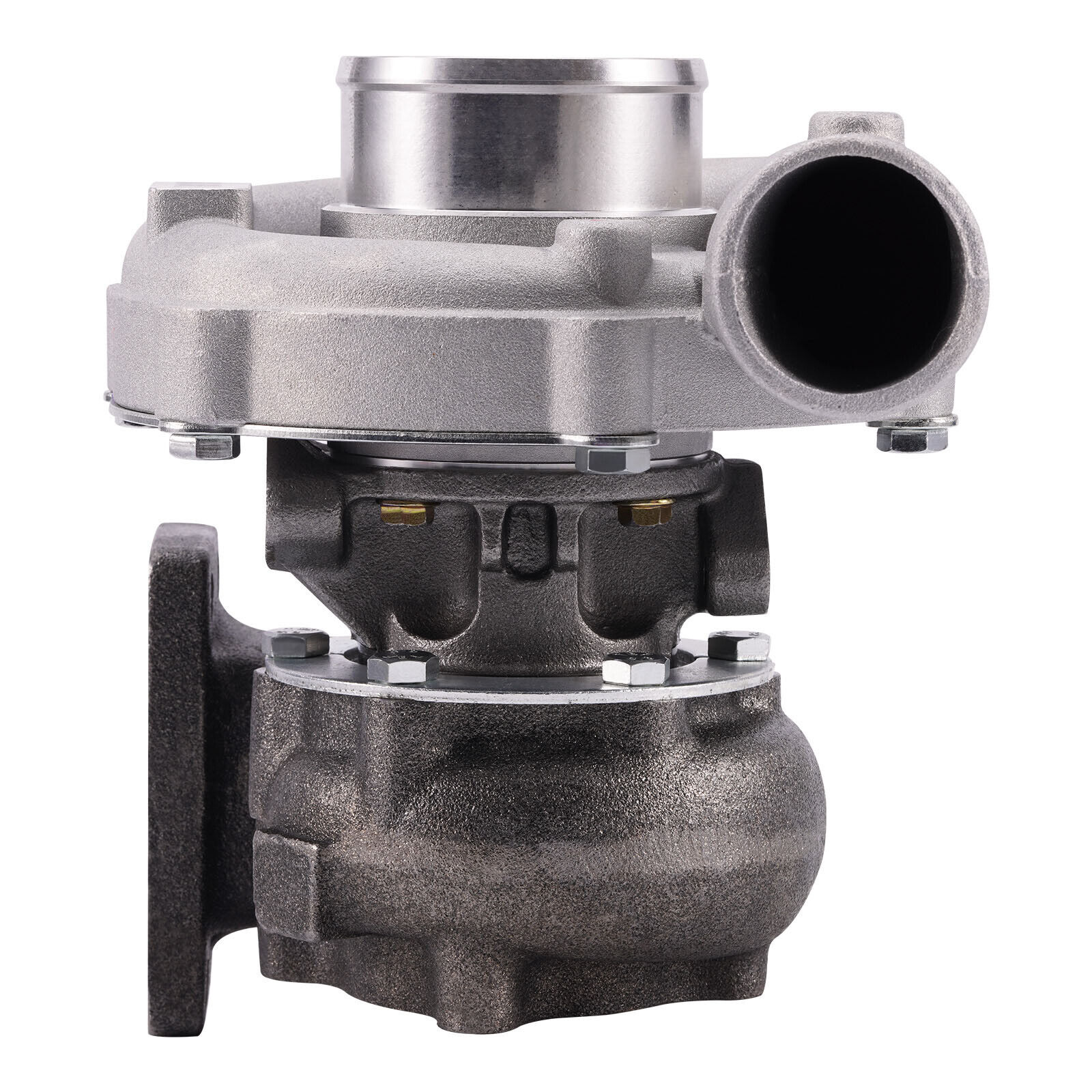

Turbo Details

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet Flange: 5 bolt Flange

Cooling Type: Oil Cooled
Wastegate: Without Wastegate

Turbine Trim: 74.2

Turbine Inducer Diameter:  64.8 mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.57

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7 mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.5

Bearing: Wet Float Bearing

Turbine exhaust inlet:45mm/87mm
Compressor outlet:42mm(inside diameter)、52mm(Outer diameter)
Compressor inlet:68 mm(inside diameter)、77mm(Outer diameter)

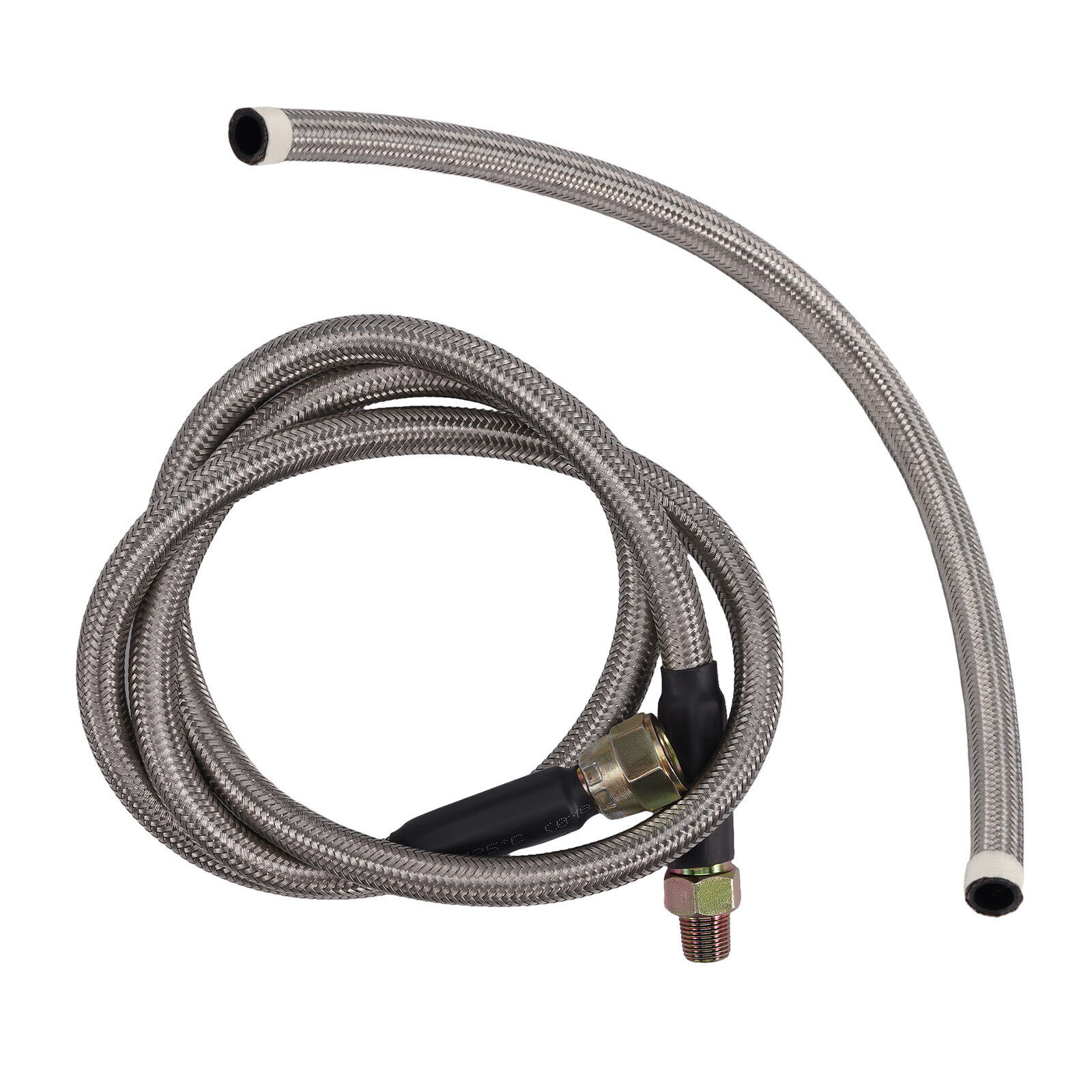

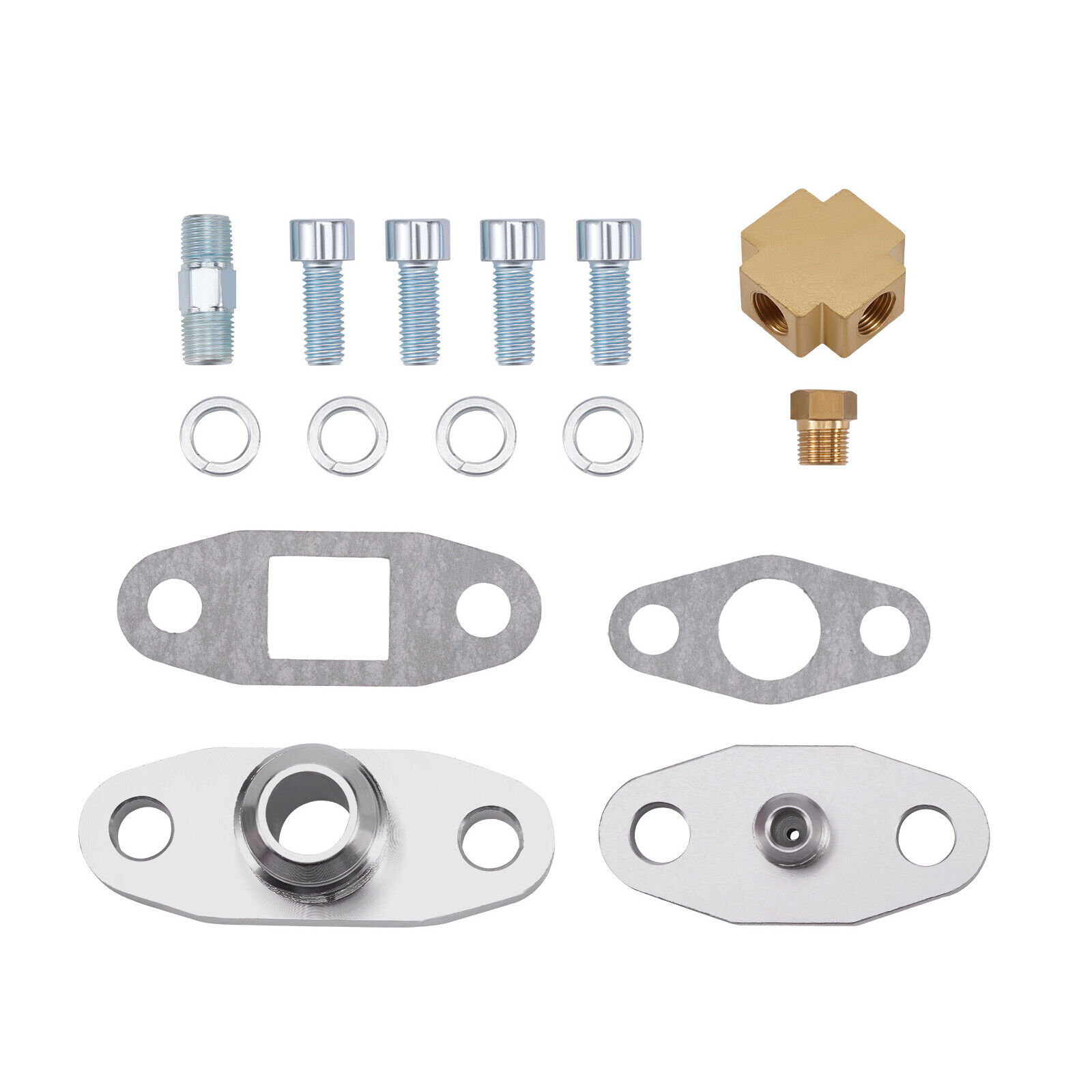

Oil line Details
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
​OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

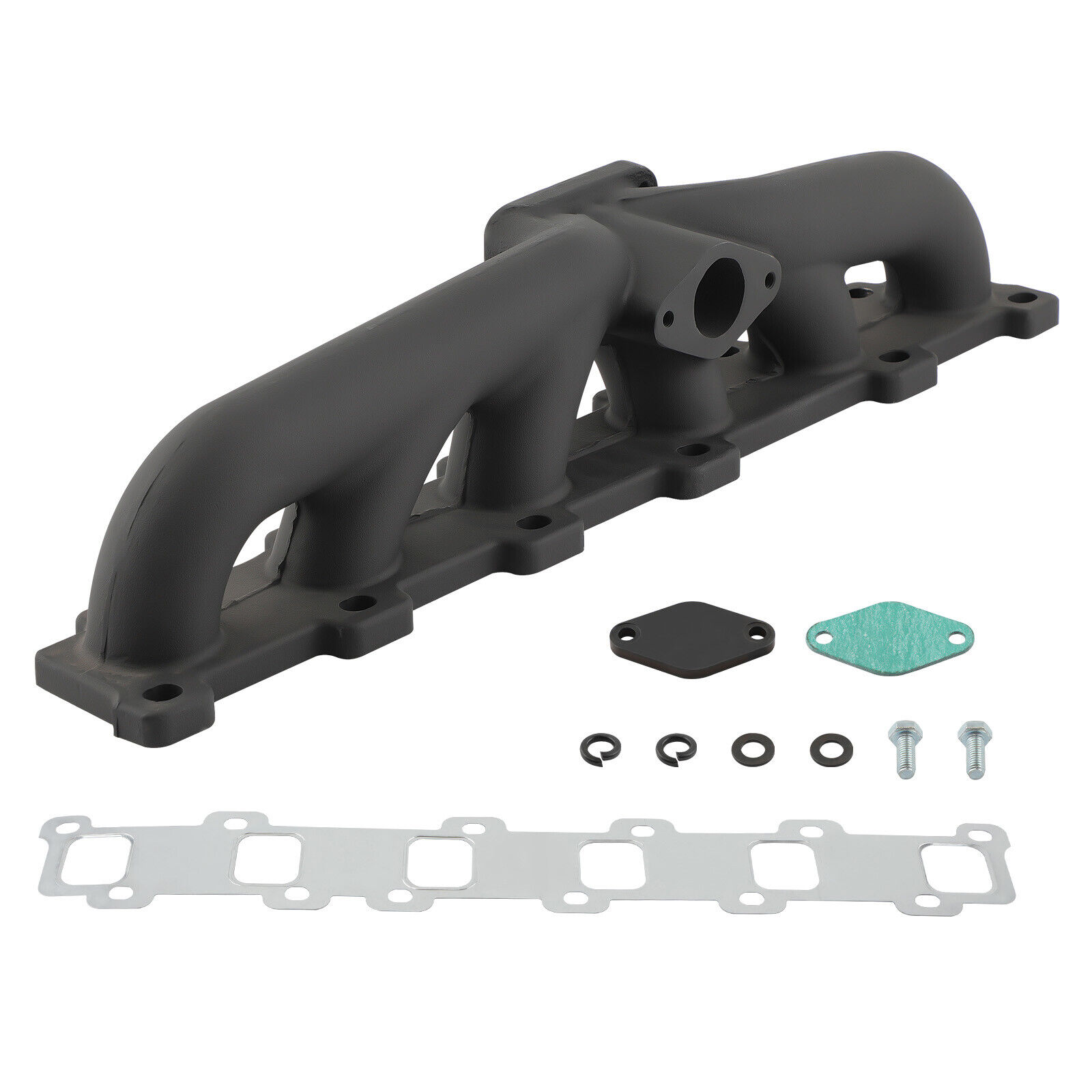

Manifold Details
Turbo flange: T3
Mount type: top mount / high mount

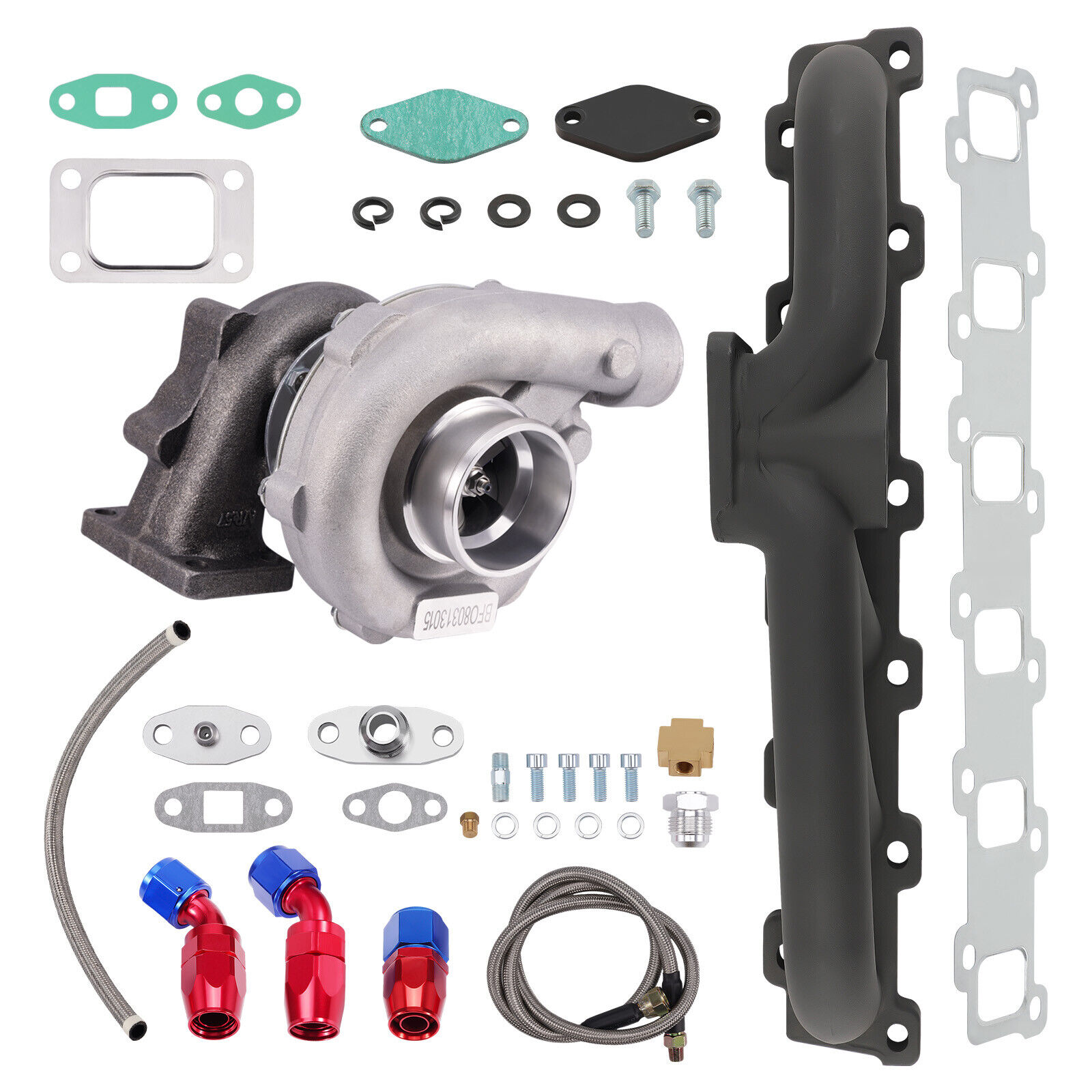

External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)


Notice
* Please check the specifications carefully before purchasing.
* This is an aftermarket application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)

SKU MTV-TM-NS072
Barcode # ATP-TM-NS072
Brand MAX PEEDING RODS
