Fitment
Compatible for 1.5L to 2.5L any 4/6 cylinder
Horse Power: Capable of Boosting Horse Power up to 400HP
Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)
Specification

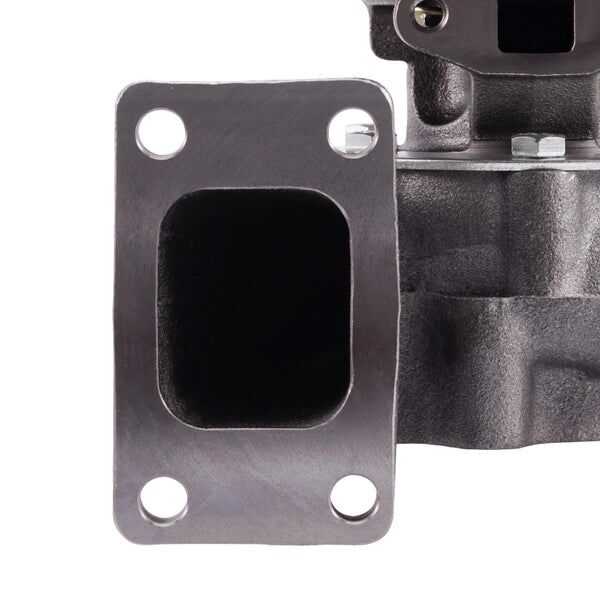

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Flange: Standard T3 5 bolt flange pattern
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 270 degrees
Horse Power: Up to 400 HP
Wastegate: W/O Wastegate
Actuator Type: W/O Actuator

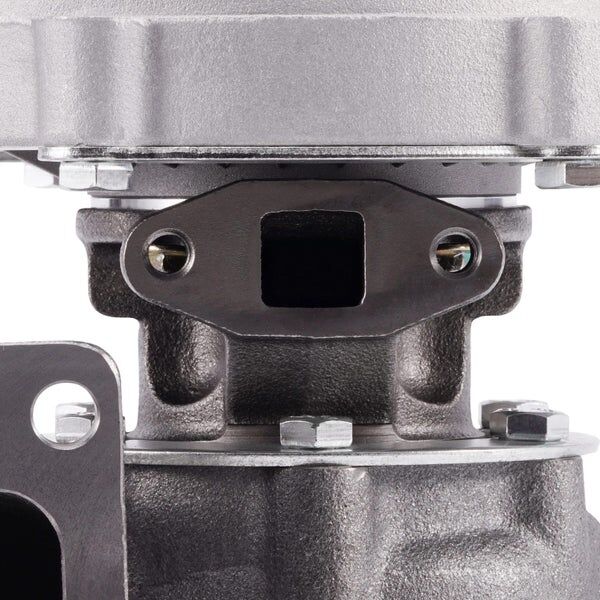

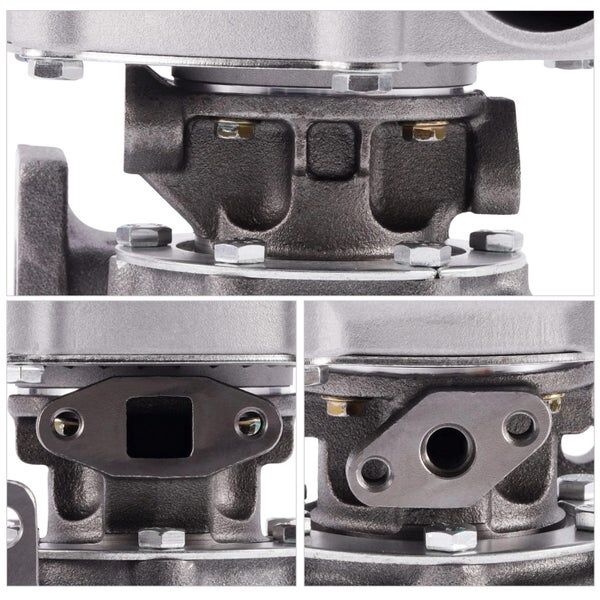

Oil Inlet: M121.25

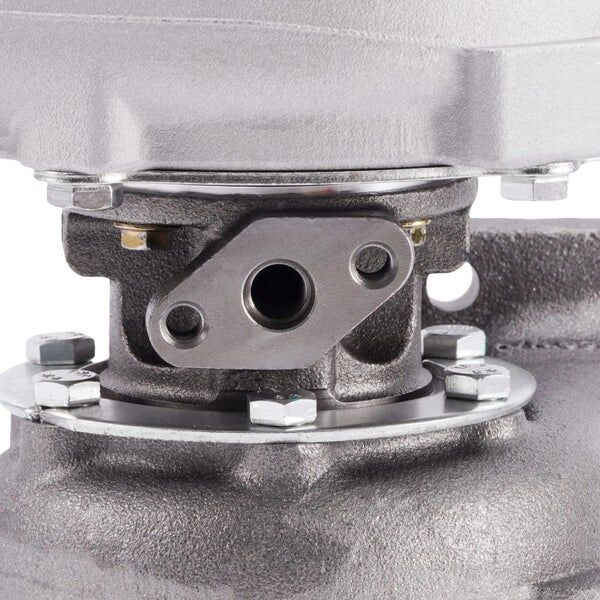

Oil Outlet: 2M8*1.25
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New

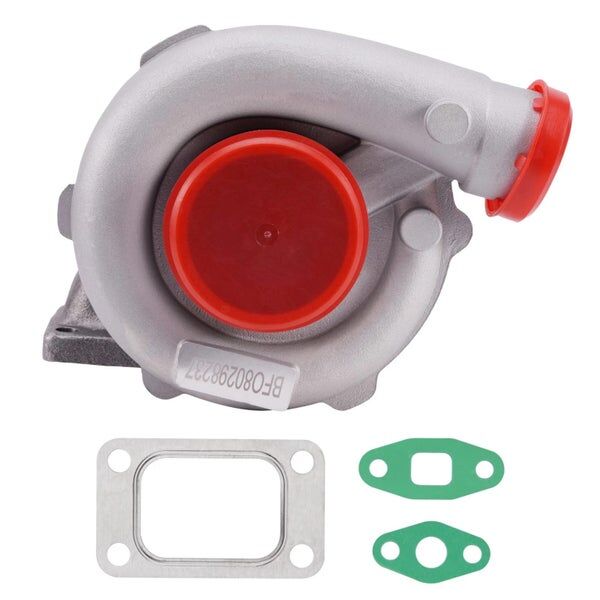

Accessories: You will get exactly as shown as picture above
Compressor
Trim: 44
A/R: 0.5
Inducer: 50.5
Exducer: 76
Turbine
Trim: 73
A/R: 0.63
Inducer: 65.5
Exducer: 55.9
Features
*Product Material

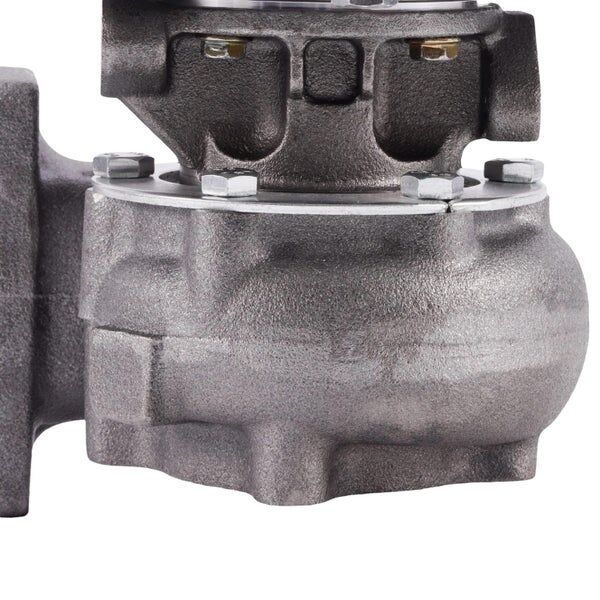

Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

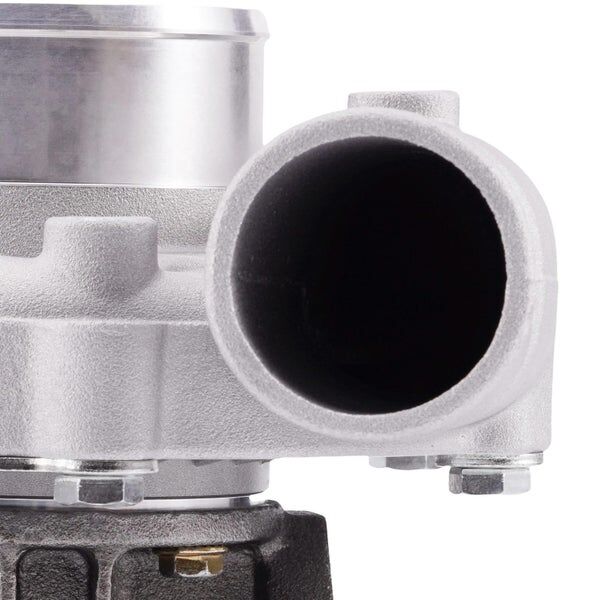

Compressor housing: ZL104 aluminum with lightweight

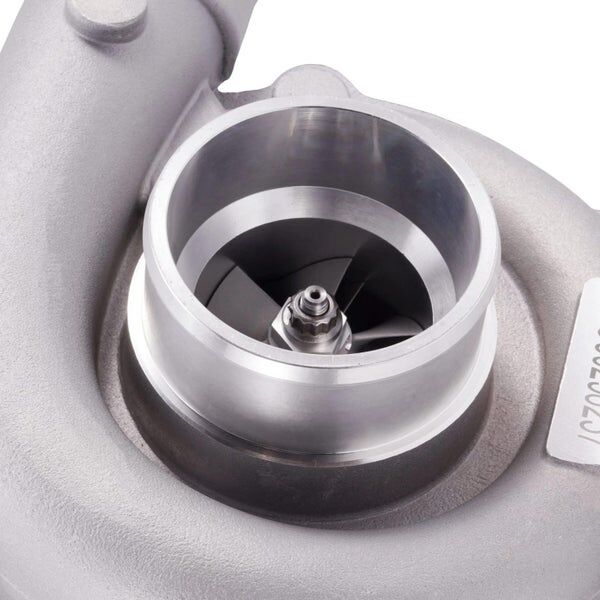

Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
NOTE
Does NOT have a internal wastegate so you must have a external wastegate on your manifold.Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Ensure exhaust outlet are well sealed by welding
The degree of modification of the universal turbo depends on your individual vehicle.
Professional installation is highly recommended.
This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
