Fitment
For Toyota Landcruiser 70 76 78 79 Series V8 Diesel 2009-
(VDJ70R, VDJ76R, VDJ78R, VDJ79R Series)
For Toyota Hilux 2WD 1997-2005
For Holden Crewman 2005-2007
Note:Also fits vehicle with 2 inch suspension lift.

Item Specifications:
Placement on Vehicle: Rear left and right
Recommended working range:5psi-160psi

Air Spring Specification
Design height:152mm
Stroke:  110mm
Max. Extended:   175mm
Min. Compressed:  65mm
Minimum height of whole kit: 149 mm
Maximum height of whole kit: 259 mm

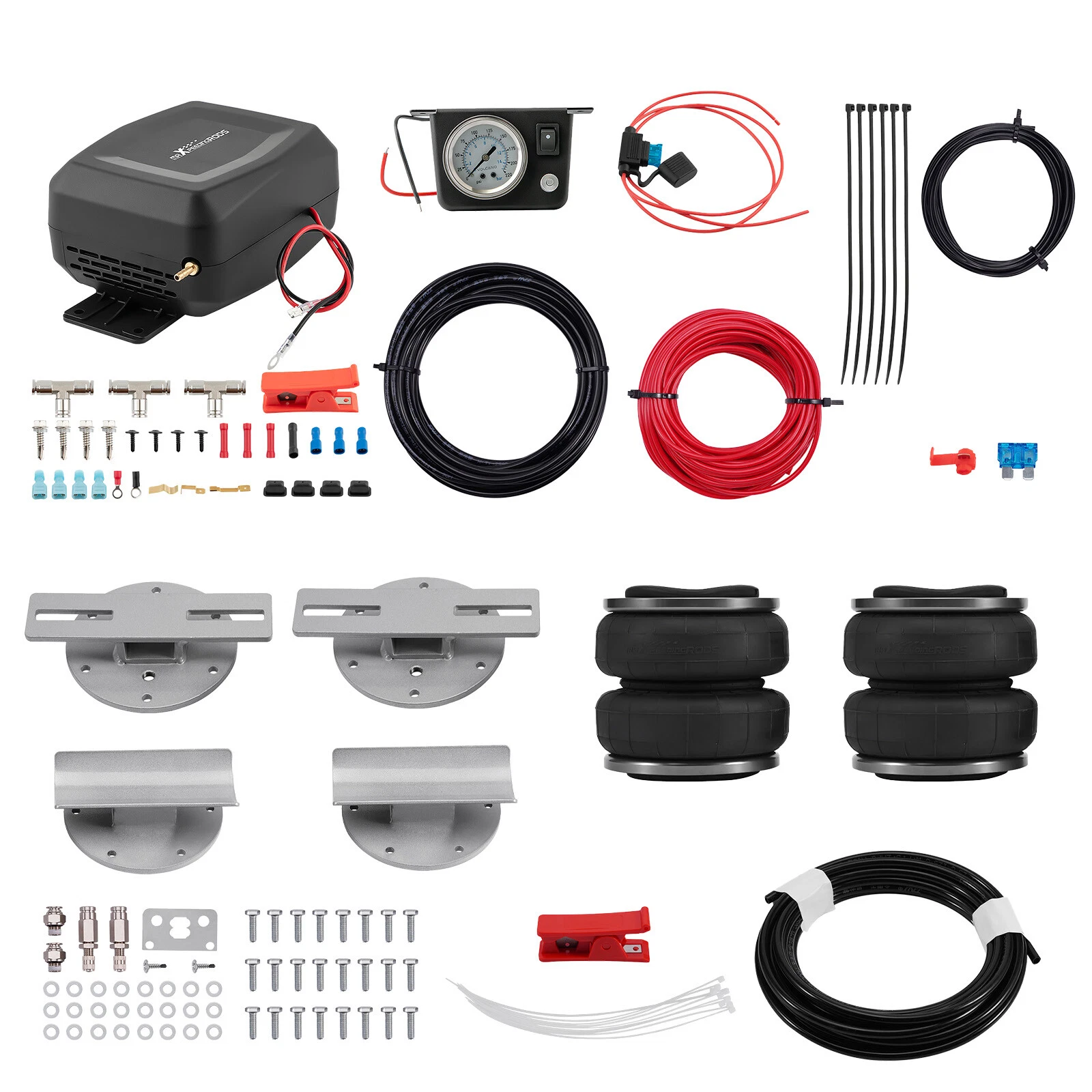

Package Includes

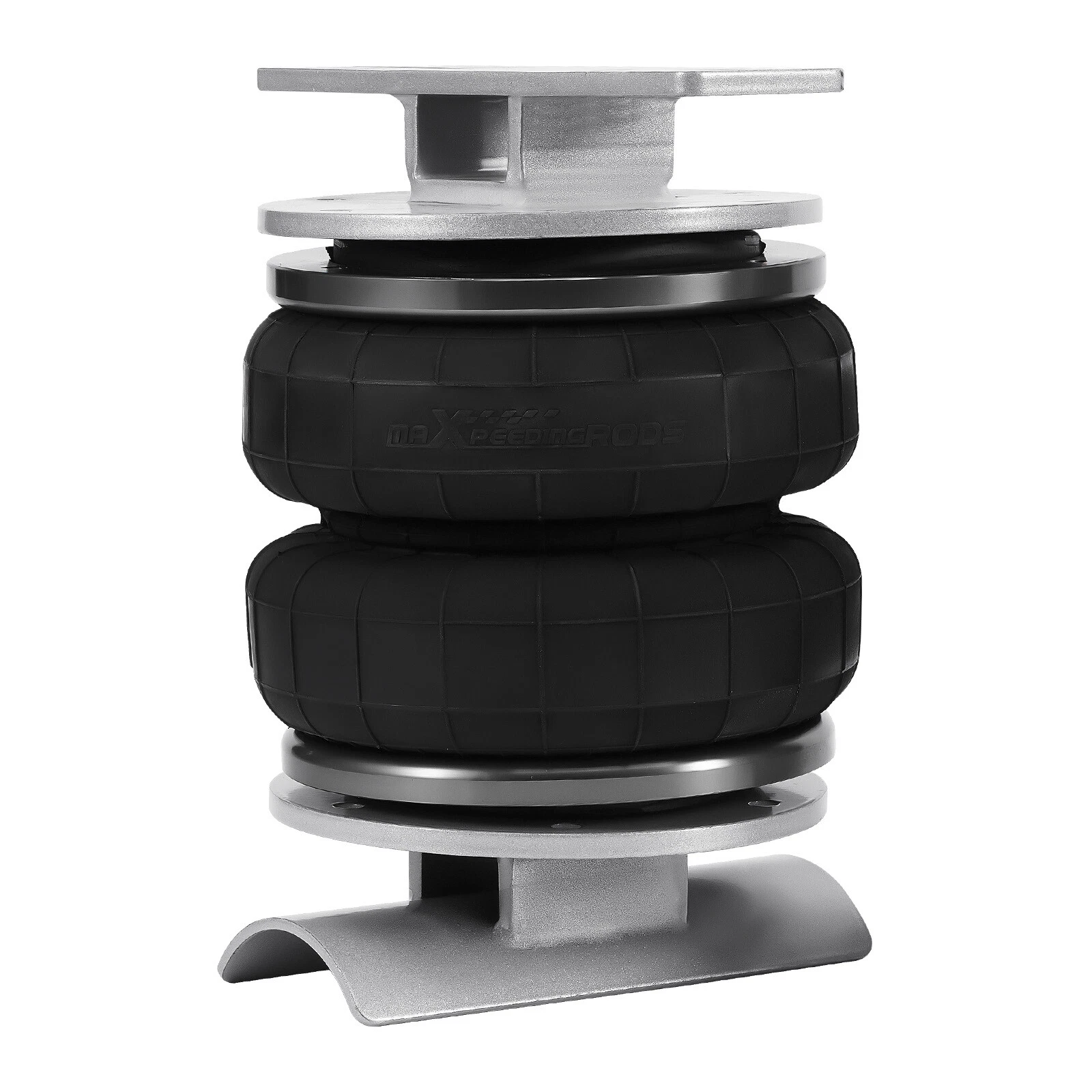

2x Heavy Duty Double Bellow Air Ride Suspension bags
4x Upper and lower mounting brackets
1x Air line 5.5 m

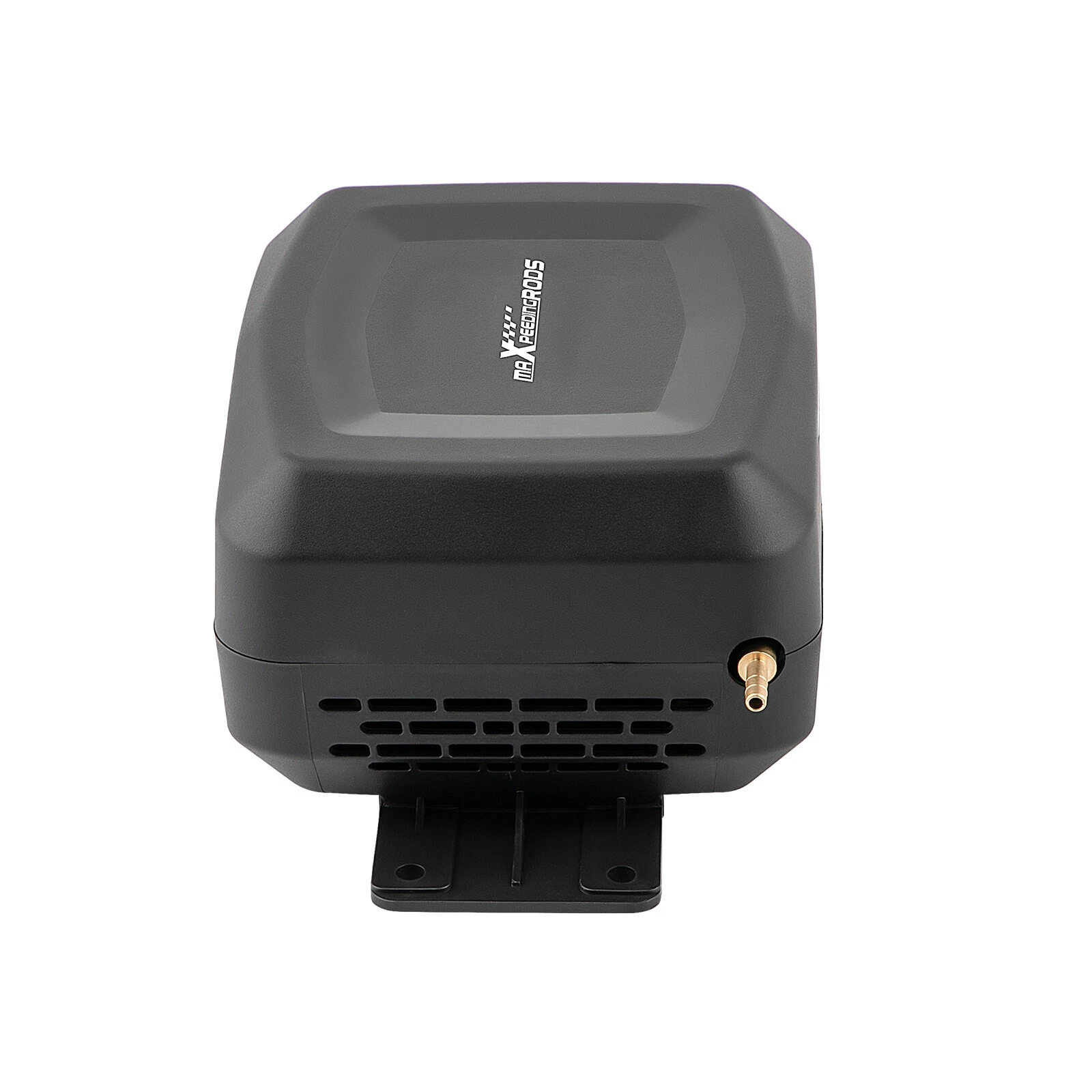

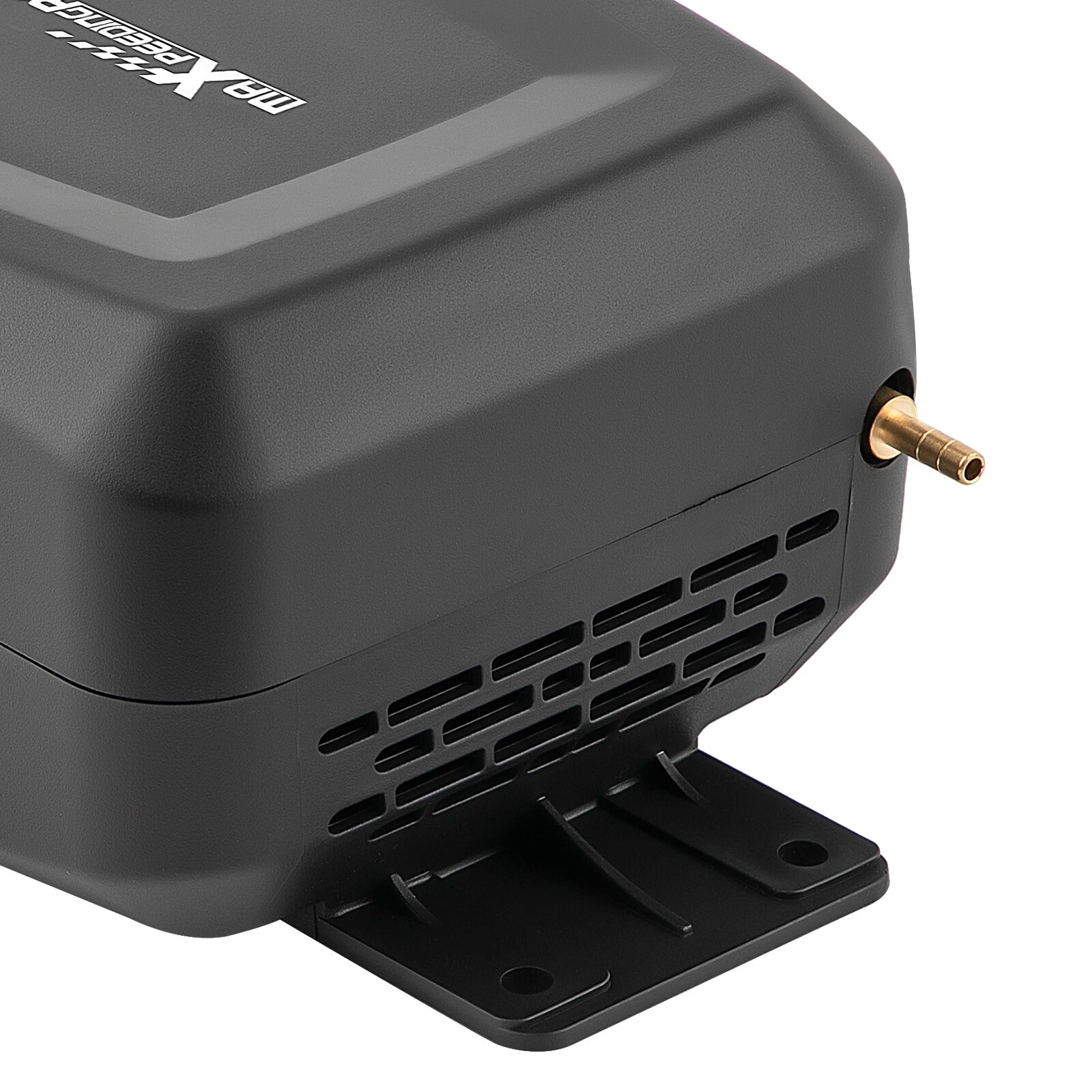

1x  12V MaXpeedingrods Air Compressor(Black)

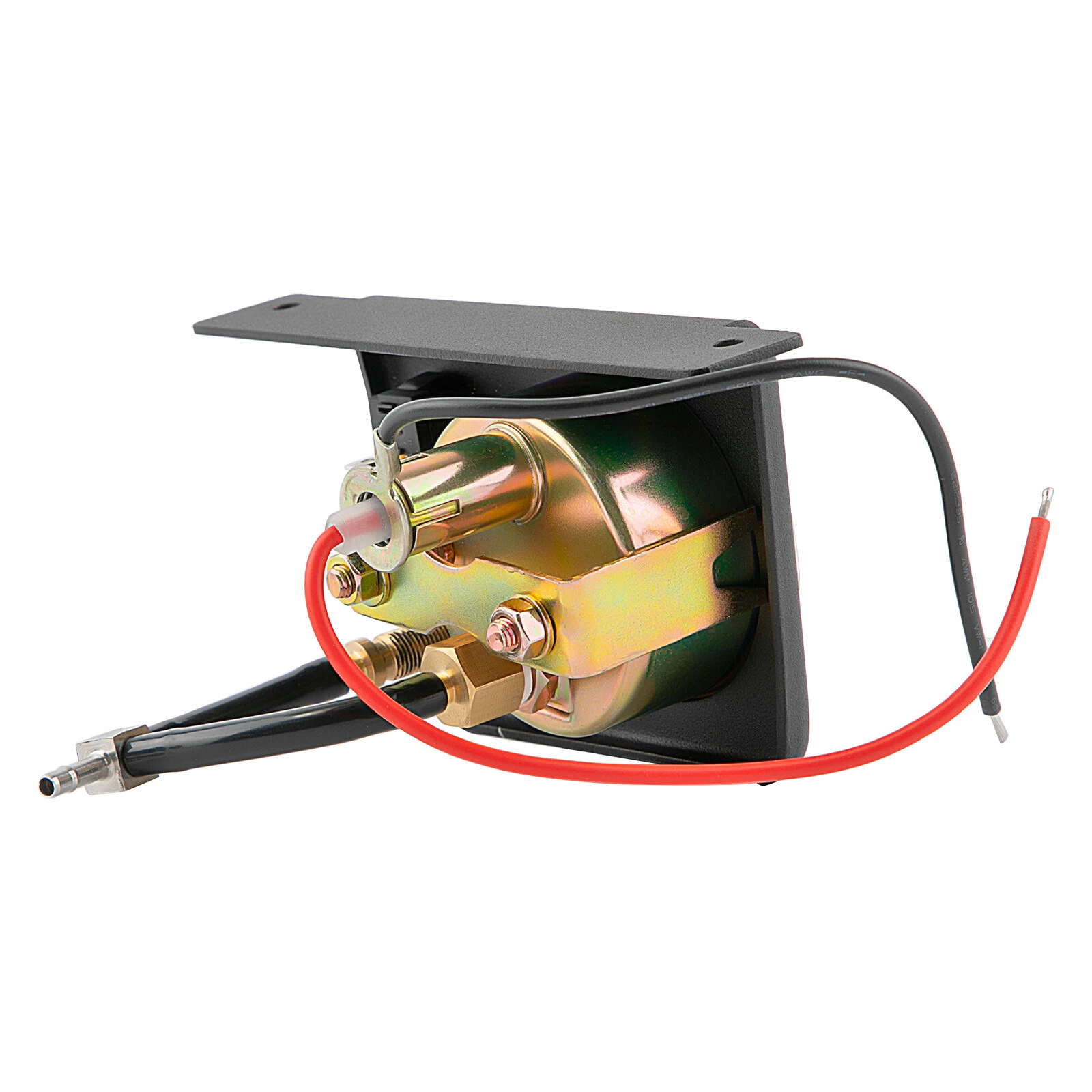

1x Gauge panel (Push buttons for up and down)

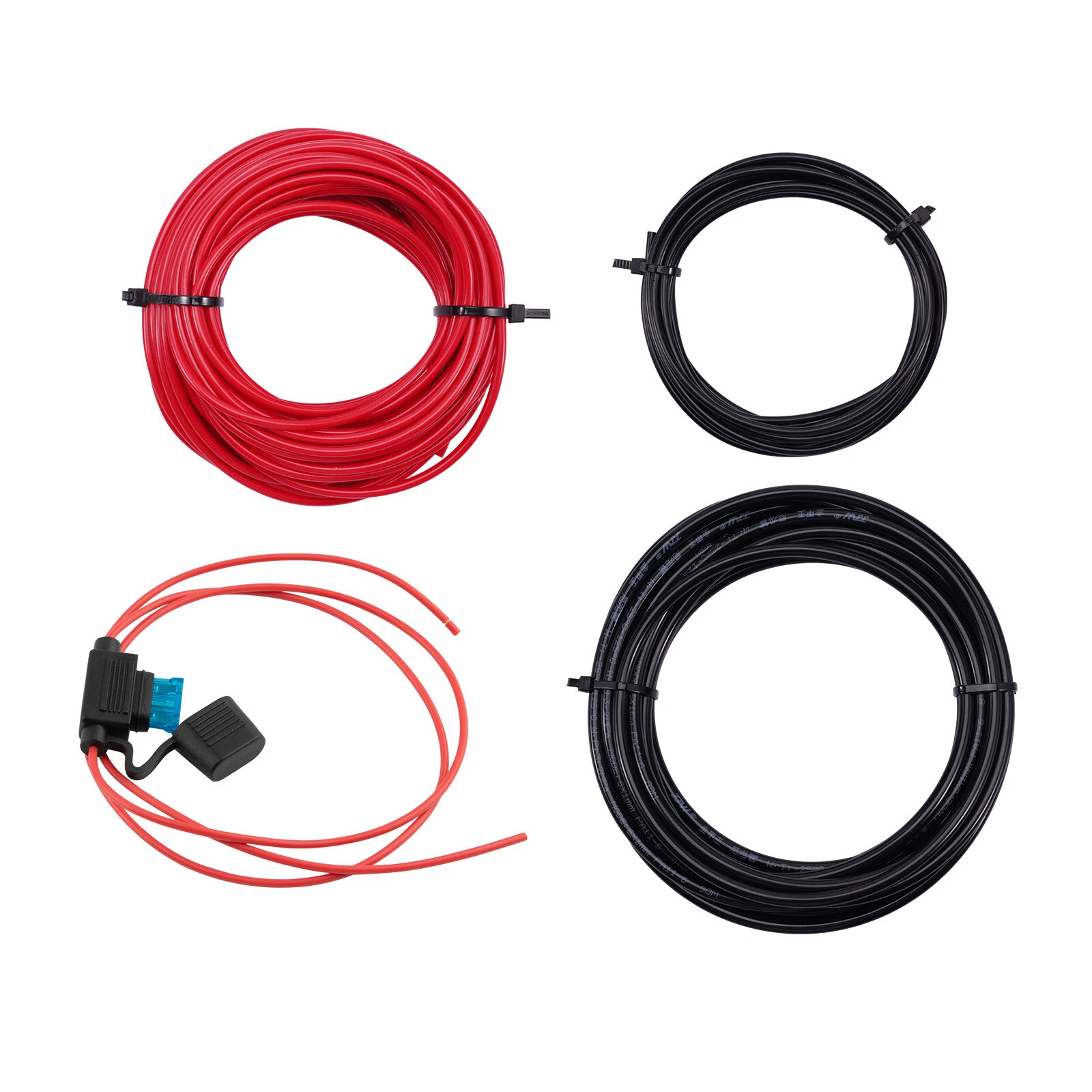

1x Air Line f6*1(6M)
1x Wire harness (2.5 M) black
1x Wire harness (8.5 M) red
1x Relay harness(1M)

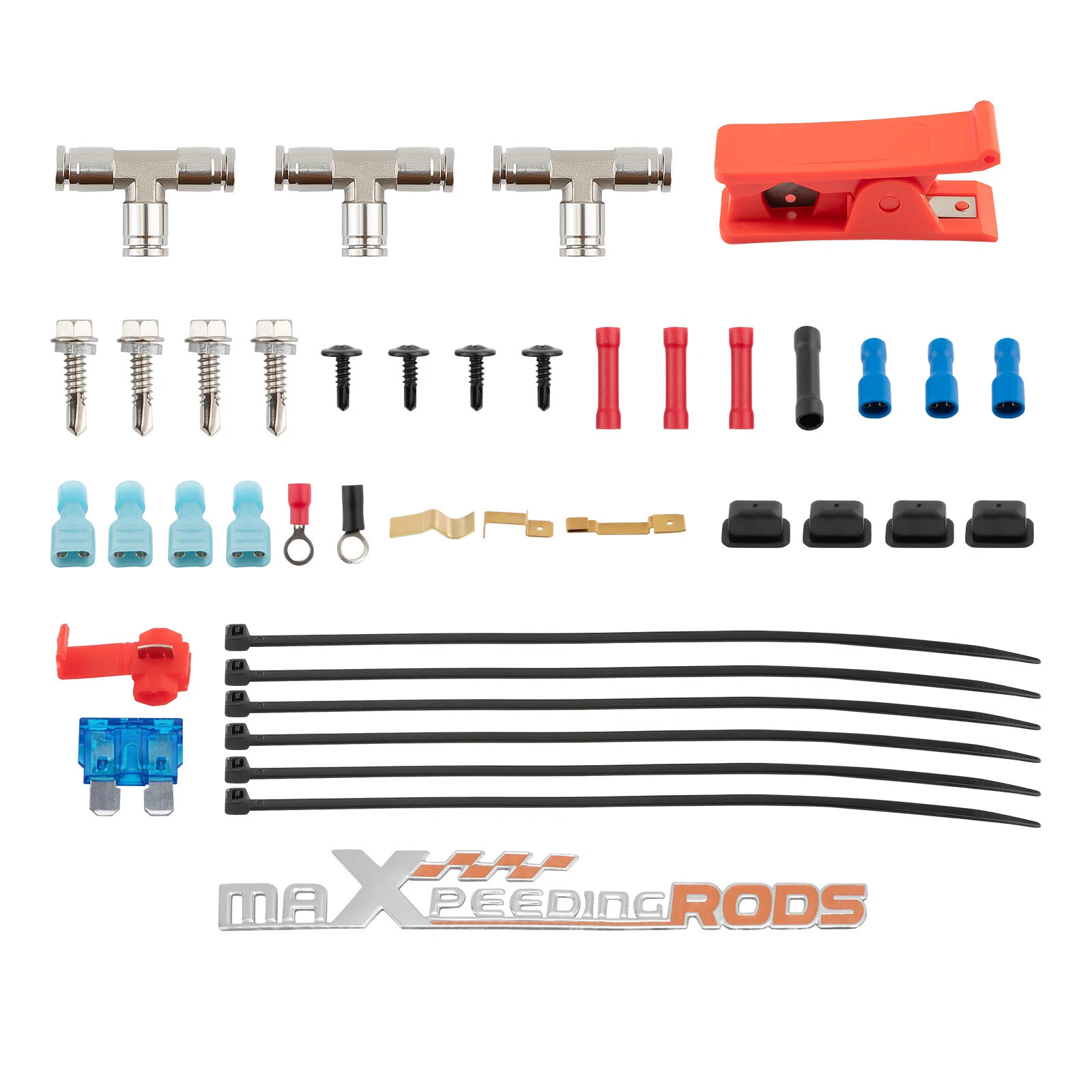

3x T Connectors
Mounting bolts, gaskets and some other accessories

Features
Air Suspension Kit
Stress Test Over 5,000,000 Times:Durable and Safe
Burst Pressure=2.0MPa:High Compressive Strength and Less Noise
Air Tightness Test = 0.02MPa:100% Air Tightness Guarantee
Temperature Range = -40?/ = 70?:Premium Natural Rubber Material
Use high-quality steel with high load-bearing capacity and long life.
Excellent and practical bolt-on installation.
Safe carrying capacity and stability
Restore the original ride height and improve ride quality

Air Controller Kit
Allows you to monitor and adjust the air pressure in the air spring bag from the driver's seat.
Performs well for light-duty or medium-duty applications and for occasional hauling or towing.
Includes onboard air compressor, single-gauge dash panel, air lines and hardware.
Compatible with any brand of air spring.
Single-path controls let you adjust 1 pair of air springs.
Strict quality inspection to ensure long-term use without damage
Maximum air pressure: 120 psi.
Recommended working pressure:5-70 PSI

SKU MTV-maX-057
Brand MAX
