Fitment

For Lexus IS250/IS350 (GSE20/GSE21) RWD 2006-2013

For Lexus IS F RWD 2008-2014

For Lexus GS300/GS350 RWD 2007-2011

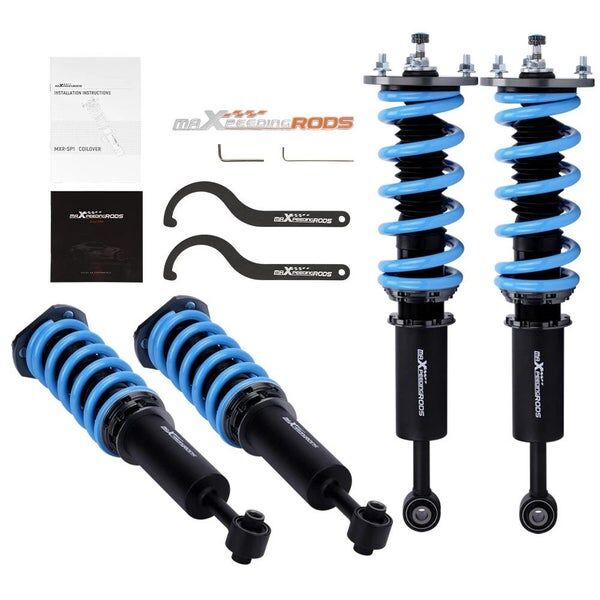

Package included

2x Front coil-overs

2x Rear coil-overs

2x Allen wrench

Specification

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping adjustable: Available, 24 levels of rebound damping force

Front top mount structure: Standard rubber

Rear top mount structure: Standard rubber

Camber adjustable: Not available

Spring rate Front: 12 kg/mm (672 lbs/in)

Spring rate Rear: 10 kg/mm (560 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 230 mm

Spring length Rear: 230 mm

Spring Preload advised: 7-10 mm

Shock Type: Twin tube

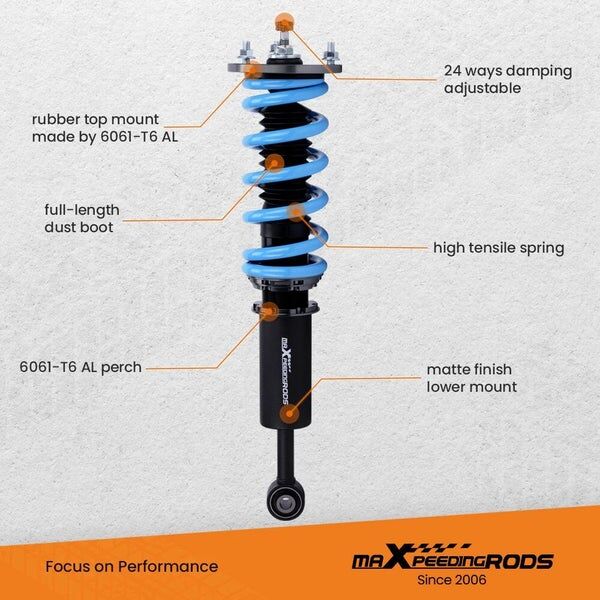

Features

Lowered height adjustment from 25-75mm which allow lower center of gravity and also add a more aggressive stance.

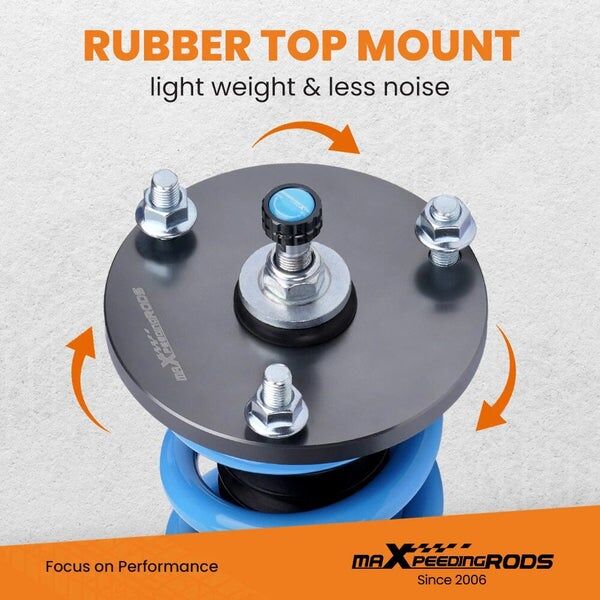

Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

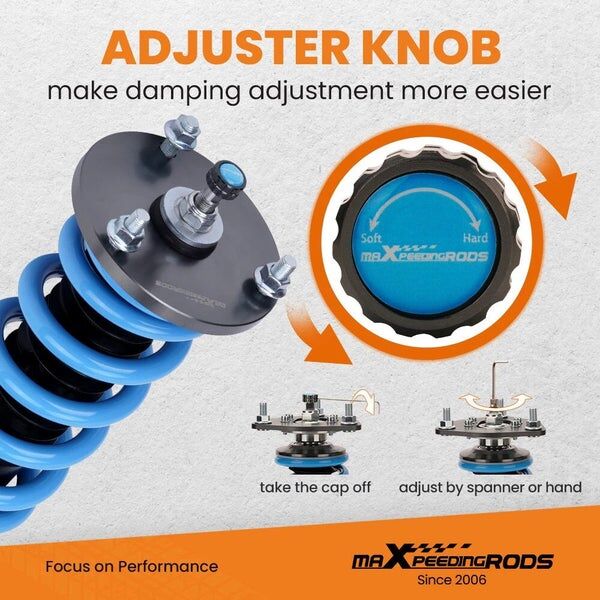

24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions.

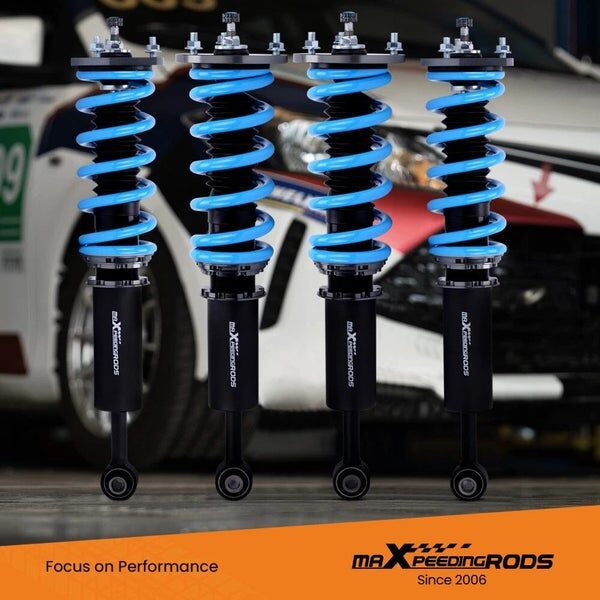

Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

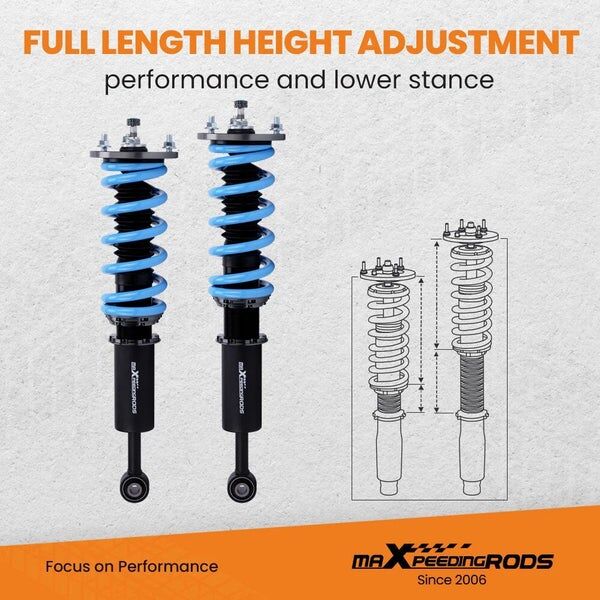

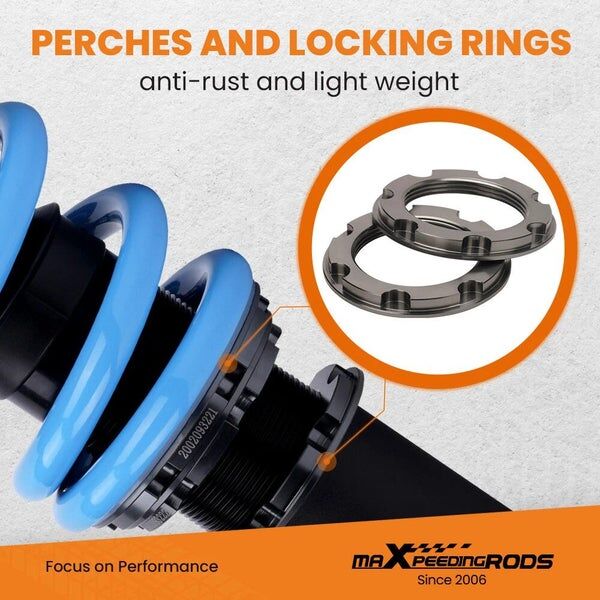

Separate height adjustment does not affect damper stroke,Height can be adjusted with coilovers installed on the vehicle.

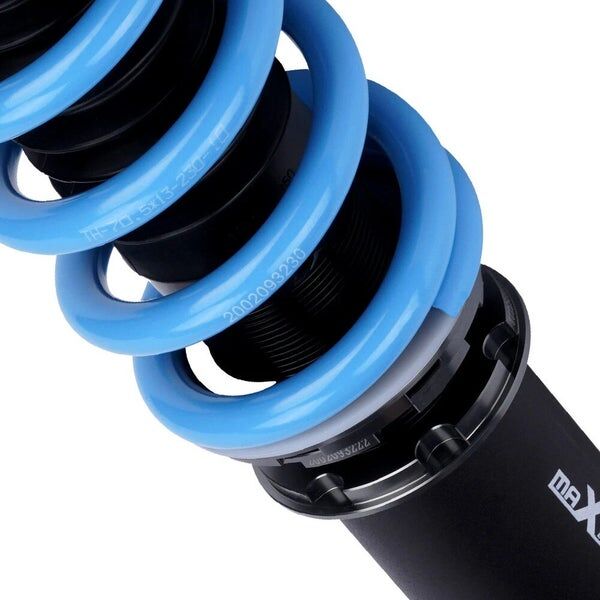

High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

Height Adjustment tools included.

Full rebuildable.

Upgraded damper oil---make damping more stable and smooth in wide temperature range.

Clean room assembled---maintain higher level of accuracy and reliability.
