Application

For Jaguar XJ / XJ8 / XJR 2003-2009

Specification

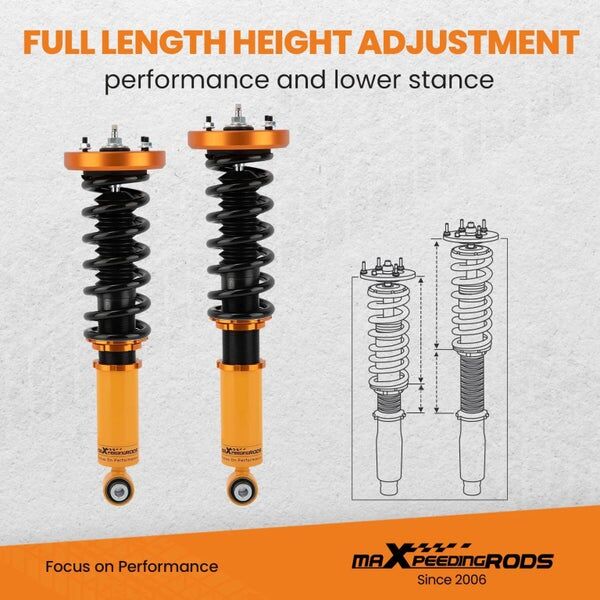

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

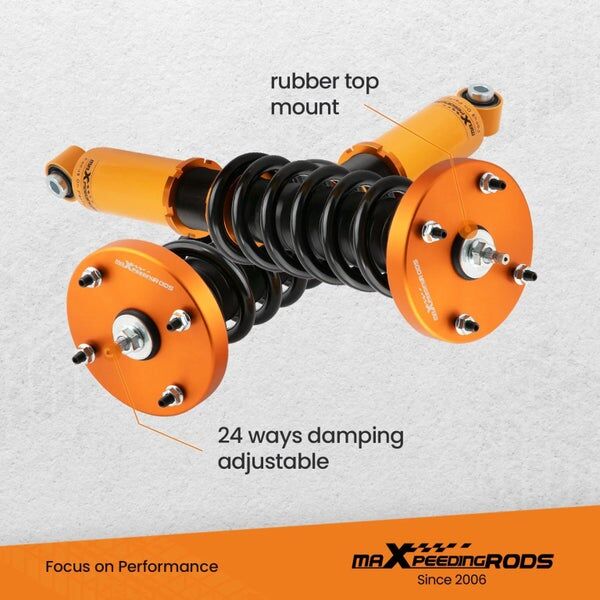

Damping adjustable: Available, 24 levels of rebound damping force

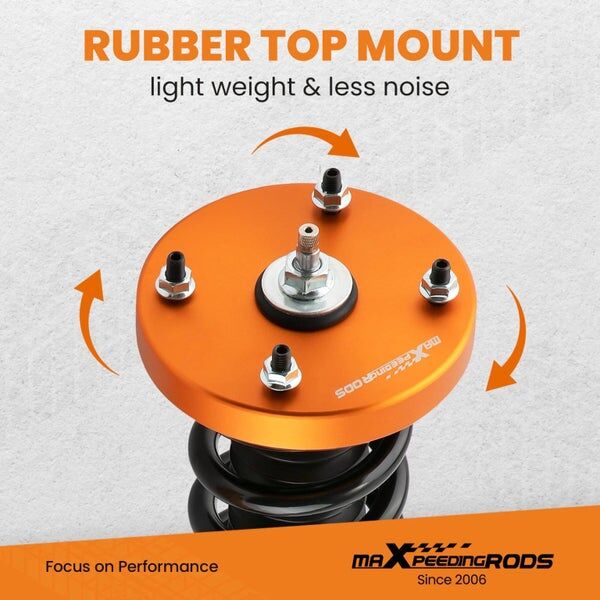

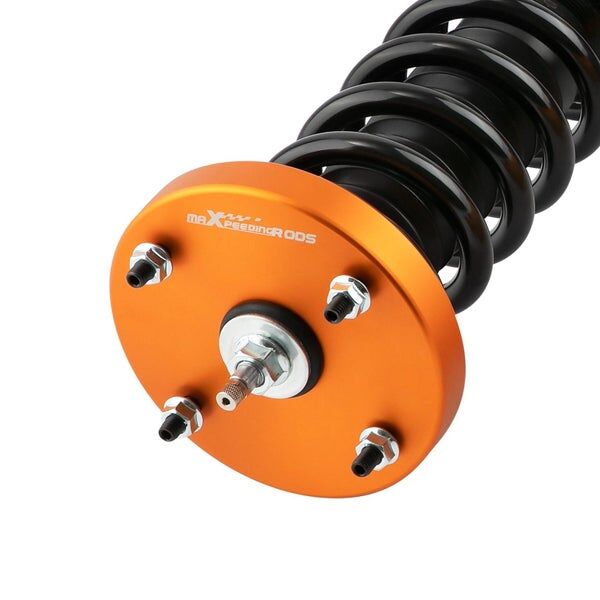

Front top mount structure: Standard rubber

Rear top mount structure: Standard rubber

Camber adjustable: Not available

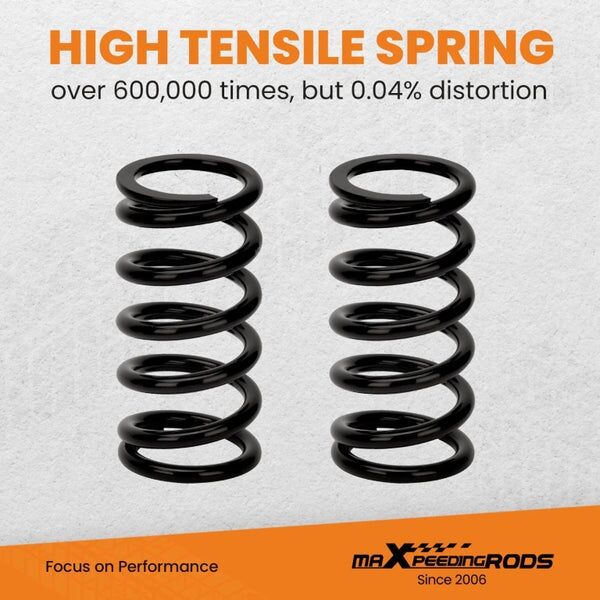

Spring rate Front: 14 kg/mm (784 lbs/in)

Spring rate Rear: 8 kg/mm (448 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 230mm

Spring length Rear: 230mm

Spring Preload advised: 7-10 mm

Shock Type:Twin Tube

Package included

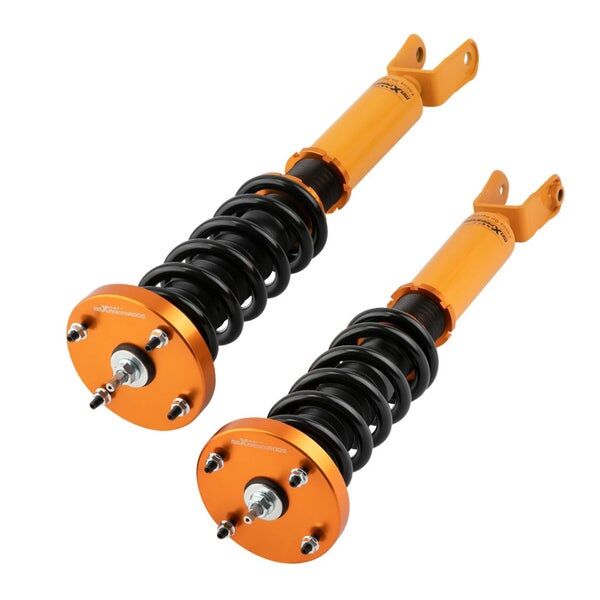

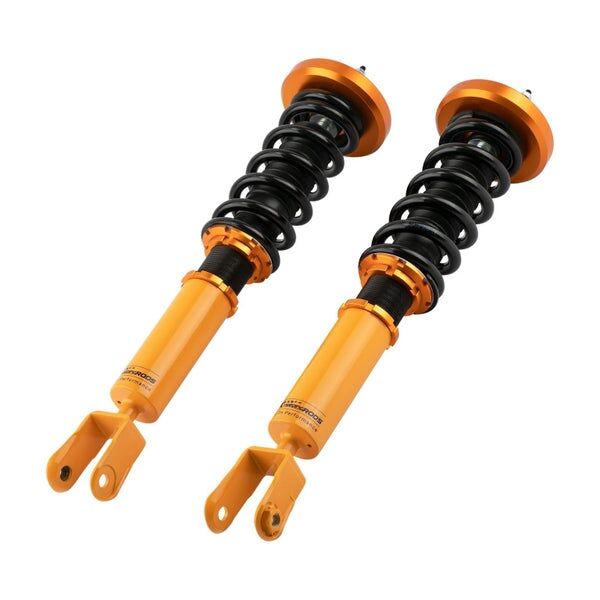

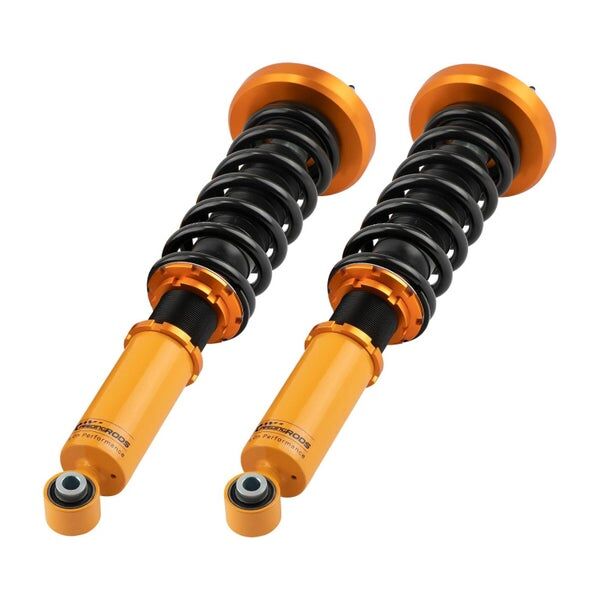

2x Front coil-overs

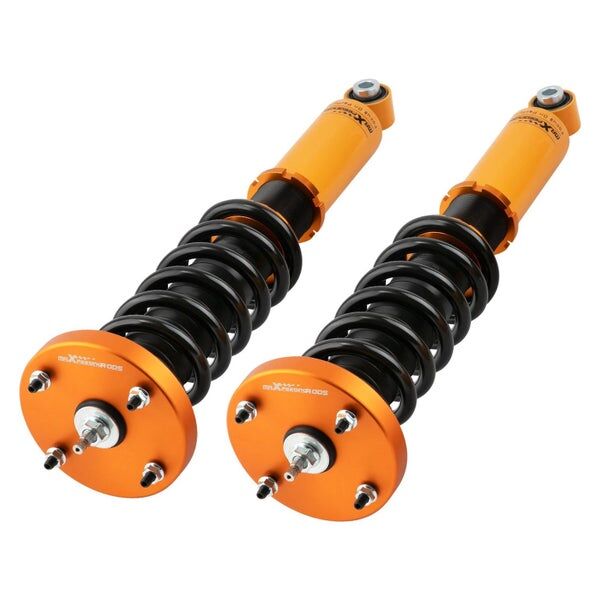

2x Rear coil-overs

2x C spanners

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

Impact wrench is prohibited during the installation, it will loosen or damage the product.

Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
