This turbo is an universal application turbo, some modification may be required based on individual vehicle.
Please check the details carefully before purchasing.
Please confirm that there is enough space in your car to install this turbo before purchasing.

Fitment
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled

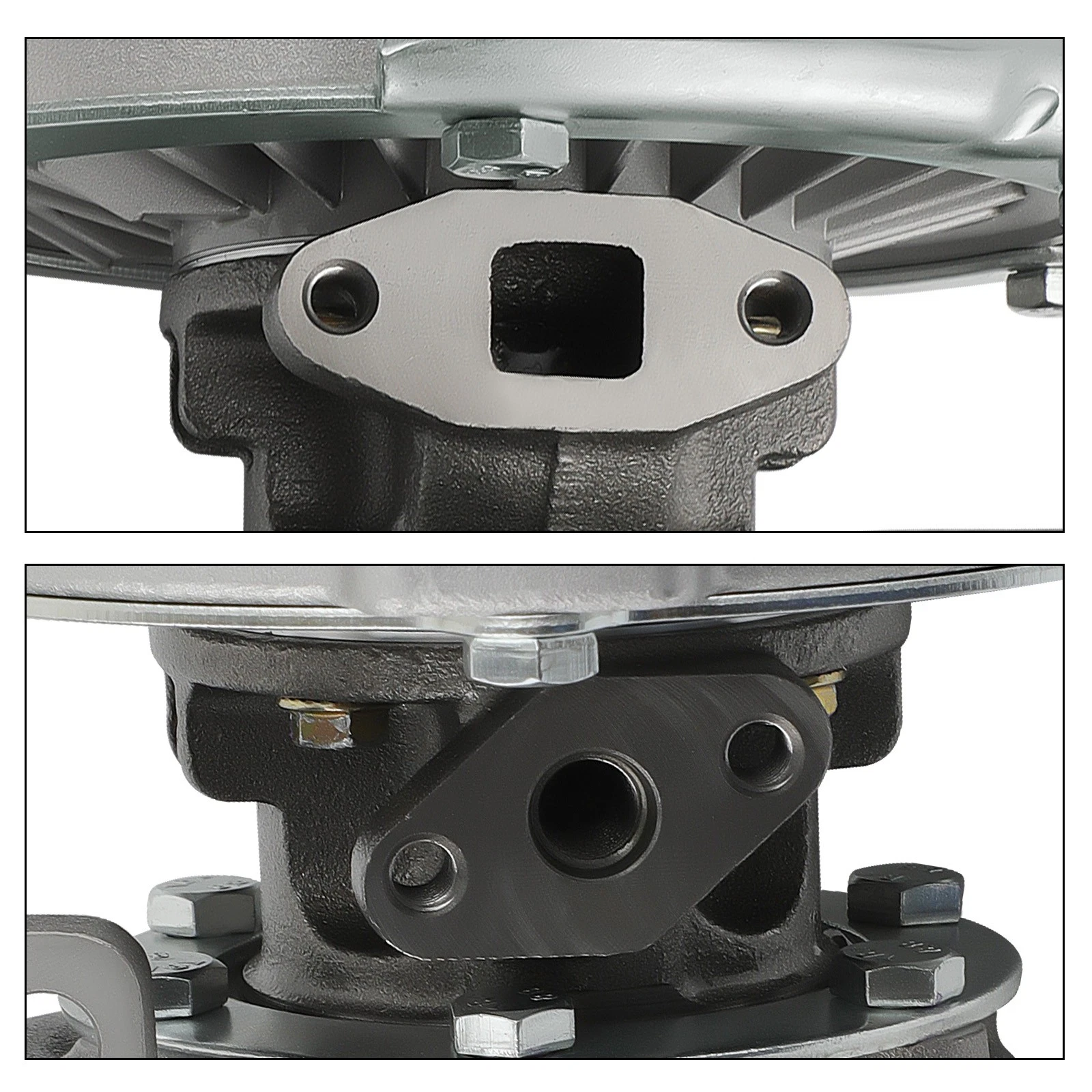

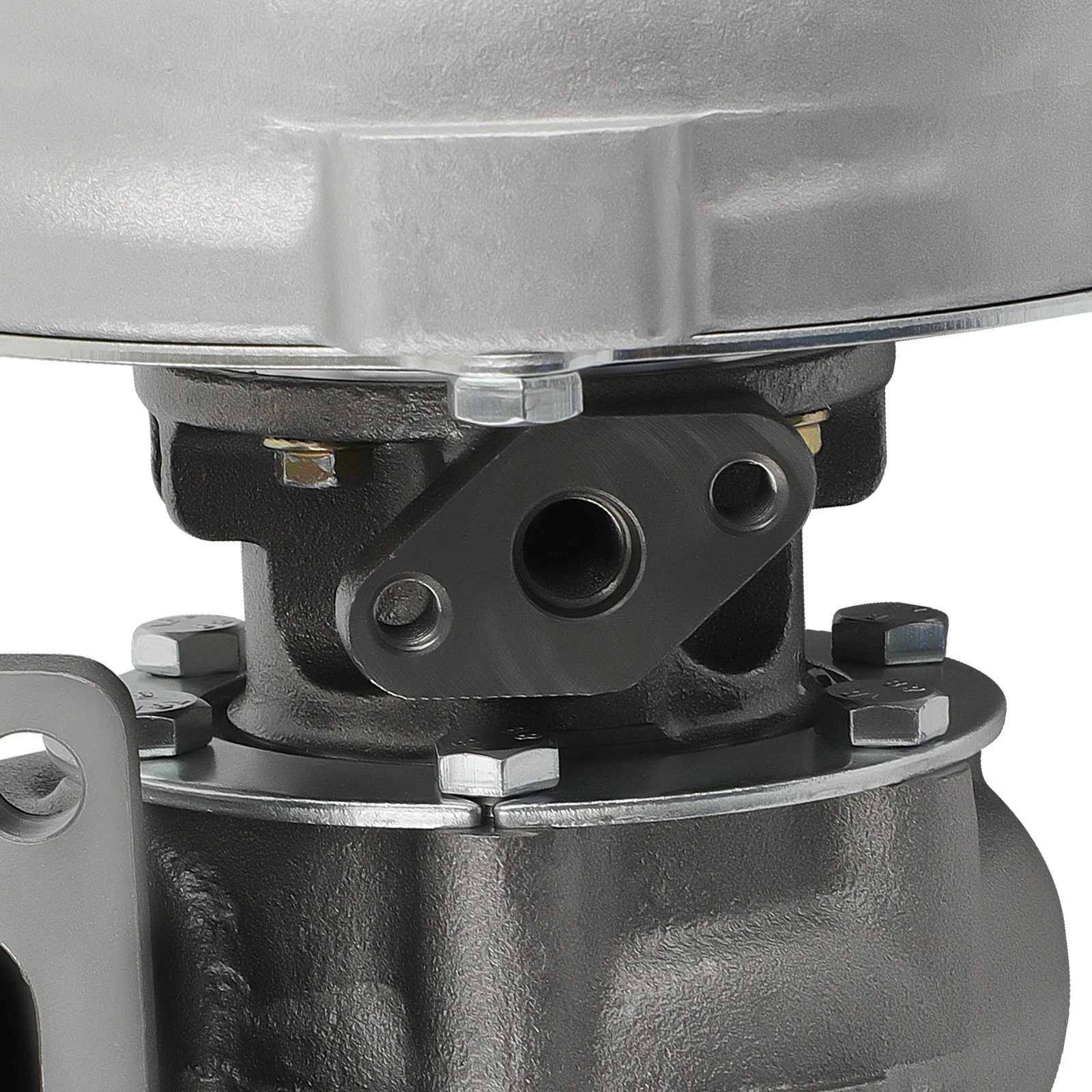

Oil Inlet: M121.25 & 2M81.25
Oil Outlet: 2M8*1.25

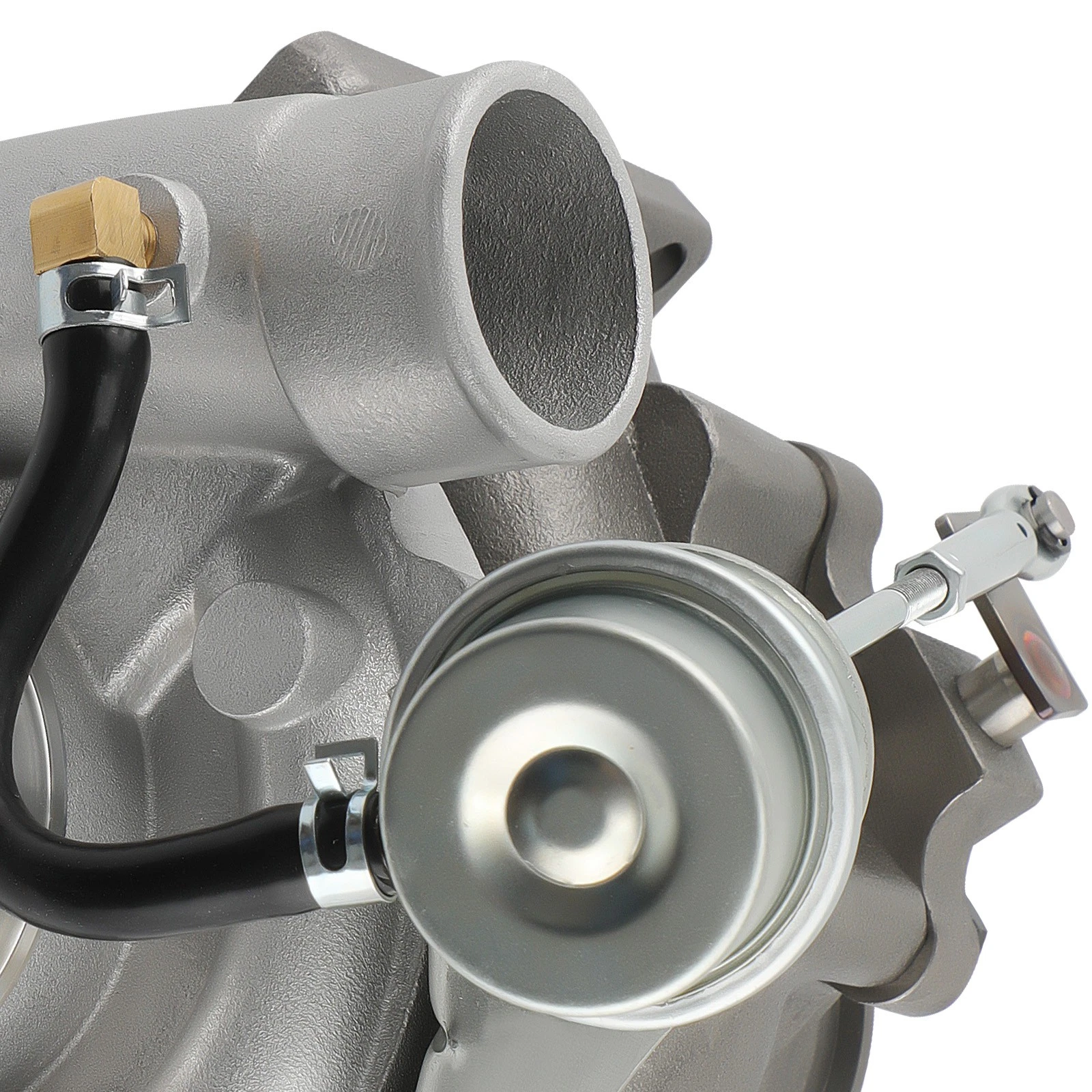

Wastegate:With Wastegate
Thrust Bearings: 270 Degrees
Turbo Type: Individual
Condition:  Brand New

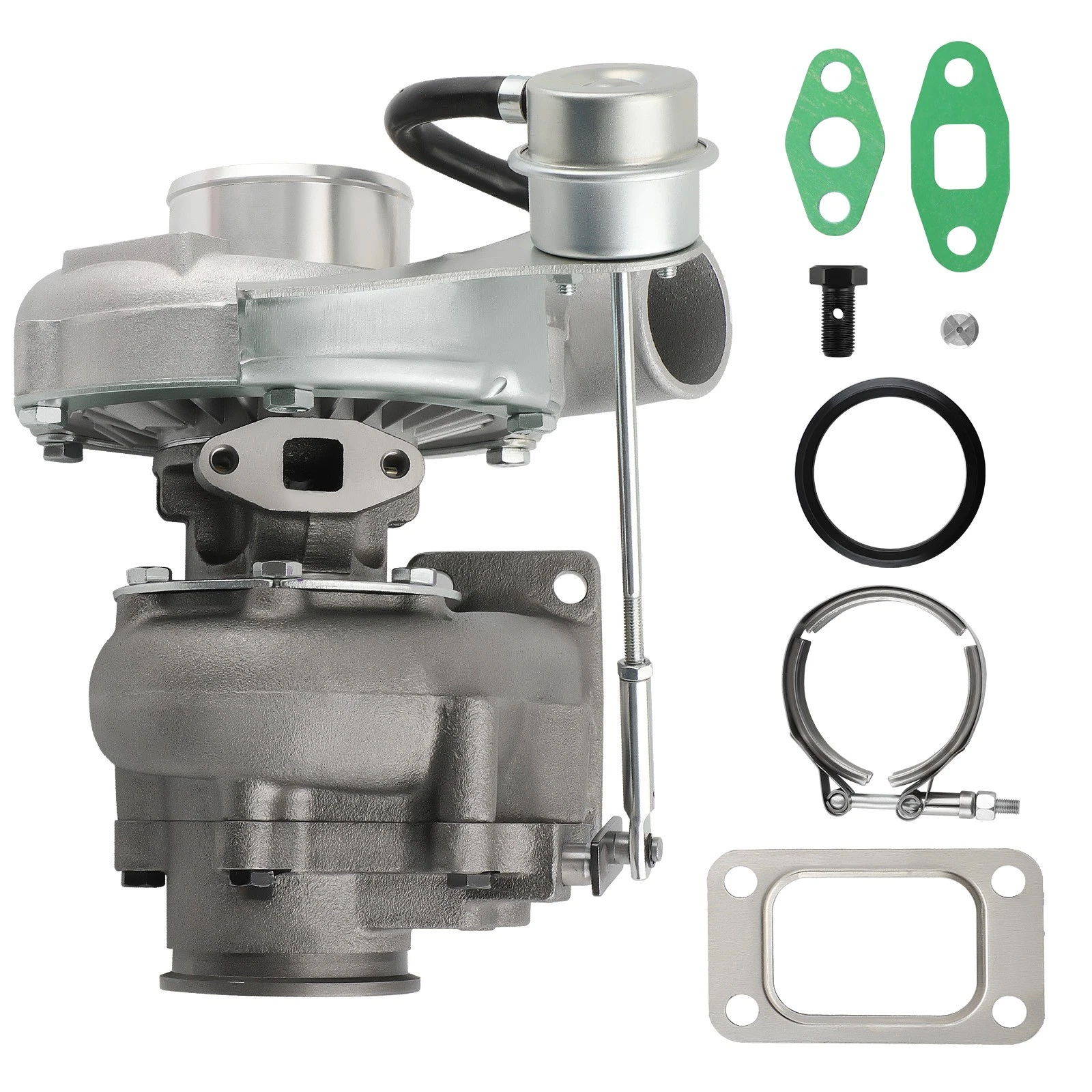

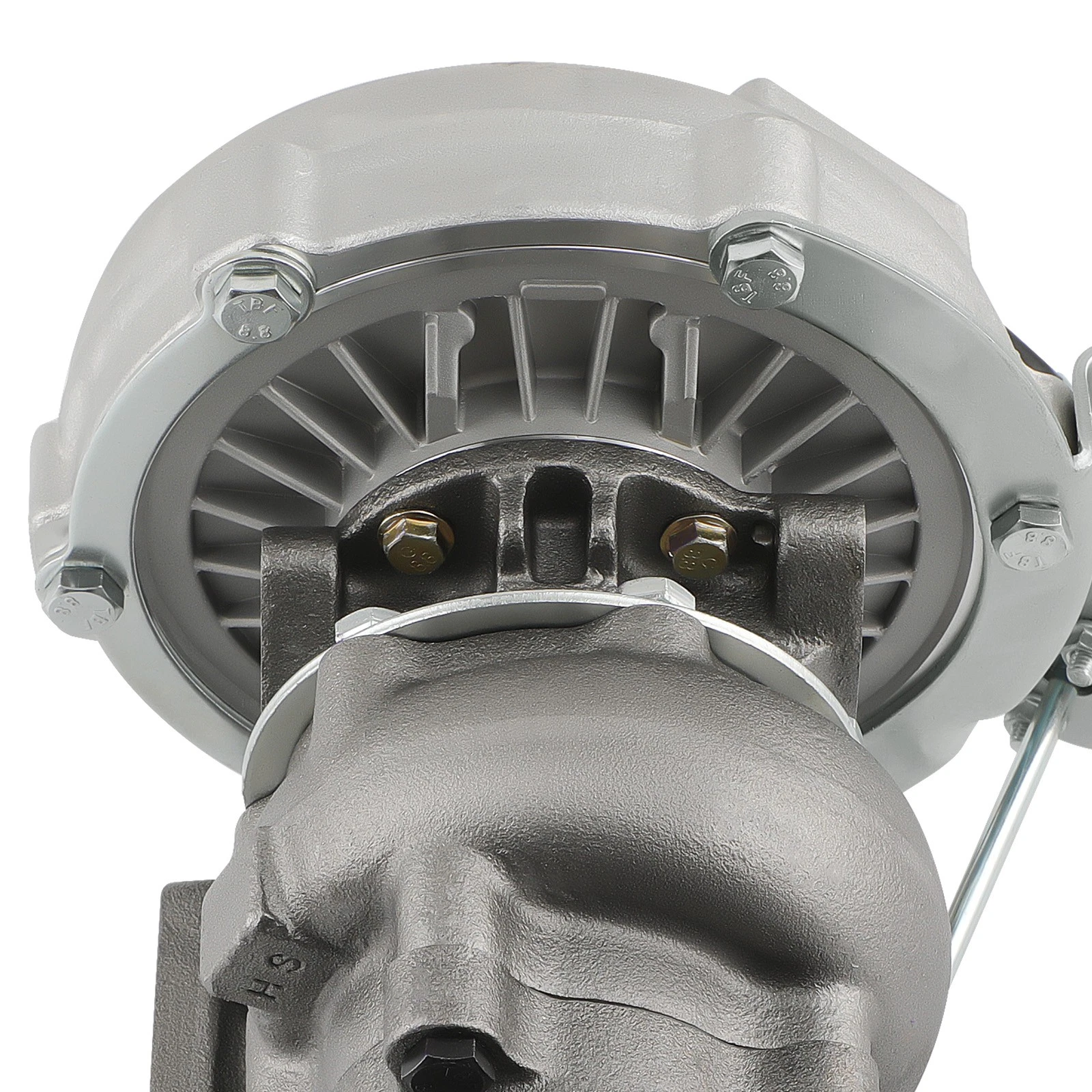

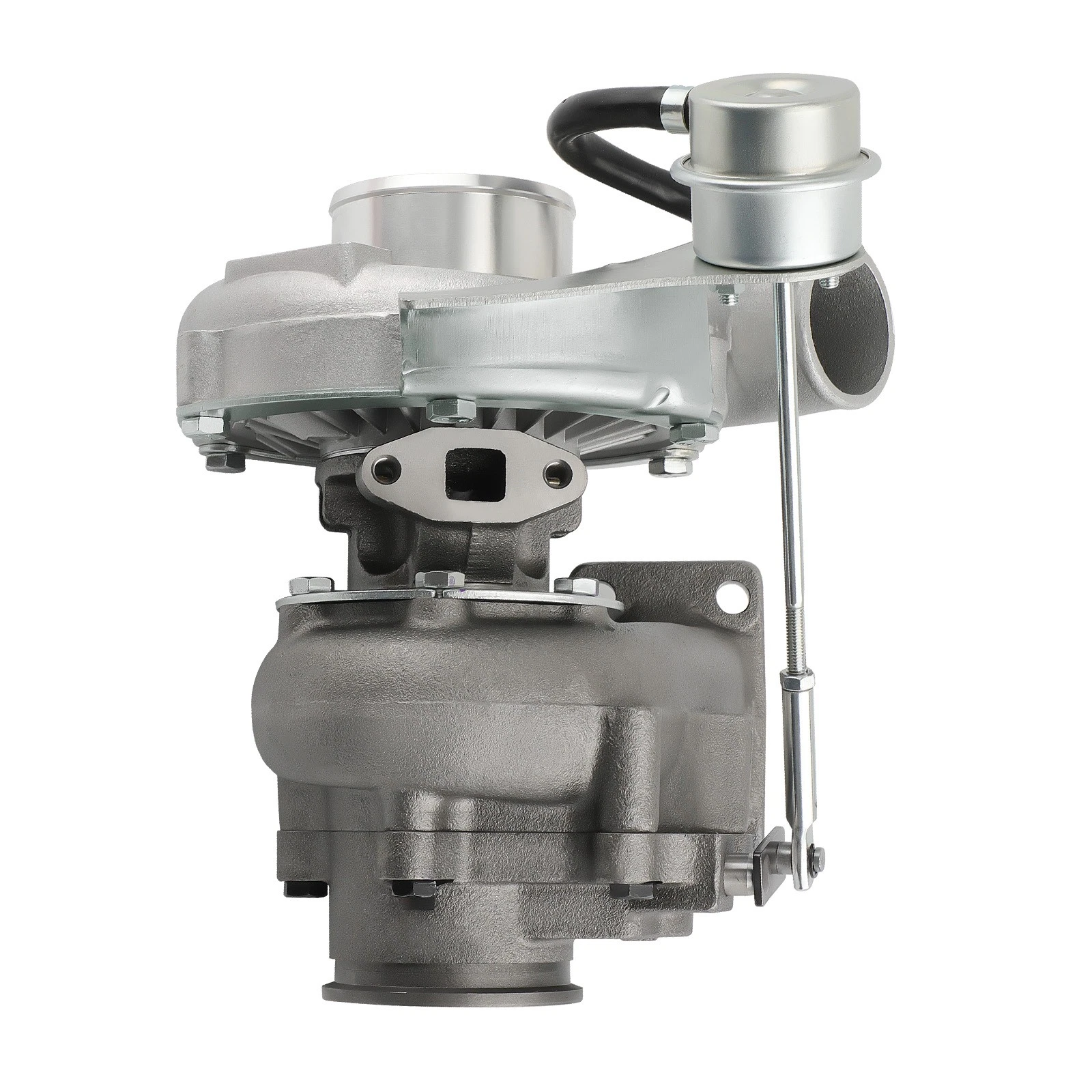

Accessories: You will get exactly as shown as picture above
Package Size:30x 28x 24 cm
Package Weight: 9180g

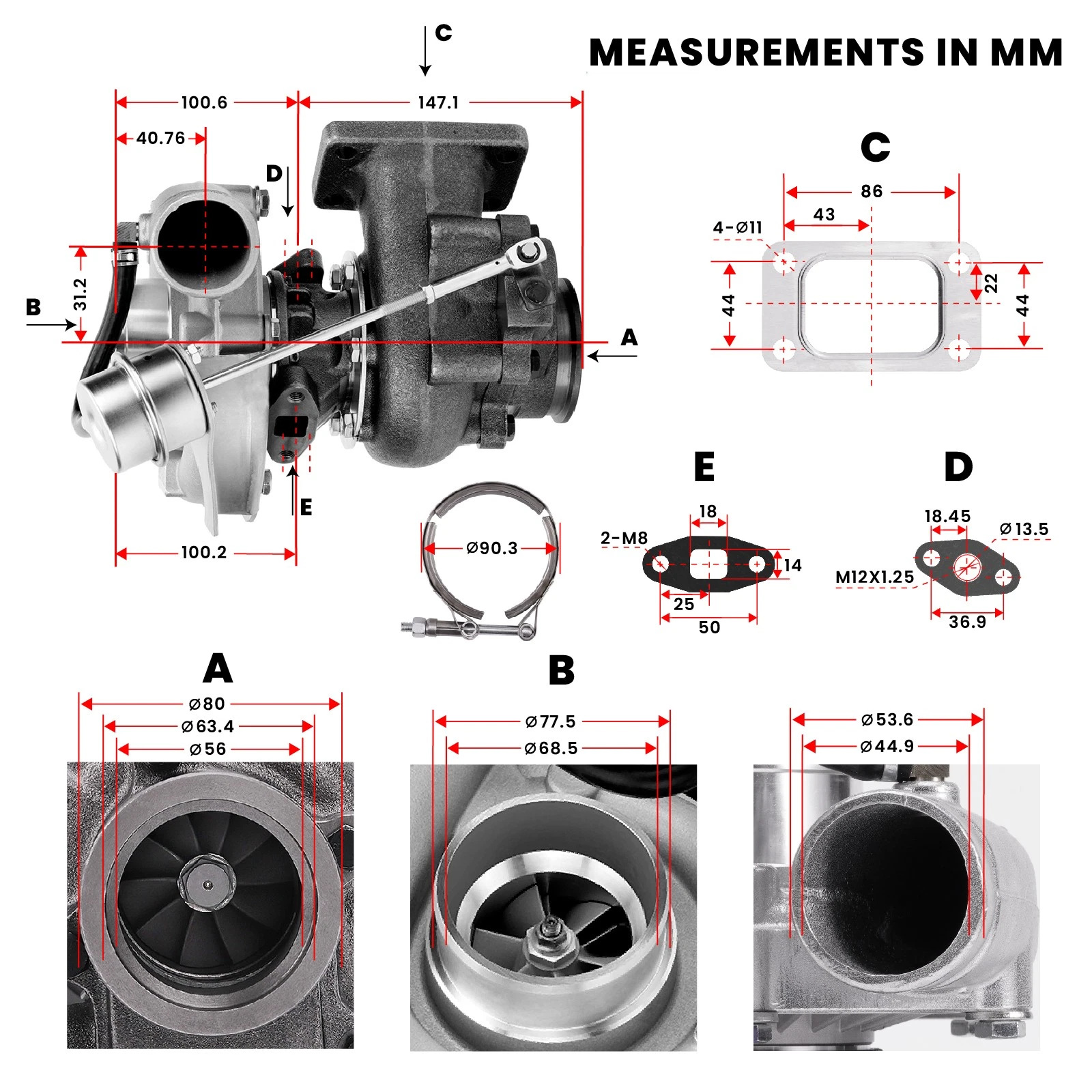

Specification

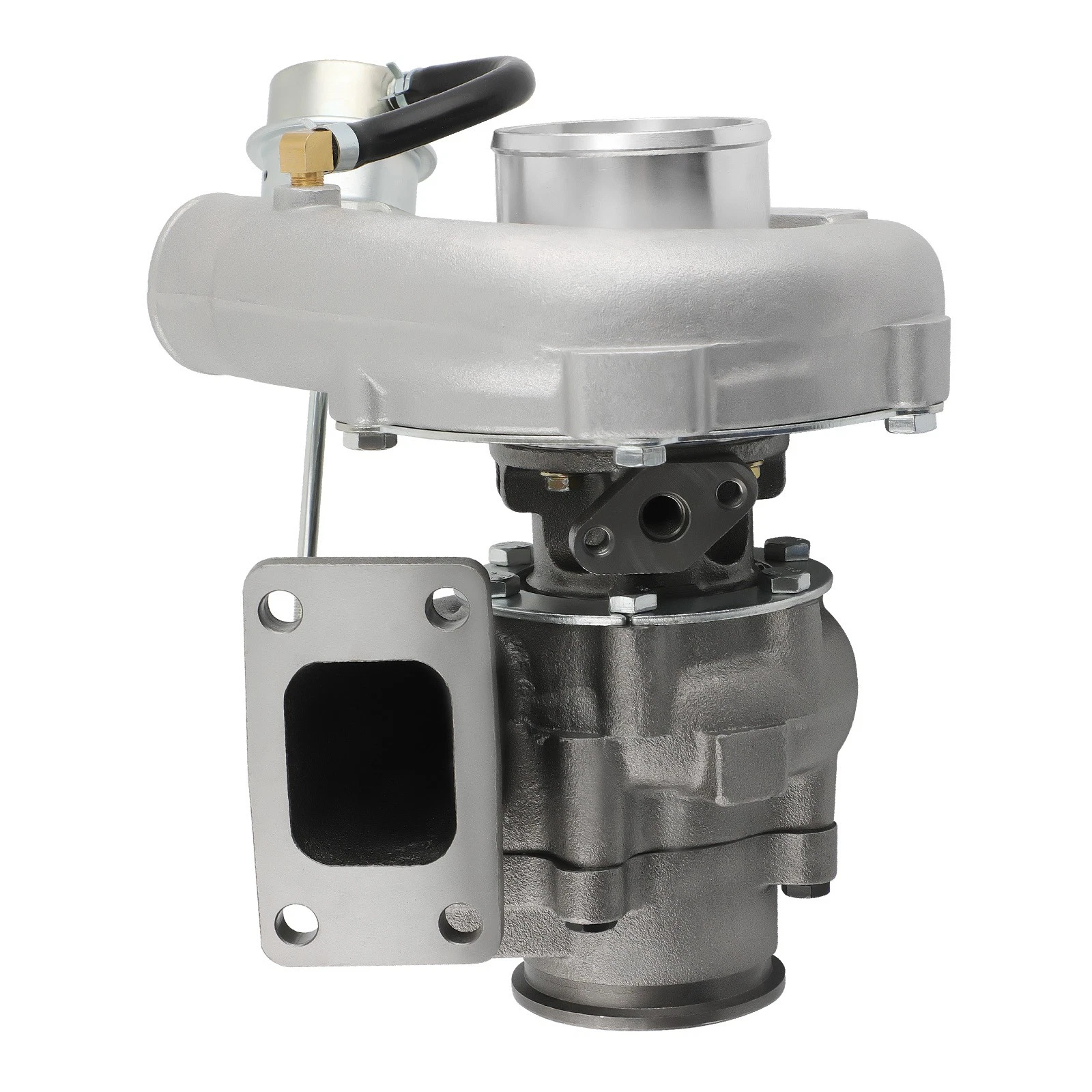

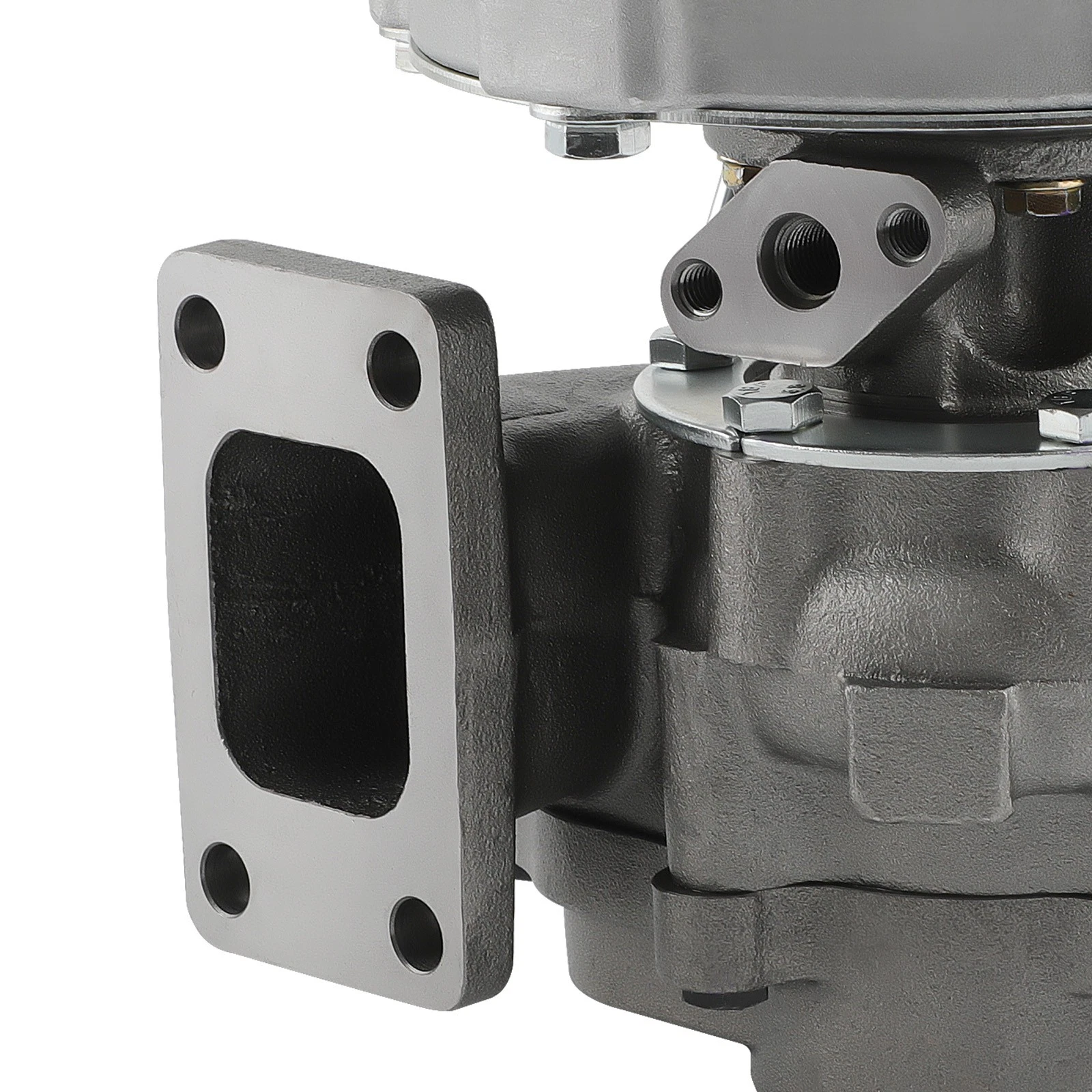

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet  Flange: V-Band Flange  (ID/OD: 2.5"/3.1")
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Turbine exhaust  outlet : 79mm
Turbine exhaust inlet:44.7mm(length)/85.8mm(width)

Compressor outlet:78 mm
Compressor inlet:51.5 mm
Compressor Trim: 48.1

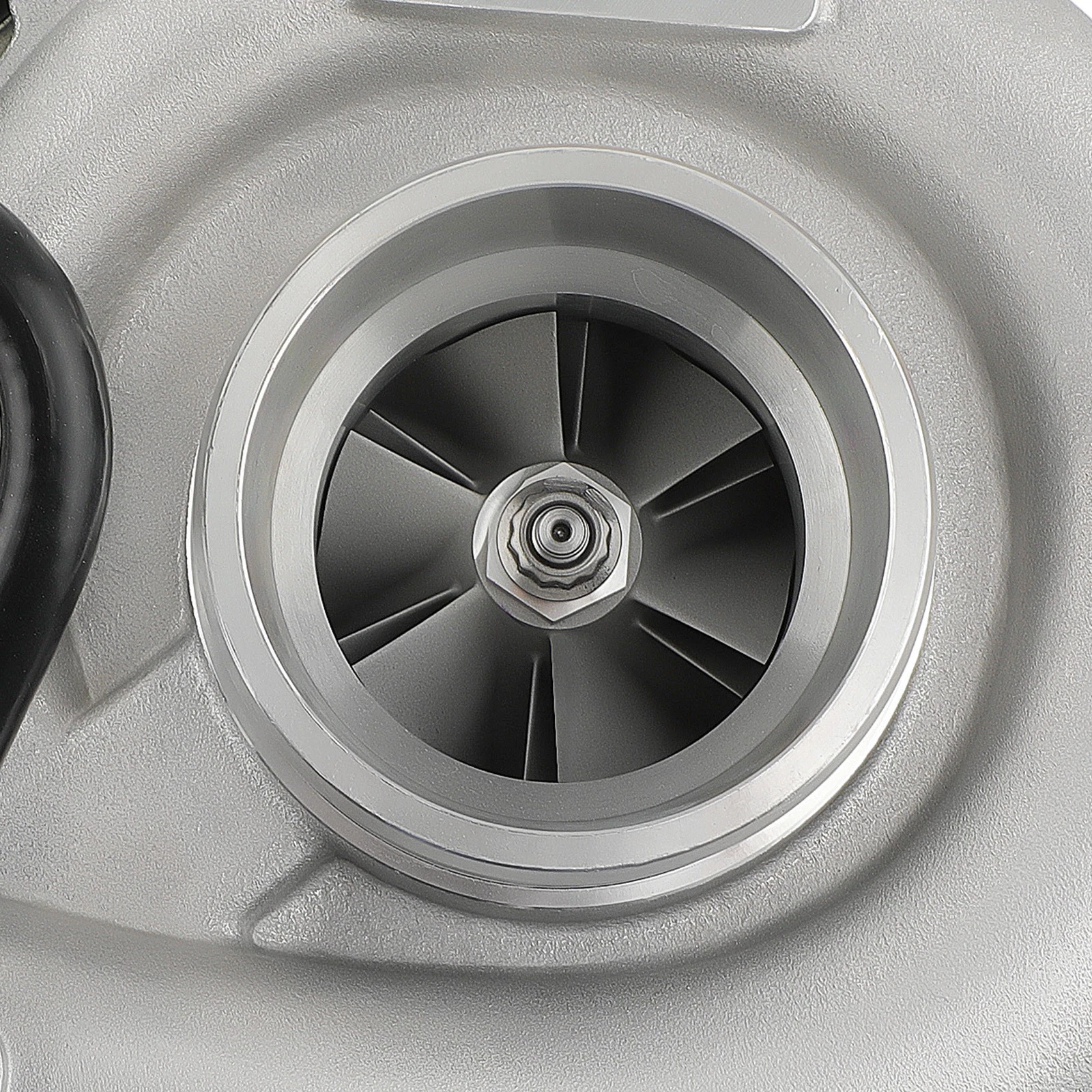

Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing

Feature
*Product Material
Turbine housing :Ductile iron QT450-10 - temperature resistant up to 700?
Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900?
Compressor housing:ZL104 aluminum with lightweight
Compressor wheel/blades:Cast aluminium blades – superior air tightness & corrosion resistance
*Product Features
Cost-effective turbo increase 20-40% power for your car
Rich experience in turbo production and own factory
High-Speed oil seal ring and Precision clearance
Built for durability and strength
*Technology Advantage
100% balancing Test by TURBOTECHNICS VSR3
G3-min-Flow VNT Turbo testing
Advanced Actuator Tester/Programmer

SKU MTV-maX-071
Brand MAX
