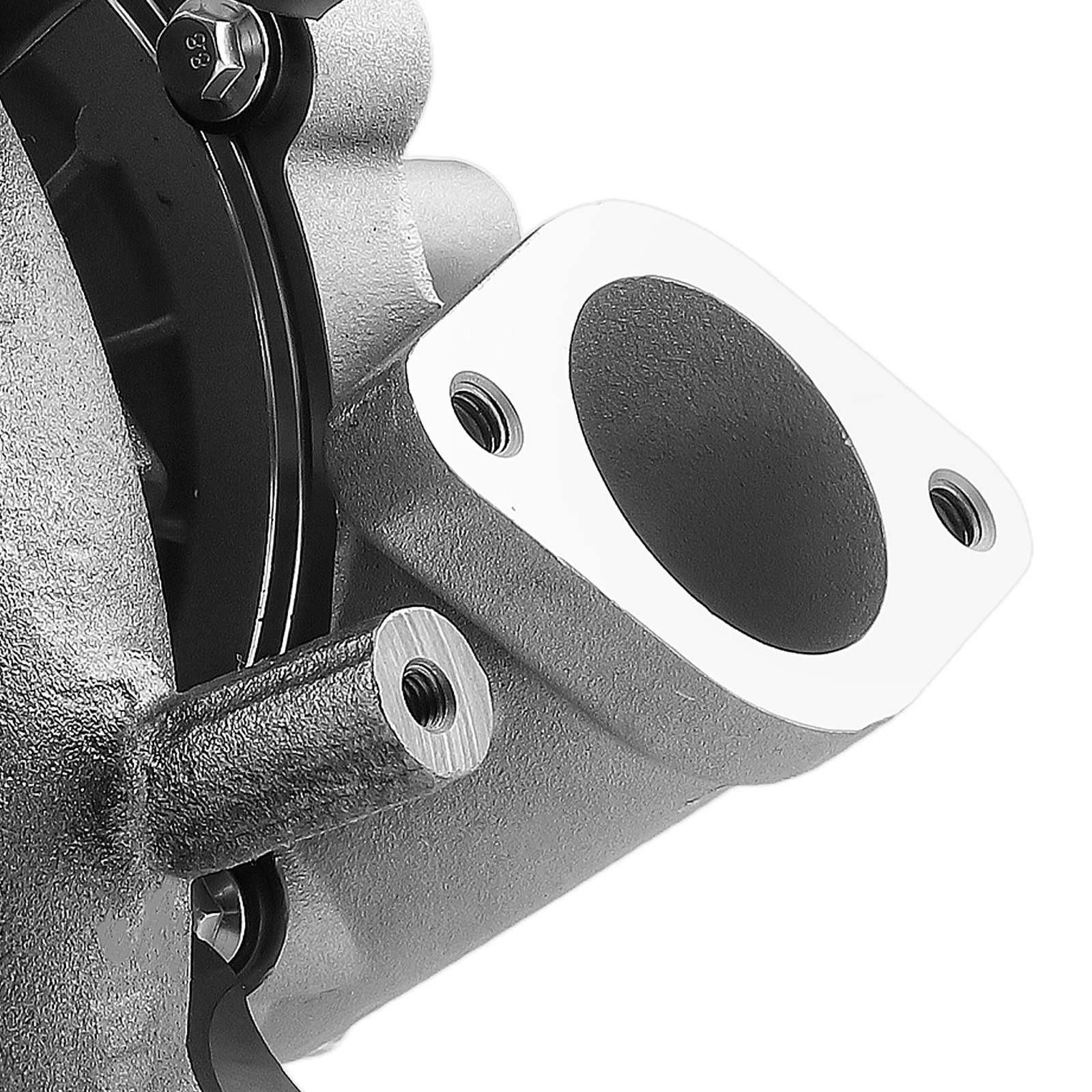

Turbocharger For NISSAN Navara D40 Pathfinder R51 YD25 2.5L GT2056V
SKU code: MTV-maX-023
Fitment
For Nissan Pathfinder R51 2.5 L YD25DDTI 128 kW 2005–2009
For Nissan Pathfinder R51 2.5 L YD25DDTI 140 kW 2010–present
For Nissan Navara D40 2.5 L YD25DDTI 128 kW 2005–2009
For Nissan Navara D40 2.5 L YD25DDTI 140 kW 2010–present
For Nissan Navara D40 2.5 L YD25DDTi 98kW 106 kW 126kW 2005–present

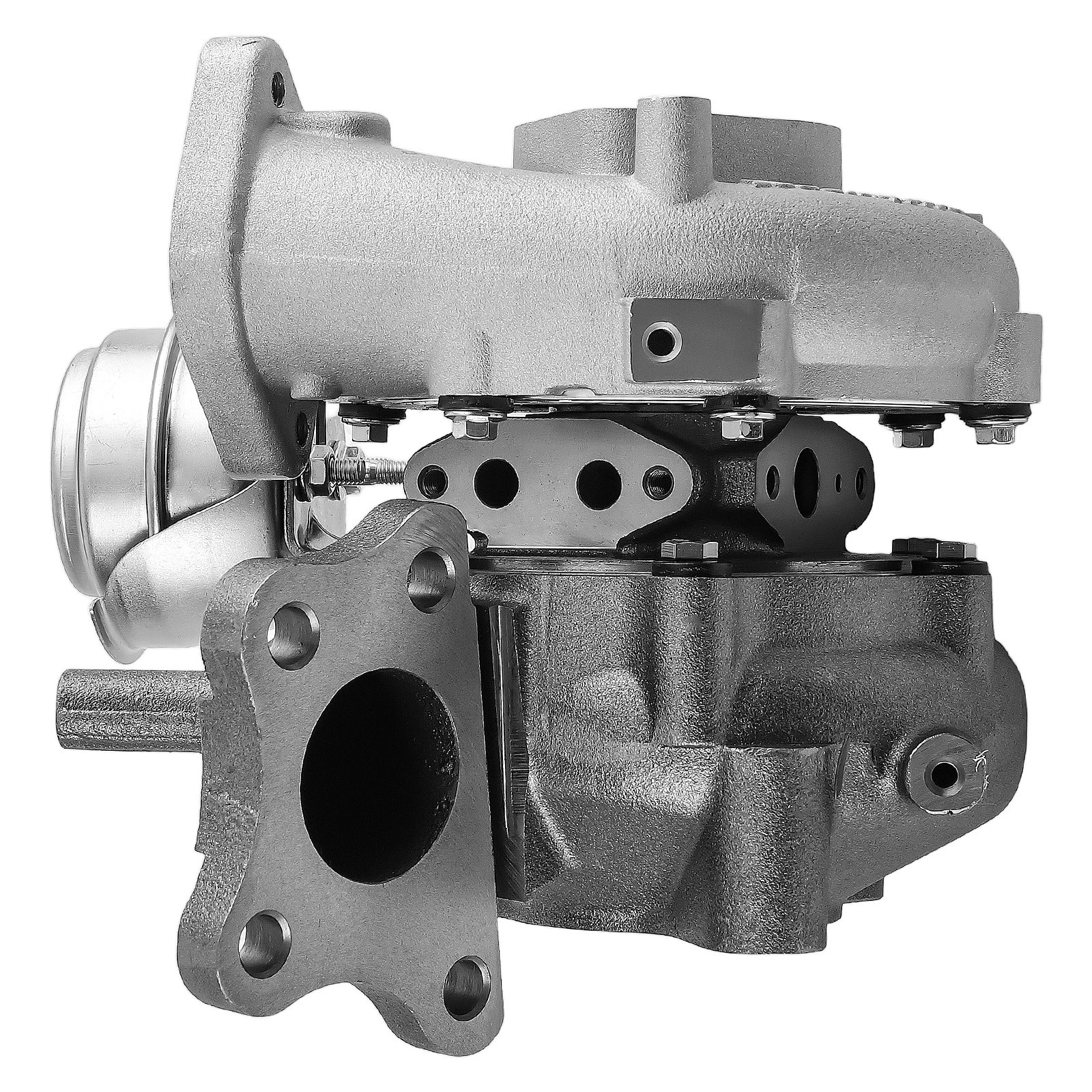

Notice: Please Carefully distinguish this Turbo with 14411-EB300.This turbo have 4 bolt exhaust inlet flange which connect with the manifold
Part number
769708,
769708-1,769708-0001, 769708-5001S,
769708-2,769708-0002, 769708-5002S,
769708-3,769708-0003, 769708-5003S,
769708-4,769708-0004, 769708-5004S,
767720,
767720-1,767720-0001, 767720-5001S,
767720-2,767720-0002, 767720-5002S,
767720-3,767720-0003, 767720-5003S,
767720-4,767720-0004, 767720-5004S,
767720-5,767720-0005, 767720-5005S,
767720-6,767720-0006, 767720-5006S,
14411EB70A, 14411-EB70A, 14411EB70B, 14411-EB70B,
14411EB70C, 14411-EB70C, 14411EB70D, 14411-EB70D,
14411EC00A, 14411-EC00A, 14411EC00B, 14411-EC00B,
14411EC00C, 14411-EC00C, 14411EC00E, 14411-EC00E,
Specification
Turbo Model: GT2056V, GTA2056V
Eingine code: YD25DDTI
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 171HP
Actuator Type:Vacuum actuator
Turbo Type:Individual/VNT
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above
Package Size:25*24*23cm
Package Weight: :7940g

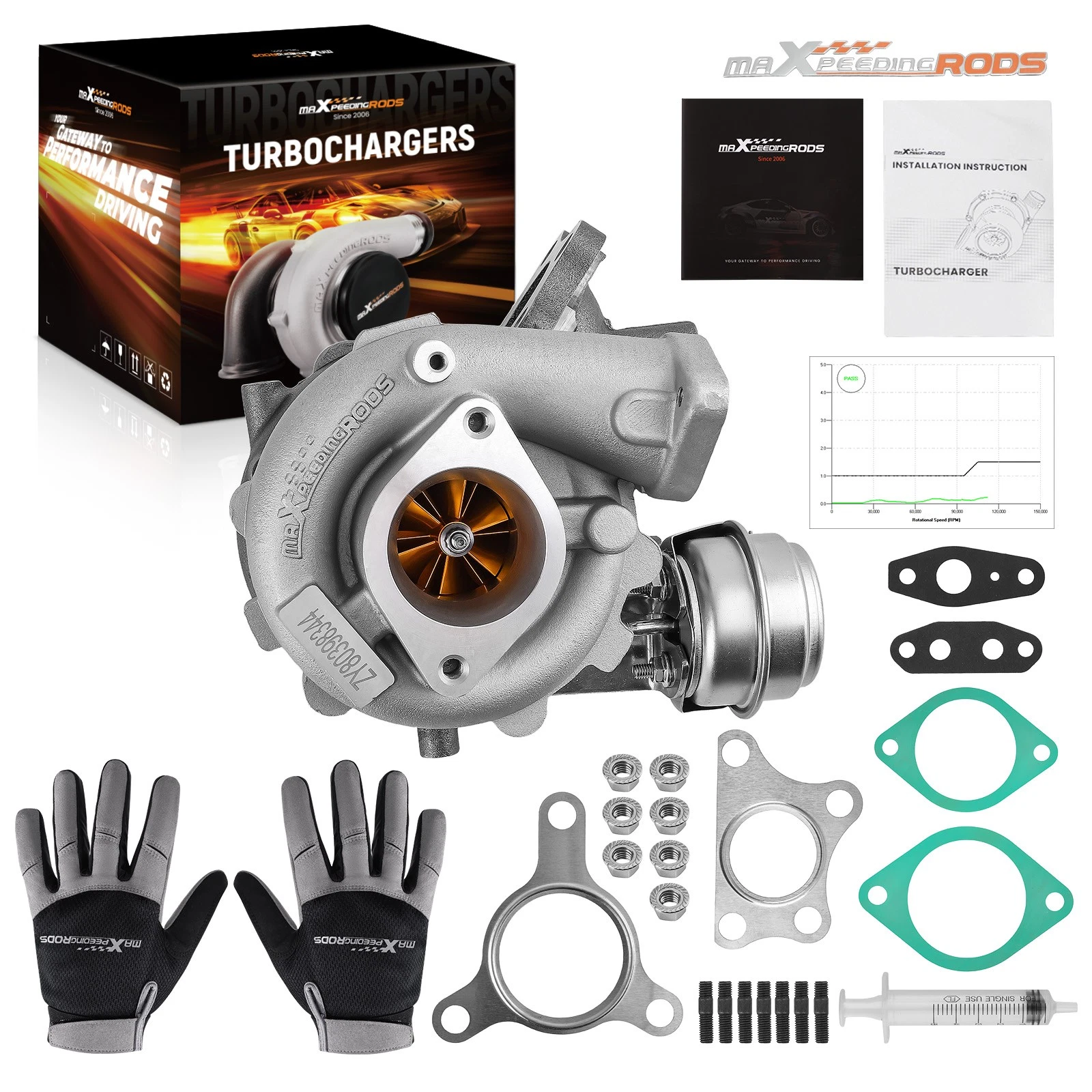

Package
1xTurbocharger
2xFlange gaskets
2xOil/Water port gaskets
1xManual
1xBrochure
1xSticker
Note
Please confirm your original turbo PART NUMBER before Purchasing
Professional installation is highly recommended
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
