Features
[Practical Installation]
Easy to install, no-drill systems, typically takes 1 to 2 hours. Professional installation is recommended
[Manufacturing Process]

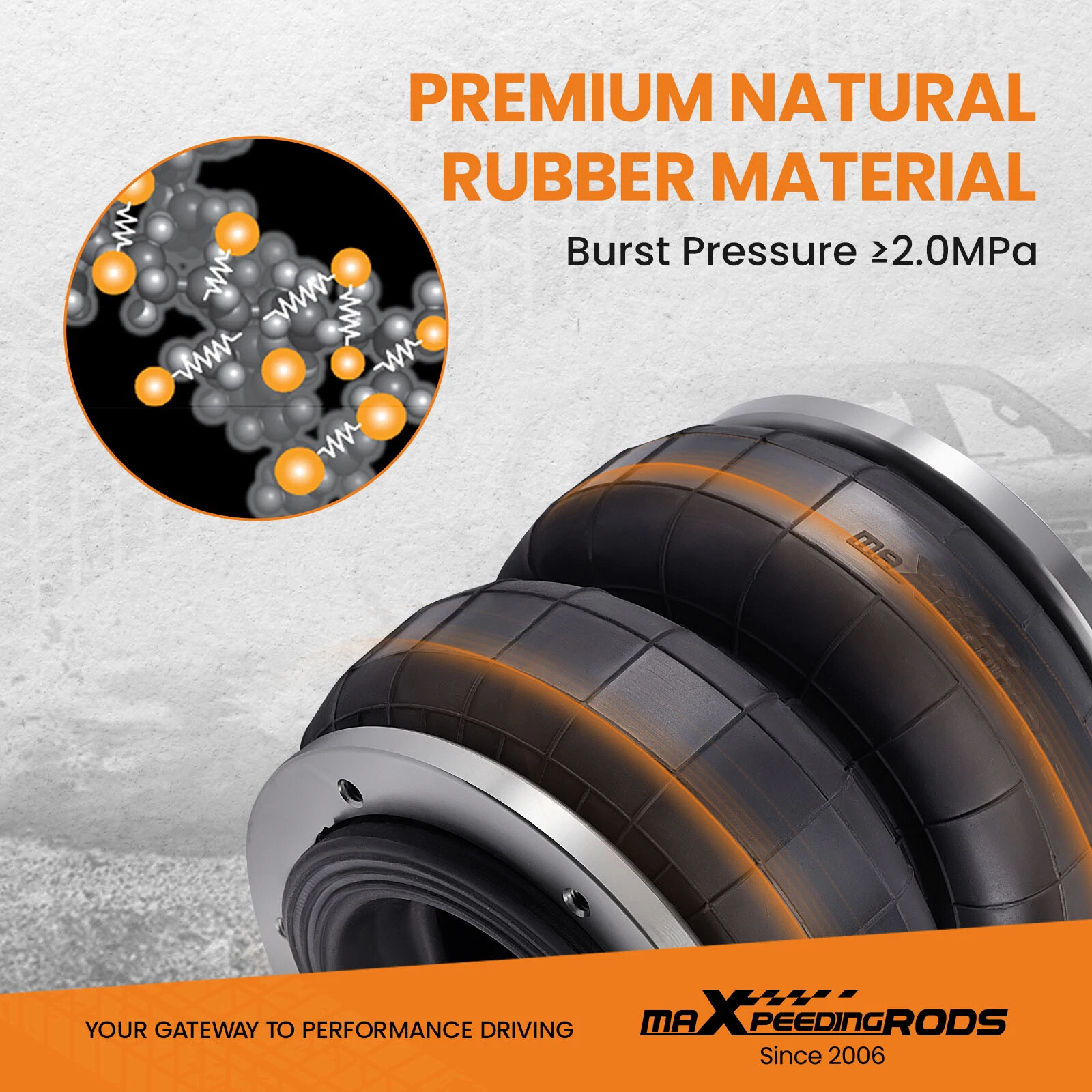

Galvanised Heavy duty bracket, with Natural Rubber and Hi-tensile steel offers high load-bearing 5000lbs capacity and long life

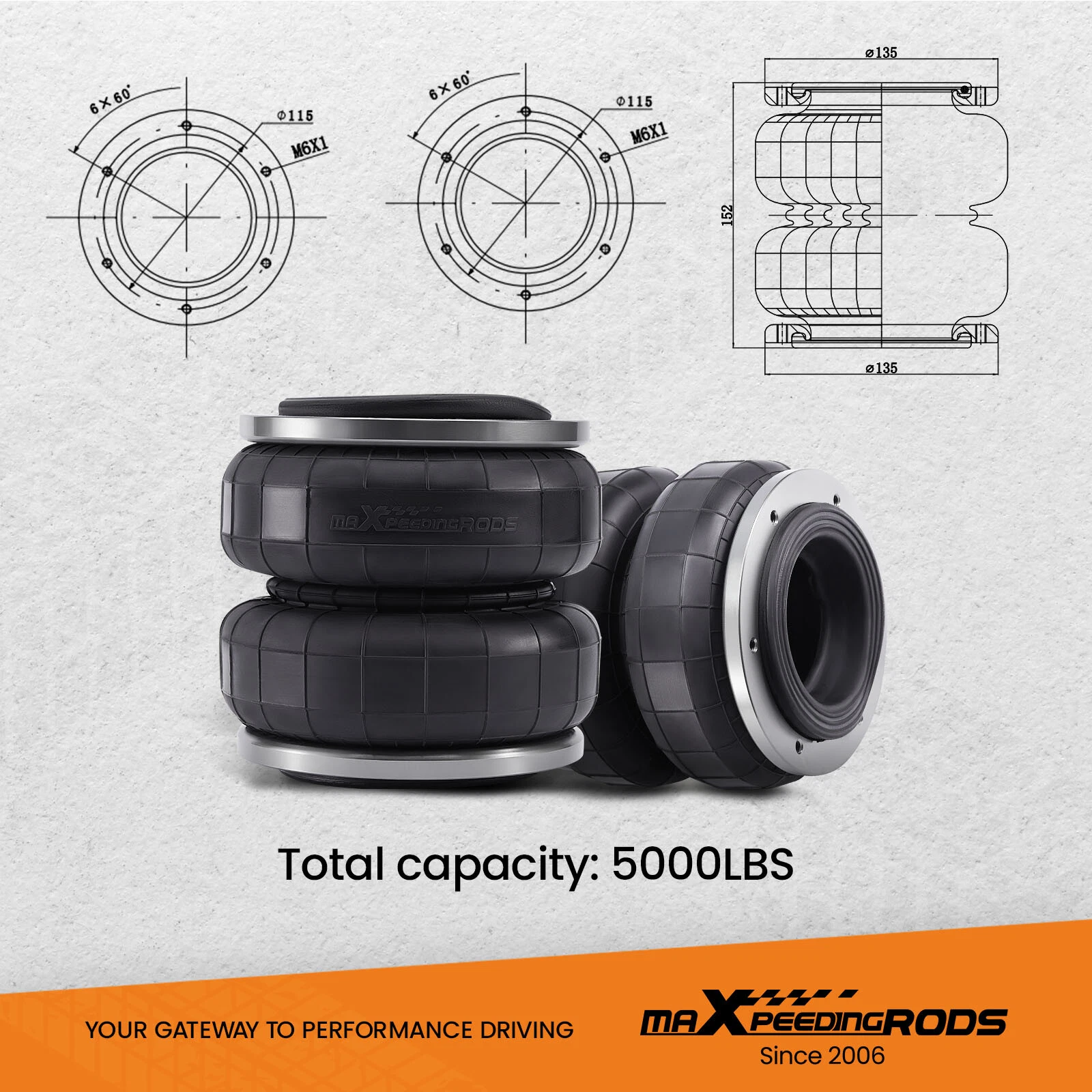

Dimensions
Design height:  152mm
Stroke:  110mm
Max. Extended:   175mm
Min. Compressed: 65mm
Operating Pressure : ≤2.0Mpa

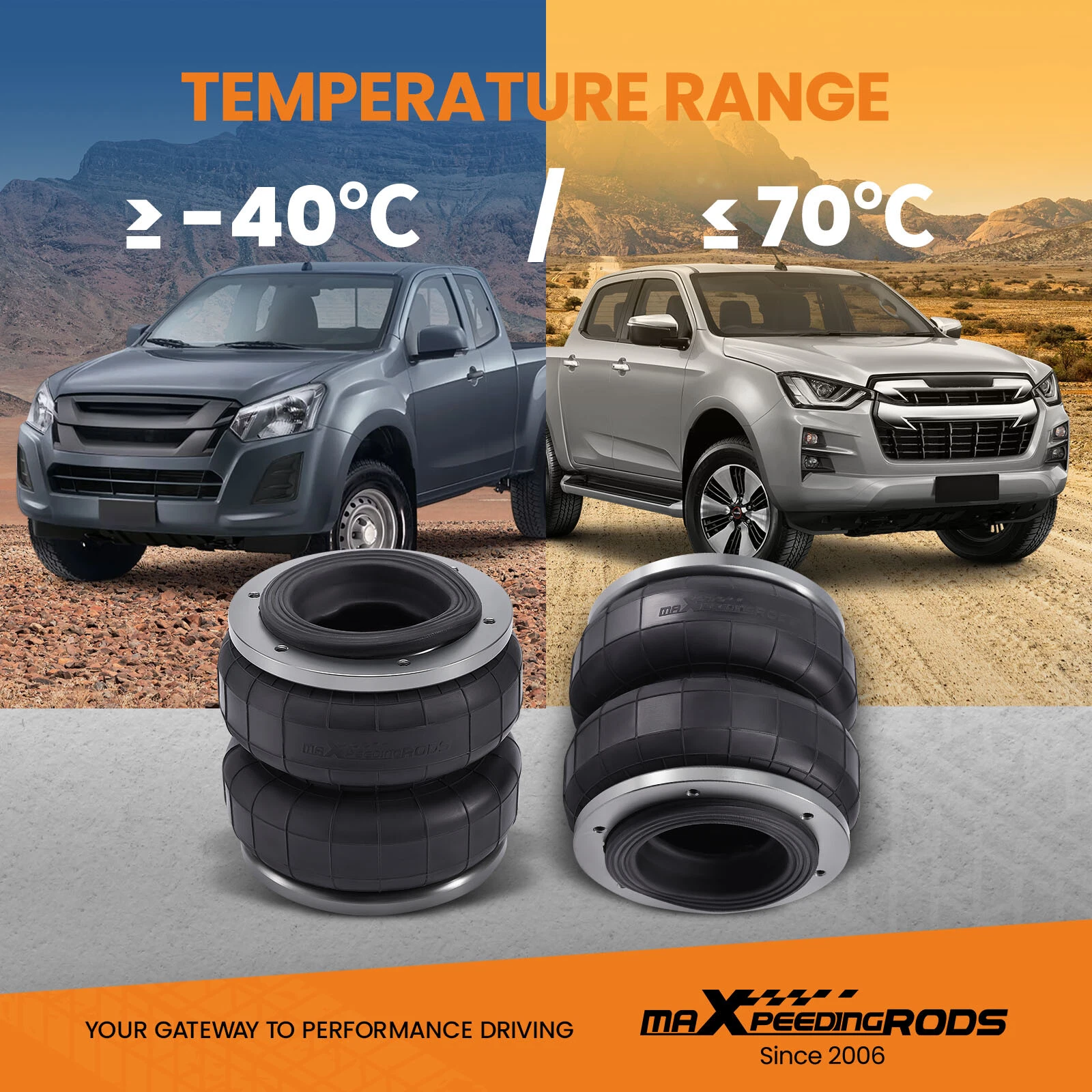

Temperature:≤+70° , ≥-40°
Minimum PSI: 5 PSI
Maximum PSI: 160PSI

Specifications
Condition:Brand New
Placement on Vehicle:Rear Left and Right
Capacity:5000 LB / 2268 KG
Recommended working range:5psi - 160psi

Fitment
For Isuzu D-Max 2020 onwards 2wd 4wd
For Mazda BT50 2020 onwards 2wd 4wd
This kit is still suitable even if your vehicle has a 2″ lift.

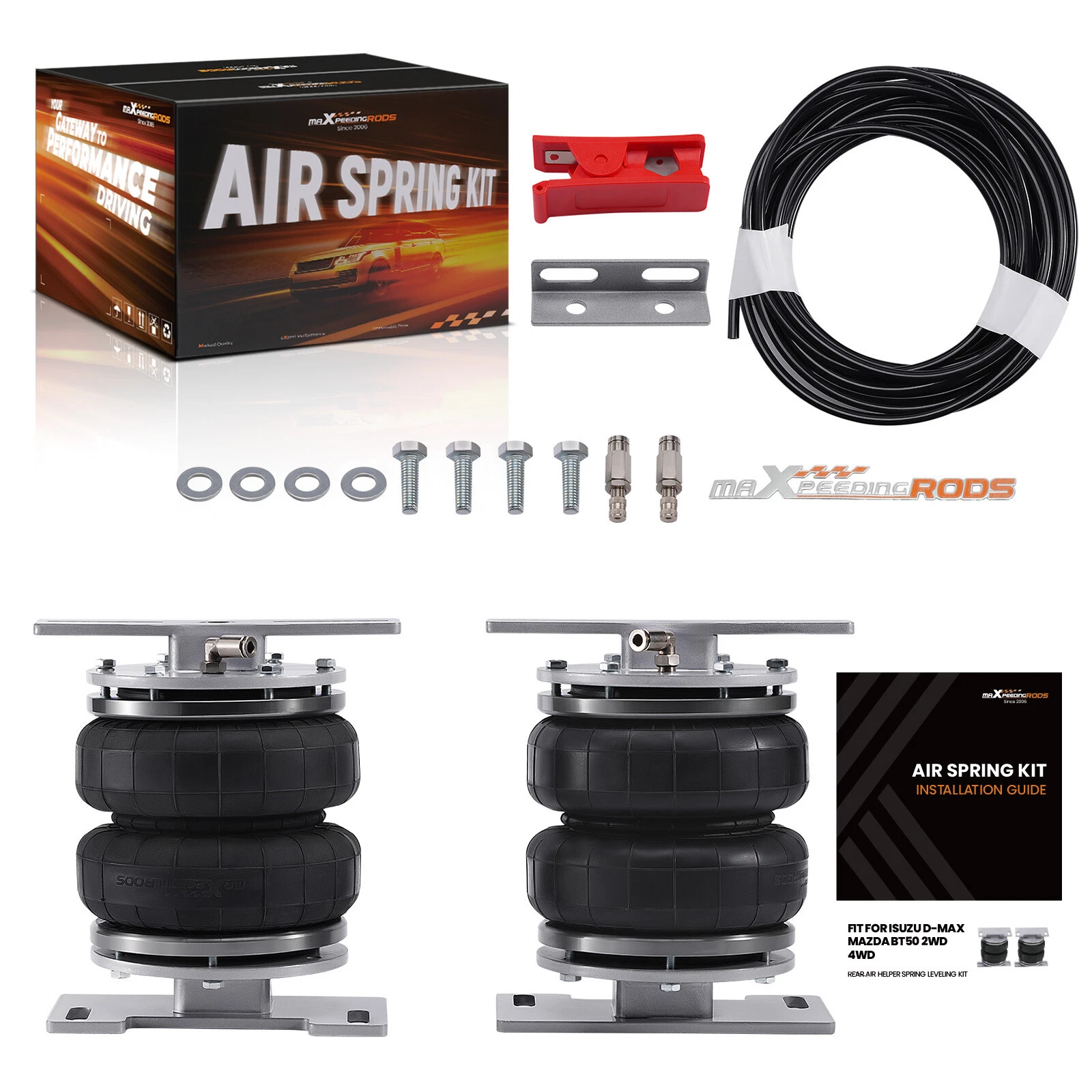

Package Includes
2x Natural Rubber & Hi-tensile steel Air spring
4x Galvanised Heavy duty Mounting bracket
1x Air line 7M
Mounting Hardware

SKU MTV-maX-040
Brand MAX
