Fitment

Perfect for all 4/6 cylinder and 2.5L-6.0L engines Capable of Boosting Horse Power up to 600HP

Note

Please confirm that there is enough space in your car to install this turbo before purchasing.

Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Product Specification

Turbine Side

Exhaust Inlet Flange: T3 Flange

Exhaust Outlet Flange: V-Band

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Side

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type

Wet Float Thrust bearing: 270 degree

Cooling Type:Water + Oil Cooling

Horse Power: Up to 600HP

Turbo Type: Individual

Universal Fitment: Yes

Finish:Matte

Wastegate:Without Wastegate

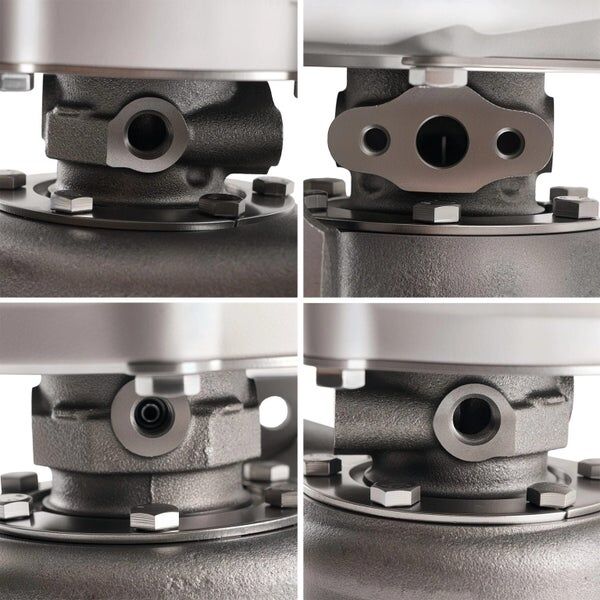

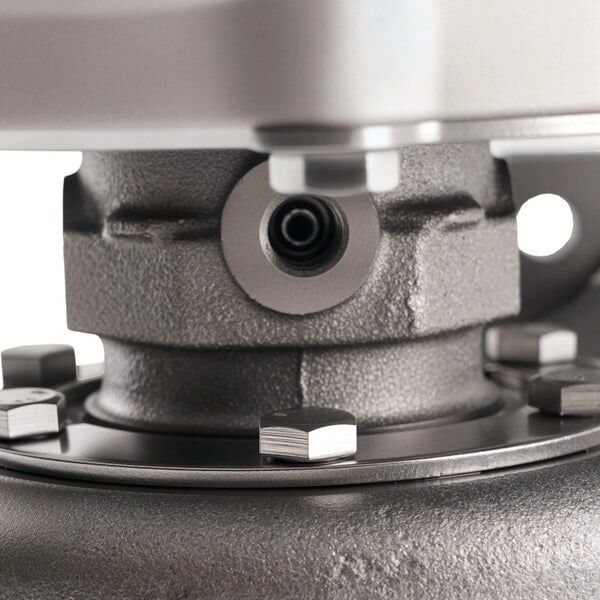

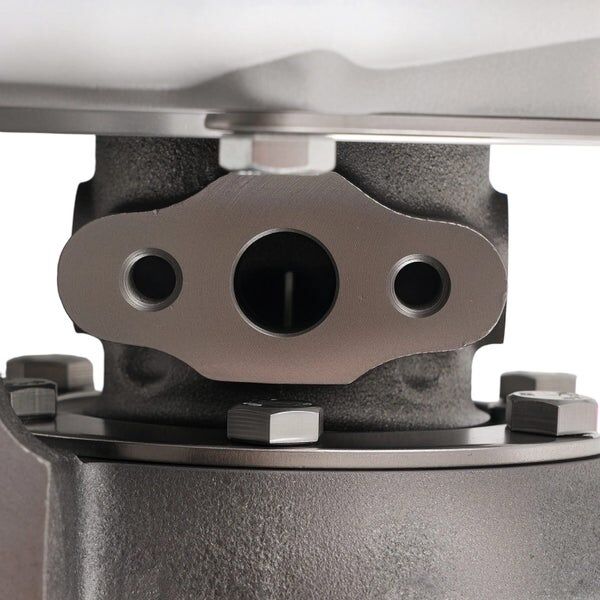

Oil feed/inlet: M107/16-24

Oil drian/outlet: 2M81.25

Water inlet/outlet: M14 1.5

Maximum PSI: 22

Condition: 100% Brand New

Accessories: You will get exactly as shown as picture above

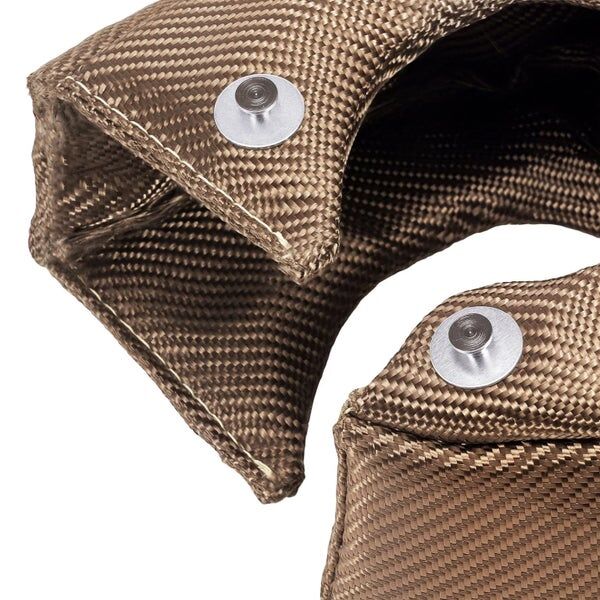

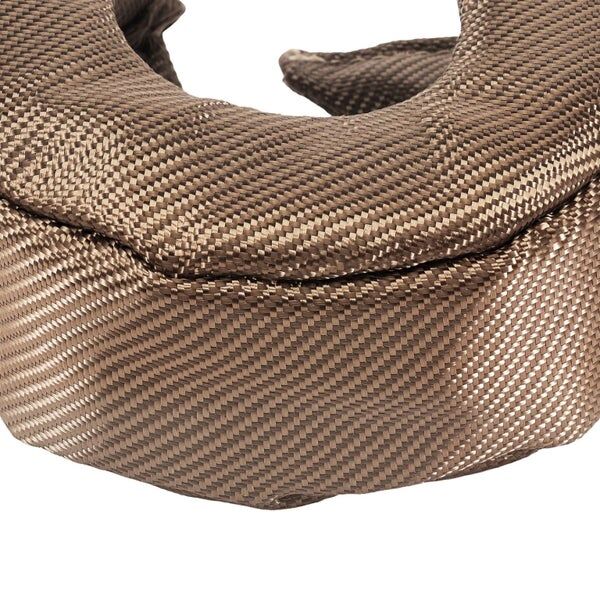

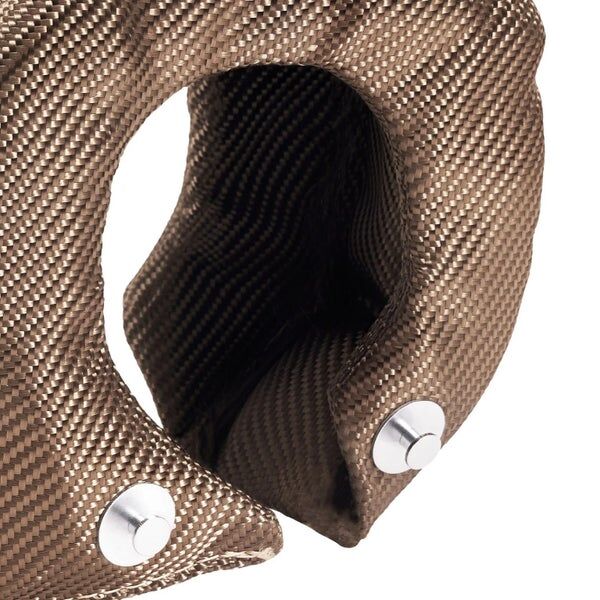

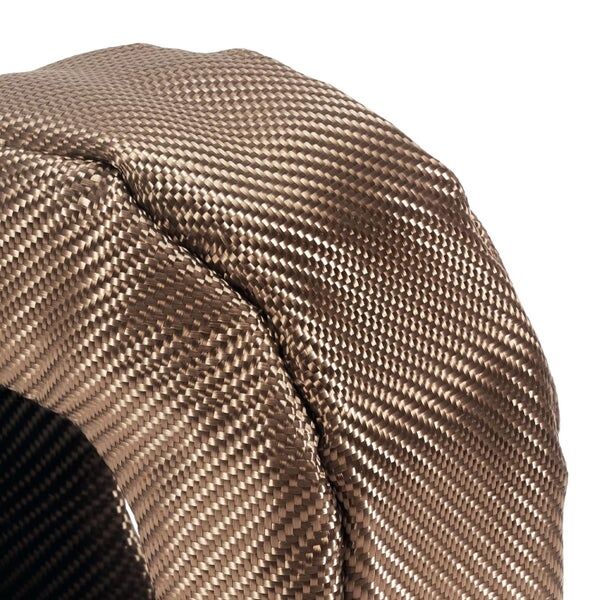

Turbo Blanket

Material: Basalt fiber/Titanium Fiber

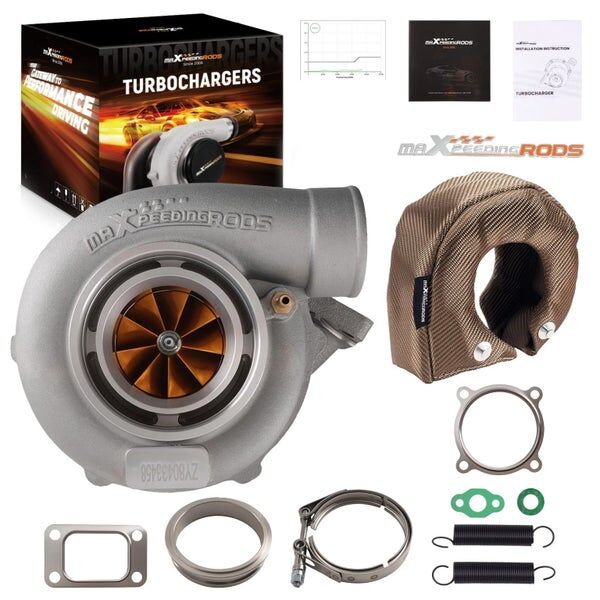

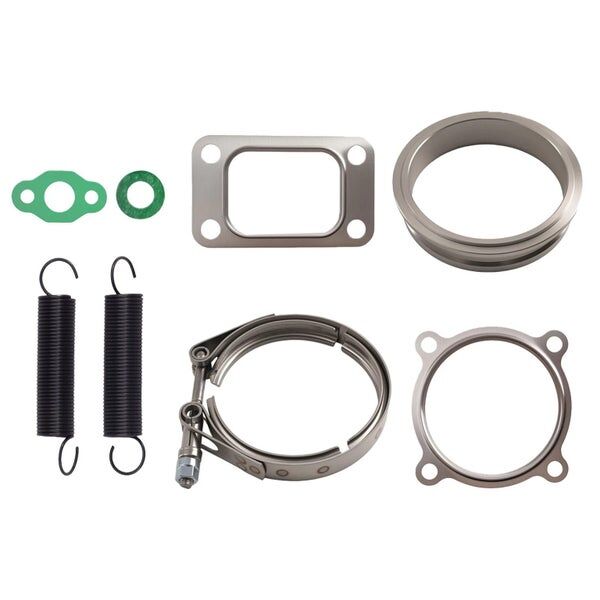

Package included

1x Turbocharger

1x Turbo Blanket

2x Flange gaskets

2x Oil feed/drain gaskets

1x V-Band Flange Adapter Ring & Clamp

1x Manual

1x Brochure

1x Sticker

SKU MTV-maX-068
Brand MAX PEEDING RODS
Shipping Weight 8.7000kg
Shipping Width 0.490m
Shipping Height 0.290m
Shipping Length 0.320m
Shipping Cubic 0.045472000m3
