Fitment
For Ford Falcon BA sedan 2002-2005
For Ford Falcon BF sedan 2005-2008
(Note: The rear is true coilovers instead of divorced coils.)
Standard Technical Specifications
Damping adjustable Available, 24 levels of rebound damping force
Camber adjustable Not available
Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front 10 kg/mm (560 lbs/in)
Spring Rate Rear 10 kg/mm (560 lbs/in)
Spring length Front 200 mm
Spring length Rear 180 mm
Shock type Twin tube
Spring Preload advised 7-10 mm

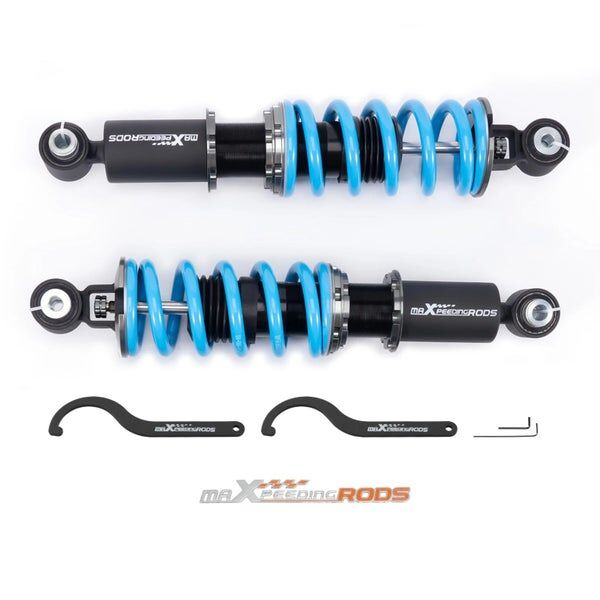

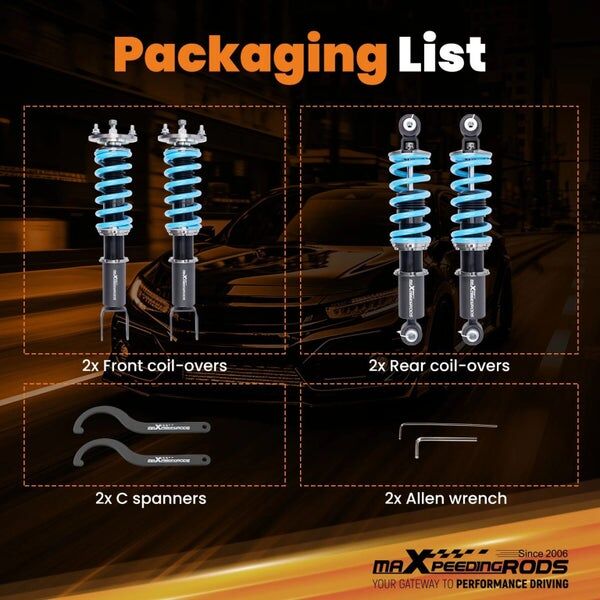

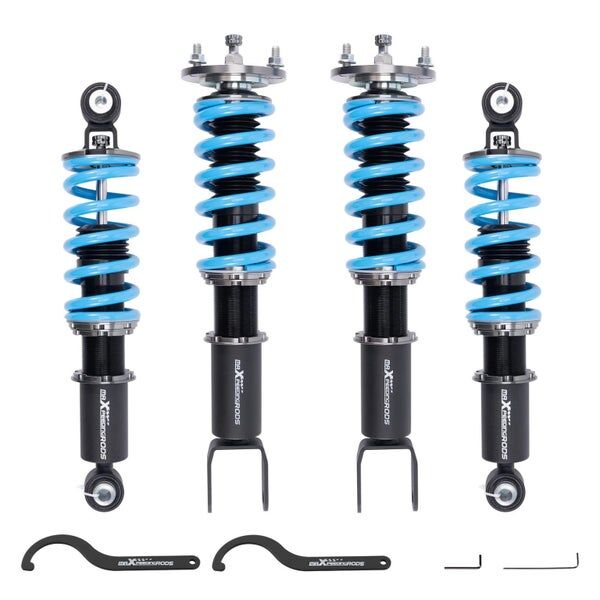

Package included

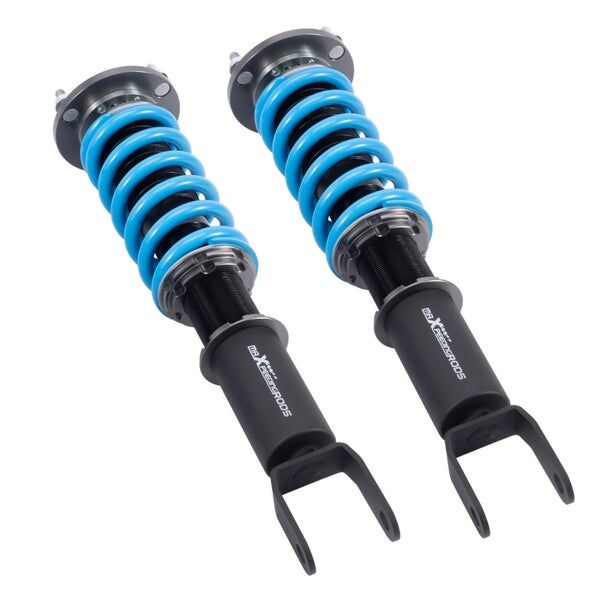

2x Front coil-overs

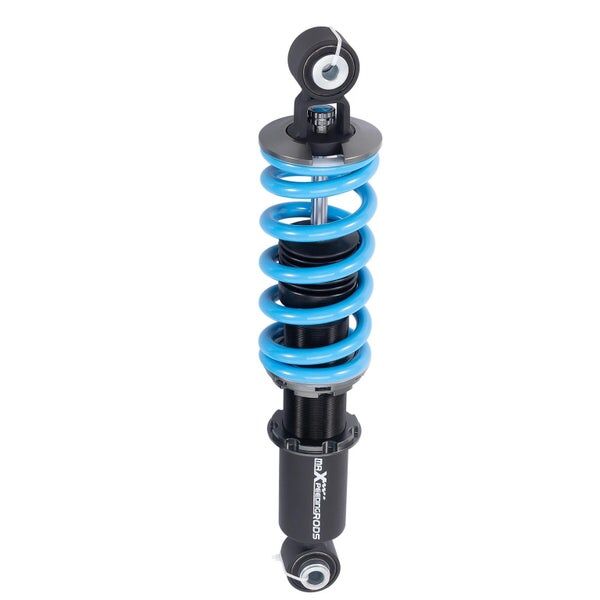

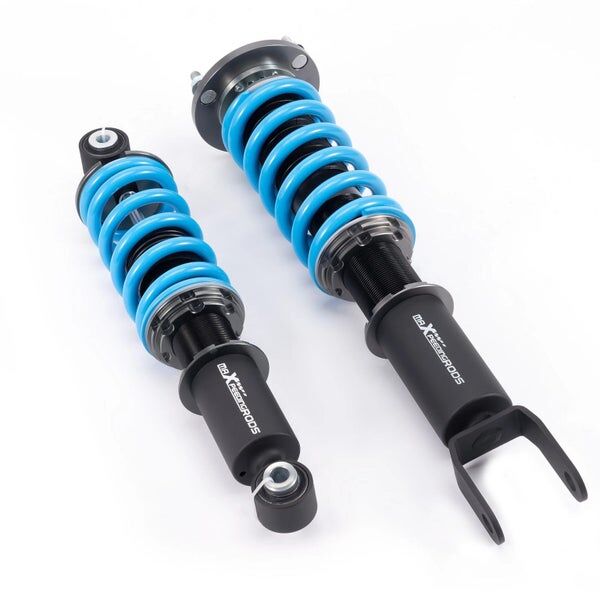

2x Rear coil-overs
1x Allen wrench
2x C spanners
Features
Lowered height adjustment from 25-75mm which allows a lower center of gravity and also adds a more aggressive stance
Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

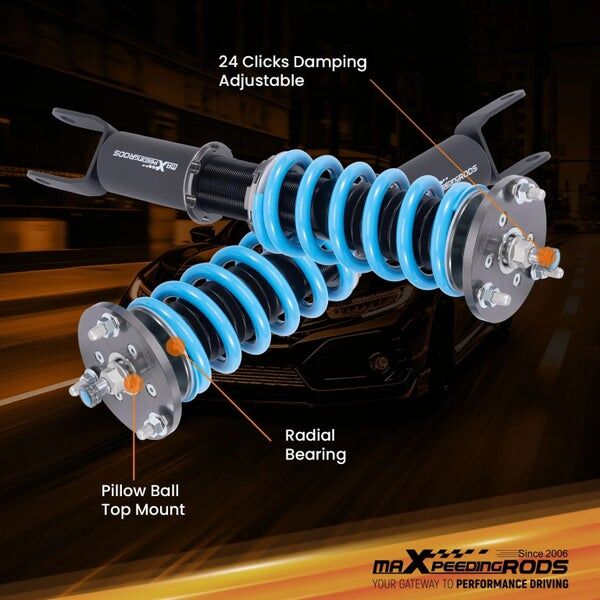

24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

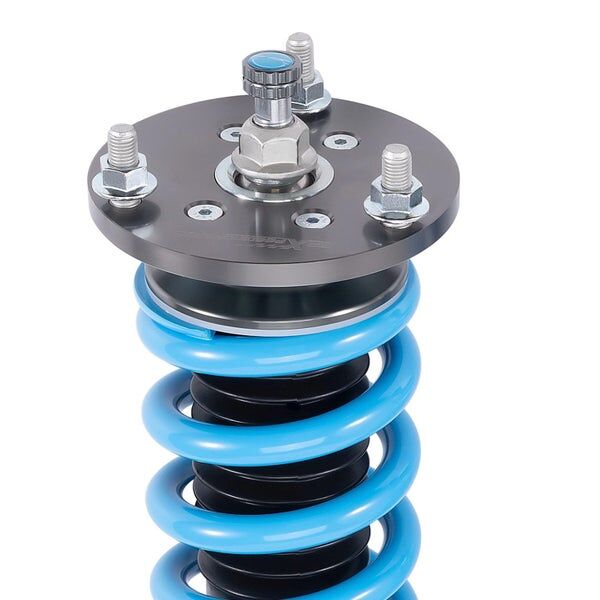

CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

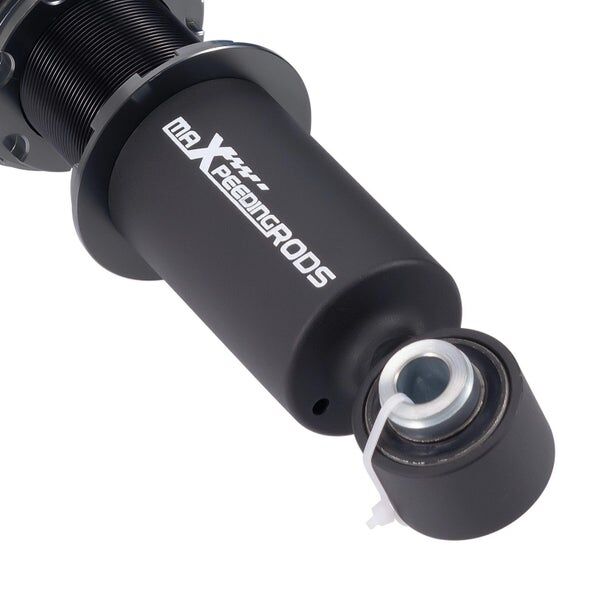

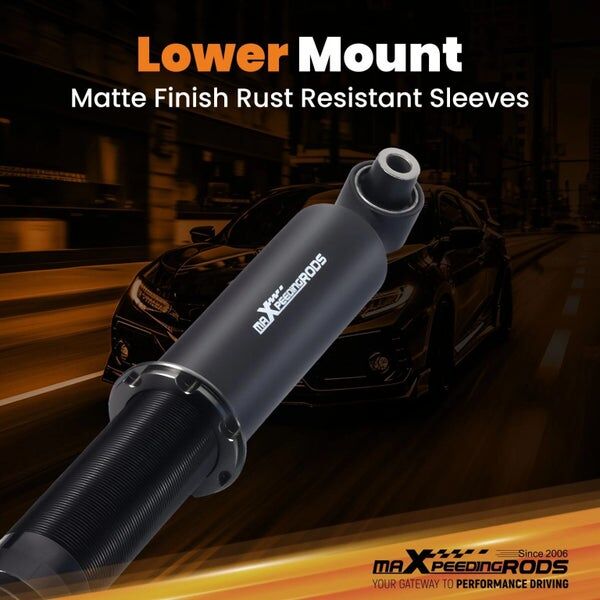

Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.
All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
With a better-damping setting, you will get better performance and comfort at the same time.
Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
Anti-corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
Clean room assembled---maintain a higher level of accuracy and reliability.
Upgraded damper oil---make damping more stable and smooth in a wide temperature range.
