Note : This is universal application turbo, so modification might be required for some vehicles

Fitment
For Toyota Hilux 1998-2015 (KZN165 N60, KUN26 N70 1KD)
For Isuzu Dmax 2008-2020 4JJ1
For Holden Rodeo RA7 2007-2008 4JJ1
For Holden Colorado RC 2008-2012 4JJ1

Specification

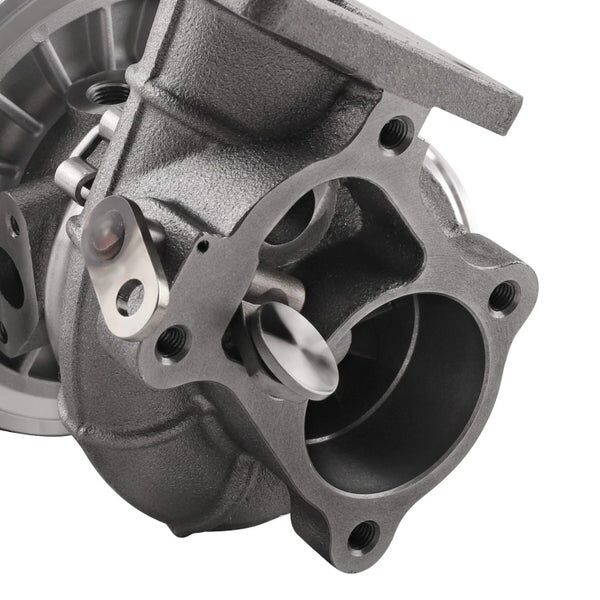

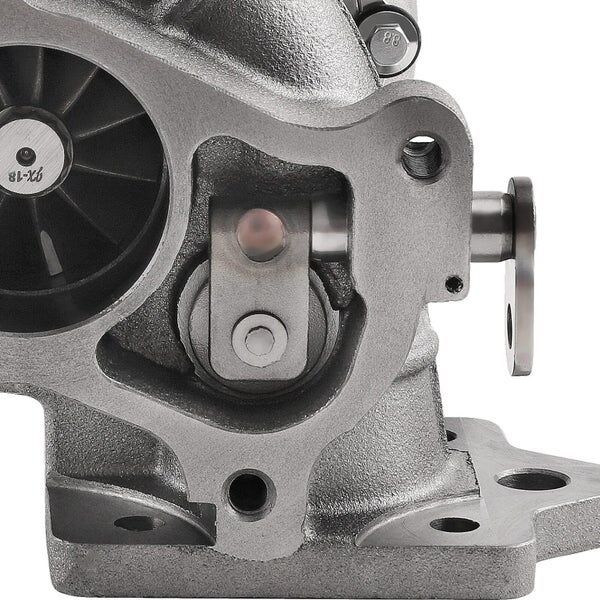

Turbo Model: Maxpeedingrods F55
Cooling Type: Water+Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 270 Degrees
Compressor:6 billet faces

Compressor Inducer: 48.53mm

Compressor Exducer: 69.66mm

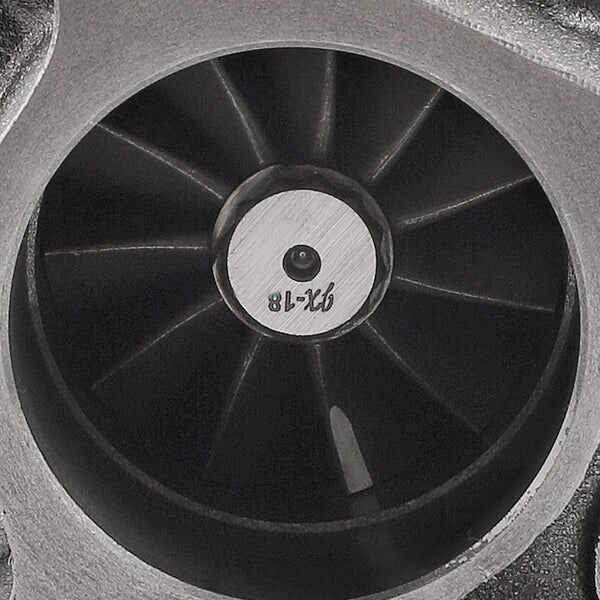

Turbine:11 back leaves

Turbine Inducer: 56mm

Turbine Exducer: 48.9mm
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly

Maximum PSI: 30-40 PSI

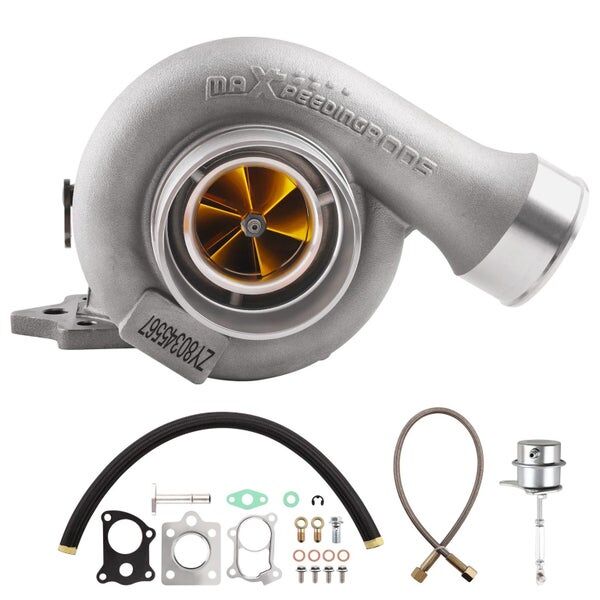

Package included
1x Turbocharger
2x Gaskets
1x Flanges
1x Oil feed line and fittings
1x Oil drain fittings
1x Wastegate
1x Manual
1x Brochure
1x Sticker

Features
*Product Material

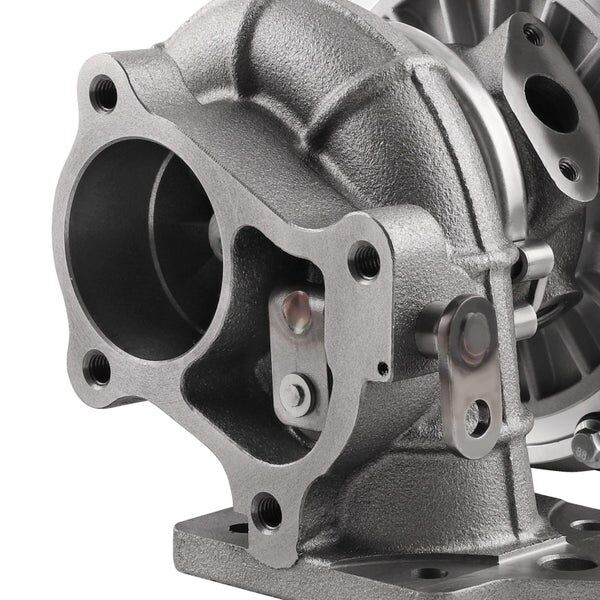

1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃

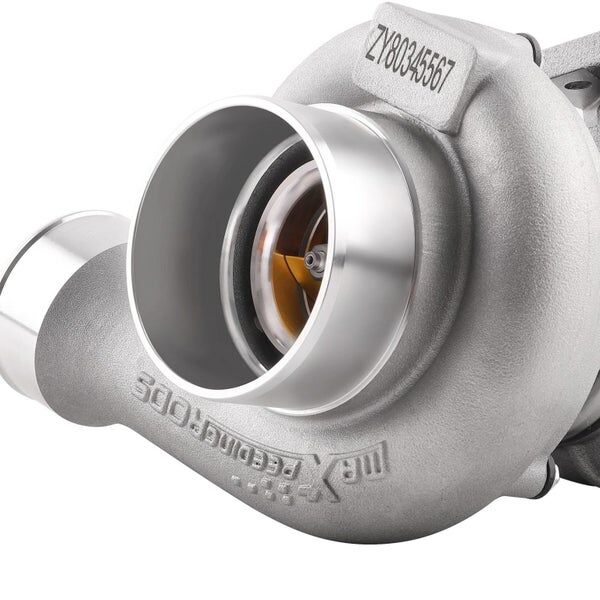

3. Compressor housing：ZL104 aluminum with lightweight
4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product
1. OEM fitment turbo with upgraded material
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Note
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
