Feature

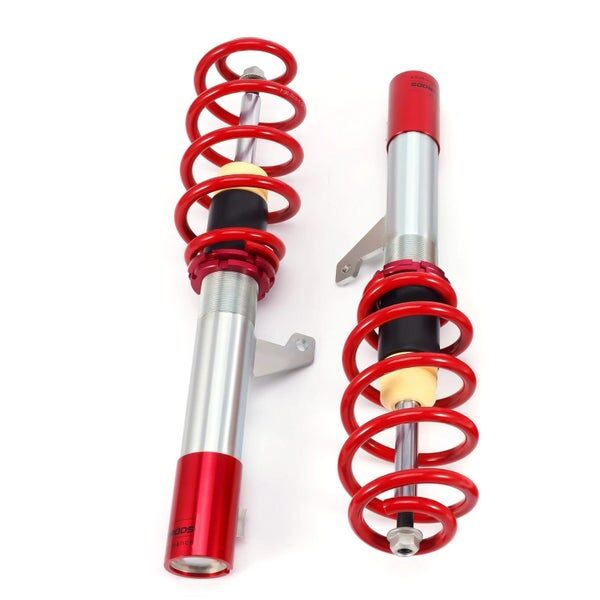

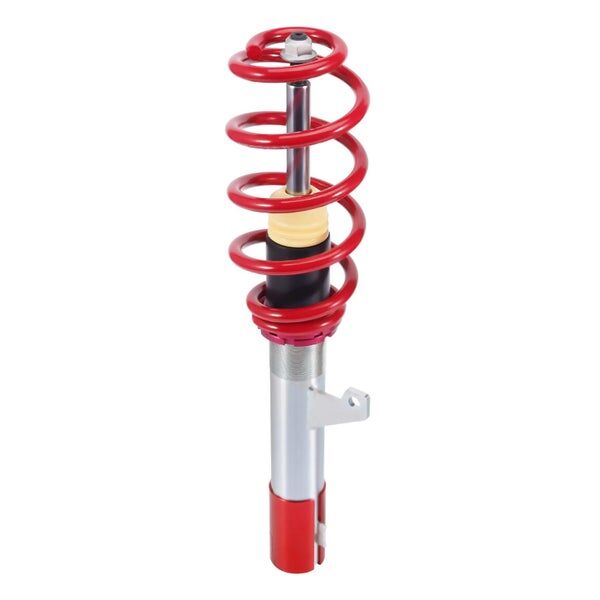

Lowered height 30mm which allow lower center of gravity and also add a more aggressive stance Twin-Tube structure allows sufficient stroke within the shock absorber.

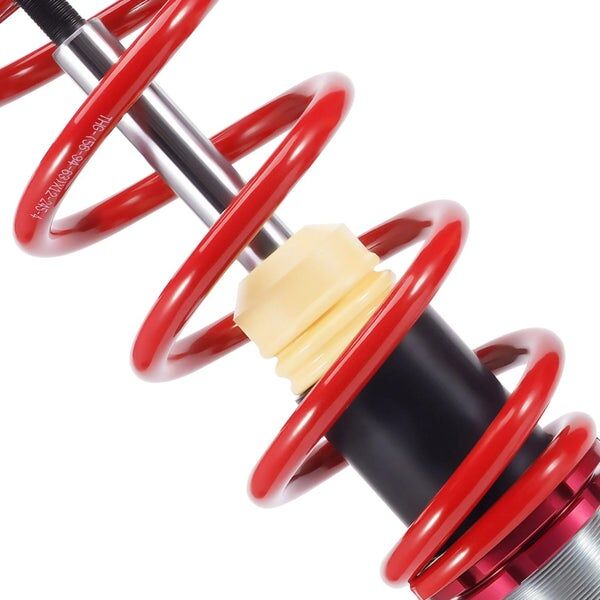

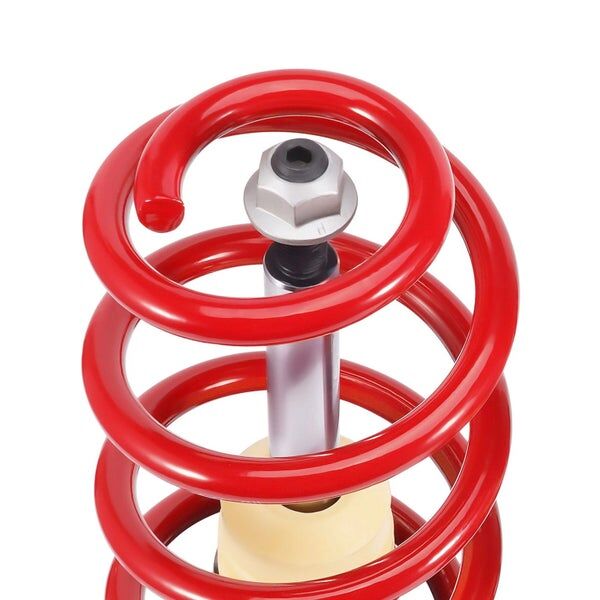

High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.

Plus the special surface treatment improves the durability and performance.

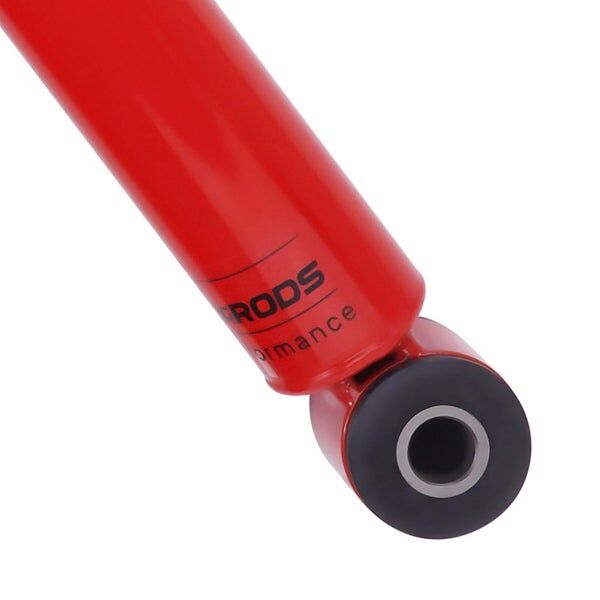

Height Adjustment tools included. Steel shock bodies are electroplated with Zinc for Anti-corrosion.

Application

For VW Golf MK5 A5 Typ 1K 2003-2008

For VW Jetta MK5 A5, Typ 1K5 2006-2011

For VW Golf MK6 A6 Typ 5K 2008-2012 For VW B6 Passat 2006-2010

For VW EOS 2007-2014 For VW CC 2009-2014

For VW Tiguan 2009-2014 For VW Beetle 2012-2014

For Audi A3 8P (FWD) 2006-2014

For Audi TT 8J (FWD) 2006-2014

Standard Technical Specifications

Damping adjustable Not available

Top mounts Front and rear OE top mounts required

Height adjustable Yes, lowering 0-25mm depending on the vehicle models

Spring Rate Front 3.5 kg/mm (196 lbs/in)

Spring Rate Rear 4 kg/mm (224 lbs/in)

Spring length Front 239 mm

Spring length Rear 245 mm

Spring Preload advised 7-10 mm

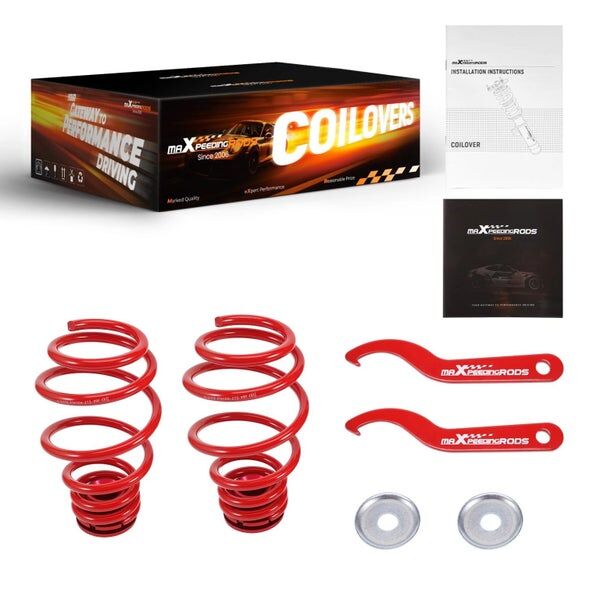

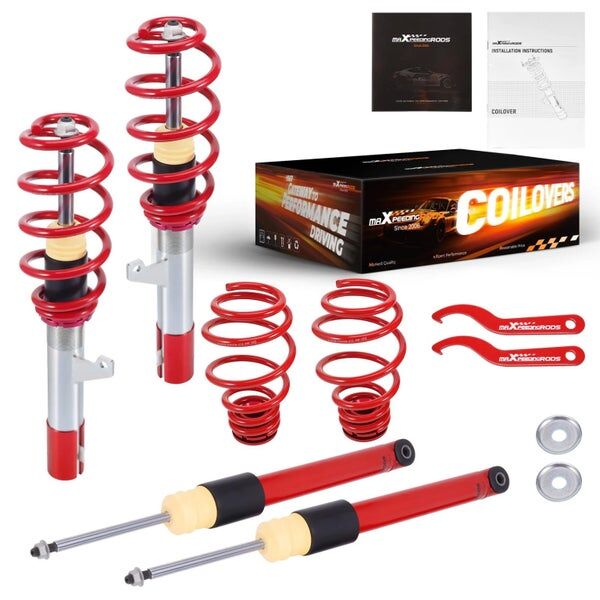

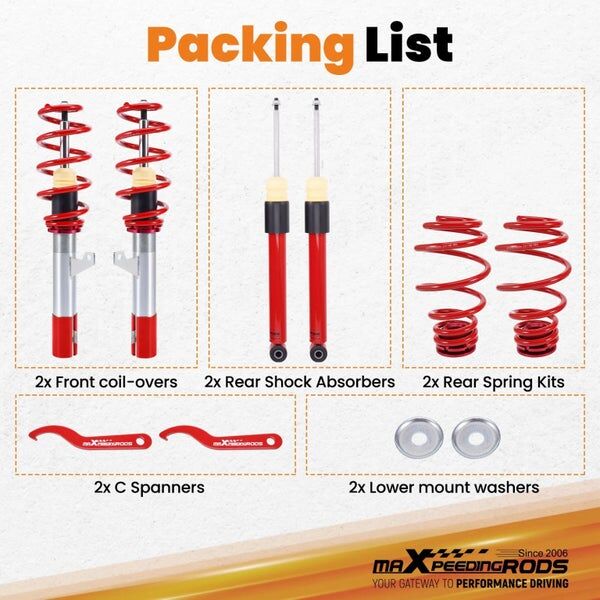

Package included

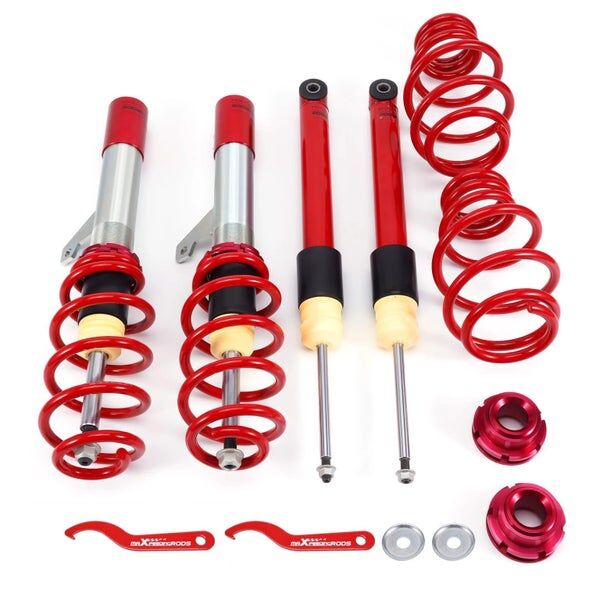

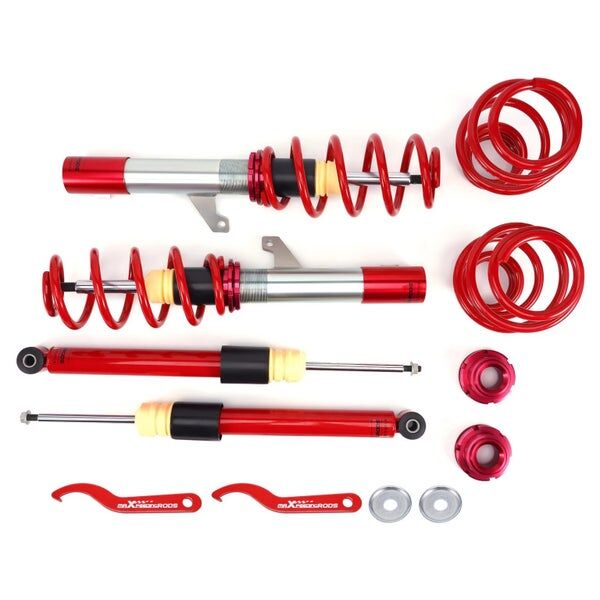

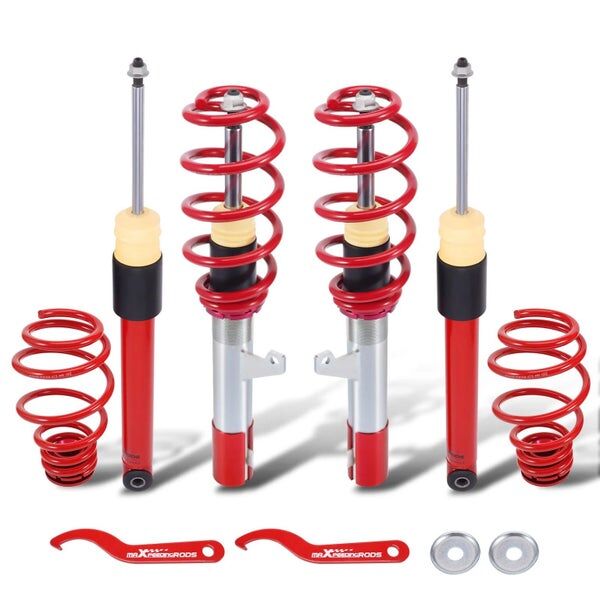

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

1 x Pair of wrenches for height adjustment

Note: No Top Mounts included
