Features
- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.
- Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.
- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.

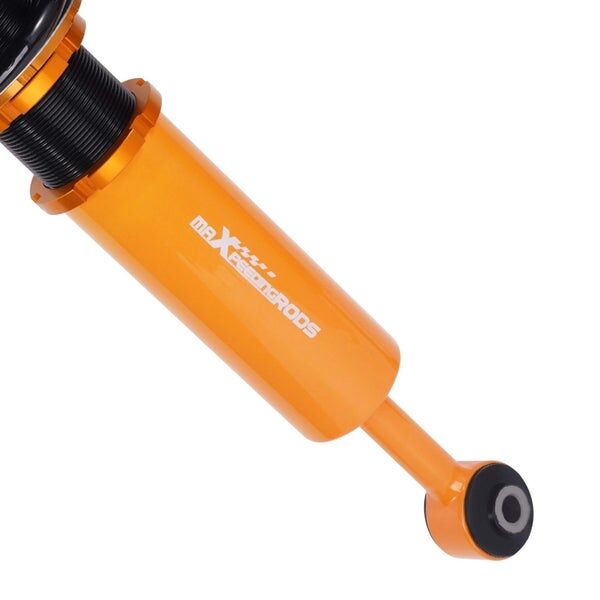

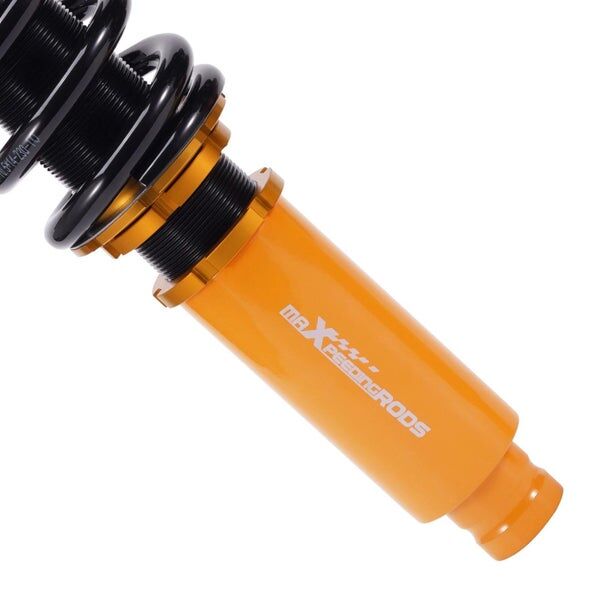

- 55mm Large Diameter Damper Body: Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.
- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

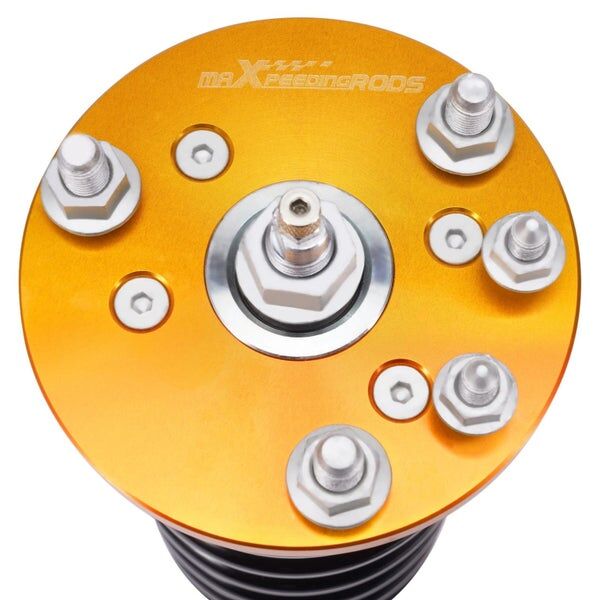

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars.

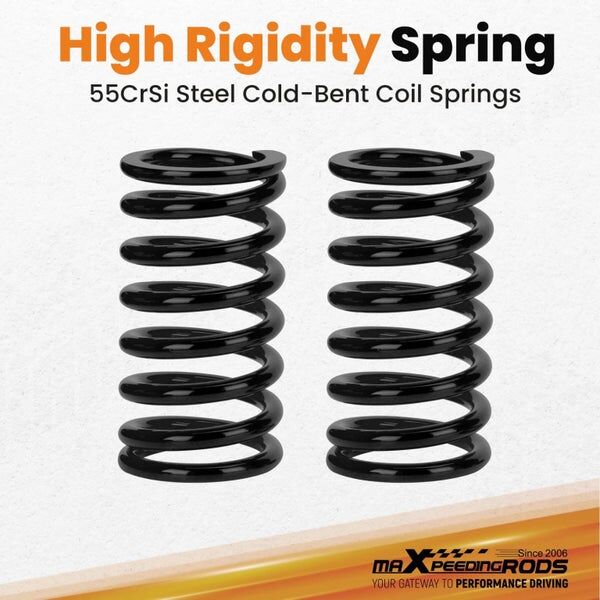

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.
- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.
Fitment
For Honda Accord Euro 4-door sedan CL7 & CL9 2003-2008
For Acura TSX 2004-2008 (North America and Canada)
Specifications
- Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 10 kg/mm(560 lbs/in)
- Spring Rate Rear: 6 kg/mm(336 lbs/in)
- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 230 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm

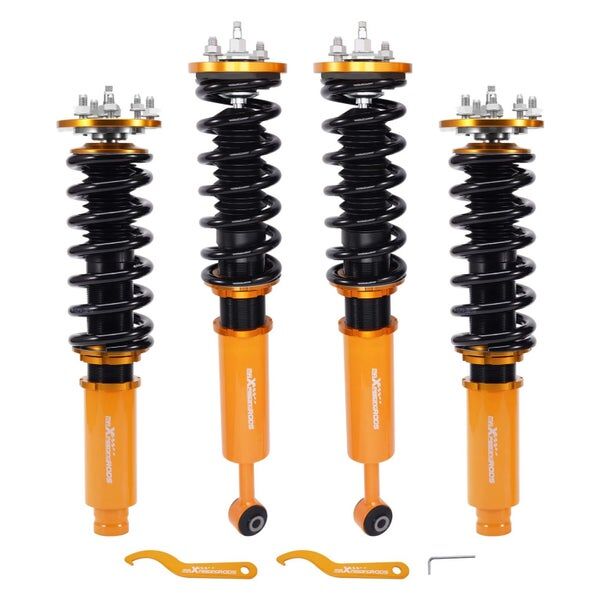

Package included

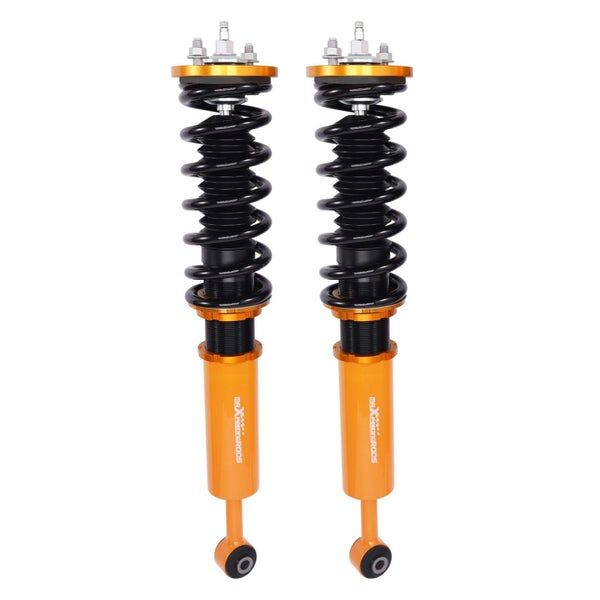

2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
