Fitment

Fit For Holden Commodore Third Generation 1997-2007

Fit For Holden Commodore VT / VT II Sedan Wagon 1997-2000

Fit For Holden Commodore VX Berlina Calais Sedan Wagon 2000-2002

Fit For Holden Commodore VY Sedan Wagon 2002-2004

Fit For Holden Commodore VZ Sedan Wagon 2004-2007

The Coilovers Kit Will "Lower Your Car" And Does Not Keep To The Original Ride Height.

Specification

Top Mounts：Front And Rear OE Top Mounts Required

Damping Adjustable：Available, 24 Levels Of Rebound Damping Force

Camber Adjustable：Not Available

Height Adjustable：Yes, Lowering 25-75mm Depending On The Vehicle Models

Front Spring Rate：7kg/mm (392 lbs/in)

Rear Spring Rate：13 kg/mm (728 lbs/in)

Spring Length Front：200 mm

Spring Length Rear：160 mm

Spring Preload Advised：7-10 mm

24 Ways Adjustable Damper Force

Level 0-8：Suggest For Race Tracks Use

Level 9-16：Suggest For Mountain Use

Level 17-24：Suggest For Street Use

Note

1. Don't Fit For Ute Model

2. Don't Fit For Holden VR/VU/ Ute/ SV6/ SV8

3. Don't Fit For Holden 3.8L 6cyl 152kW L36(231CUV6)

4. Don't Fit For VZ 3.6L, 3.8L V6 Model, including SV6, SV8, Executive Model

5. For VT II , VX I Series And Some VZ, Where The Drop Link Connect To The Suspension Have Different Style, Please Check Before Place An Order

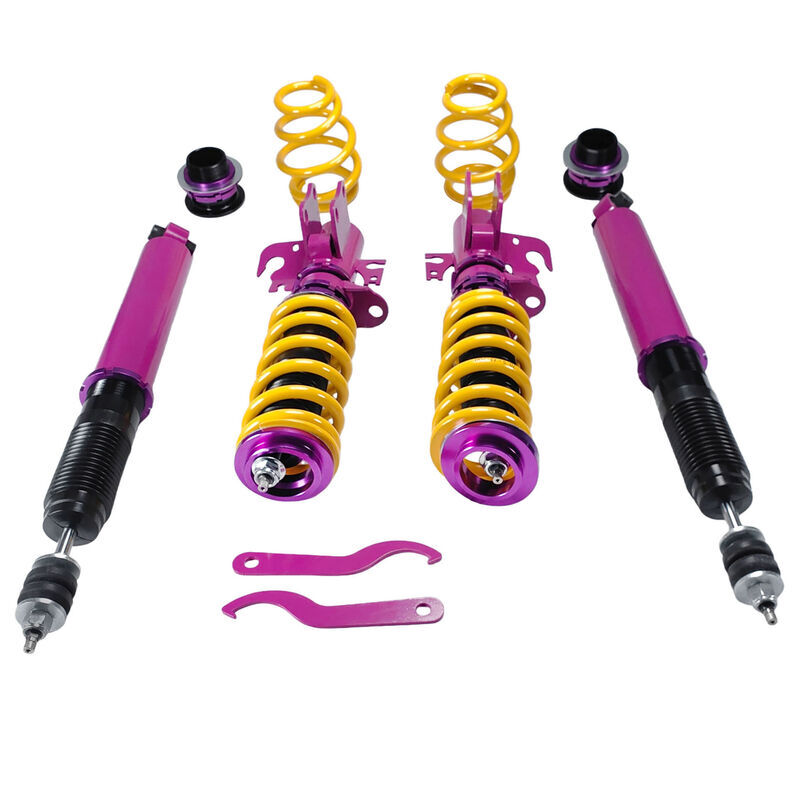

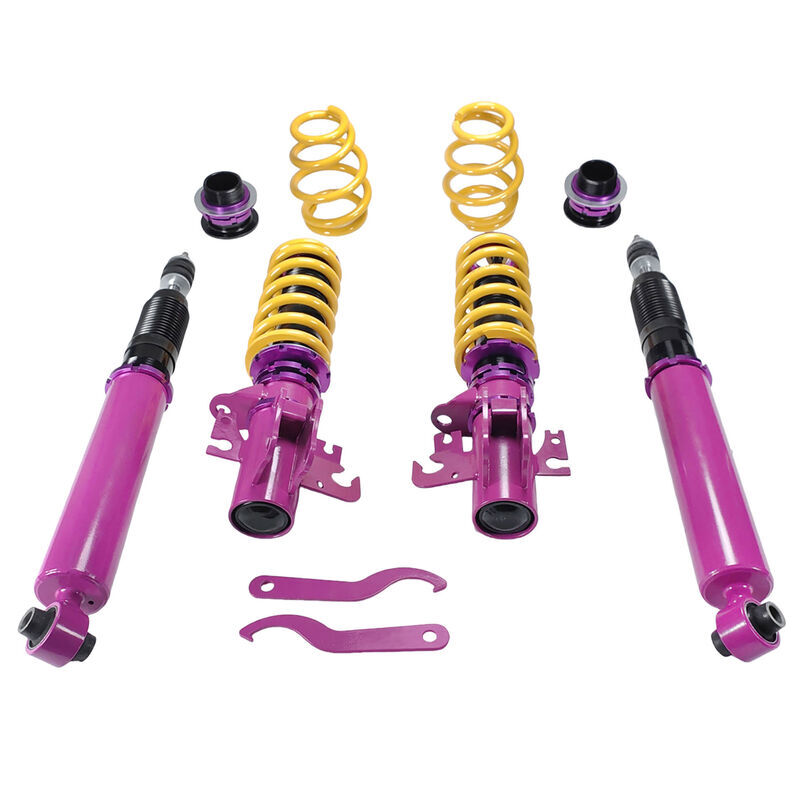

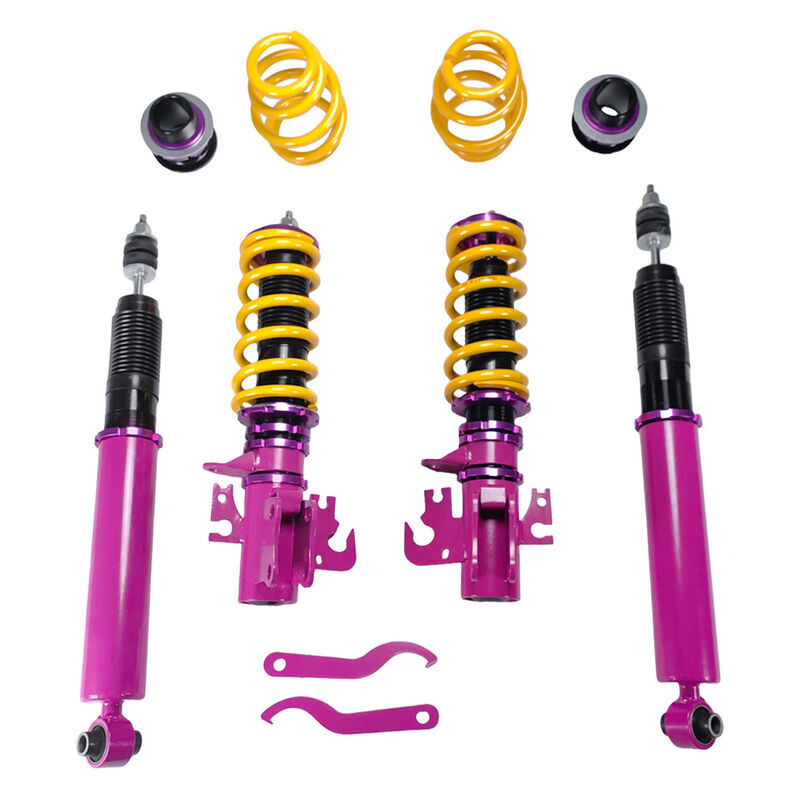

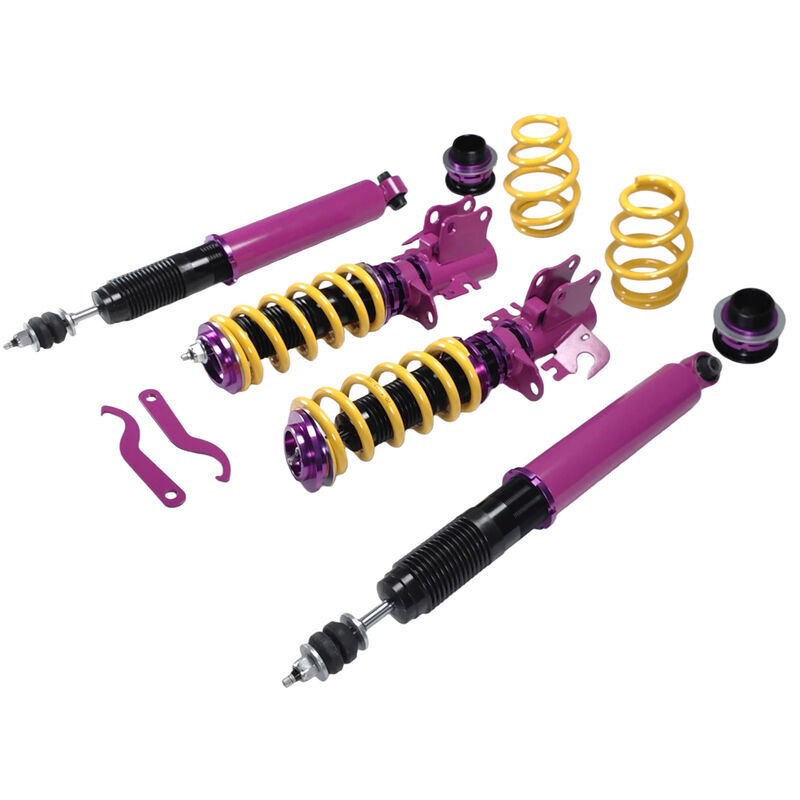

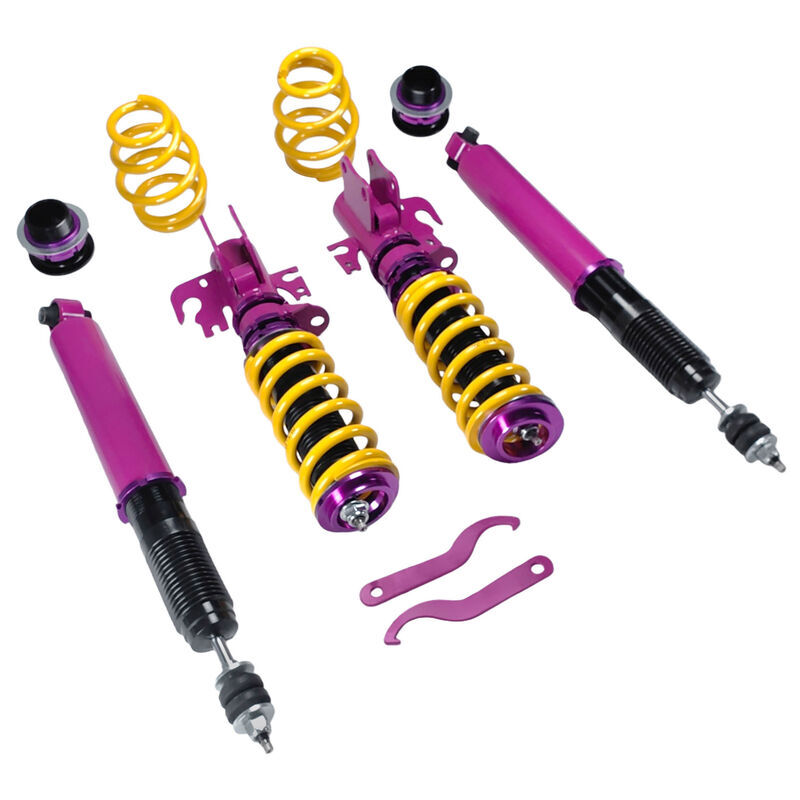

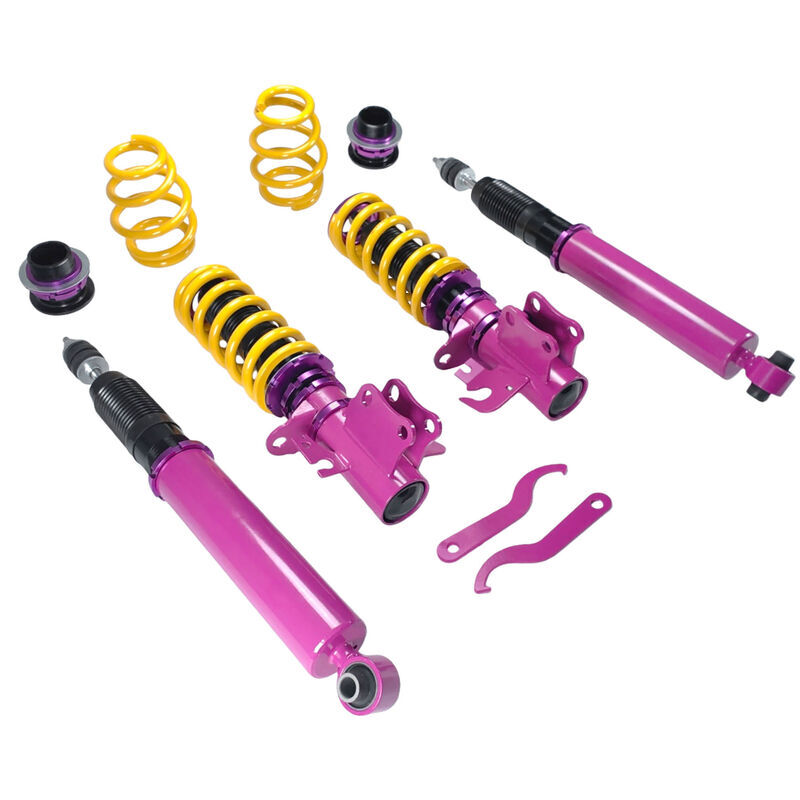

Package

2 x Front Coil-Overs

2 x Rear Coil-Overs

2 x C Spanners
