Application

Perfect for all 4/6 cylinder and 2.5L-6.0L engines

Capable of Boosting Horse Power up to 600HP

Specification

Turbine Side:

Exhaust Inlet Flange: T3 Flange

Exhaust Outlet Flange: 4-Bolt

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Side:

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

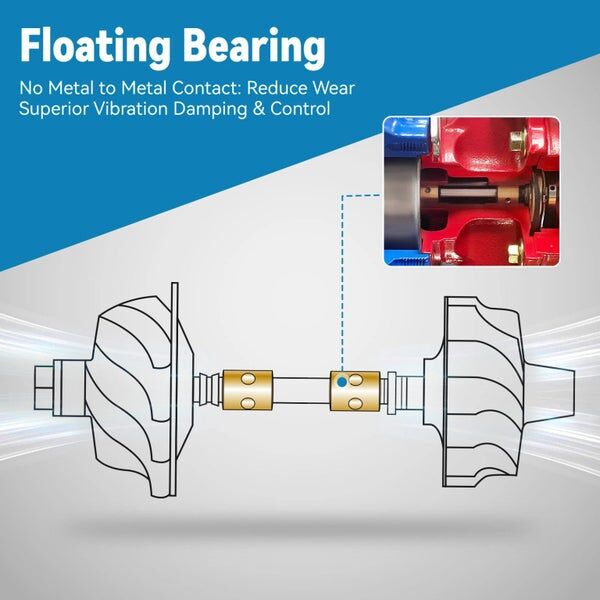

Bearing Type: Wet Float

Thrust bearing: 270 degree

Cooling Type: Water + Oil Cooling

Horse Power: Up to 600HP

Turbo Type: Individual

Universal Fitment: Yes

Finish:Matte

Wastegate：Without Wastegate

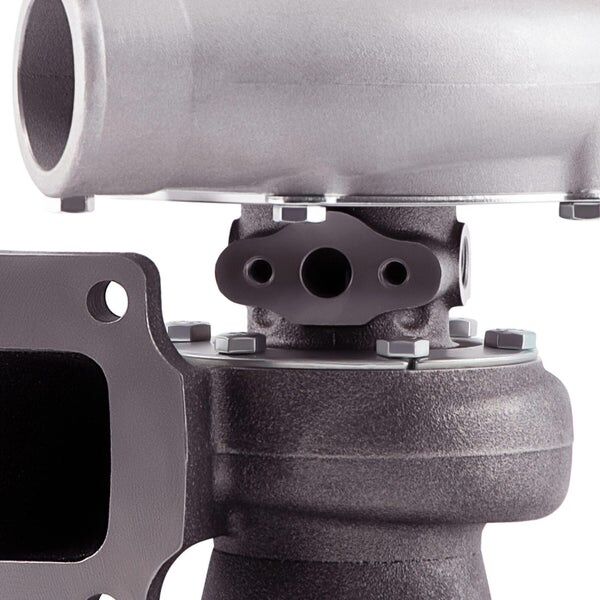

Oil feed/inlet: M10*7/16-24

Oil drian/outlet: 2*M8*1.25

Water inlet/outlet: M14* 1.5

Maximum PSI: 22

Condition: 100% Brand New

Accessories: You will get exactly as shown as picture above

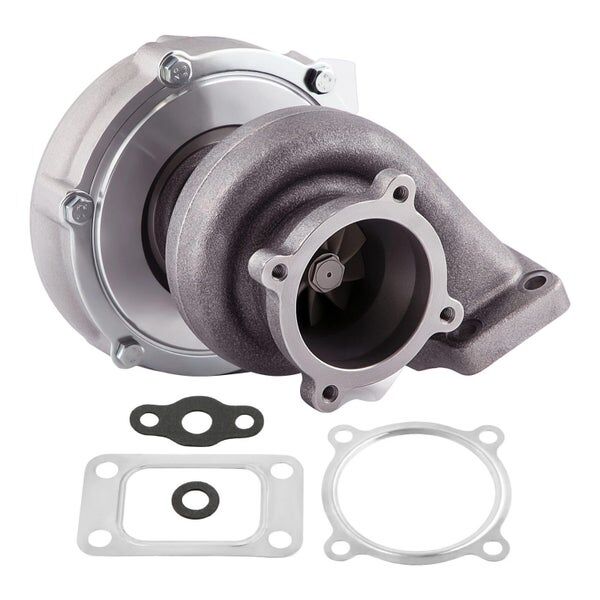

Package included

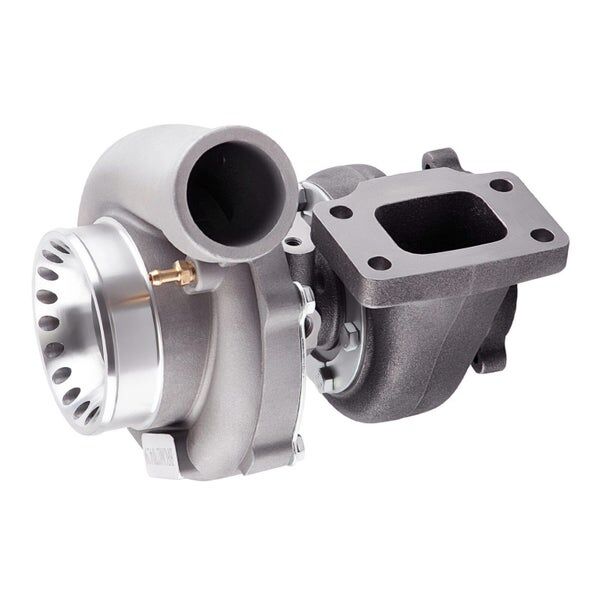

1xTurbocharger

2xFlange gaskets

2xOil feed/drain gaskets

Feature

1. Cost-effective Turbo increase 20-40% power for your car

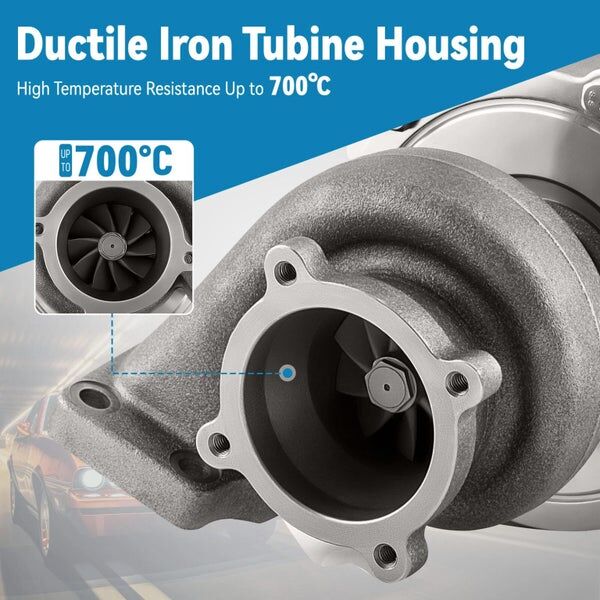

2. Ductile Iron QT450-10 turbine housing - Temperature resistant up to 700℃

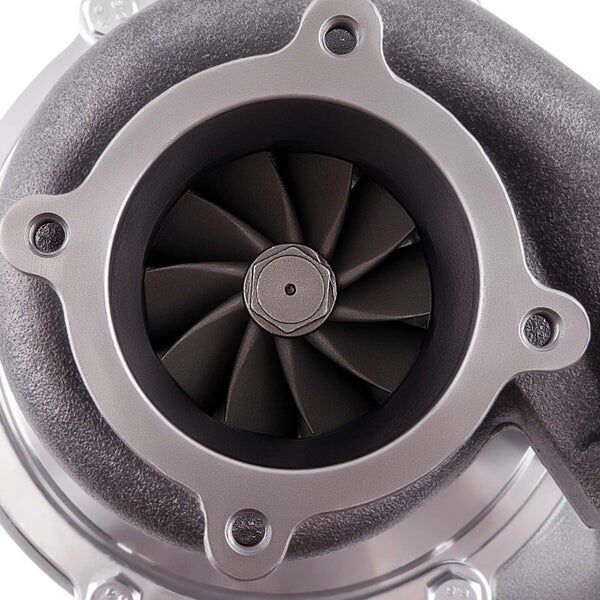

3. K418 Alloy turbine wheel- High oxidation stability AND resistance up to 900℃

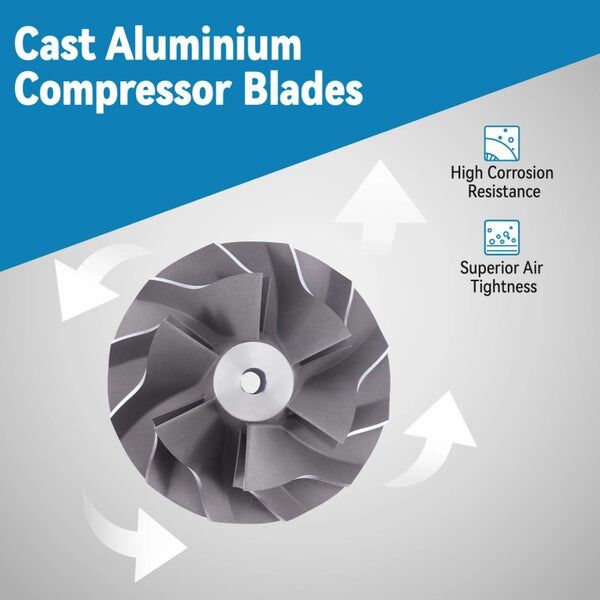

4. Cast aluminium blades with good gas tightness and corrosion resistance

5. ZL104 aluminum compressor housing with lightweight

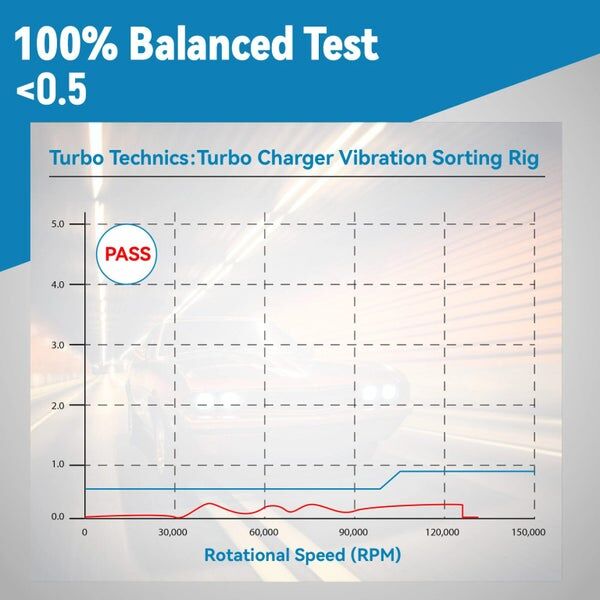

6. 100% balancing Test by TURBOTECHNICS VSR3

Note

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not OE parts. Please check the specifications and compatibility before purchasing.

* Before installation, please check the oil supply sufficient,clearnliness the air filter and gasoline,and the gasoline air tightness.

* To avoid overheating,gasoline car must install a water cooling device .

*Please confirm that there is enough space in your car to install this turbo before purchasing.

*Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.
