Fitment
For Ford Rangers PX models XLT XL 4x4
For Mazda BT50 4x4 & 4x2  2012-2020
Note
1. Does not fit the Light-Duty RWD Ute
2. Does not fit ranger raptor
3. Fit 4X4 and 4X2 vehicles with the rear leaf sitting on top of the axle
4. Also fits vehicle with 2 inch suspension lift.

Item Specifications
Condition: Brand New
Placement on Vehicle: Rear left and right

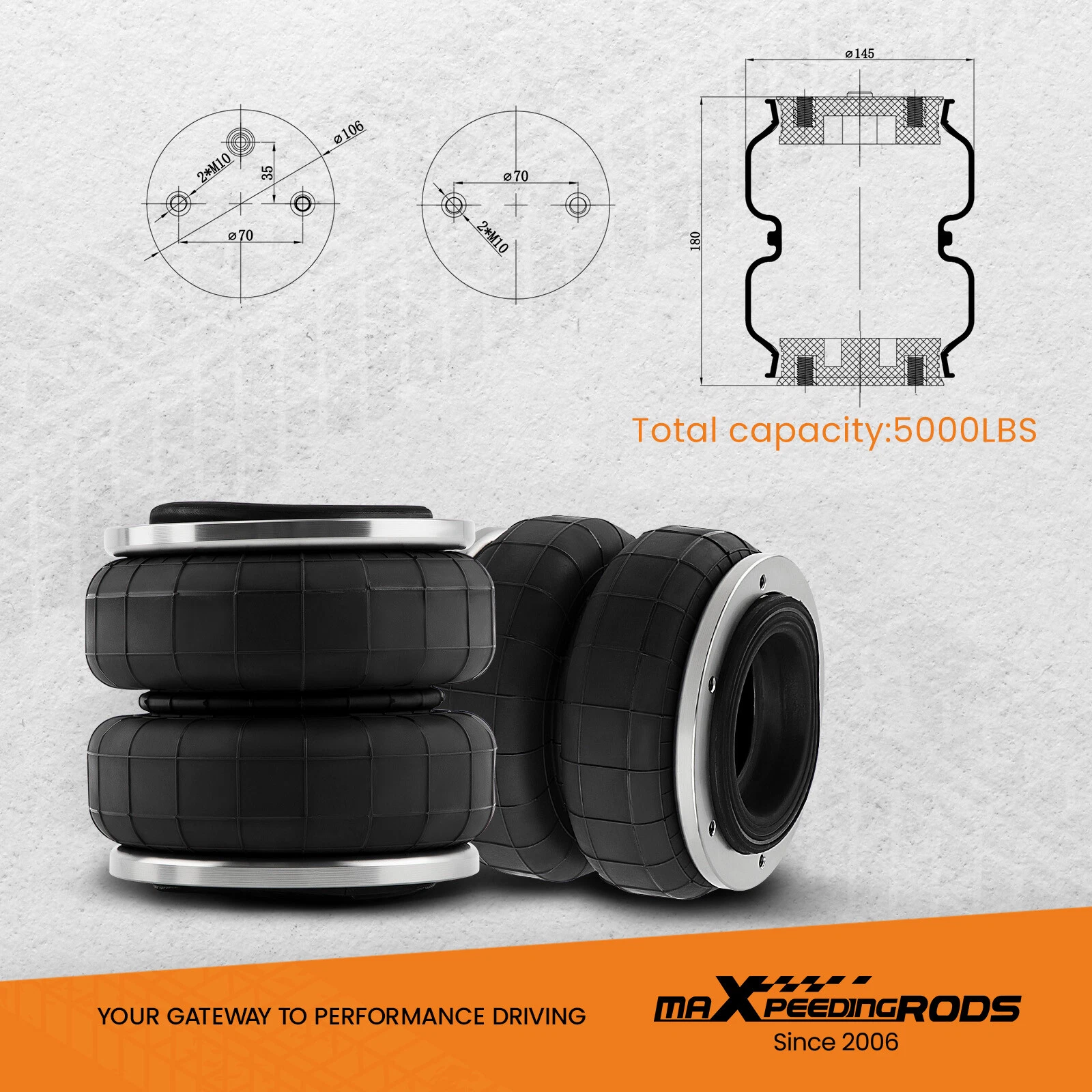

Load capacity：Up to 5000 LBS
Design height:152 mm
Stroke:  110 mm
Max. Extended: 175mm
Min. Compressed: 65mm
Minimum height of whole kit: 184 mm
Maximum height of whole kit: 294 mm

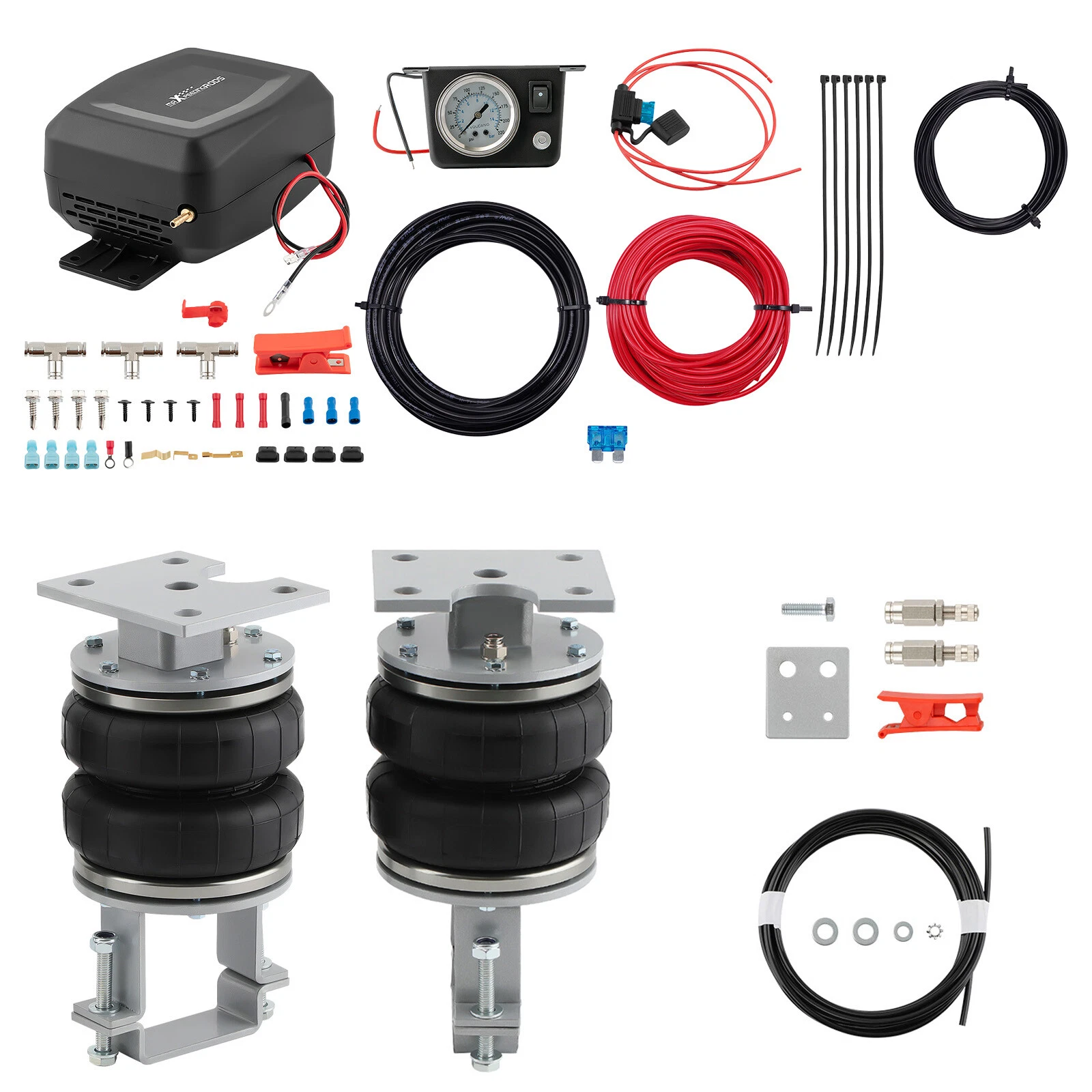

Package includes（as the picture shows）

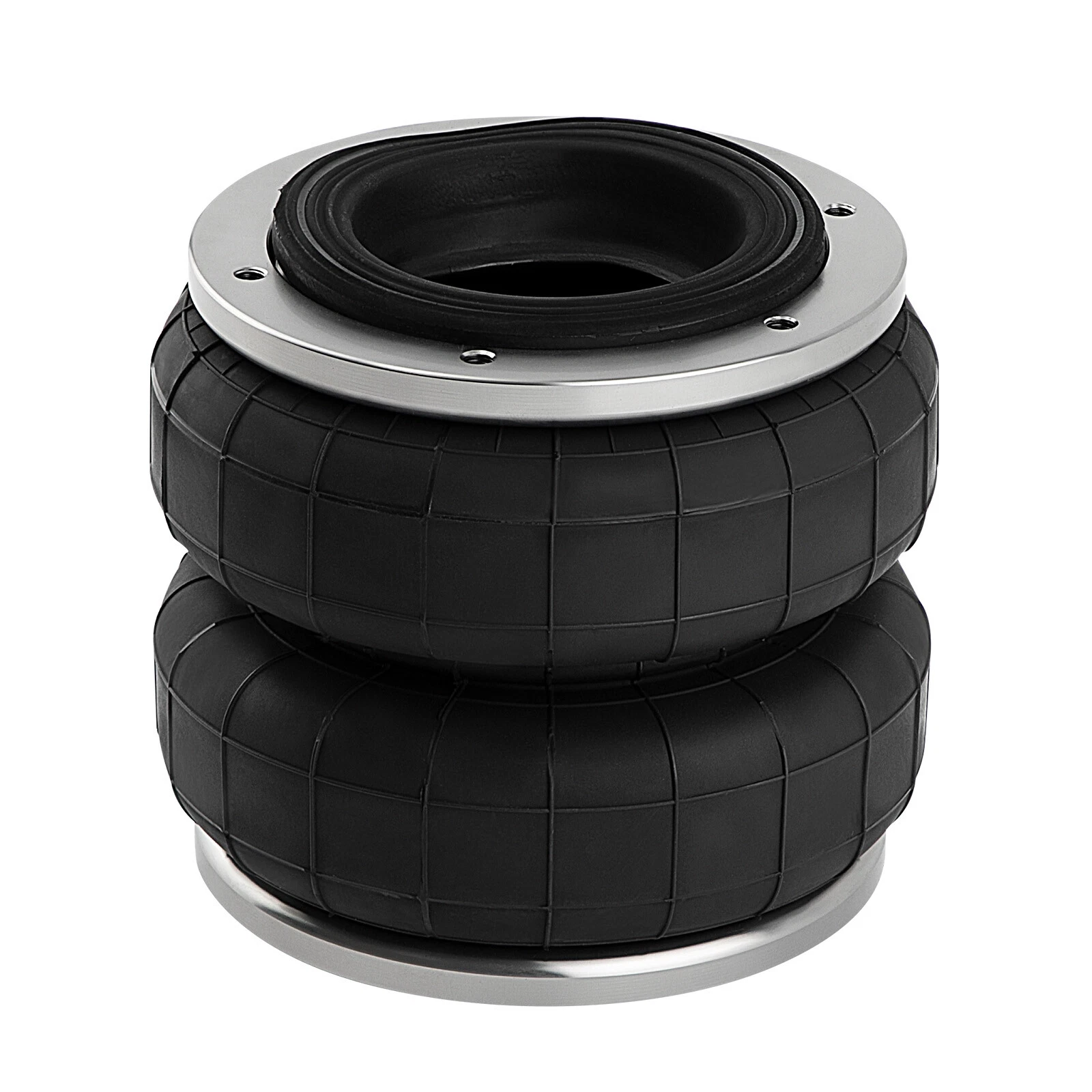

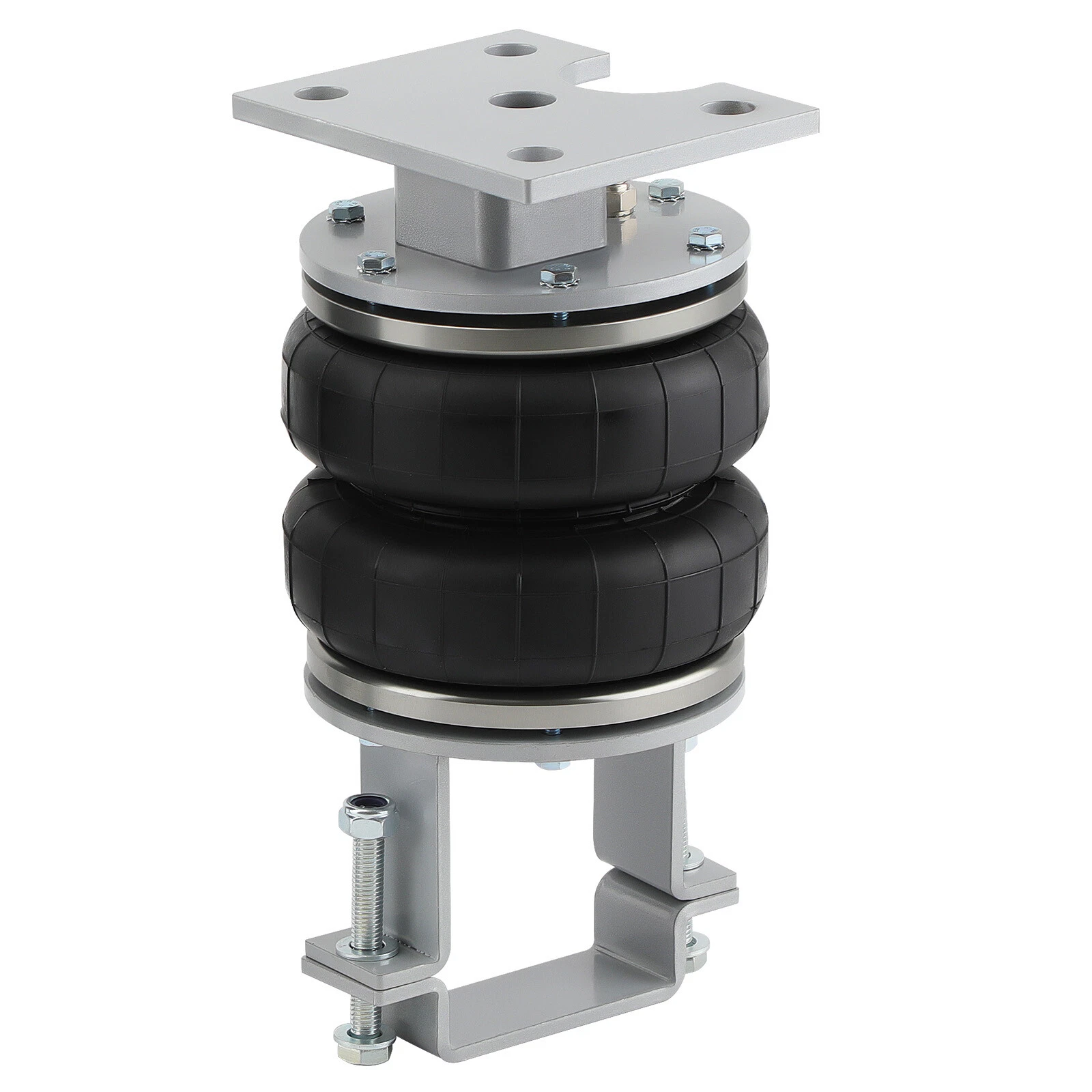

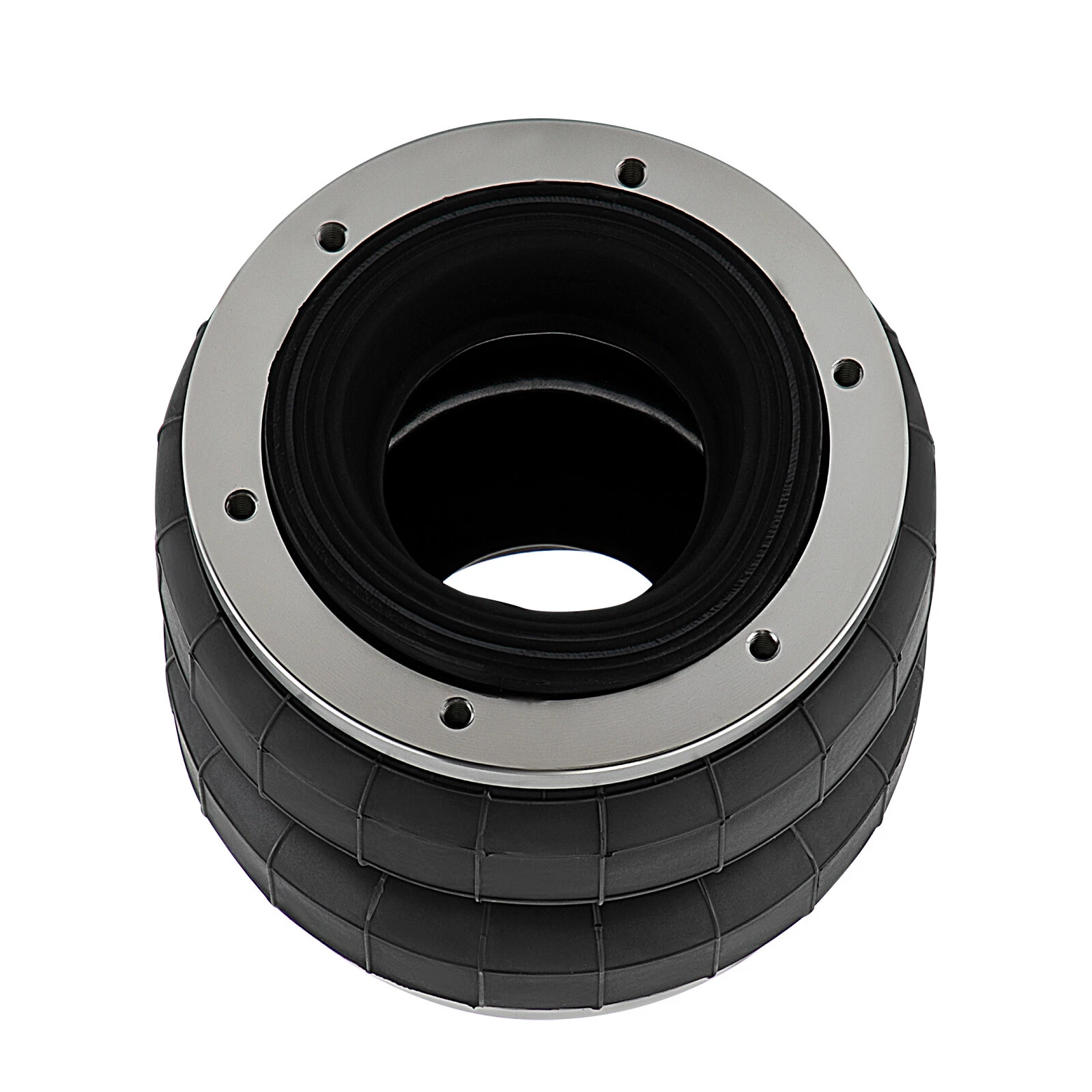

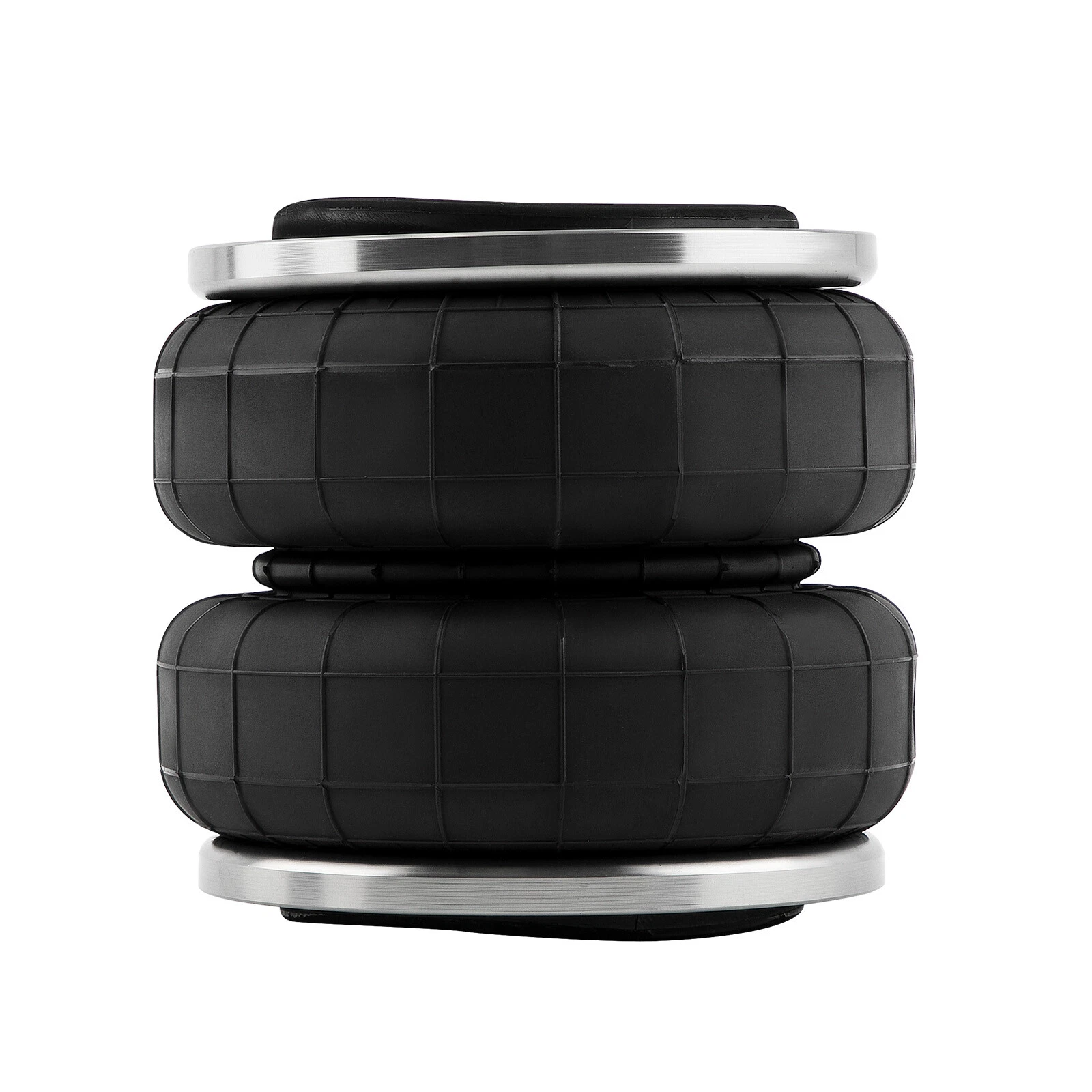

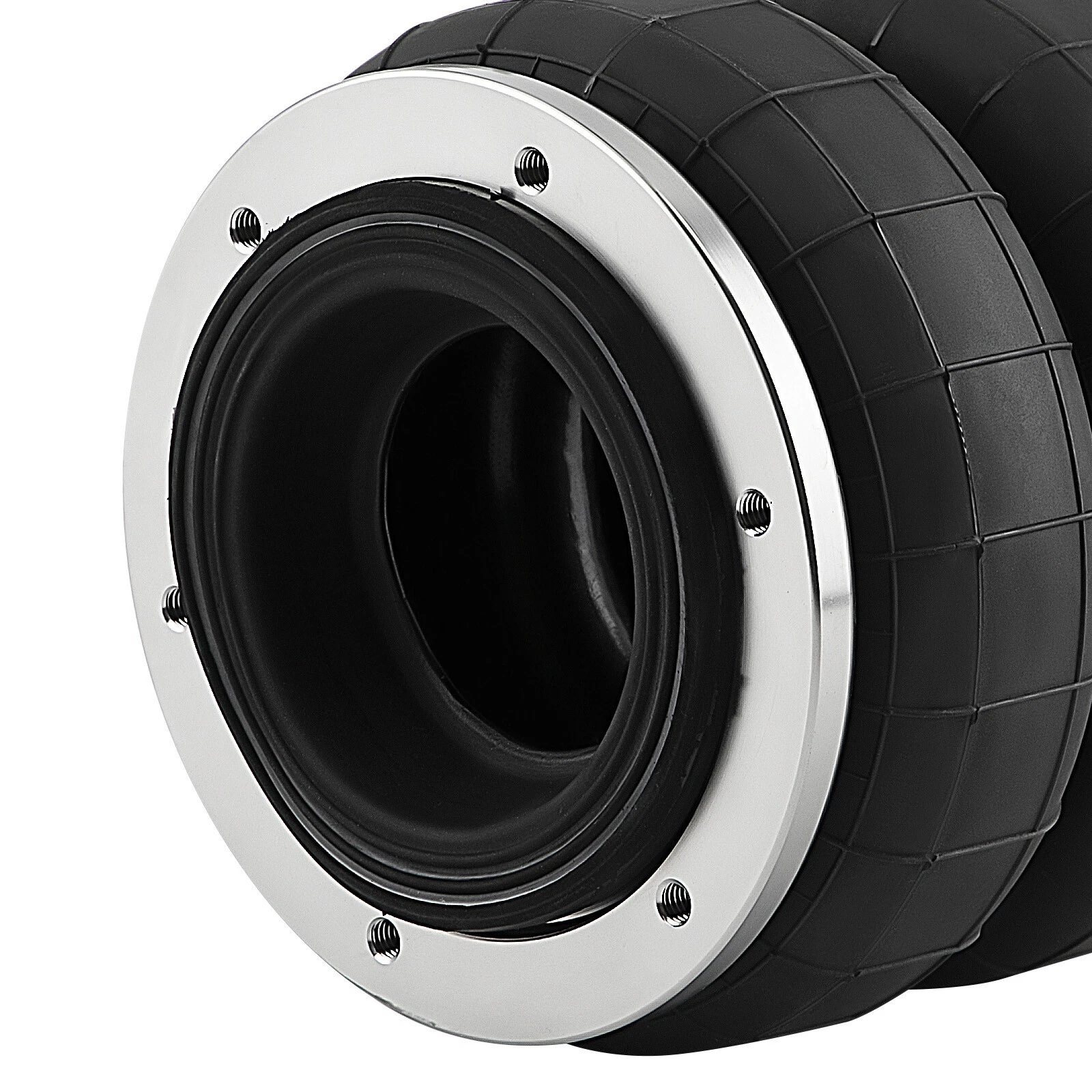

2x Heavy Duty Double Bellow Air Ride Suspension bags

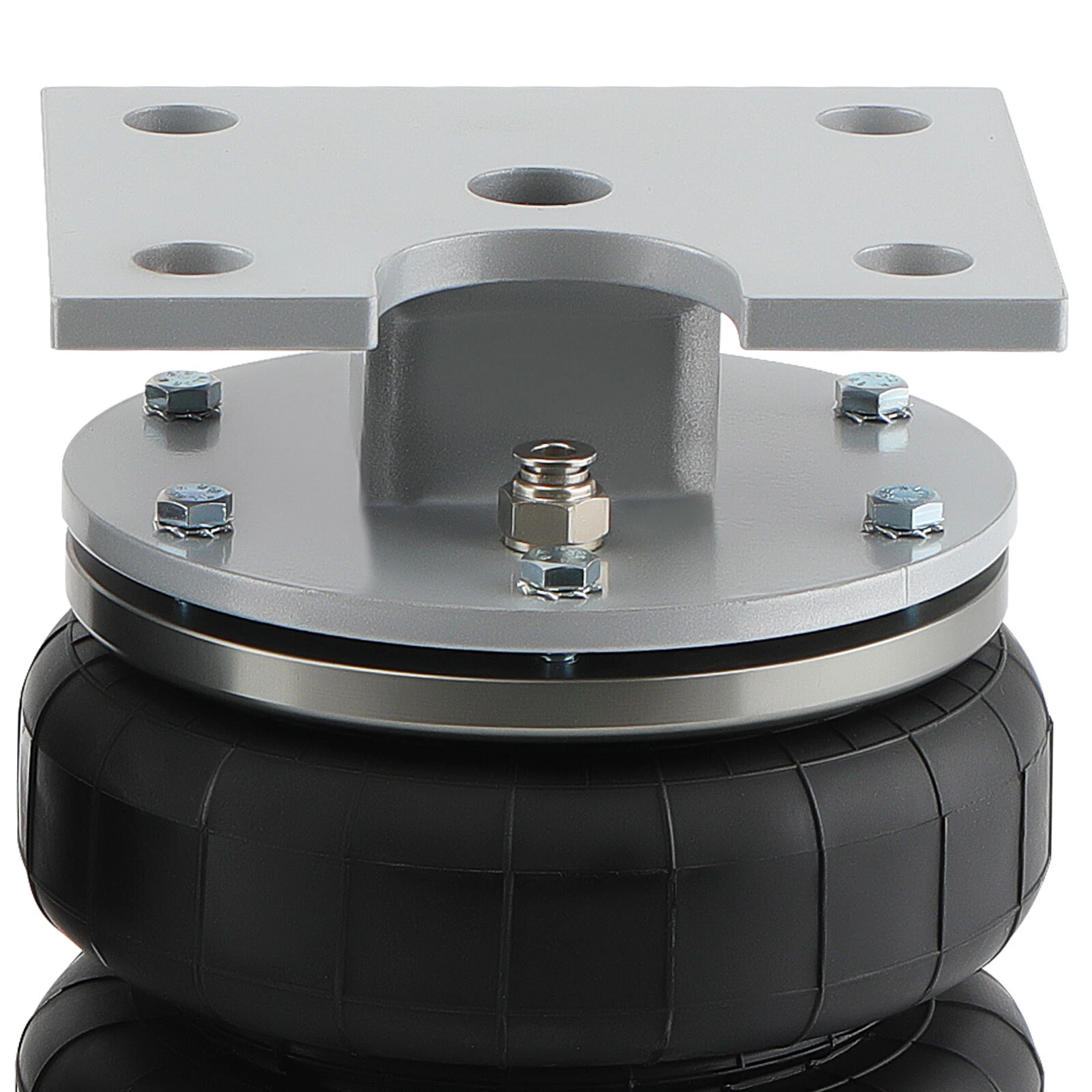

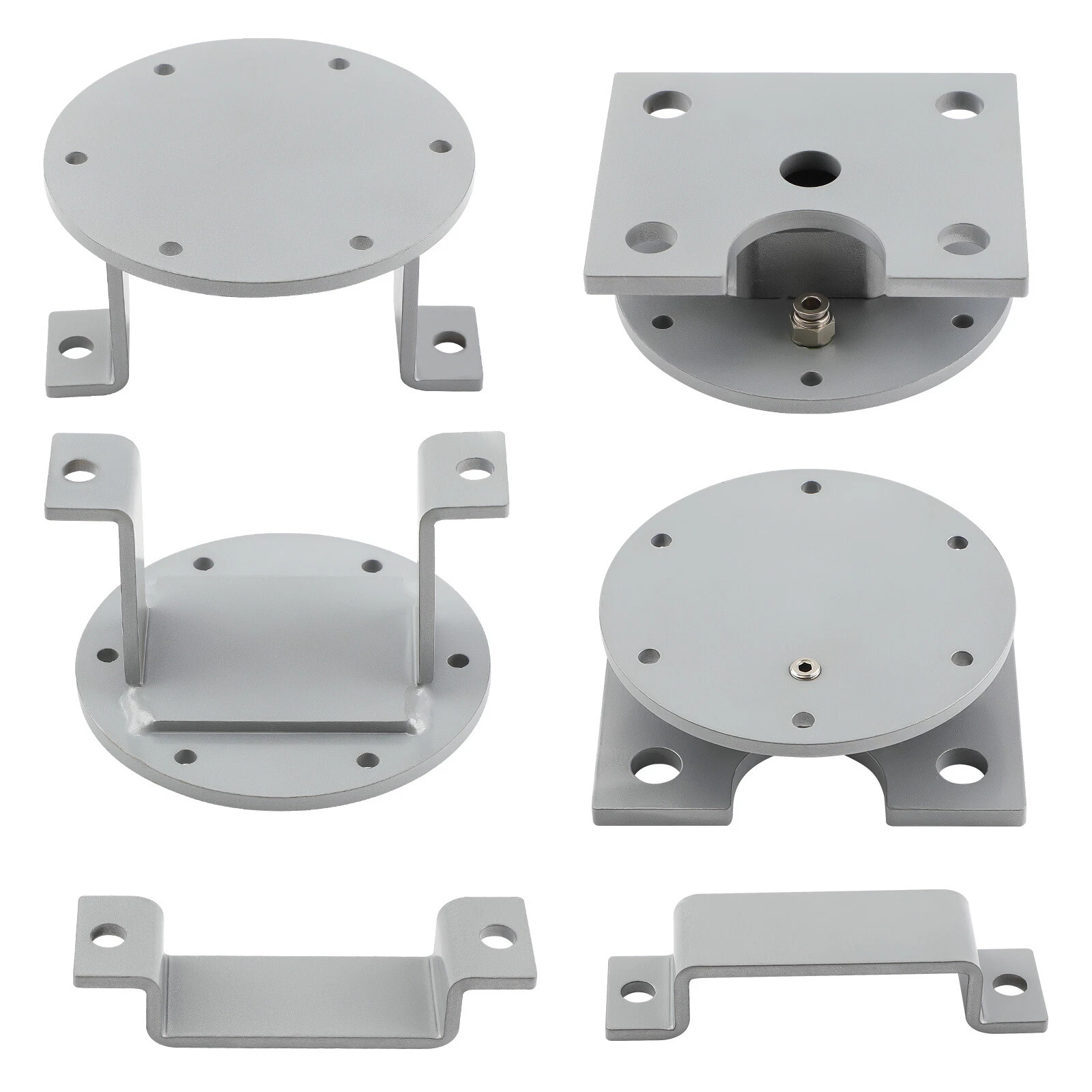

4x Upper and lower mounting brackets
1x Air line 6m
1x  12V MaXpeedingrods Air Compressor（Black）

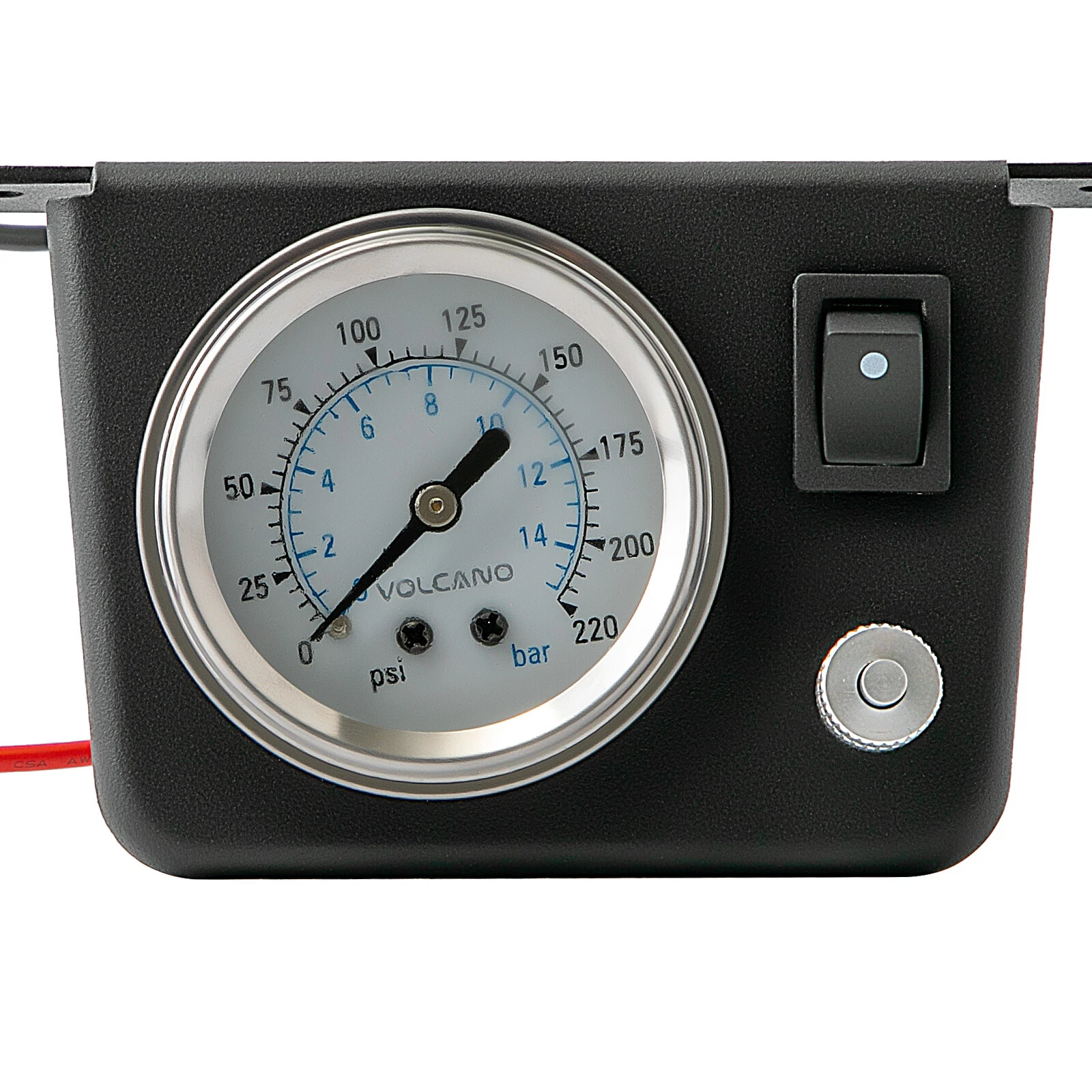

1x Gauge panel （Push buttons for up and down）
1x Air Line φ6*1（6M)
1x Wire harness (2.5 M) black
1x Wire harness (8.5 M) red
1x Relay harness(1M)
3x T Connectors
Mounting bolts, gaskets and some other accessories

Features
1. Stress Test Over 5,000,000 Times：Durable and Safe
2. Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3. Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
4. Temperature Range ≥ -40℃/ ≤ 70℃：Premium Natural Rubber Material
5. Use high-quality steel with high load-bearing capacity and long life.
6. Excellent and practical bolt-on installation.
7. Safe carrying capacity and stability

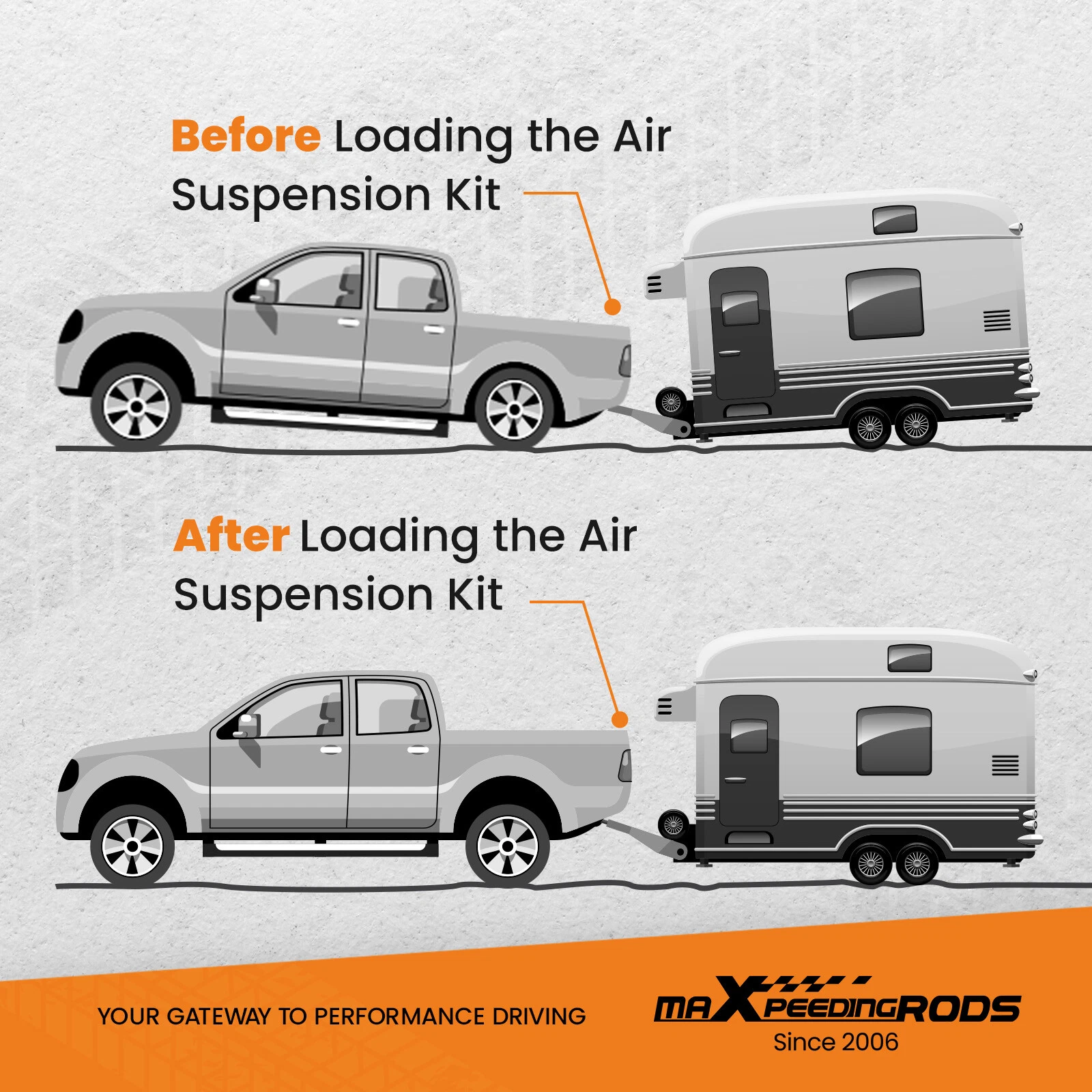

8. Restore the original ride height and improve ride quality
9. Ensure our driving comfort and reduce tire wear.
10.Allows you to monitor and adjust the air pressure in the air spring bag from the driver's seat.
11.Performs well for light-duty or medium-duty applications and for occasional hauling or towing.
12.Includes onboard air compressor, single-gauge dash panel, air lines and hardware.
13.Compatible with any brand of air spring.
14.Single-path controls let you adjust 1 pair of air springs.
15.Strict quality inspection to ensure long-term use without damage
16.Maximum air pressure: 120 psi.
17.Recommended working pressure：5-70 PSI
18.Wire harness has flame retardant properties.
19.The air compressor has quality assurance.
20.The air compressor has a waterproof casing.

Note
Professional installation is recommended.
