Fitment
For Mitsubishi Lancer (CX/CY) 2008-2016, Except Lancer Evolution
For Mitsubishi Outlander Sport (GA) 2011-2020
Note:The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specification
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping adjustable: Available, 24 levels of rebound damping force
Front top mount: Pillow ball bearing camber plate
Rear top mount: Rubber
Camber adjustable: Available
Front Spring Rate: 9kg/mm  (504 lbs/in)
Rear Spring Rate: 6 kg/mm (336 in/lbs)
Spring length Front: 180 mm
Spring length Rear: 179 mm
Spring Preload advised: 7-10 mm
Shock Type: Twin tube

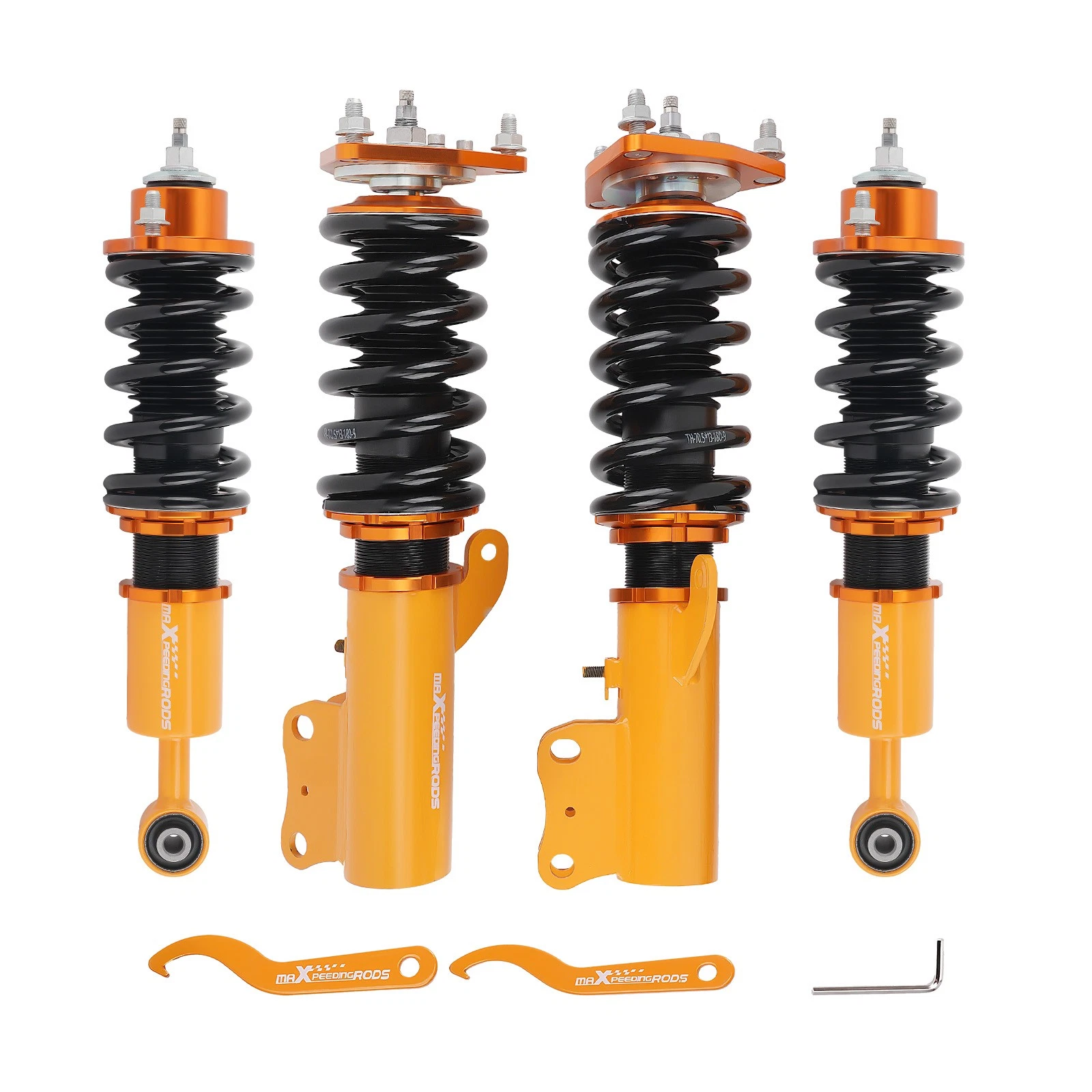

Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench

Note
All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
Impact wrench is prohibited during the installation, it will loosen or damage the product.
Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

SKU MTV-maX-084
Brand MAX
