Fitment

For Mazda 323 1999-2003

For Mazda Protegé 1999-2003

For Mazda Protegé5 1999-2003

For Mazdaspeed Protegé 1999-2003

For Mazda Isamu Genki (Taiwan) 1999-2003

For Mazda Allegro 1999-2003 for Ford Activa 1999-2003

For Ford Laser (KN/KQ) 1999-2003

For Ford Tierra 1999-2003

For Haima Family (China) 1999-2003

For Haima Happin (China) 1999-2003

Specifications

Front top mount: Pillow ball with camber plate

Rear top mount: Pillow ball

Damping adjustable: Not available

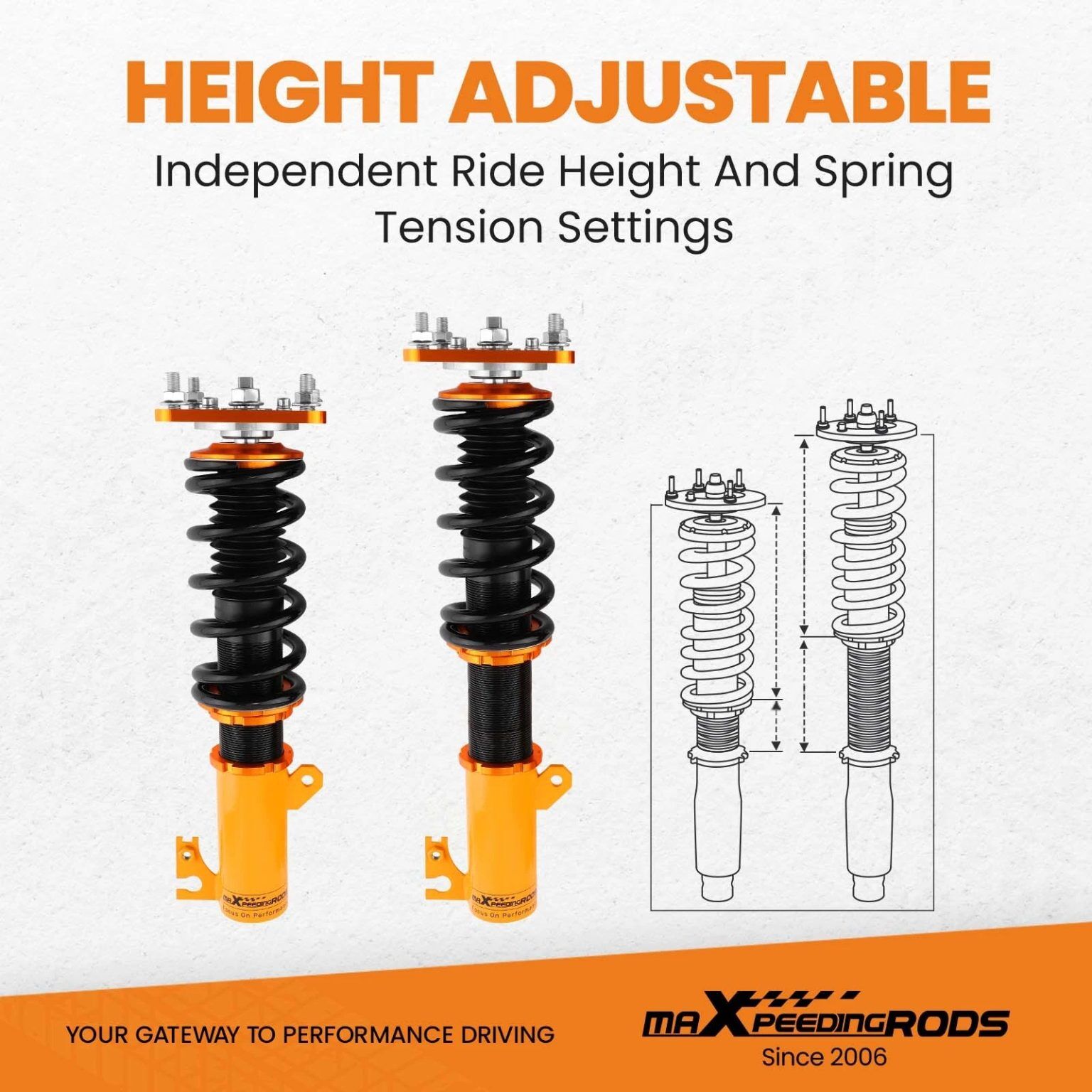

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

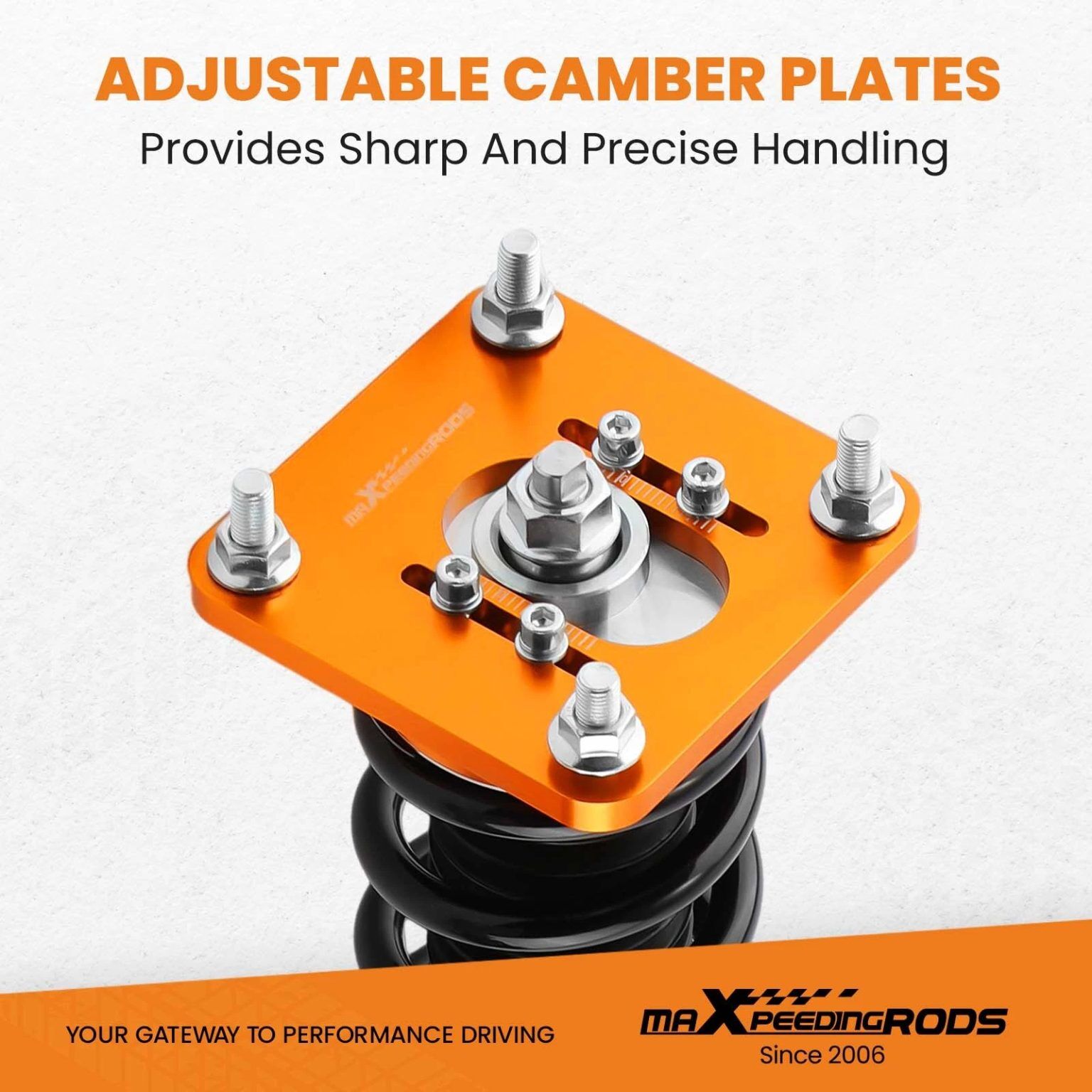

Camber adjustable: Available

Spring rate Front: 7 kg/mm (392 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 200 mm

Spring length Rear: 230 mm

Spring Preload advised: 7-10 mm

Color: Golden

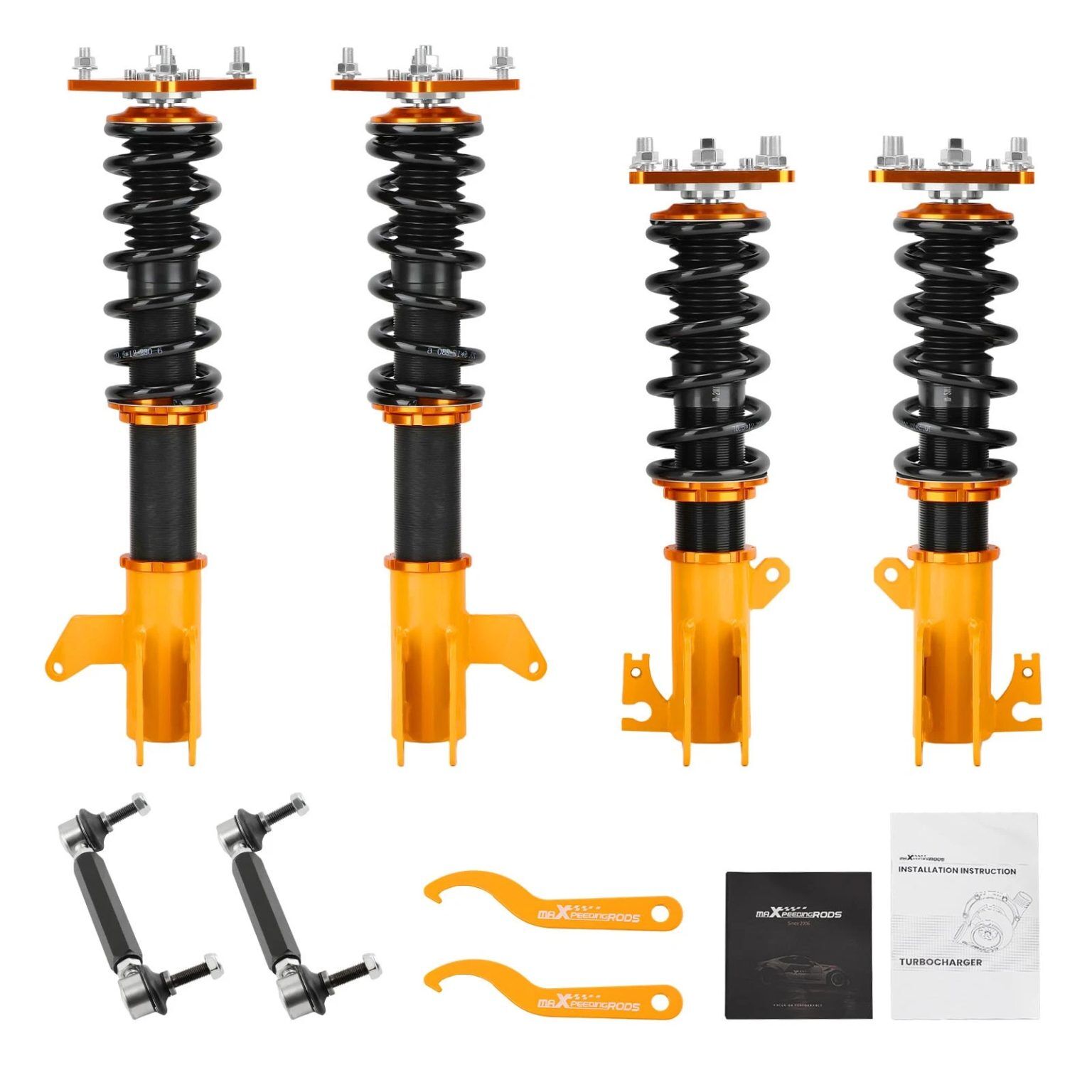

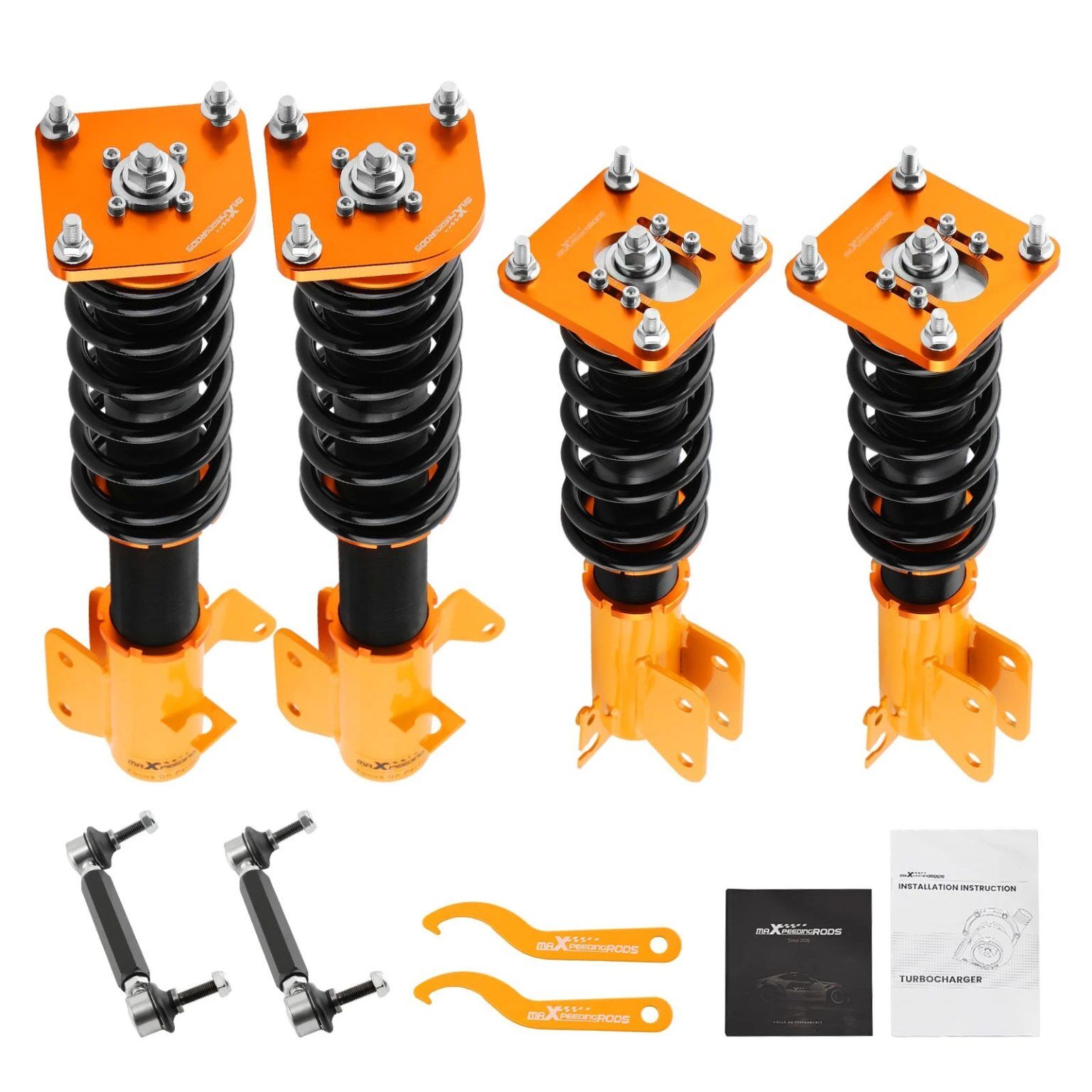

Package included

2x Front coil-overs

2x Rear coil-overs

2x C spanners

Notice

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

Impact wrench is prohibited during the installation, it will loosen or damage the product.

Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
