Fitment
For Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006(TD05 20G Upgraded Turbo)

Specification
Exhaust Outlet Flange:5-Bolt Flange
Exhaust Intlet Flange:3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm2
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm

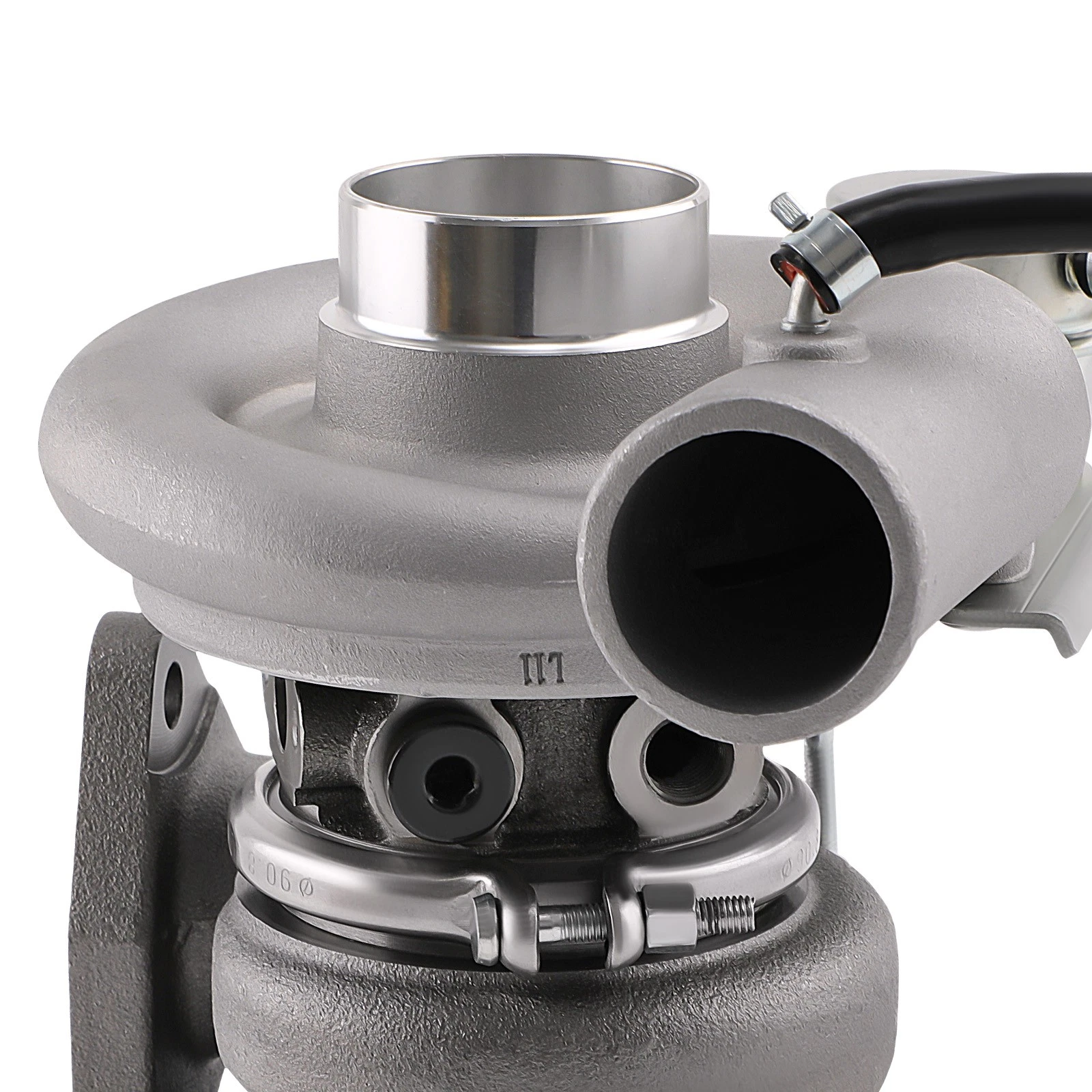

Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm

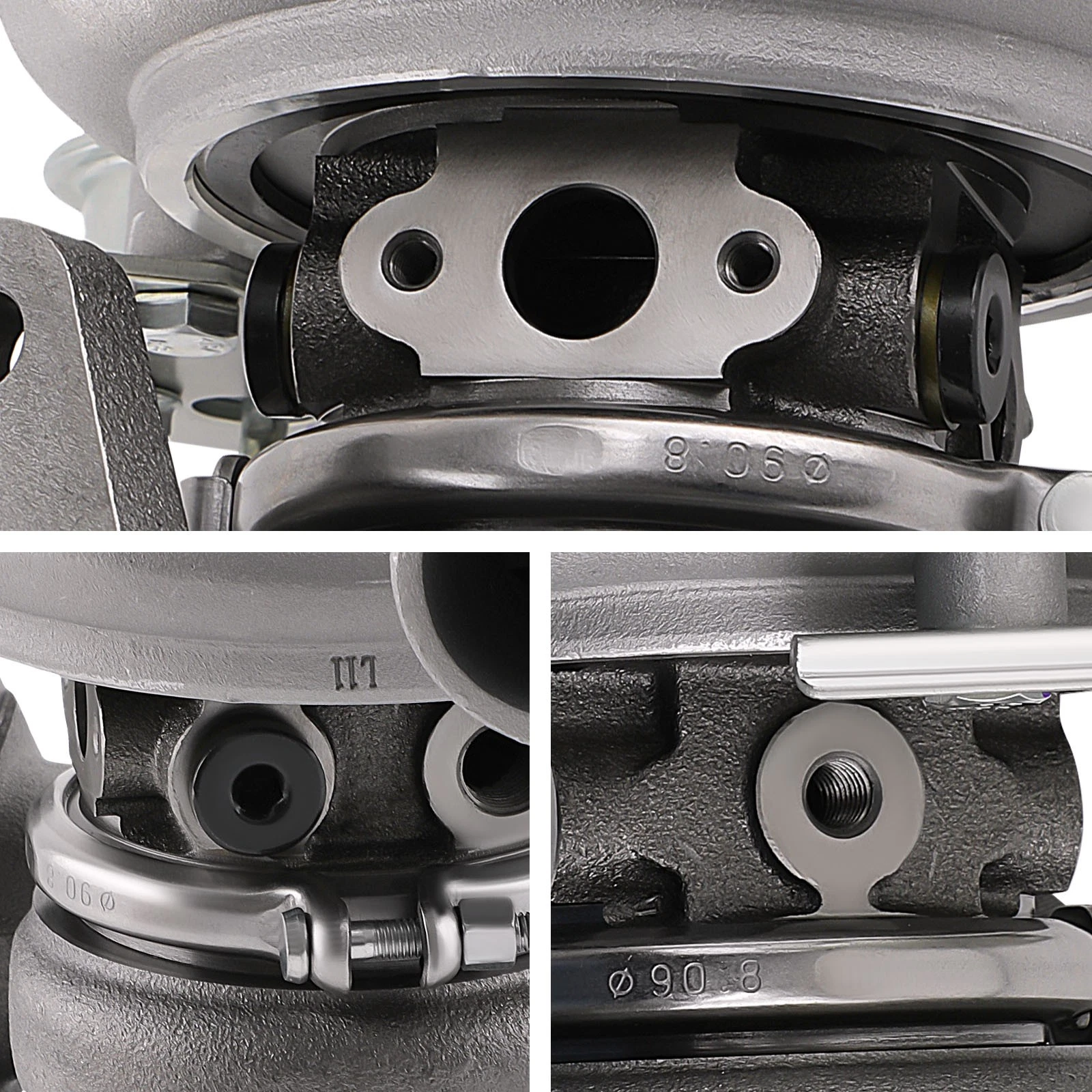

Oil Inlet: M101.5
Oil Outlet: M15 & 2M6H
Water: M14*1.5
Turbine housing: 7cm2
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm

Bearing Type: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled

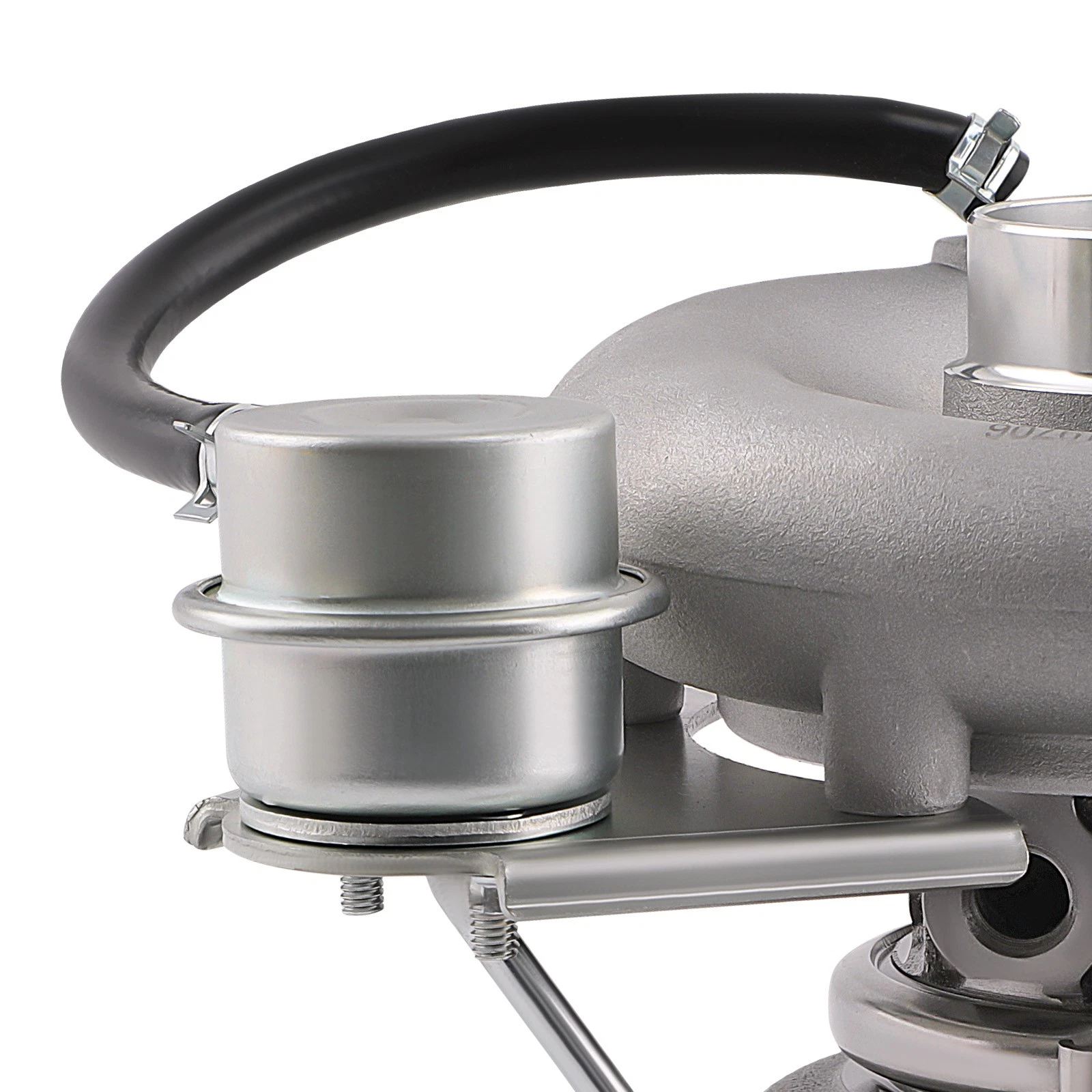

Wastegate:With Wastegate

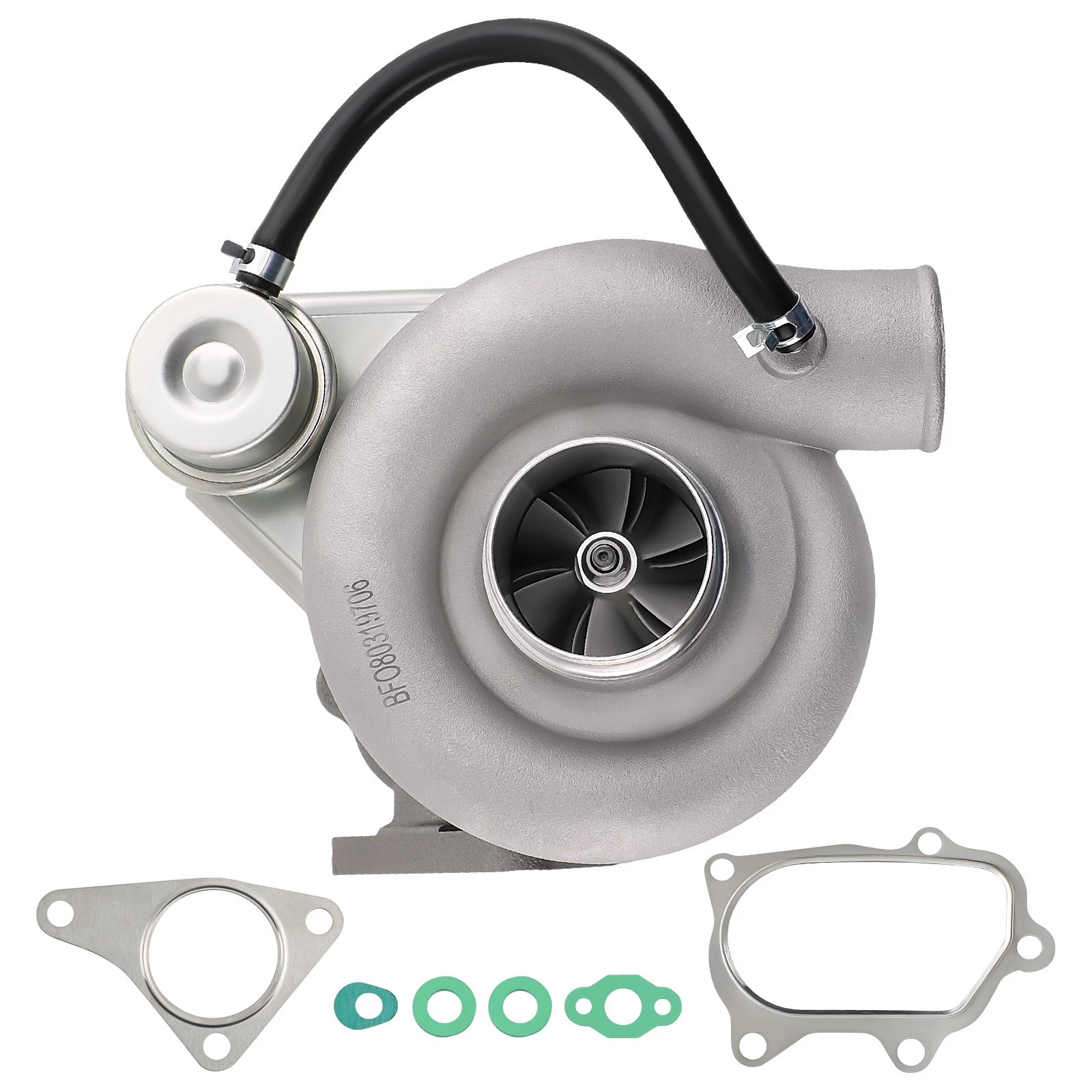

Turbo Model: TD05 20G
Thrust Bearing: 270 degree
Hosepower: Up to 380 HP
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: Brand New

Note
All for WRX Wagon engines and automatic sedan engines came with a TD04,all manual for WRX sedans including STI versions had a TD05. If your old turbo is TD04 one, some modification(connections, bolts, fixed screws etc.)  is required to fit the new turbo.
It's a direct bolt-on so nothing else would be required. But, to get it's full potential you'd need some additional upgrades. Intake, exhaust, more fuel, etc. it will also require custom tuning.
Professional installation is highly recommended(No Instruction Included)
