Fitment

Fit For Turbo Manifold With T25 Flange (T28 Flange Can Be Converted To T25 Flange, Adapter Is Needed)

Fit For All 1.5L - 2.0L Engine, For All 4 Cylinder



Specification

Horse Power:Boost Horse Power Up To 350BHP

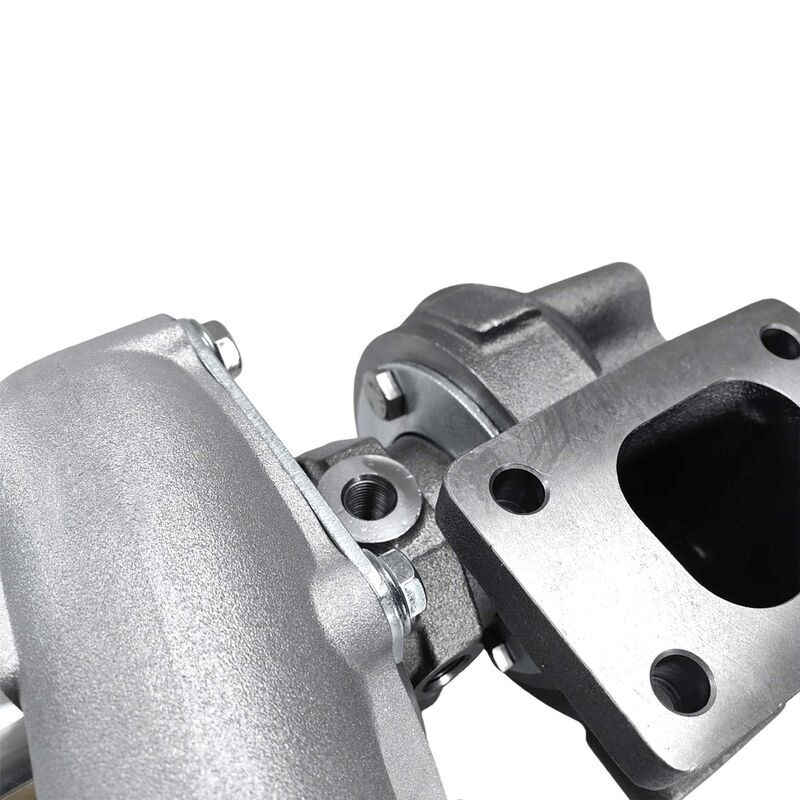

Exhaust Inlet (Turbo Manifold) Flange:Standard T25 Flange

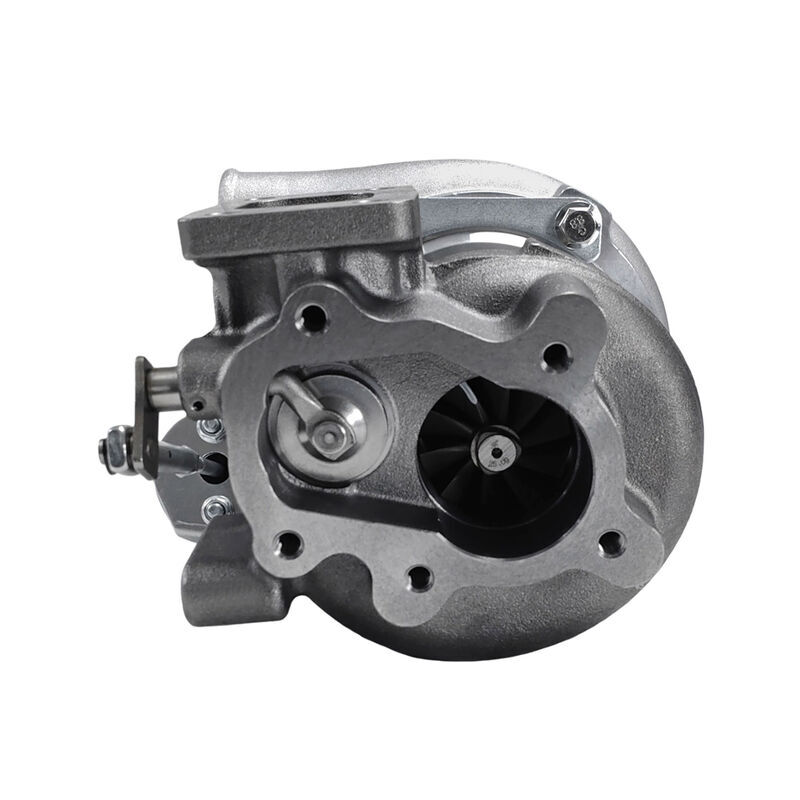

Exhaust Outlet Flange:5-Bolt

Turbine Trim:76

Turbine A/R:0.64

Turbine Inducer Diameter:53.8mm

Turbine Exducer Diameter:47mm

Compressor Trim:48

Compressor A/R:0.60

Compressor Inducer Diameter:49.2mm

Compressor Exducer Diameter:71 mm

Bearing Type:Wet Float

Cooling Type:Water + Oil

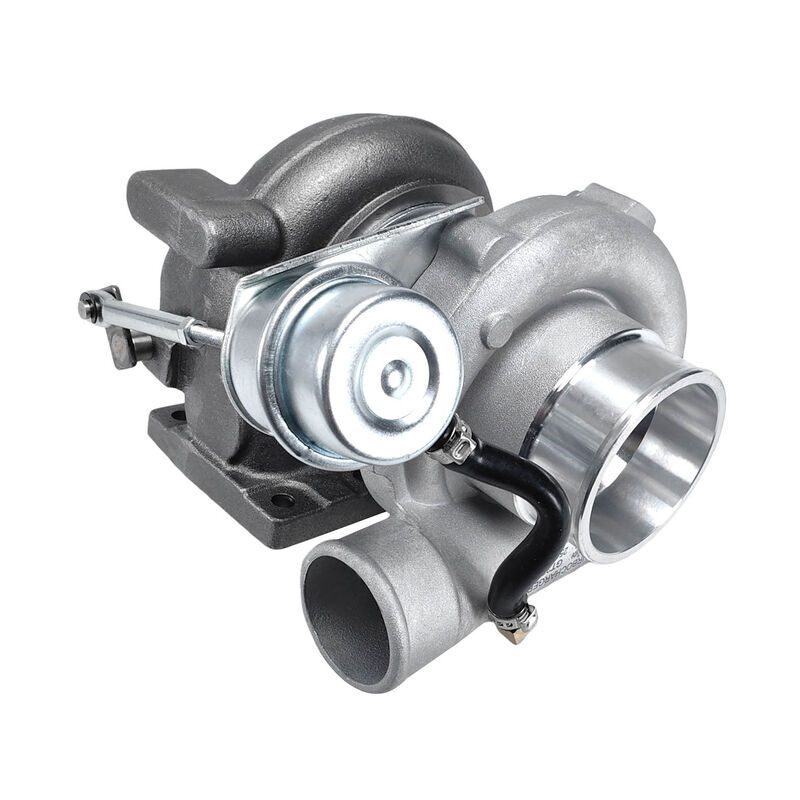

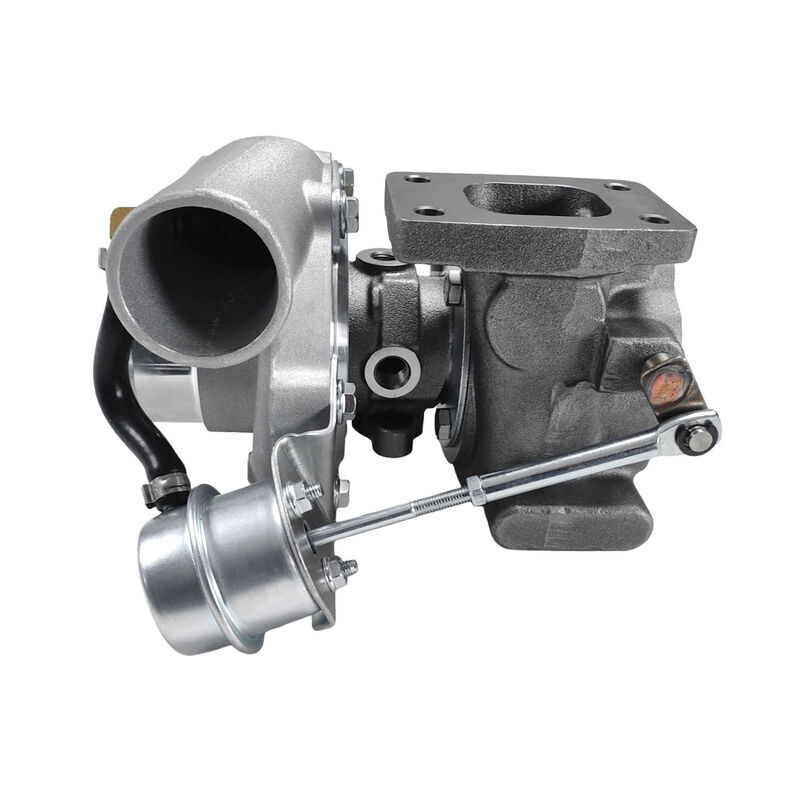

Wastegate:With Wastegate

Oil Restrictor:Yes

Oil Restrictor Size:inside diameter 2mm

Oil Feed Size:12mm

Oil Inlet:M12*1.25

Oil Drain Size:14mm

Oil Outlet:M14 & 2*M8*1.25

Oil Drain Thread Pitch:40mm

Water Thread Size:M14*1.5



Part Numebrs

T25, T28, GT2871, 2860

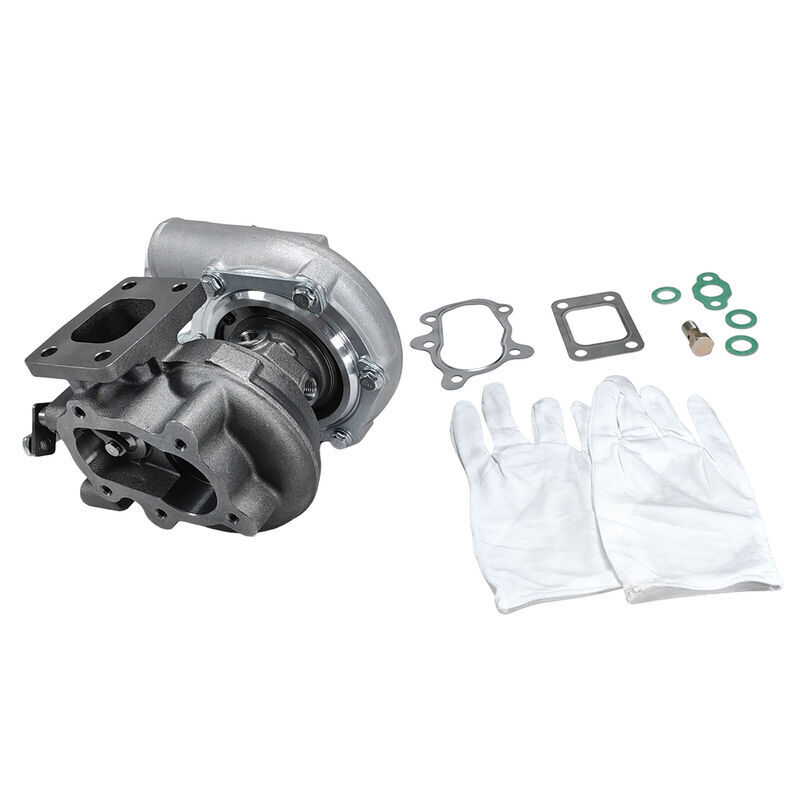

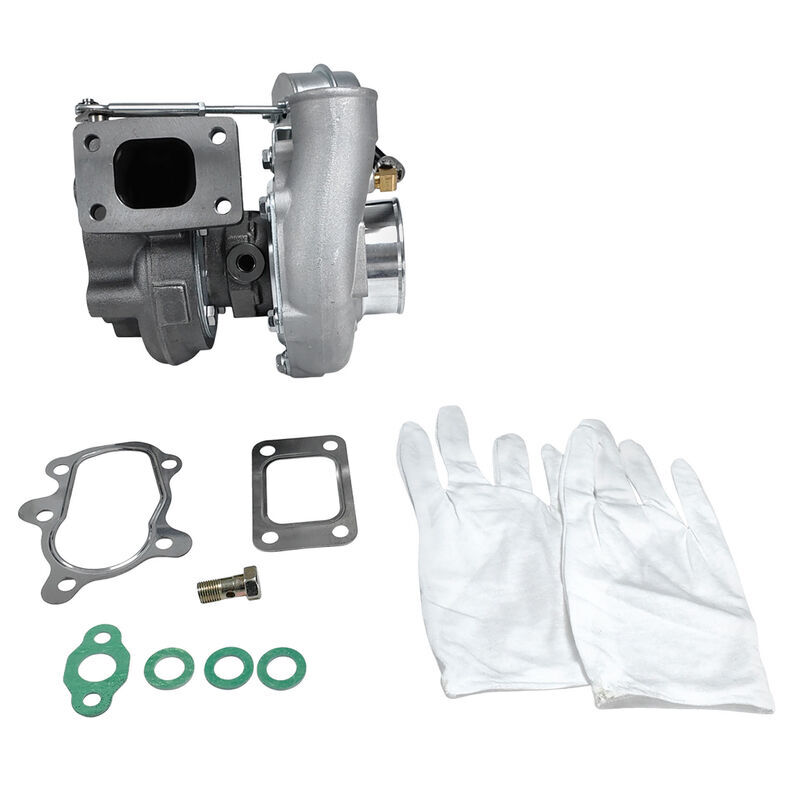

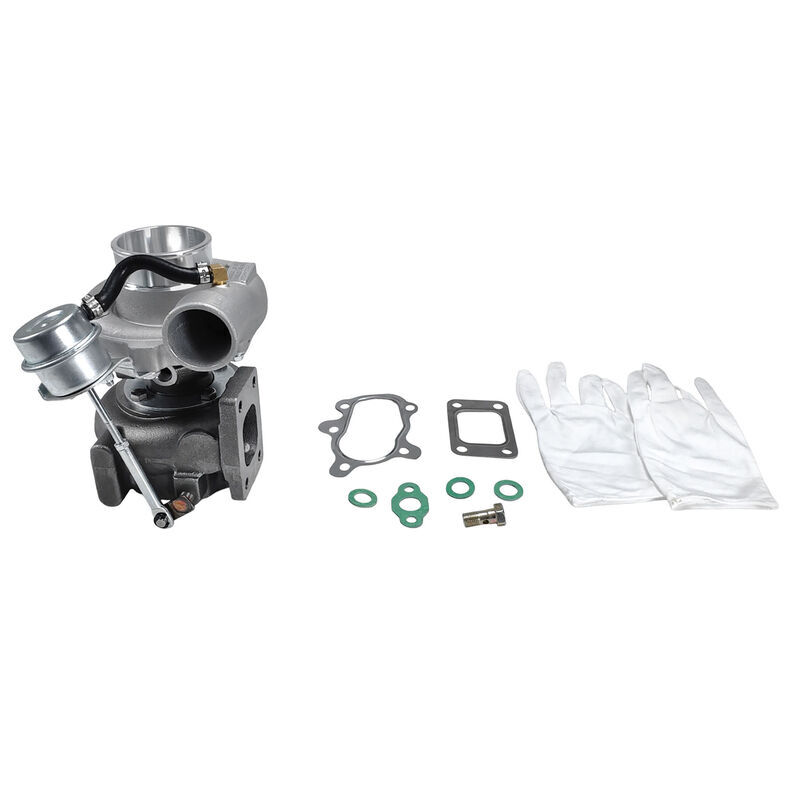

Package

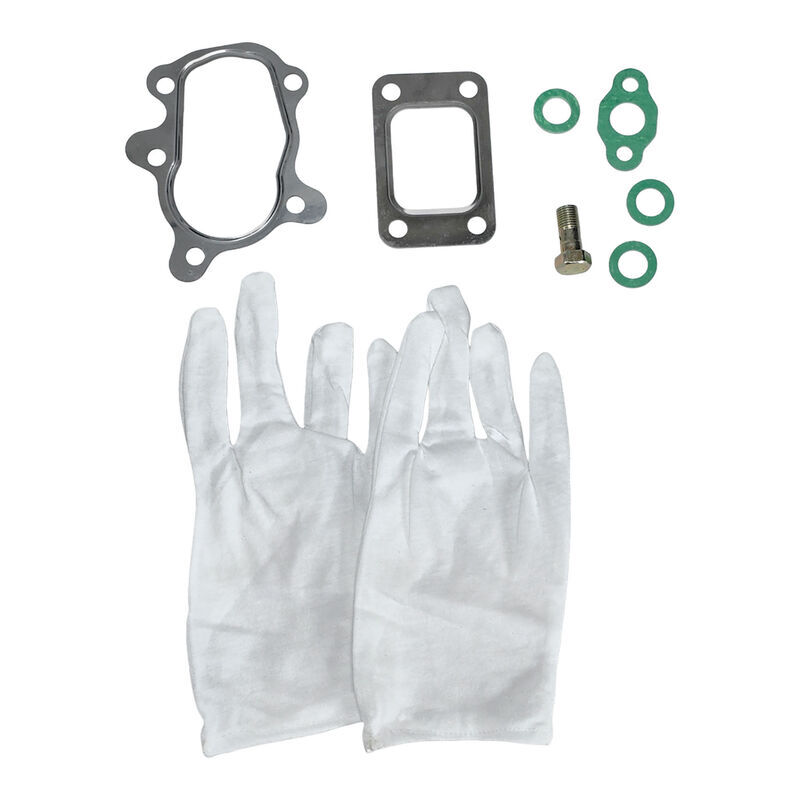

1 x Turbocharger & Gaskets

Pair Free Glove

(As Pictures)

SKU TG-NN-3
Shipping Weight 7.9000kg
Shipping Width 0.235m
Shipping Height 0.290m
Shipping Length 0.275m
Shipping Cubic 0.018741250m3
