Fitment

Universal Fit For Most 1/2, 3/4 And 1 Ton Pickups And Vans

For Ford Ranger Mazda Mitsubishi Isuzu Toyota Hilux Landcruiser etc.

Also Compatible With Most small trucks, compact pickups, classic cars & hot rods, and custom suspension setups

Item Specifications

Drilling Required: Yes

Installation instruction included

Package Length, width and height: 32*20*20cm

Package Wight: 2.2 Kg

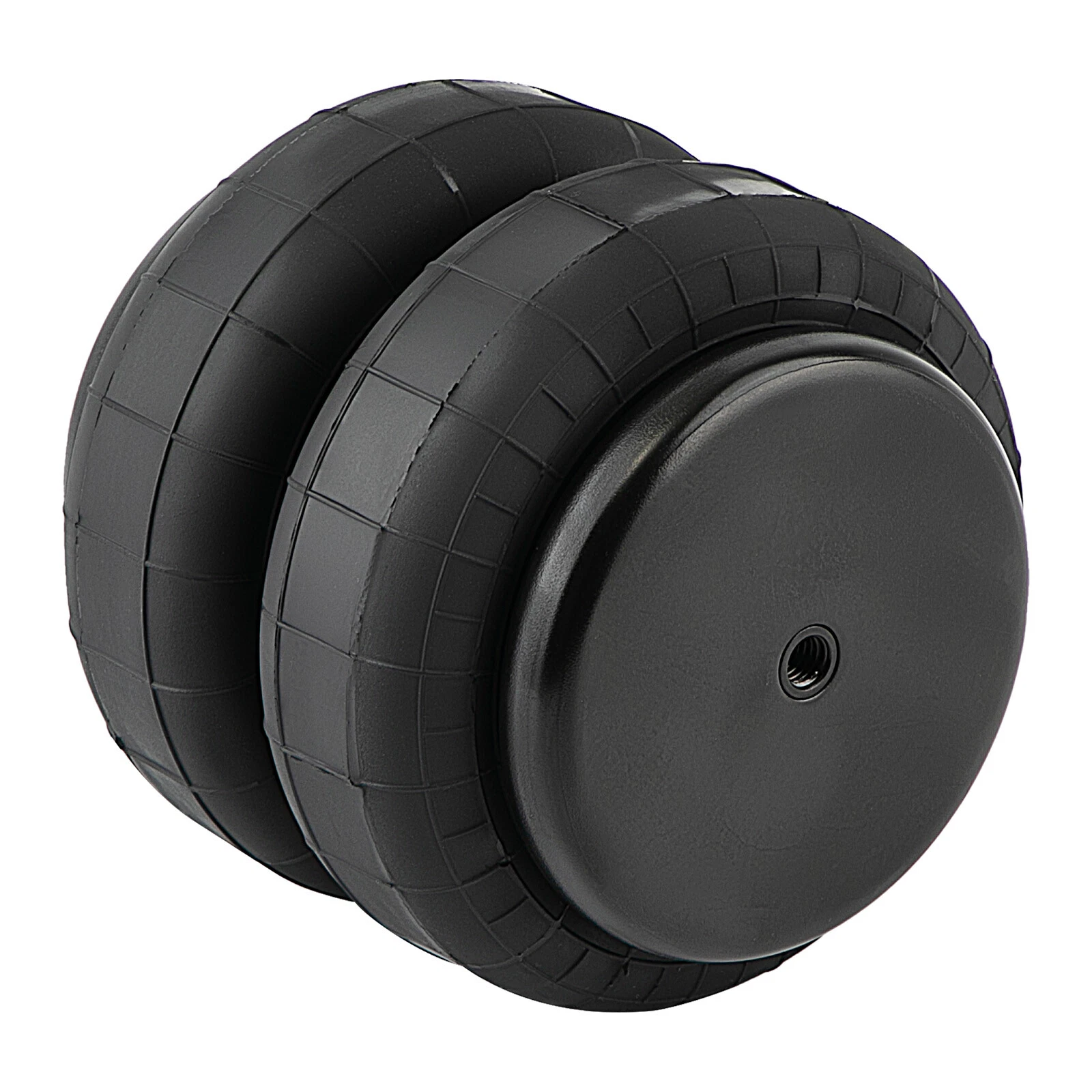

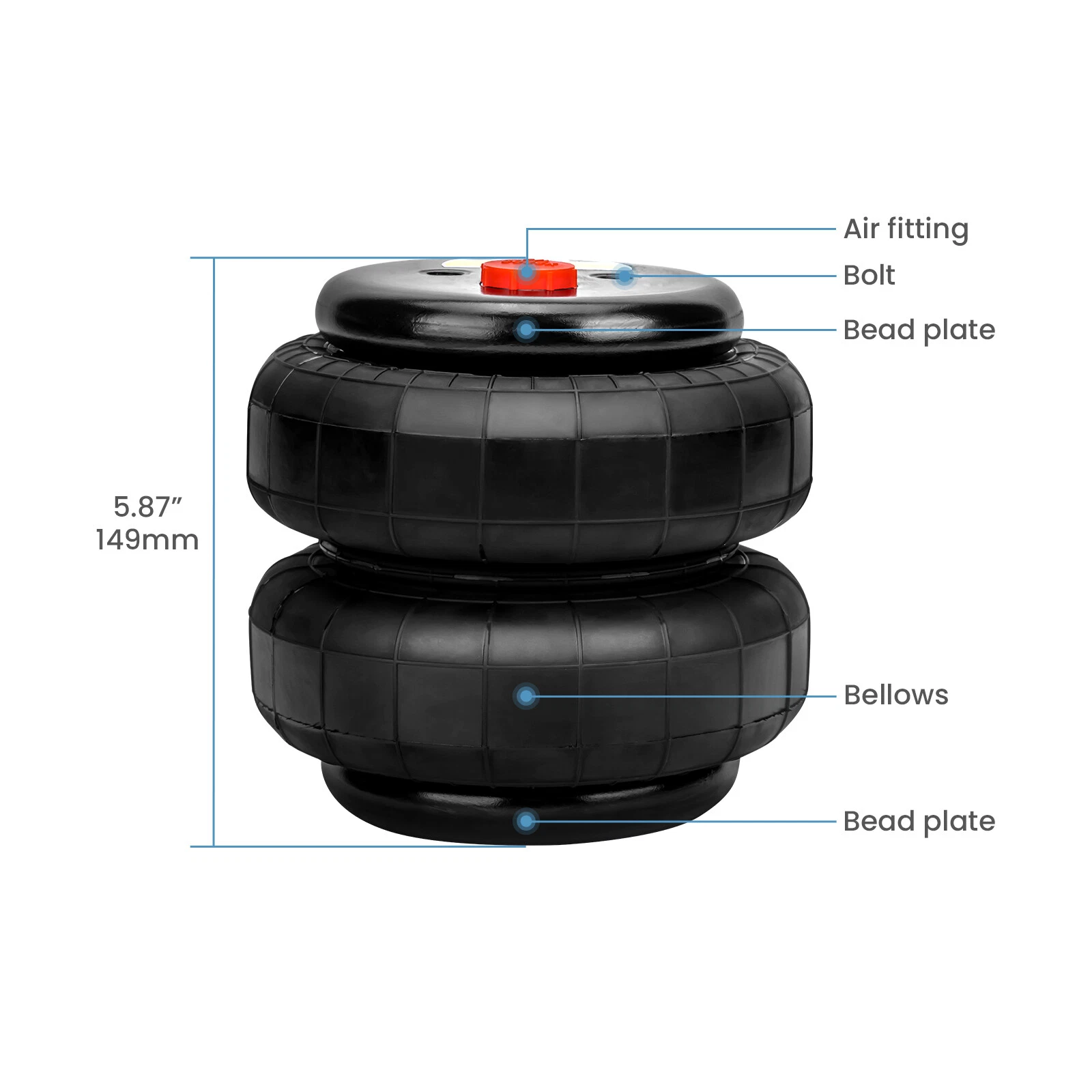

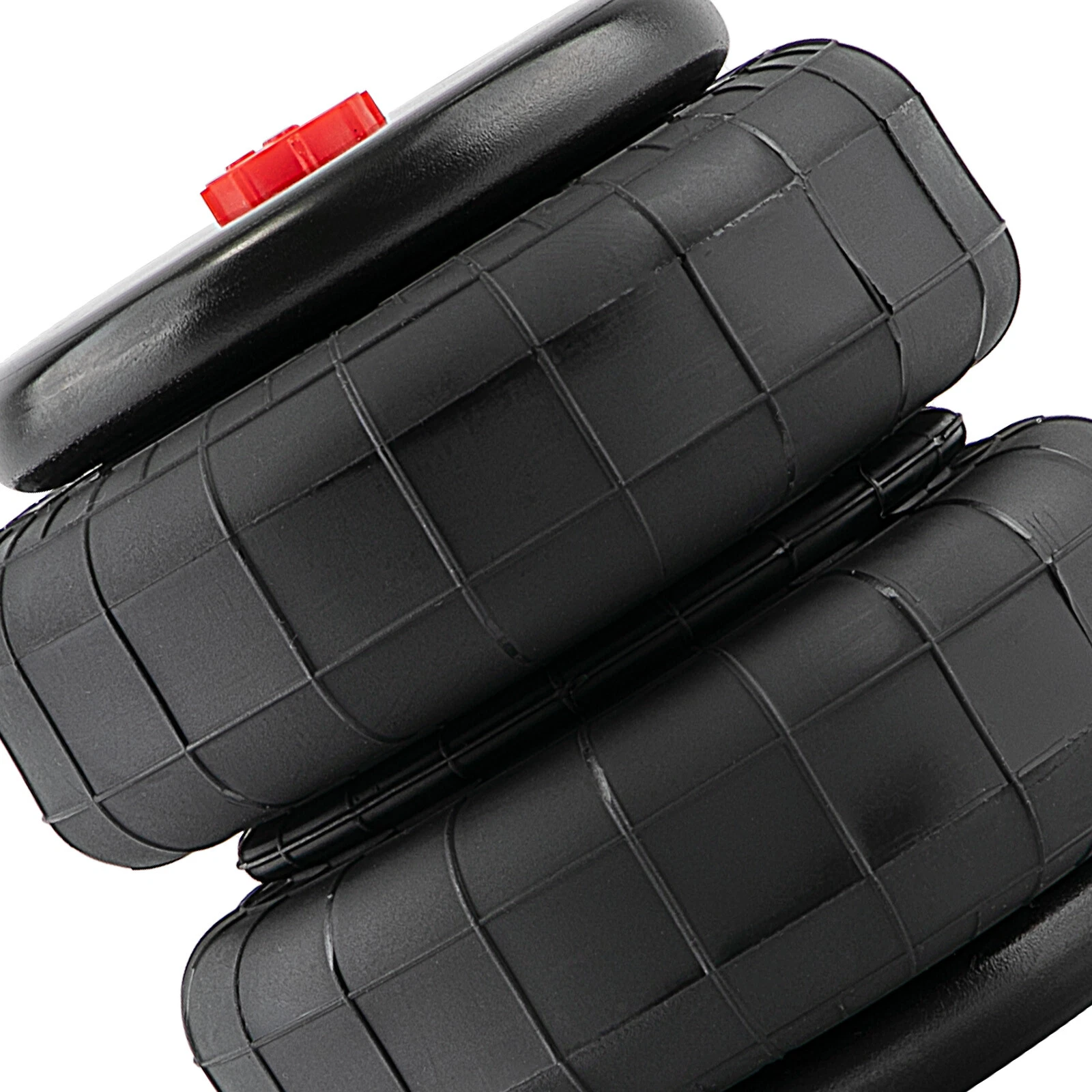

Air Spring Bag

Loading cap. at 3.0bar:2.88KN

Loading cap. at 7.0bar:7.25KN

Placement on Vehicle: Left,Right,Front,Rear

Air spring bag capacity: 2500LBS

Min height: 72mm±5mm

Max height: 218MM±5mm

Working stroke: 146mm±5mm

Single air port size: 1/2NPT

Air fitting elbow connector: G1/2-f6(male)

Install hole size: 3/8-16UNC

Top plate diameter:113mm

Air spring bag body diameter:148mm±2mm

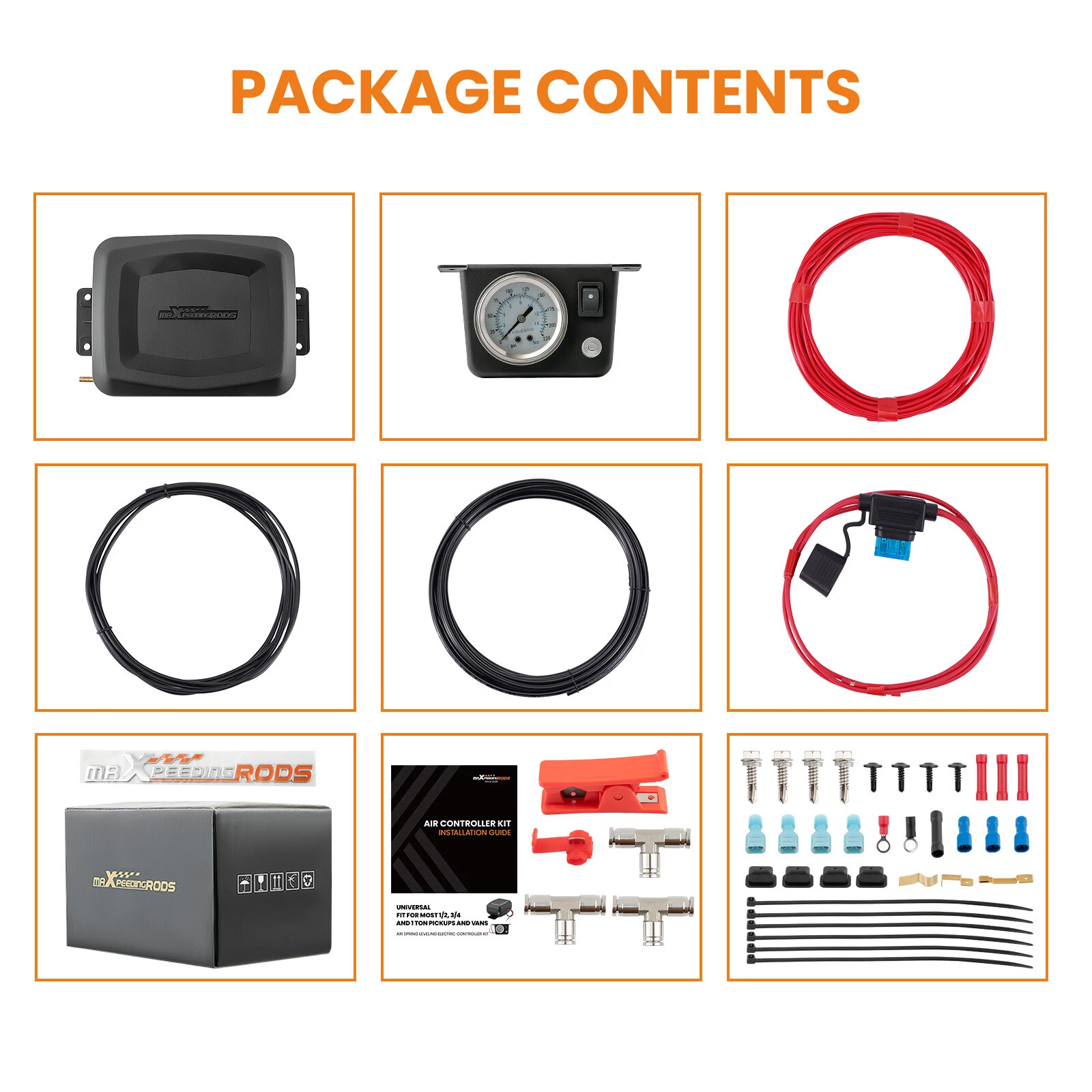

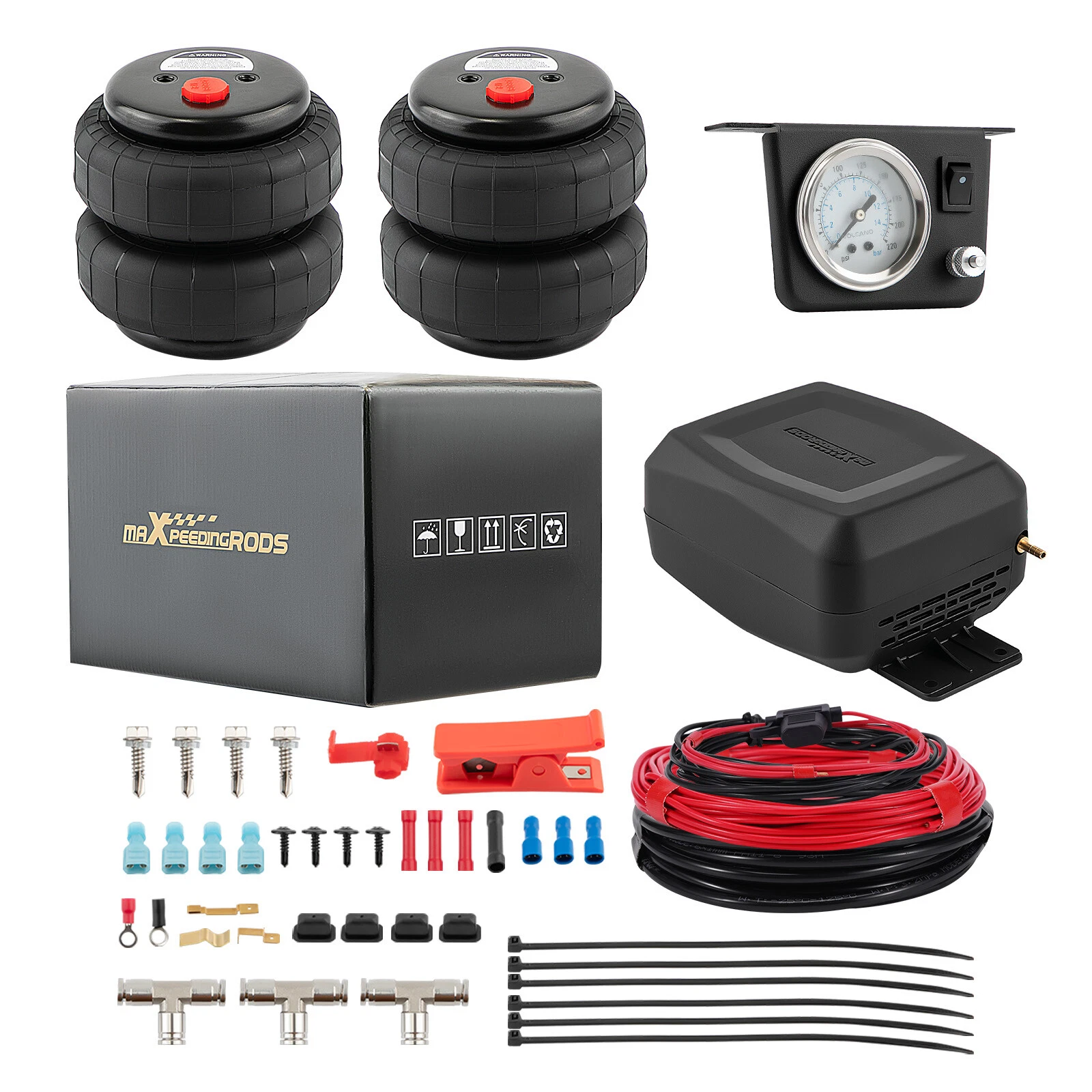

Package includes (as the picture shows):

2 x Air Spring Bags ( 2500LBS )

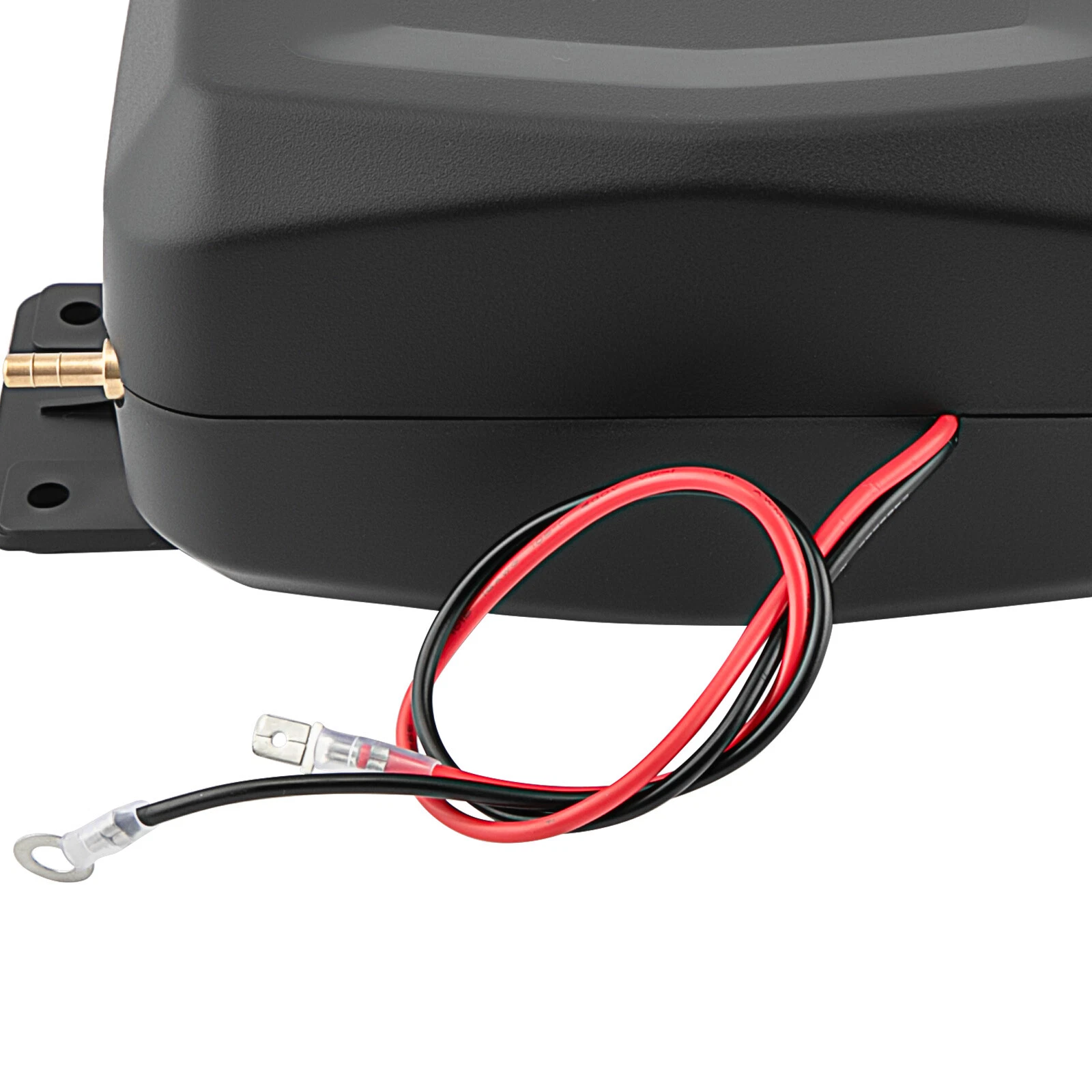

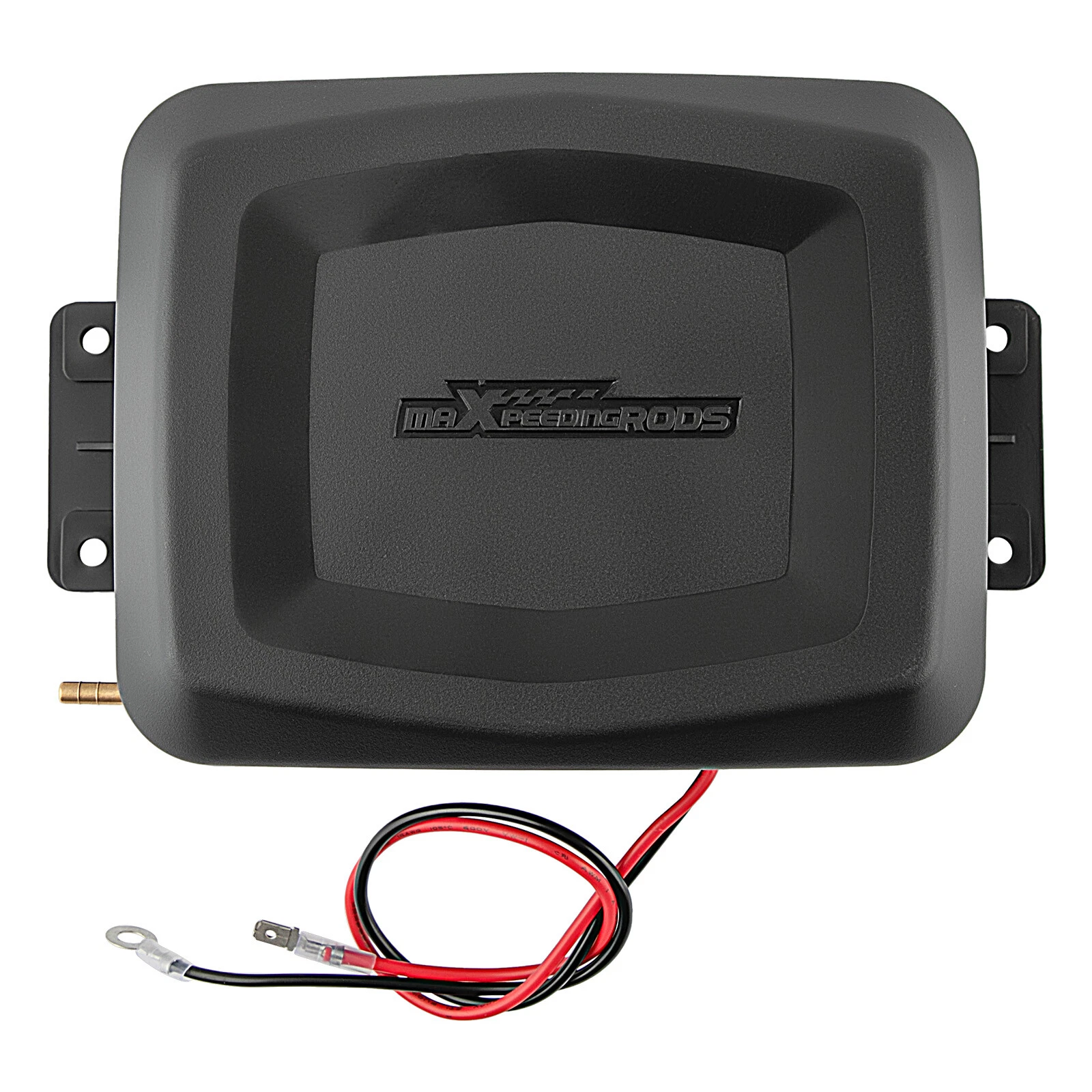

1 x 12V MXR Air Compressor(Black)

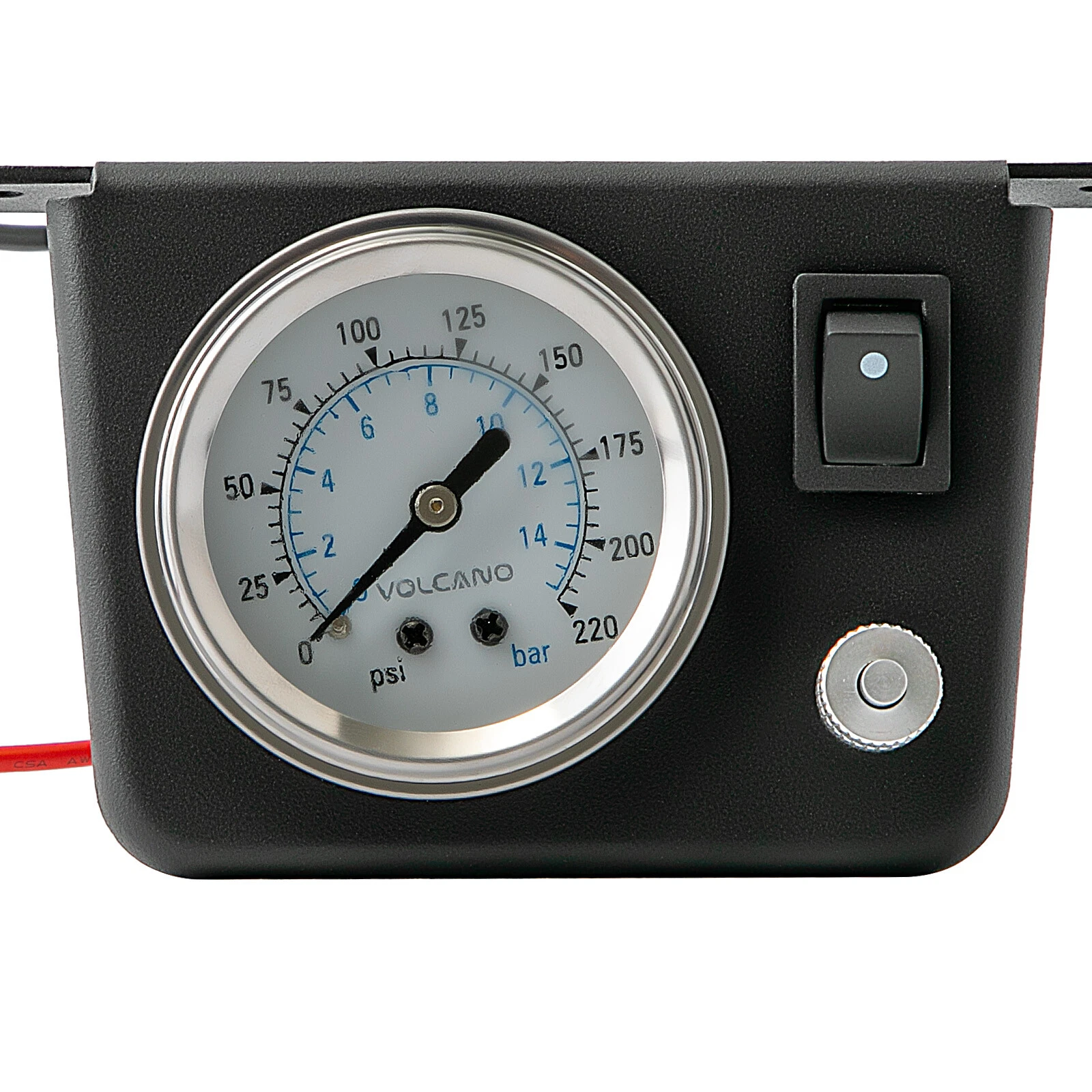

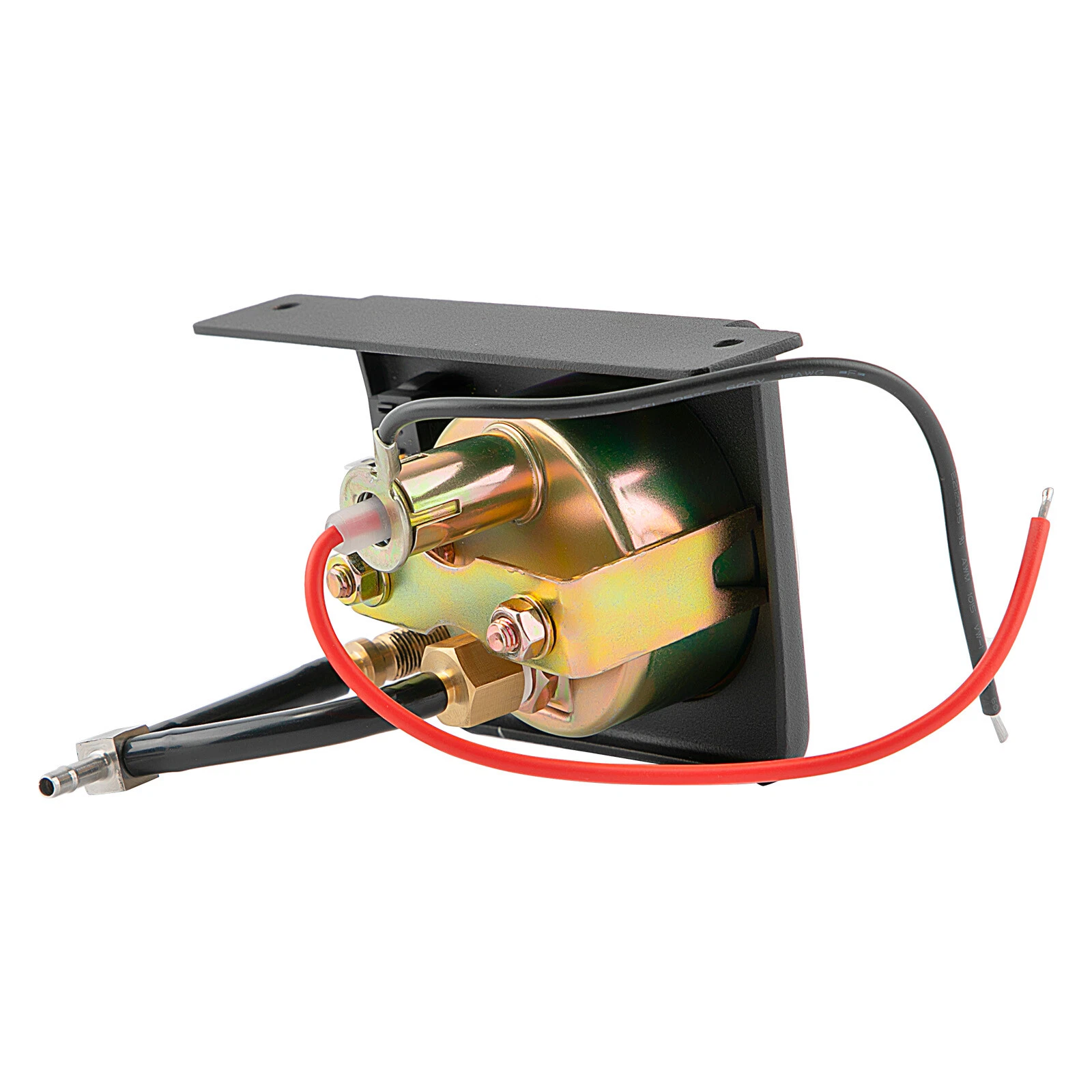

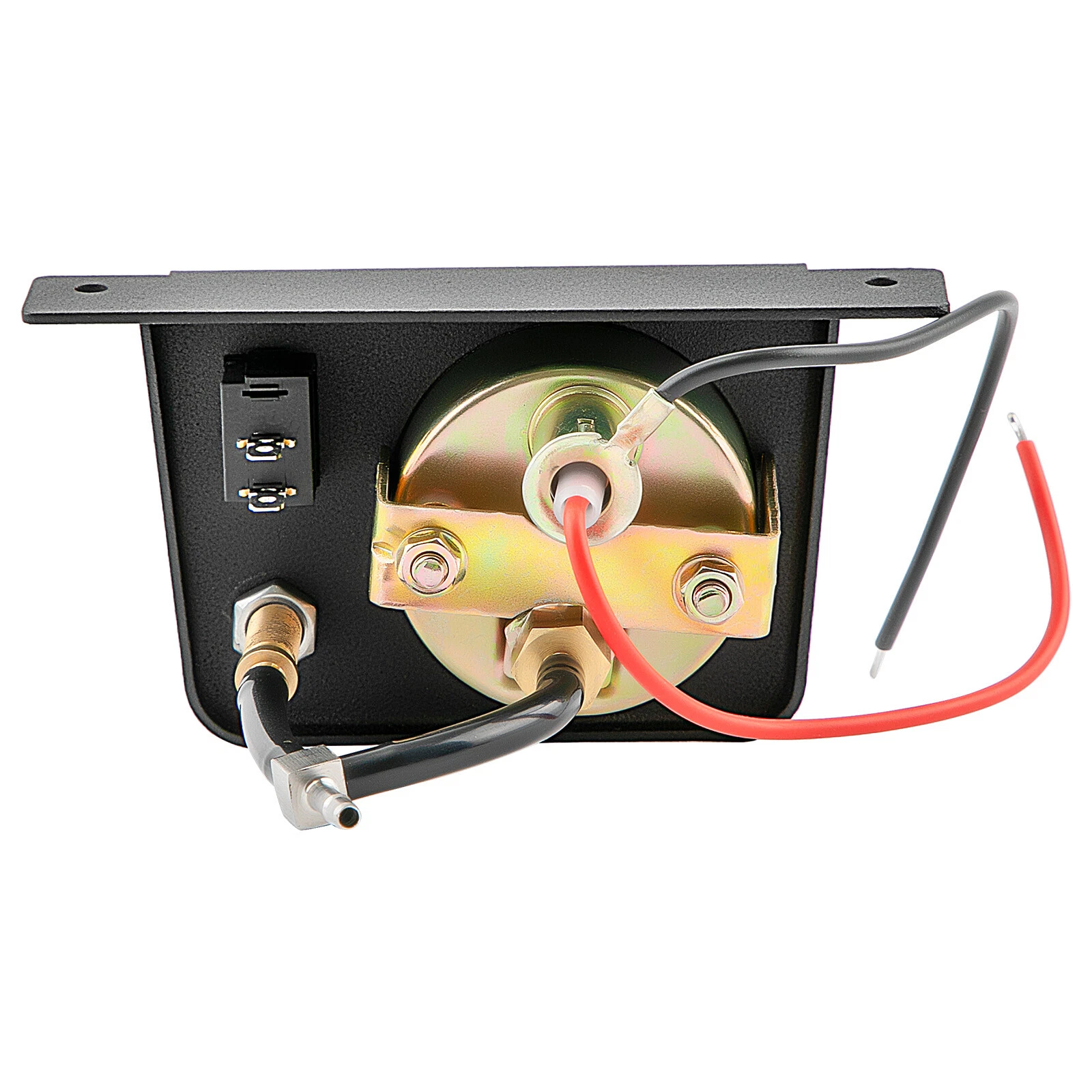

1 x Gauge panel (Push buttons for up and down)

1 x Air Line f6*1(6M)

1 x Wire harness (2.5 M) black

1 x Wire harness (8.5 M) red

1 x Relay harness(1M)

3 x T Connectors

And some other accessories

Features

Allows you to monitor and adjust the air pressure in the air spring bag from the driver's seat.

Performs well for light-duty or medium-duty applications and for occasional hauling or towing.

Includes onboard air compressor, single-gauge dash panel, air lines and hardware.

Compatible with any brand of air spring.

Single-path controls let you adjust 1 pair of air springs.

Strict quality inspection to ensure long-term use without damage

Maximum air pressure: 120 psi.

Recommended working pressure:5-70 PSI

Wire harness has flame retardant properties.

Note

Please confirm the air spring specifications to ensure compatibility with your vehicle.
