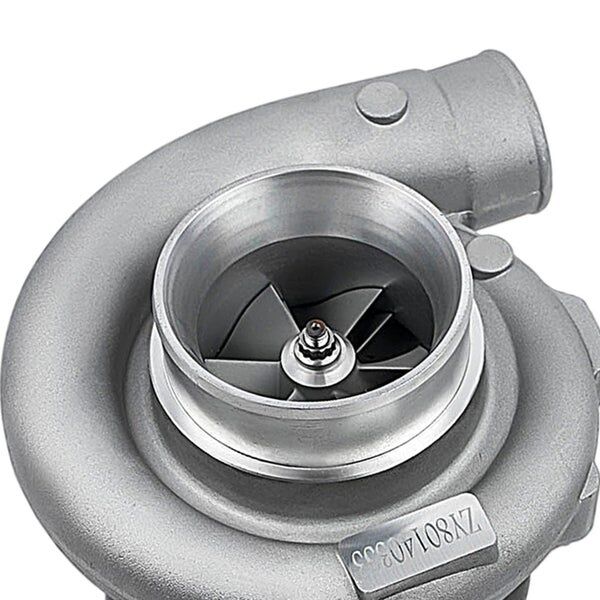

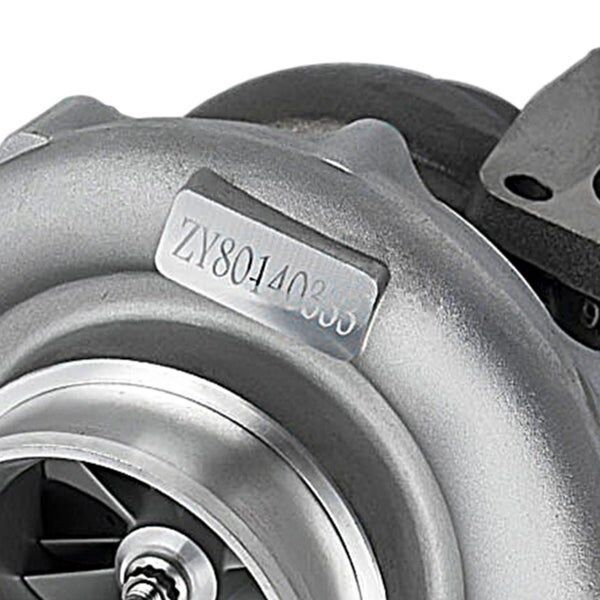

T4 T76 Turbo Turbine .96 A/R Com A/R80 Oil V Band Turbocharger For V6 V8
SKU code: MTV-maX-273
This turbo is an aftermarket application turbo, some modification may be required based on individual vehicle.
Fitment
Universal turbo for V6 V8 Cars
Perfect fit for Above 3.0L Engines, 6/8 cylinder
Specifiction
Compressor:
Compressor Trim: 56.1
Compressor Inducer Diameter: 76.6
Compressor Exducer Diameter: 102.3
Compressor A/R: 0.8
Turbine:

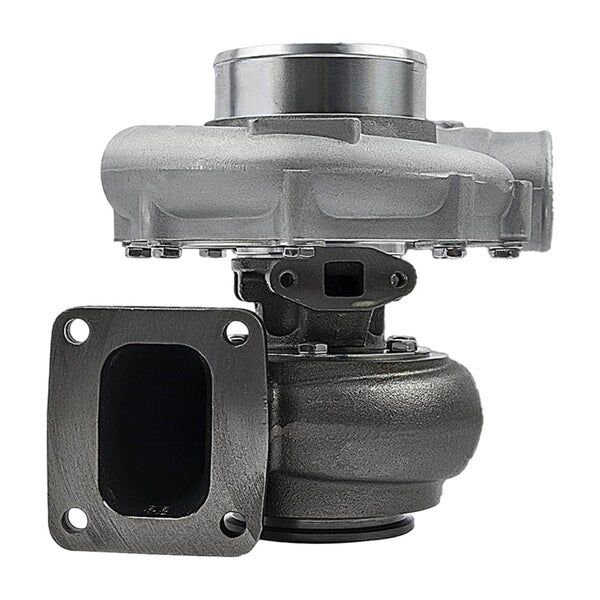

Exhaust Inlet Flange: T4 Flange
Exhaust Outlet Flange: V-Band
Outer diameter of V-Band : 91.95mm
Inner diameter of V-Band : 74.5mm
Turbine Inducer Diameter: 73.5
Turbine Exducer Diameter: 64.3
Turbine Trim: 76.5
Turbine A/R: 0.96
Air outlet:107mm
Air inlet:130.9mm
Oil Inlet: 1/8"-27
Oil Outlet: 2*M8*1.25
Bearing: Wet Float
Cooling Type: Oil Cooled
Wastegate: Without Wastegate
Turbo Type: Individual
Thrust Bearing: 270 degree
Horse Power: Boost Horse Power up to 500BHP
Condition: 100% brand new

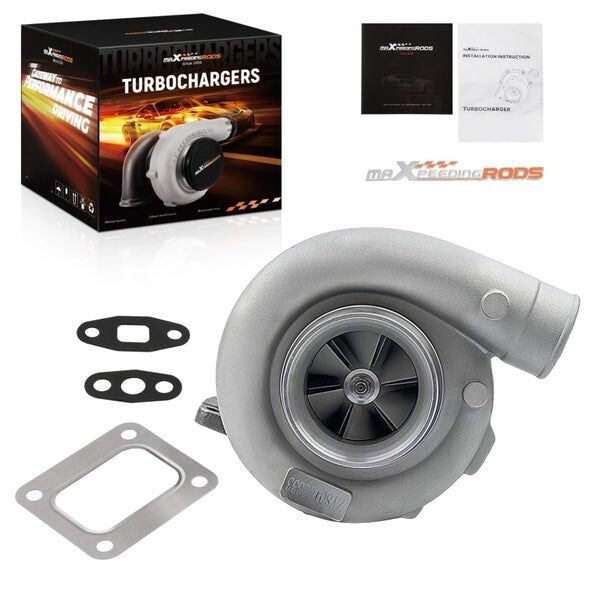

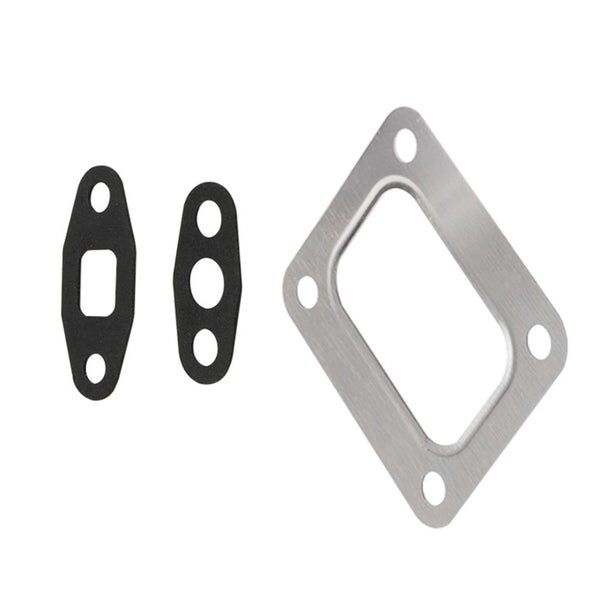

Accessories: You will get exactly as shown in the picture above
Features:
*Product Material
1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Notice:
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
| SKU | MTV-maX-273 |
| Brand | MAX PEEDING RODS |
| Shipping Weight | 10.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.300m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.027000000m3 |
