Specification

Huge 1 3/4" Stainless Primary Tubes

(True 1 3/4" Unlike The Others Listing The Same Header By Multiple Companies With Multiple Sizes)

7/16" Thick Flanges 3" V-Band Collectors

CNC Mandrel Bent Pipes For Excellent Flow

4 To 1 Header Design To Create A Compact Package For Universal Applications

Professionally Tigged Welds

T3:Hole To Hole 45x86mm

T4:Hole To Hole 70x83mm

V band Flange 80mm ID 93mm OD

Cast Turbo Elbow Adapter T3 T4 To 3" V-Band SS304

304 Stainless Steel Cast And Machined Adapter, With Tight Radius.

Works For Many Turbo Applications.

V Band Flange Allows Rotation Of The Turbo At Any Angle.

Flange Is Threaded With 4 M10x1.5 Holes

Left And Right Not Same Length



Fitment

Fit For Chevrolet Small Block V8 LS1/LS2/LS3/LS6 LSX 4.8L, 5.3L, 5.7L, 6.0L, 6.2L

Fit For Chevrolet Camaro 5.7L/6.2L 1998-2014

Fit For Chevrolet Corvette 5.7L/6.0L/6.2L 1998-2014

Fit For Cadillac CTS 5.7L/6.0L/6.2L 2004-2013



Package

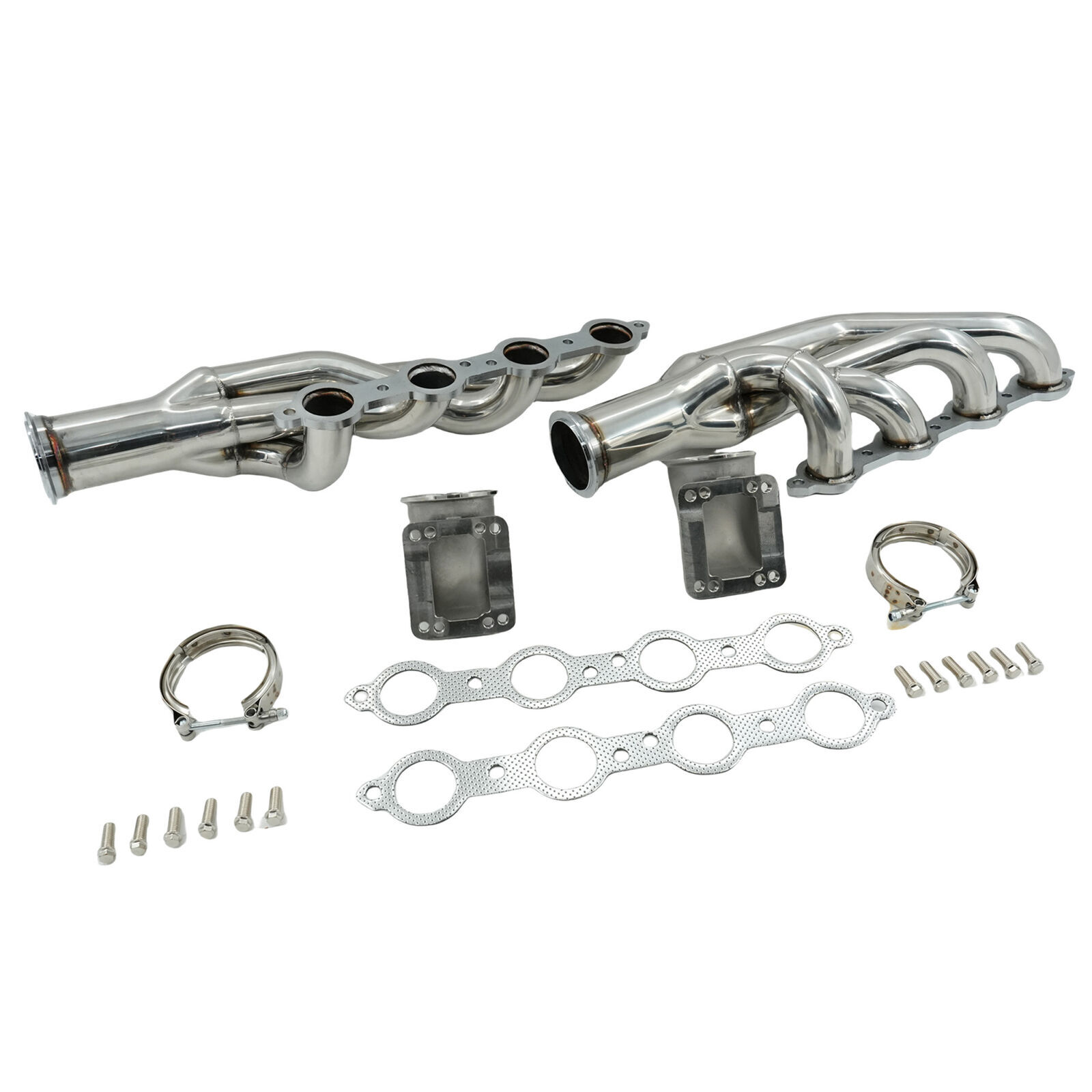

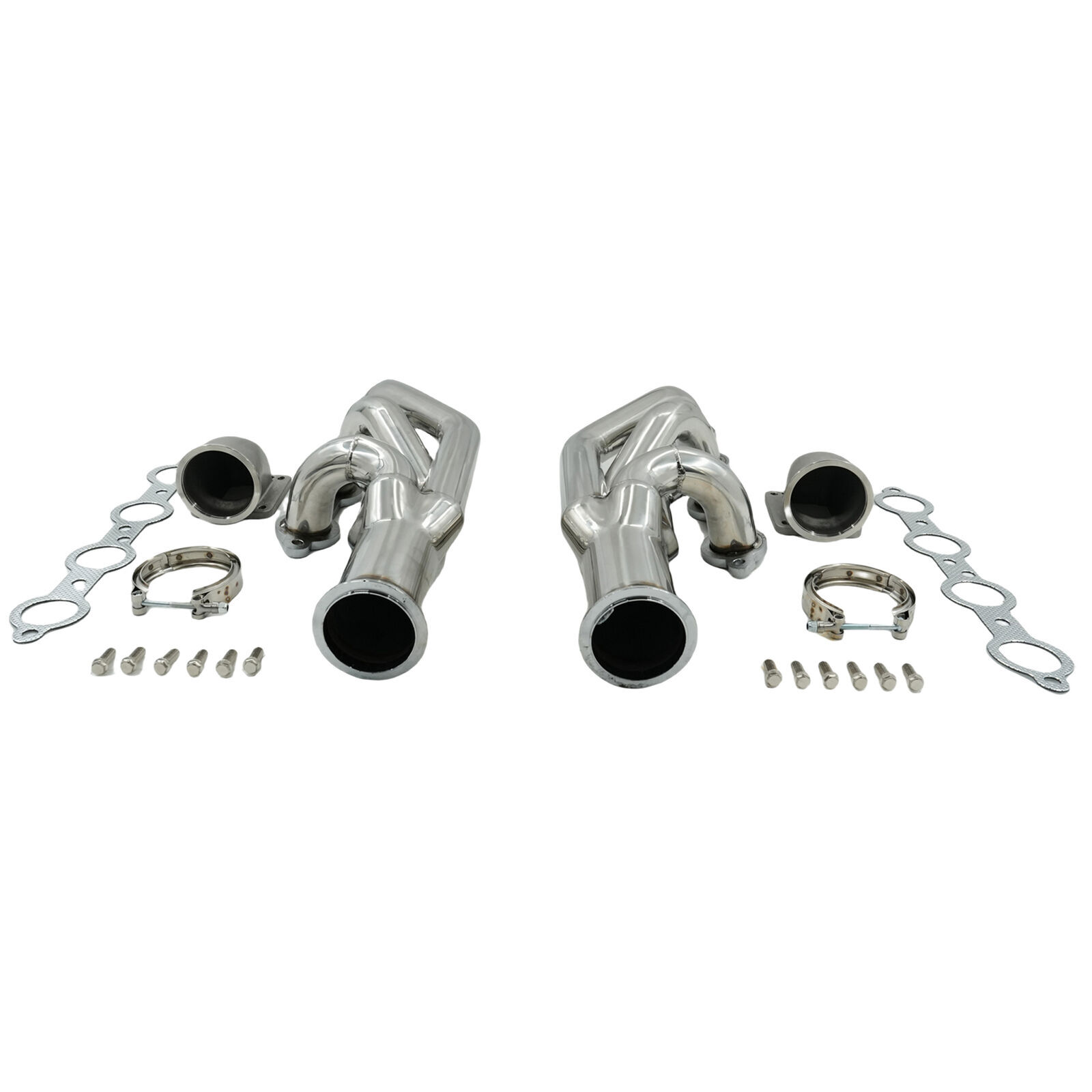

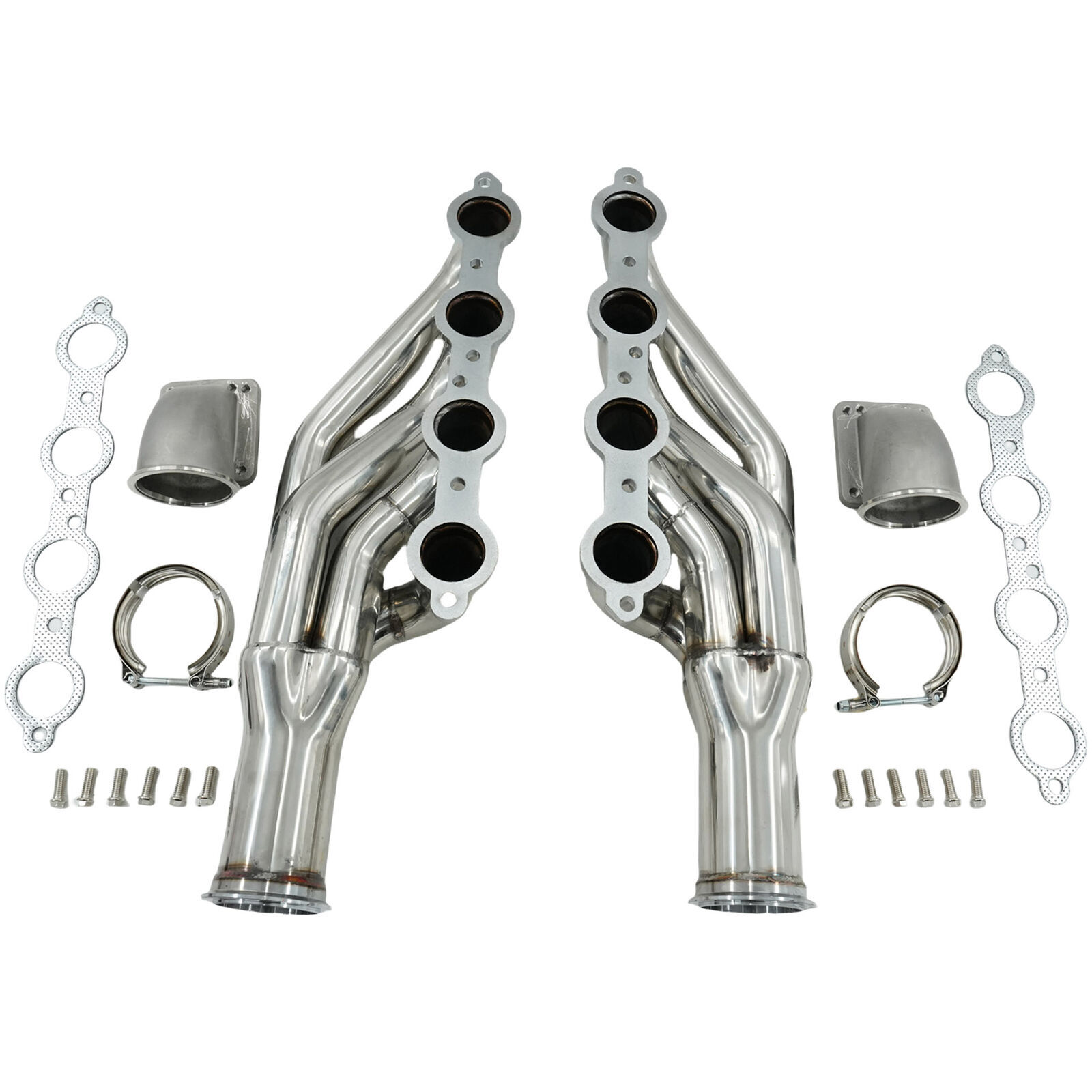

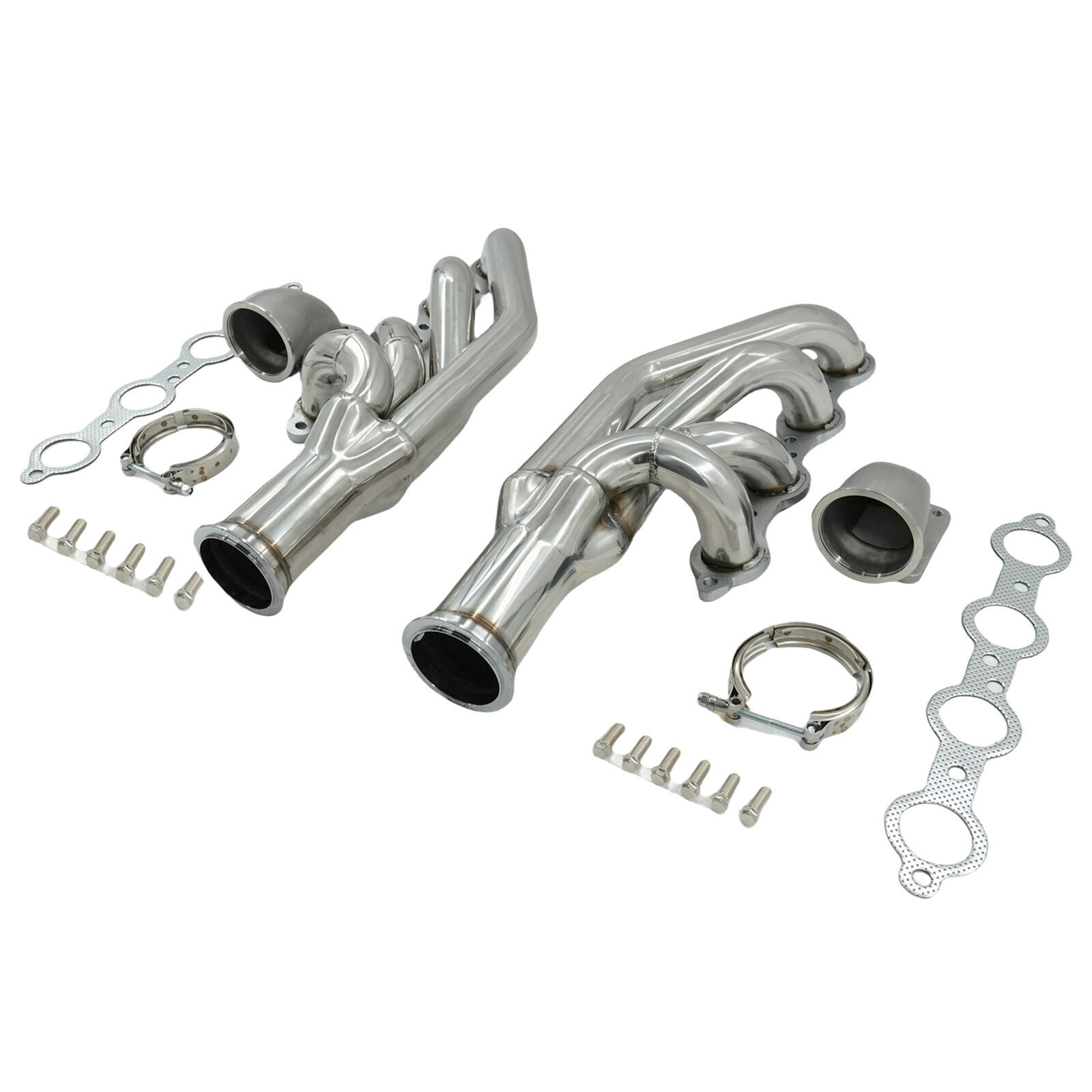

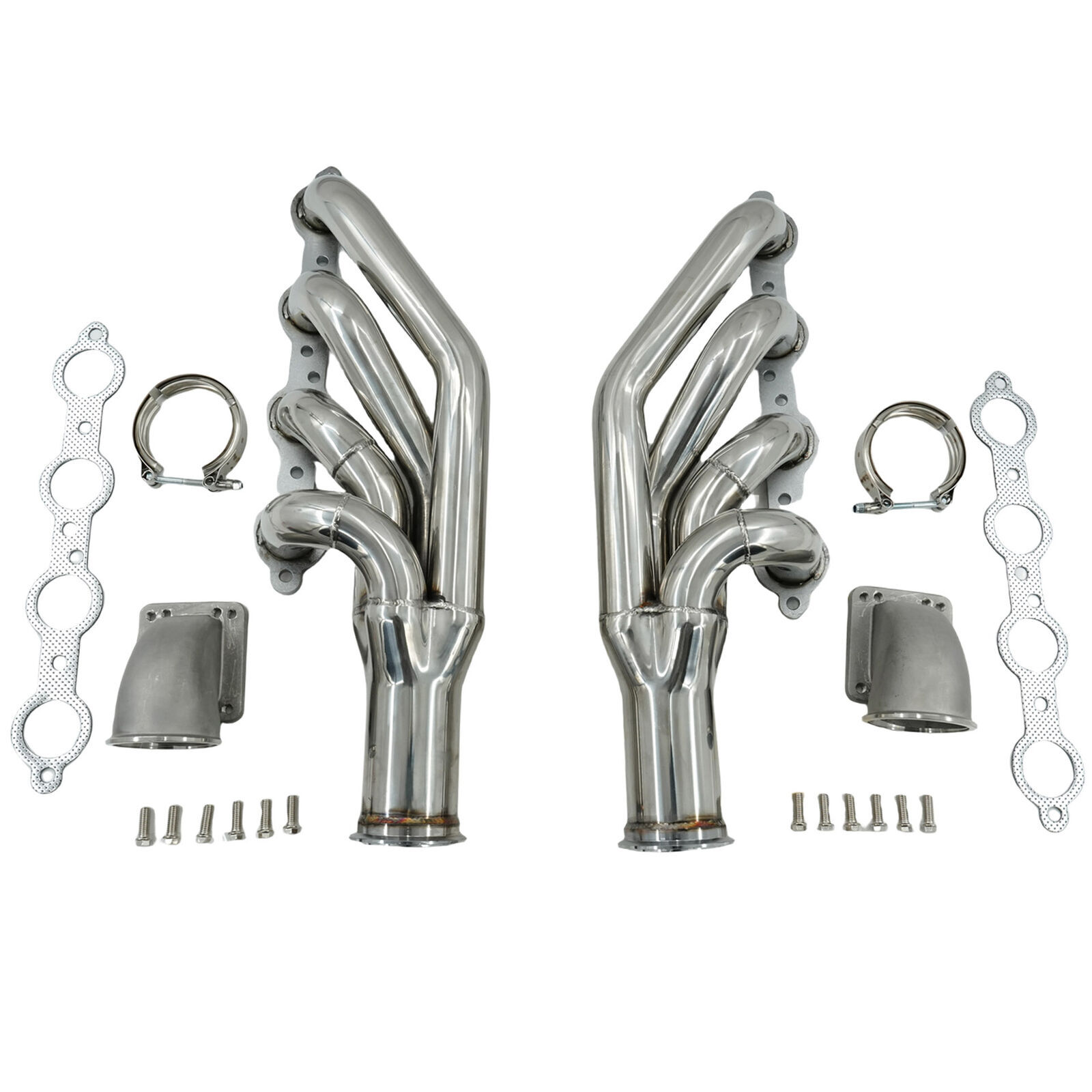

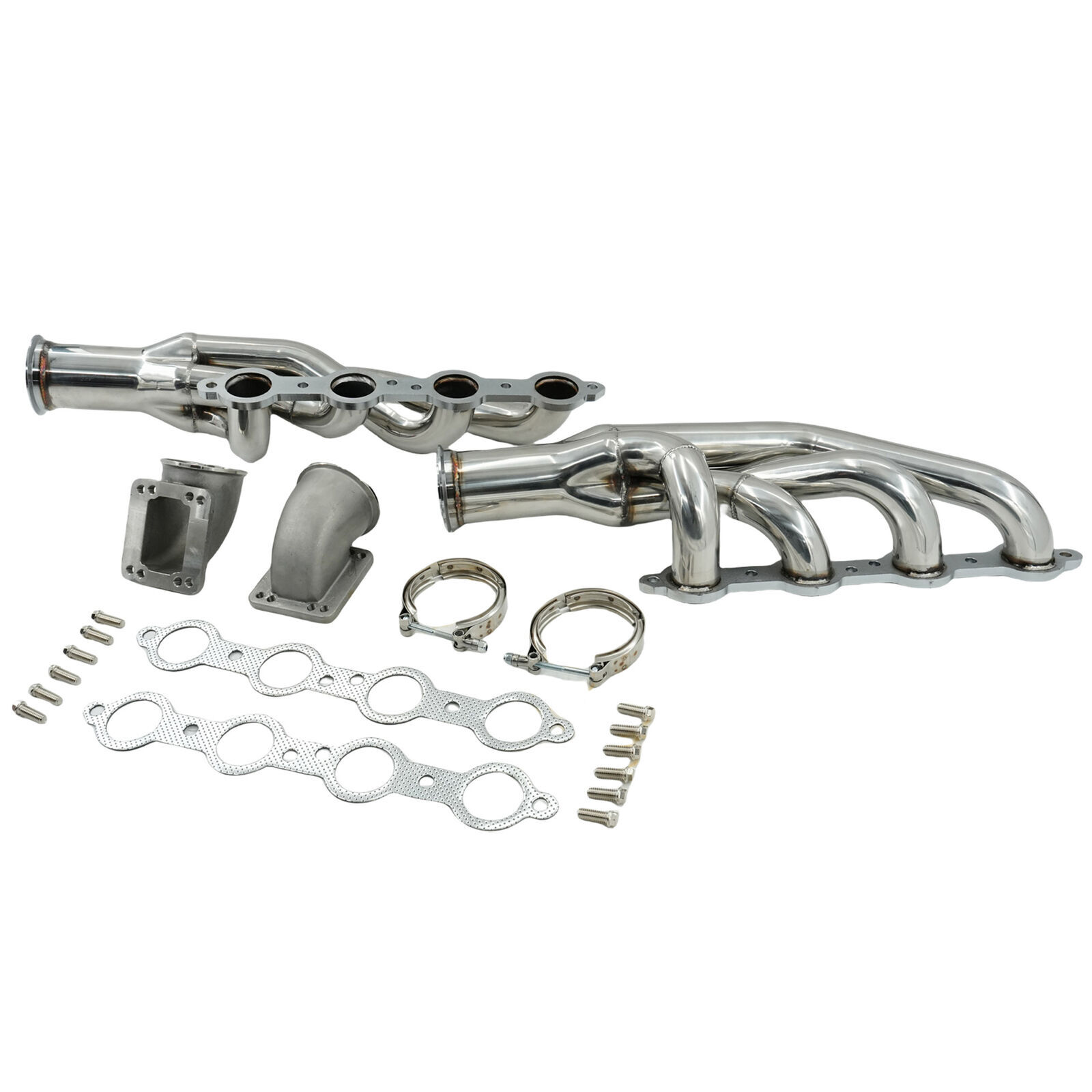

1 Pair x Exhaust Manifold Stainless Steel

2 x Gaskets With Bolts + 2 Clamps With V Bands

2 x Cast Elbow Adapter

SKU ECC-LS002
Brand POWEROY
Shipping Weight 9.0500kg
Shipping Width 0.360m
Shipping Height 0.145m
Shipping Length 0.660m
Shipping Cubic 0.034452000m3
