Fitment
For Nissan Skyline R32 R33 R34 2.0L-2.5L RB20DET RB25DET Engine
Note:For some R33 models few modifications may be required

Specification
Horse Power: Boost Horse Power up to 500BHP
Cooling Type:Water + Oil
Internal Wastegate Actuator Setting:Up to 4.35psi
Exhaust Inlet (Turbo Manifold) Flange:4 bolts Flange
Exhaust Outlet Flange:6 bolts Flange
Oil Inlet: M121.25 & 2M81.25
Oil Outlet: 2M81.25
Oil Return : 18 / side hole:M81.25
Center-center: 50.8
Water Hole: M18*1.5

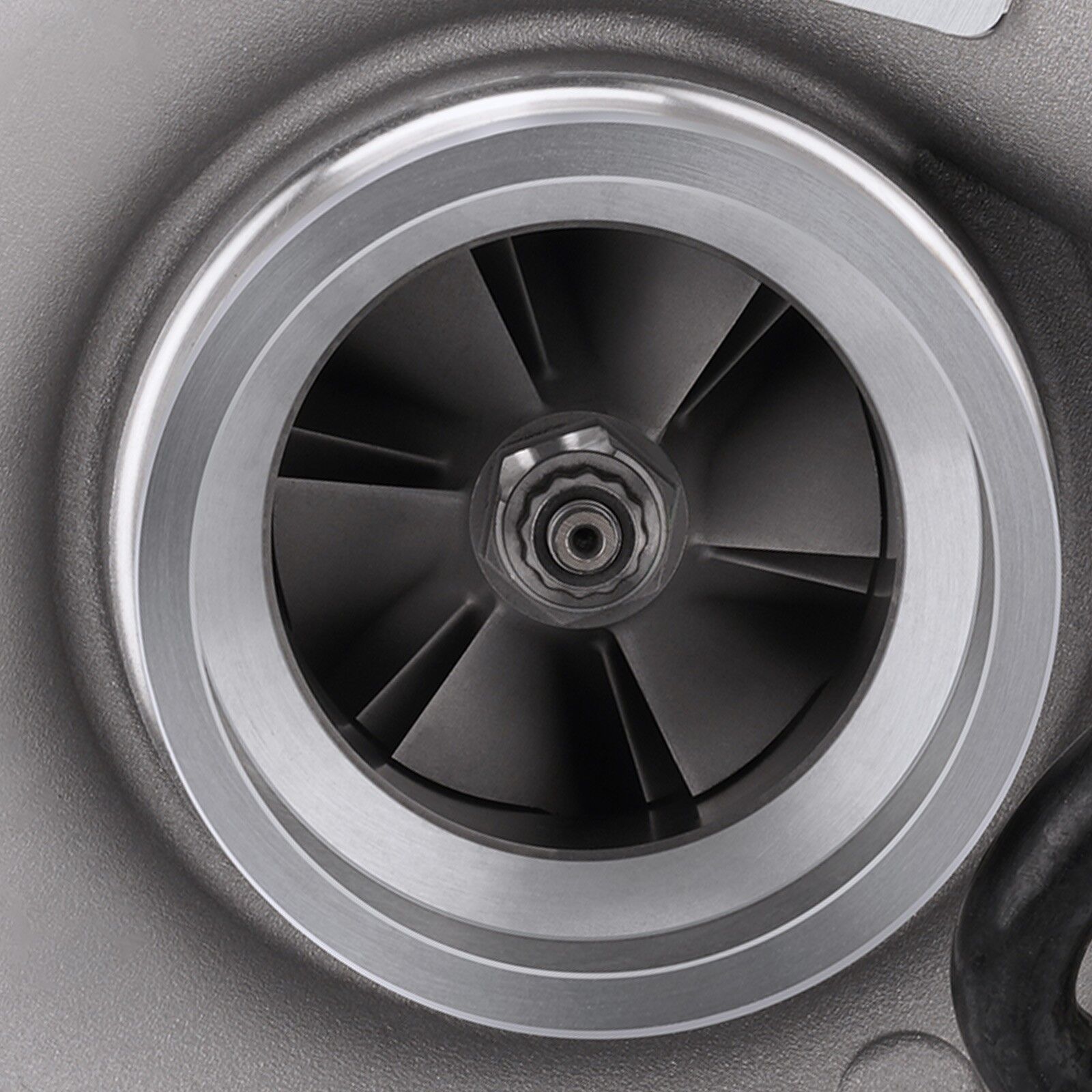

Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76mm
Compressor Trim: 48.1
Compressor A/R: 0.5

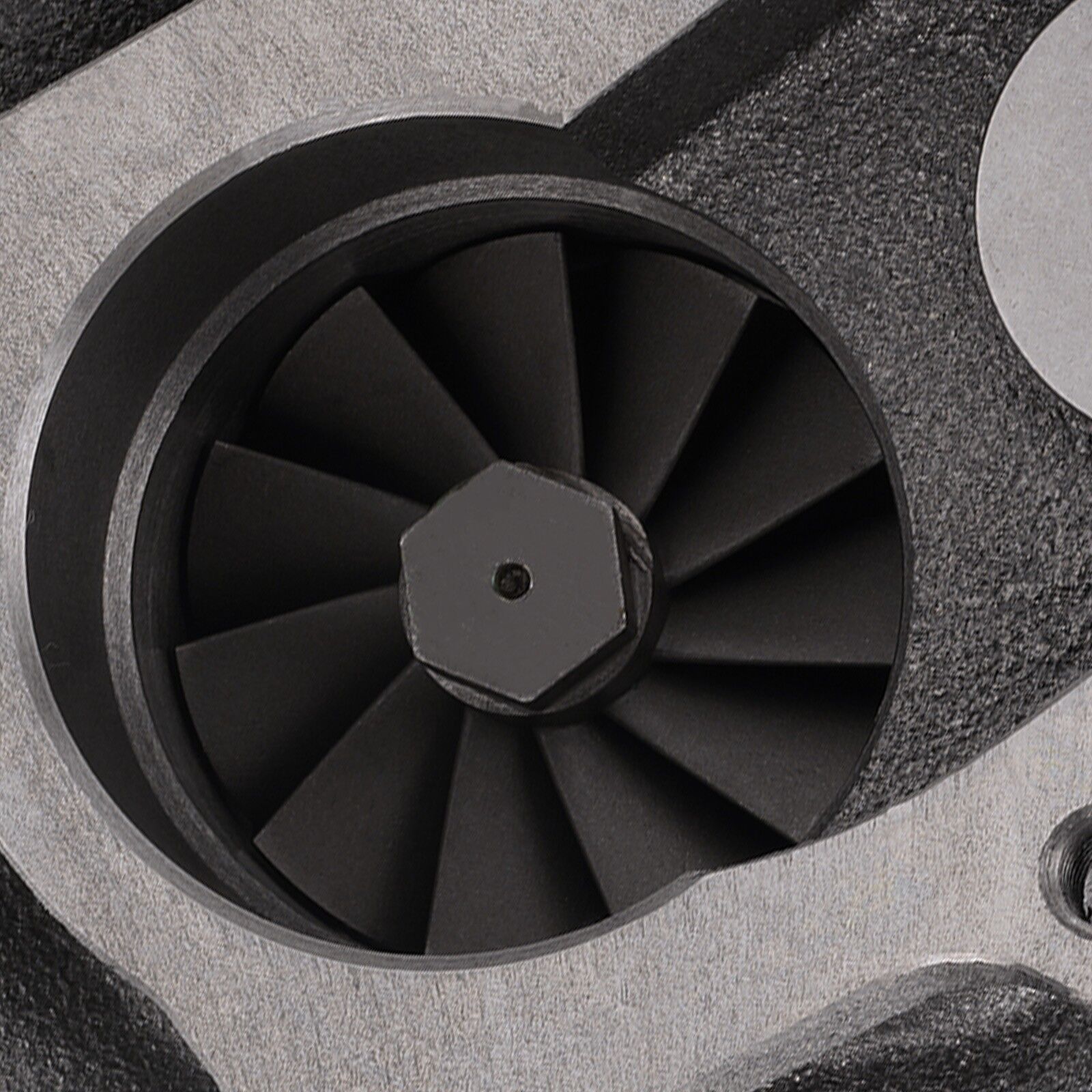

Turbine Inducer Diameter: 64.4mm
Turbine Exducer Diameter: 47.9mm
Turbine Trim: 55.3
Turbine A/R: 0.63

Additional Details:
Bearing:Wet Float
Wastegate:With Wastegate

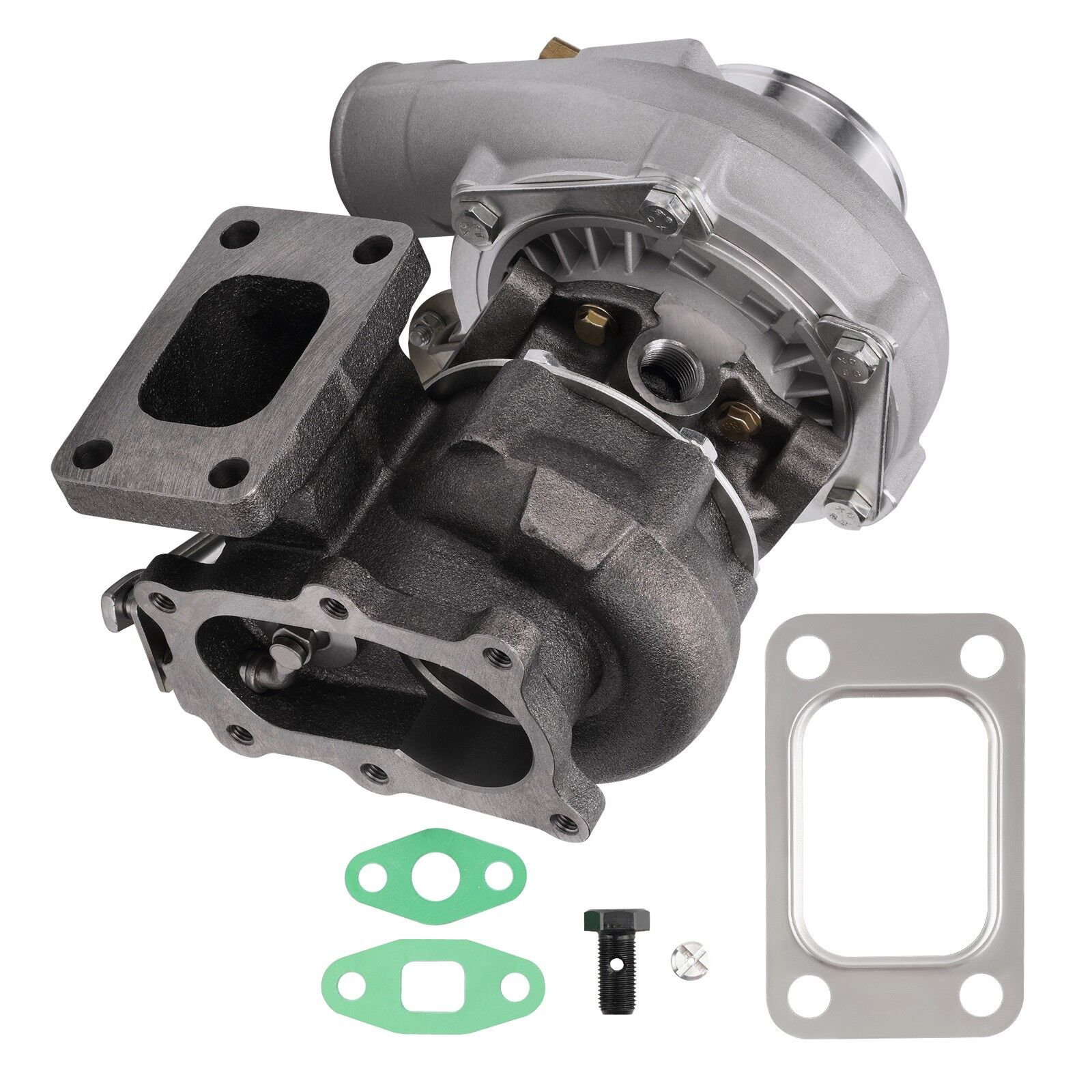

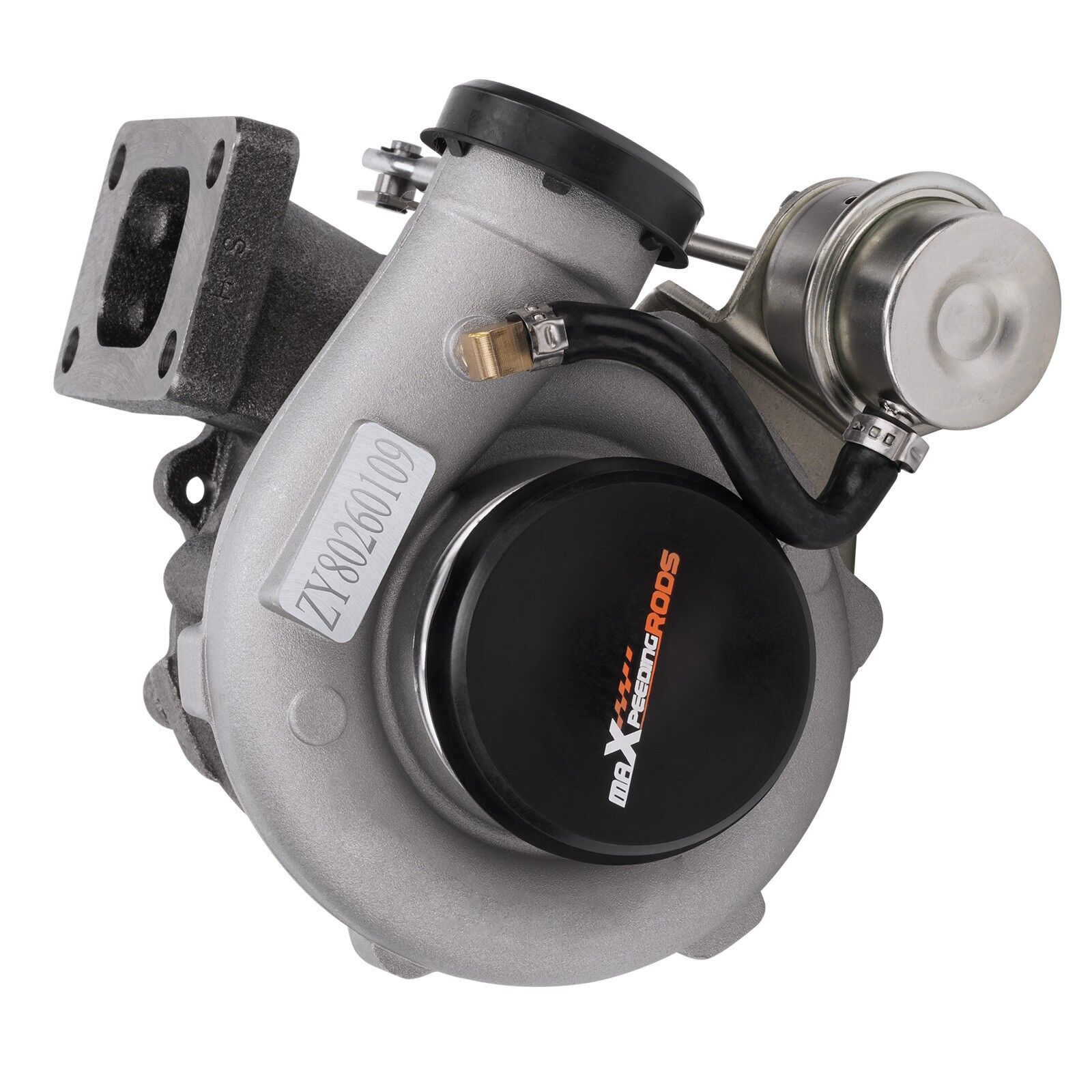

Accessories: You will get exactly as shown in the picture above

Modification
A direct Bolt on turbo upgrade for RB20DET and RB25DET for Skyline Engines!Will require a coupler to connect turbo to hotpipe but other than that its a OEM Bolt on with upgrade 3" air inlet and larger wheels for optimum power.

**If you are not sure fitment for your old turbo , please let us know below information**
The OEM code information from your original turbo nameplate
The Engine code & KW , HP , Year for your car
The Photos of your complete turbo
Please note that the registration number cannot identify your turbocharger

SKU TRB2520-NVL
Brand MAX
Shipping Weight 8.4500kg
Shipping Width 27.000m
Shipping Height 29.000m
Shipping Length 23.000m
Shipping Cubic 0.018009000m3
