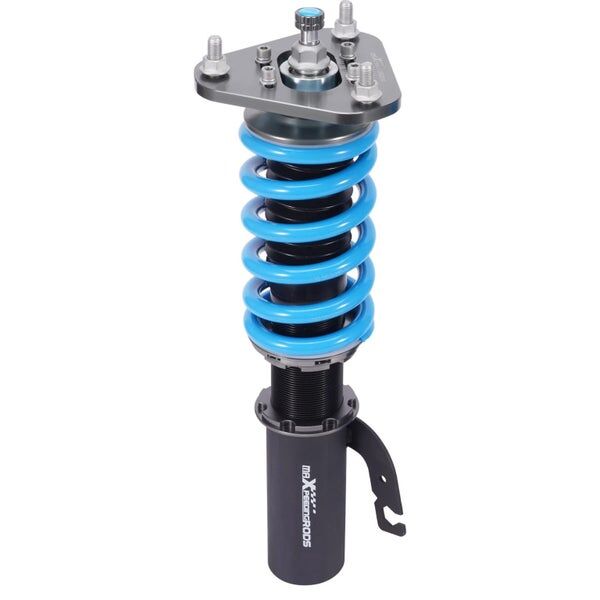

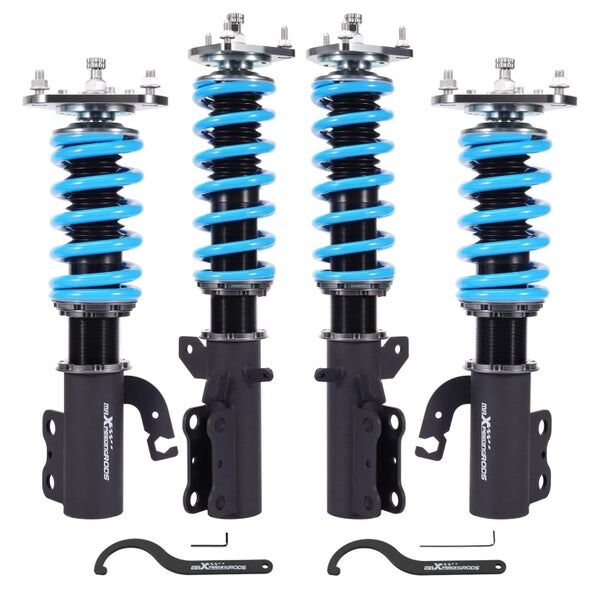

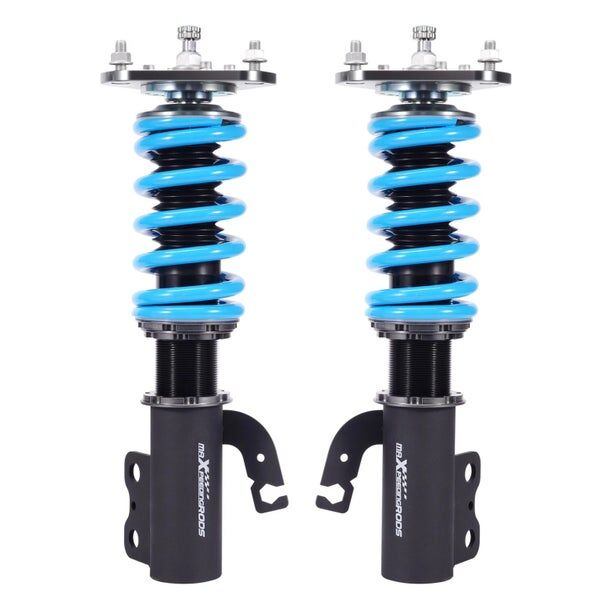

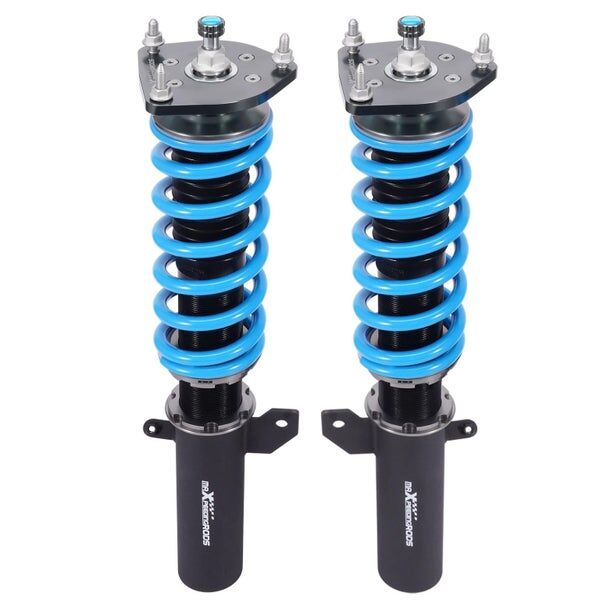

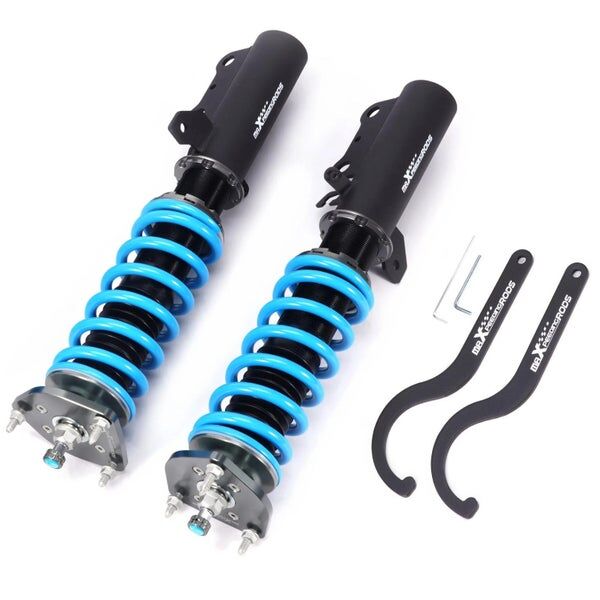

T6 Coilover For Toyota Celica 1989-1999 T200 T180 ST204 ST202 ST184 ST183

Specifications

Damping adjustable Yes, 24 levels of rebound damping force

Height adjustable Yes, Lowering 1-3 inch / 25-75mm depending on the vehicle models

Front Spring length 180 mm

Rear Spring length 230 mm

Front spring length 10 kg/mm (560 lbs/in)

Rear spring length 6 kg/mm (336 lbs/in)

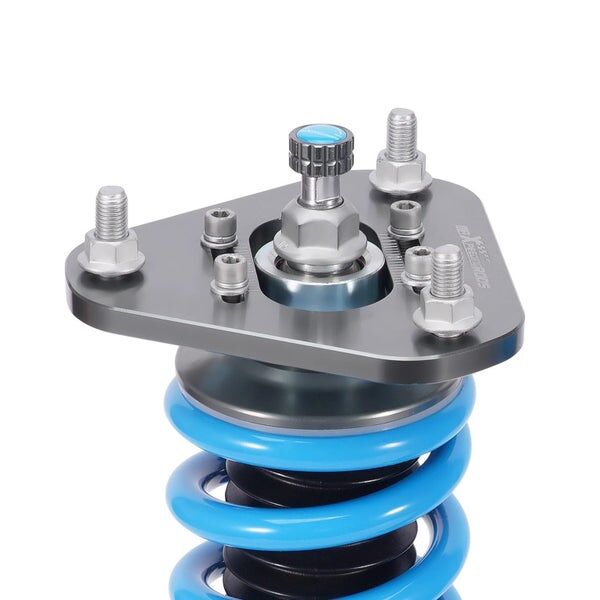

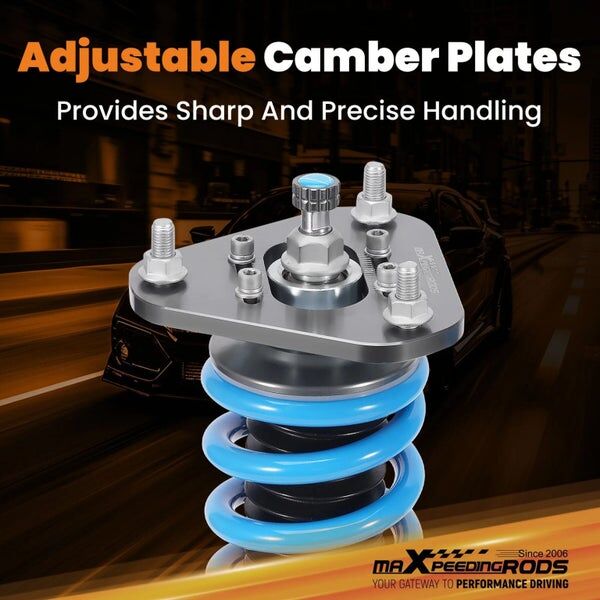

Top mount Front: Pillow ball bearing camber plate, Rear: Pillow ball

Spring Preload advised 7-10 mm

Shock Type Twin tube

Features

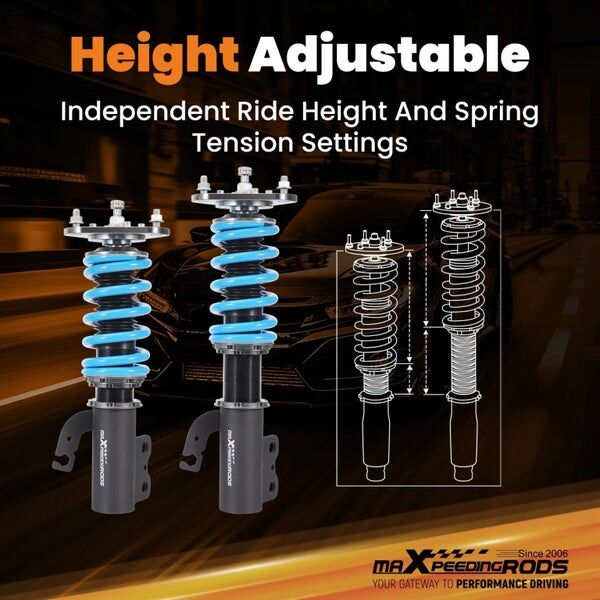

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. High Viscosity Index damper oil---make damping more stable and smooth in wide temperature range.

4. 24 Clicks of Rebound Adjustments -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

6. High Rigidity 55CrSi Steel Cold-bent Coil Springs --- more than 600,000 times continuously test to assure it's high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

8. Advanced Twin-Tube Technology ---provides excellent handling & control characteristics for most driving conditions

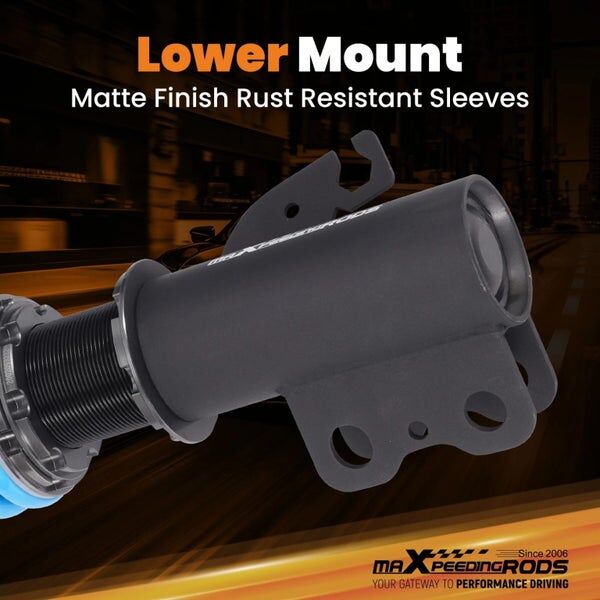

9. Anodized Shock Body With Anti-Corrosion Coating- Anodized Aluminum And Powder Coated Carbon Steel Parts

10. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.

11. Clean room assembled---maintain higher level of accuracy and reliability.

Application

For Toyota Celica GT GTS FWD 1989- 1993 (ST18#)

For Toyota Celica FWD 1993-1999 (ST20#)

Specification

- Front top mount: pillow ball with camber plate
