Fitment

For Toyota Hilux 4WD 2015-On

Only fits for Toyota Hilux 4WD new models that began in 2015.

Also fits vehicle with 2 inch suspension lift.

Item Specifications

Air spring bag capacity: 5000LB

Material: Cured Natural rubber

Burst Pressure - Over 600psi

Recommended working range - 5psi - 160psi

Air spring

Design height:152mm

Stroke: 110mm

Max. Extended: 175mm

Min. Compressed: 65mm

Minimum height of whole kit: 206 mm

Maximum height of whole kit: 316 mm

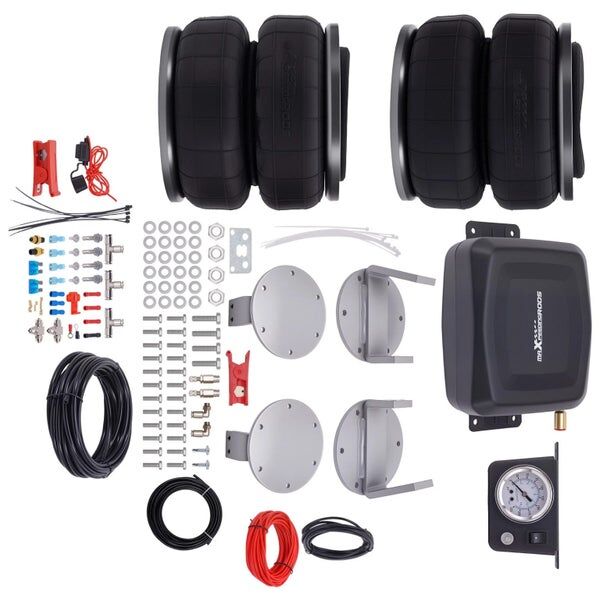

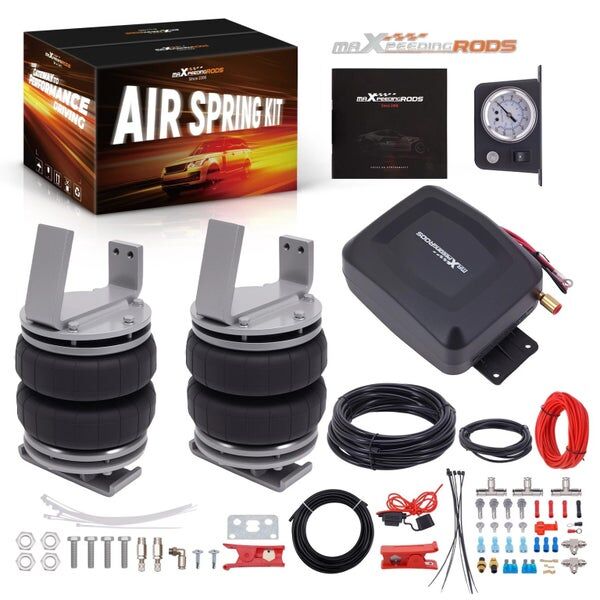

Package Included

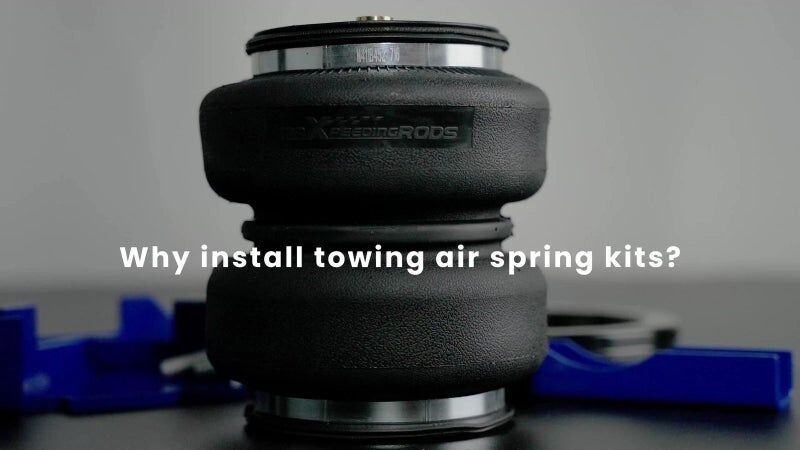

2x Heavy Duty Double Bellow Air Ride Suspension bags
4x Upper and lower mounting brackets

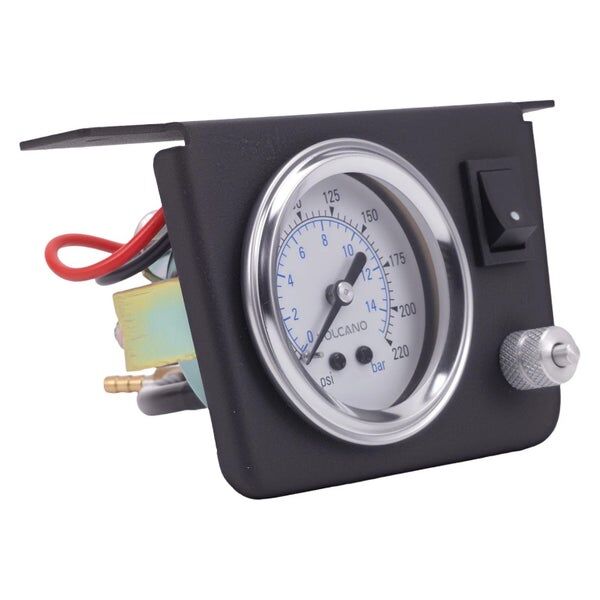

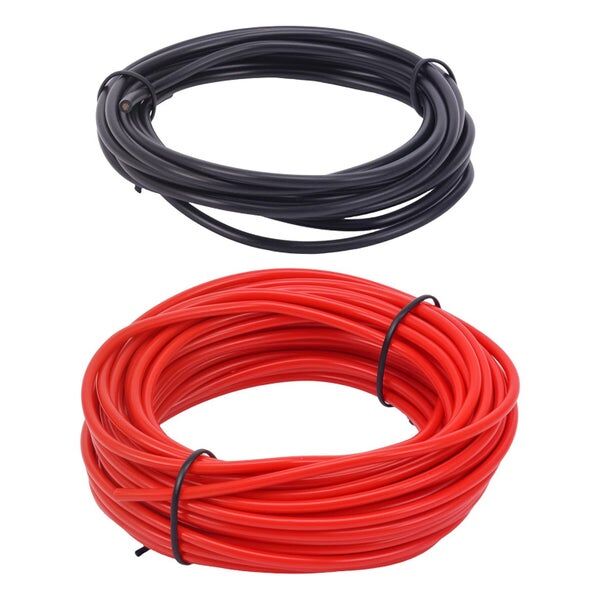

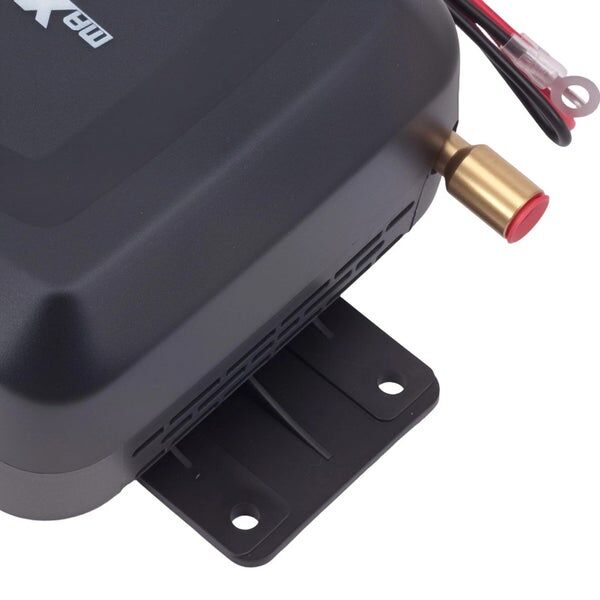

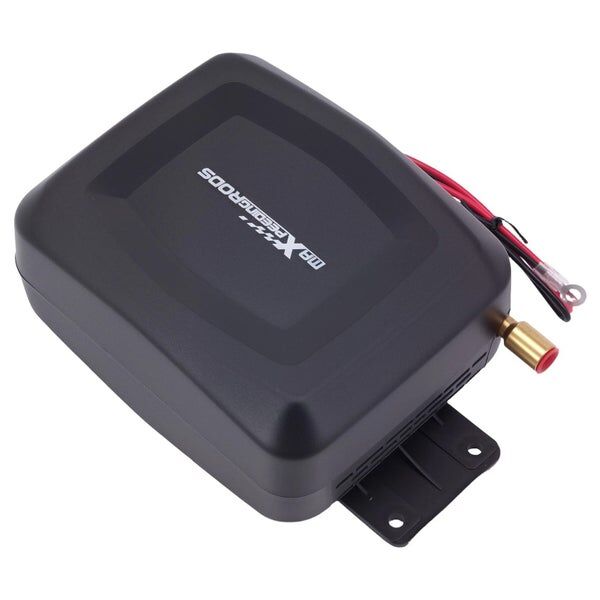

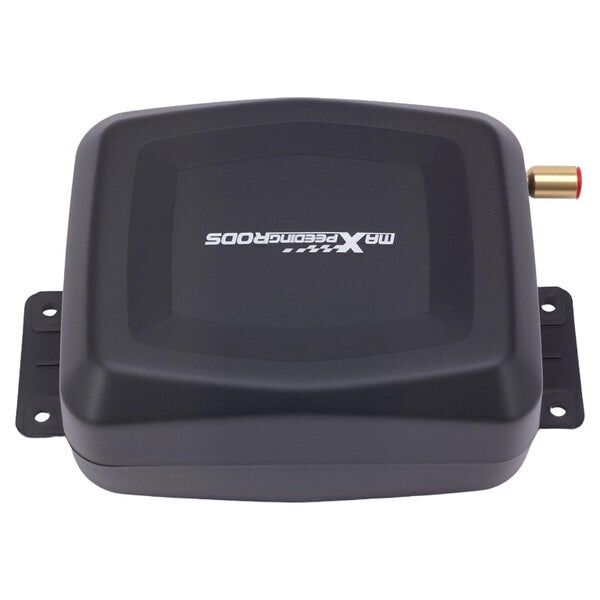

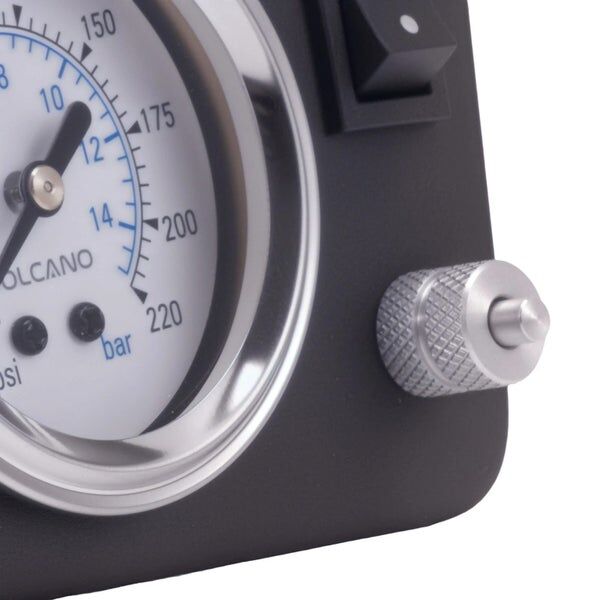

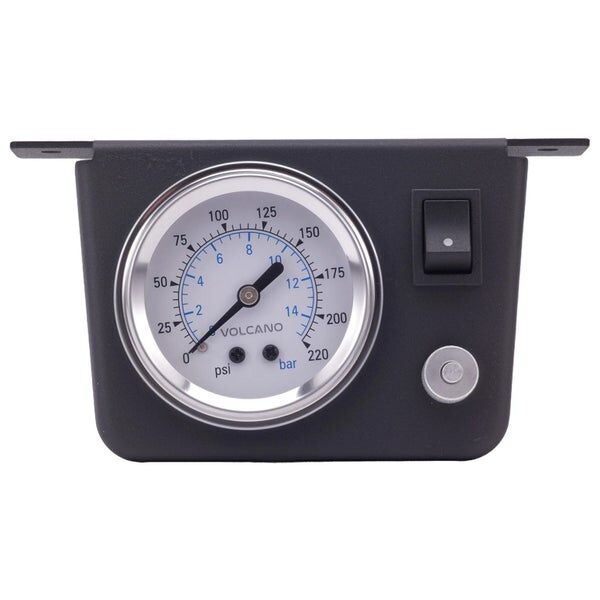

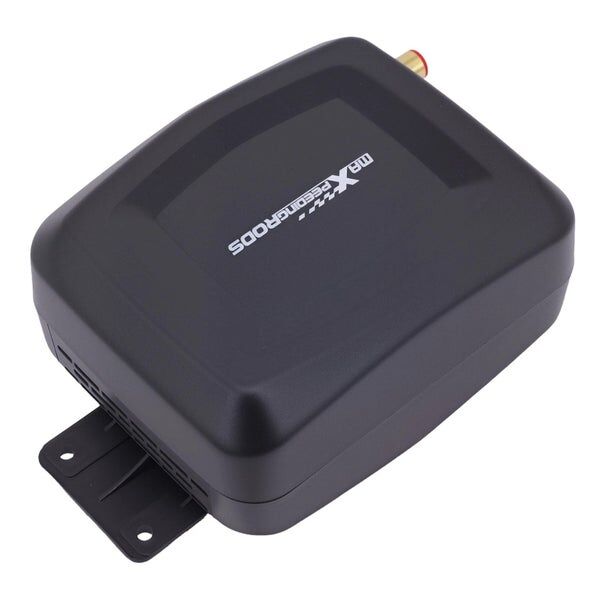

1x Air Line 5m 1x 12V MaXpeedingrods Air Compressor(Black) 1x Gauge panel (Push buttons for up and down) 1x Air Line f6*1(6M) 1x Wire harness (2.5 M) black 1x Wire harness (8.5 M) red 1x Relay harness(1M)
3x T Connectors Mounting bolts, gaskets and some other accessories

Features

Air Suspension Kit

Stress Test Over 5,000,000 Times:Durable and Safe

Burst Pressure=2.0MPa:High Compressive Strength and Less Noise

Air Tightness Test = 0.02MPa:100% Air Tightness Guarantee

Temperature Range = -40℃ = 70℃,Premium Natural Rubber Material

Use high-quality steel with high load-bearing capacity and long life.

Excellent and practical bolt-on installation.

Safe carrying capacity and stability

Air Controller Kit

Allows you to monitor and adjust the air pressure in the air spring bag from the driver's seat.

Performs well for light-duty or medium-duty applications and for occasional hauling or towing.

Includes onboard air compressor, single-gauge dash panel, air lines and hardware.

Compatible with any brand of air spring.

Single-path controls let you adjust 1 pair of air springs.

Strict quality inspection to ensure long-term use without damage

Maximum air pressure: 120 psi.

Recommended working pressure:5-70 PSI

Notice

Instruction is not included. Professional installation is recommended
