Fitment

For Ford Fiesta MKVI JA8 All Engines 2008-2019
For Ford Fiesta MK7 JA8 Mark VII (UK models) 2008-2019

Engine Type: 1.0, 1.2, 1.4, 1.4TDCi, 1.5TDCi, 1.6Ti, 1.6TDCi

Platform: For Ford global B-car platform

Note: On vehicles which are lowered it's possible that the driveshaft and anti roll bar may touch,then please use shortened front drop links



Specification

Top mounts:OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

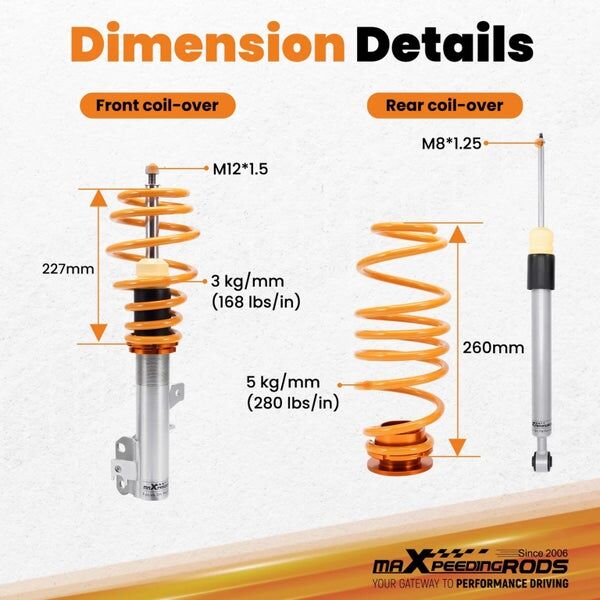

Spring Rate Front: 3 kg/mm (168 lbs/in)
Spring Rate Rear:5 kg/mm (280 lbs/in)
Front spring inner diameter: 62-83 mm
Rear spring inner diameter: 58-62 mm
Spring length Front: 227 mm
Spring length Rear: 260 mm
Spring Preload advised: 7-10 mm
Color: Silver body with golden spring

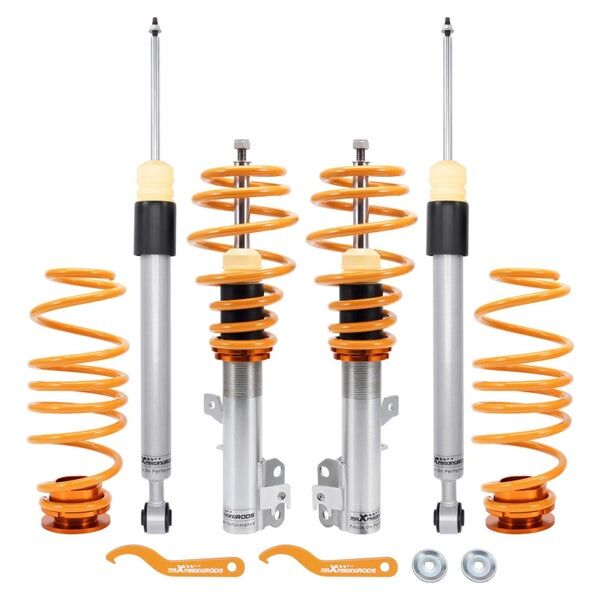

Package included

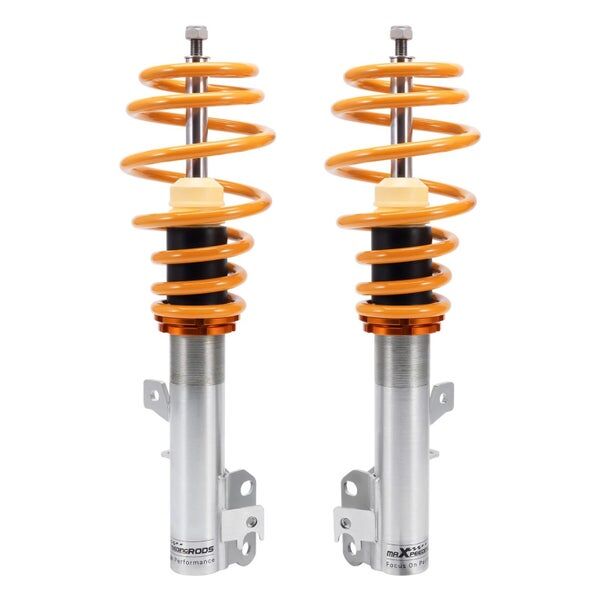

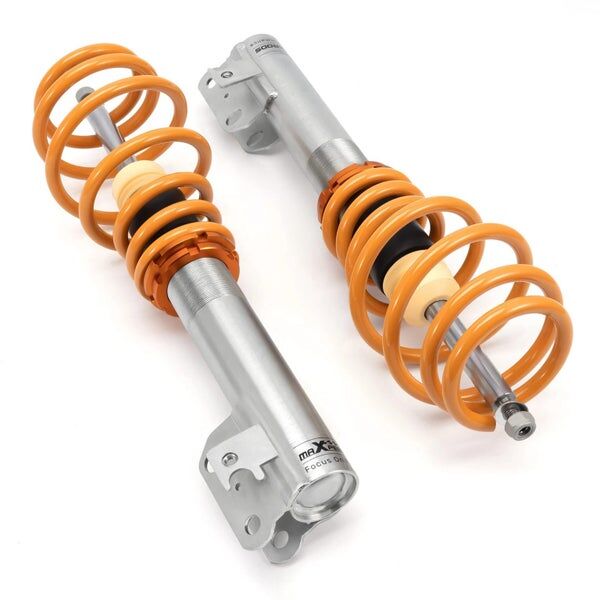

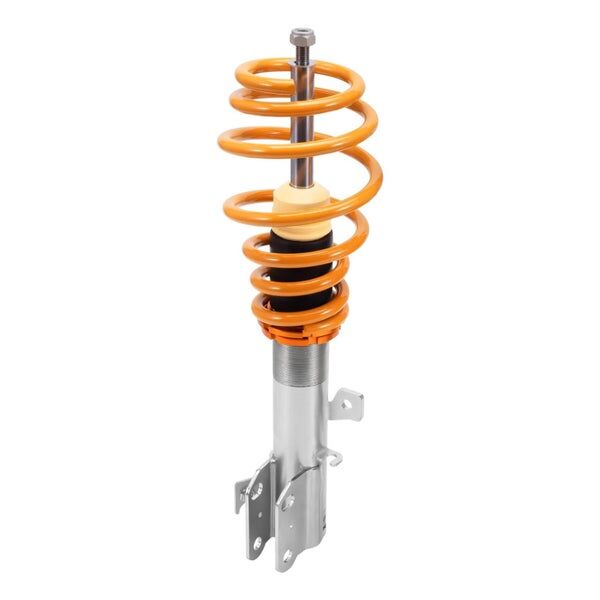

2x Front coil-overs

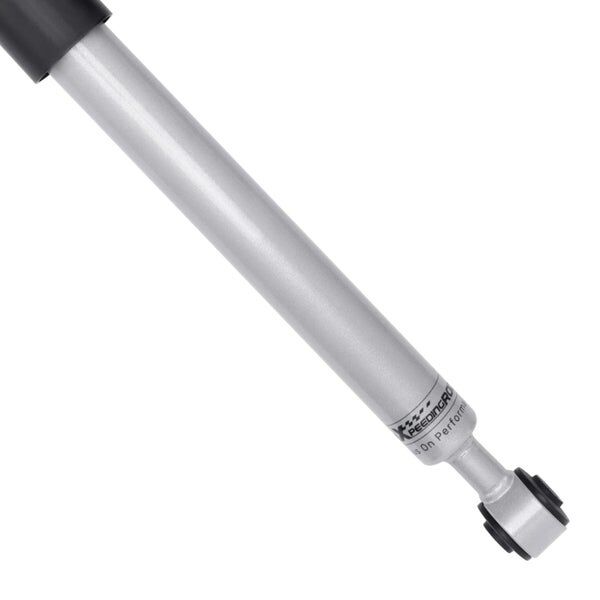

2x Rear coil-overs
2x C spanners



Features

1.  0-25mm(depends on vehicle models) lower height adjustable

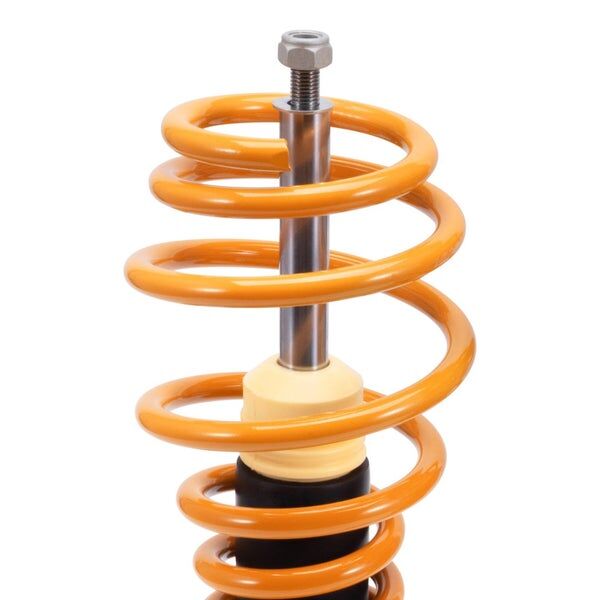

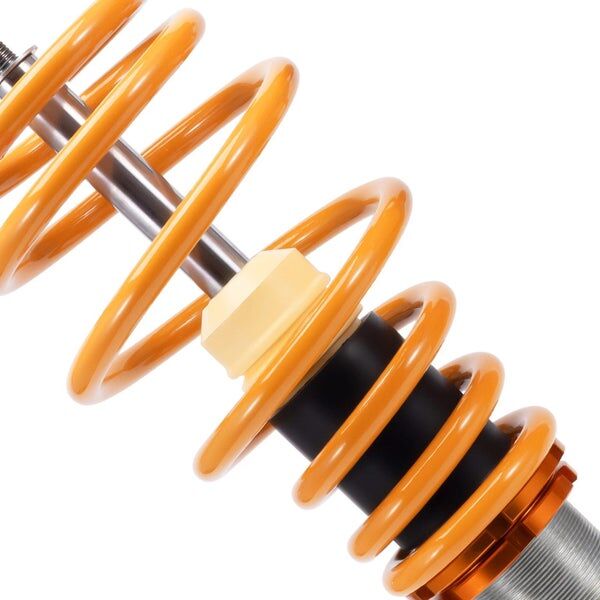

2. Dust boot, solid rubber bump stops

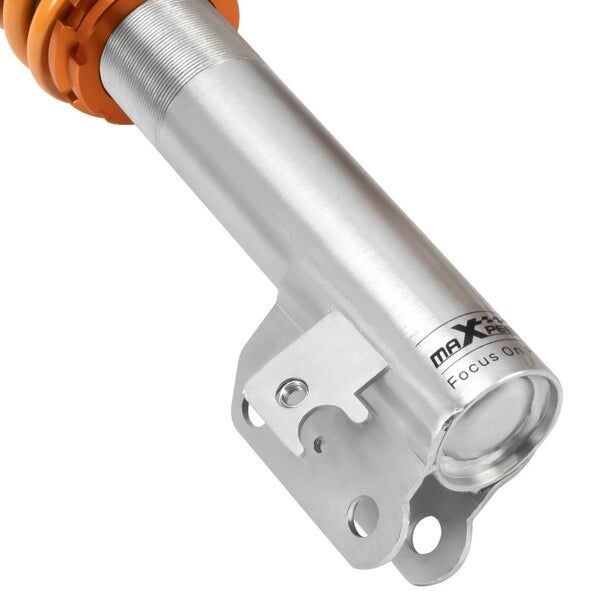

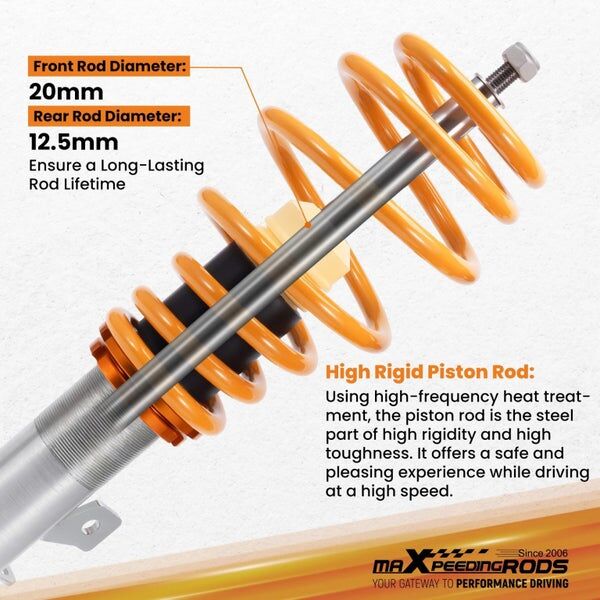

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).


Notice

No instruction included; Professional installation & alignment suggested.

SKU MTV-maX-285
Brand MAX PEEDING RODS
Shipping Weight 19.6000kg
Shipping Width 0.700m
Shipping Height 0.200m
Shipping Length 0.500m
Shipping Cubic 0.070000000m3
