Applications
Universal fit for turbochargers with T3 flange, compatible with all 2.0L to 3.0L engines.
Note: NOT compatible with 3-inch V-Band. This turbo features a 2.5-inch V-band size. Please verify dimensions prior to purchase.
Technical Specifications
Compressor
Trim: 57
Inducer Diameter: 56.6 mm
Exducer Diameter: 75 mm
A/R Ratio: 0.82
Turbine
Exhaust Manifold Flange: T3 Twin Scroll Flange
Exhaust Outlet Flange: 2.5" V-Band Flange
Trim: 61.6
Inducer Diameter: 74.4 mm
Exducer Diameter: 58.4 mm
A/R Ratio: 0.7
Cooling Type: Oil-cooled

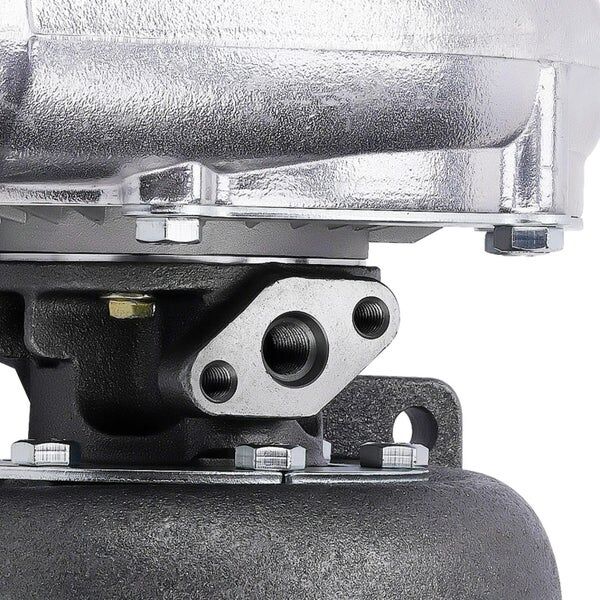

Oil Inlet Port: M12×1.25 plus 2×M8×1.25
Oil Outlet Port: 2×M8×1.25
Wastegate: No integrated wastegate
Output Power: Up to 500 HP
Bearing Type: Floating Bearing
Thrust Bearing Coverage: 270 Degree
Turbo Design: Twin-Scroll
Universal Fitment: Yes

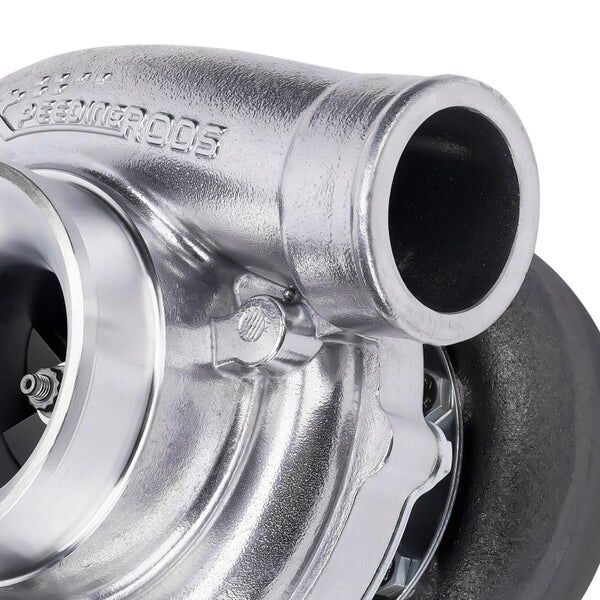

Surface Finish: Polished
Product Features

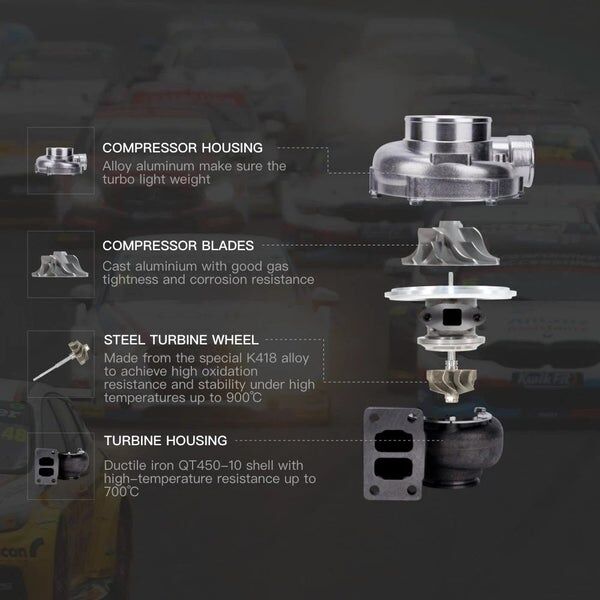

Each turbine housing is cast from QT450-10 ductile iron, capable of withstanding sustained high temperatures up to 700°C.
Turbine wheel constructed from special K418 alloy steel, delivering excellent oxidation resistance and structural stability under operating temperatures as high as 900°C.

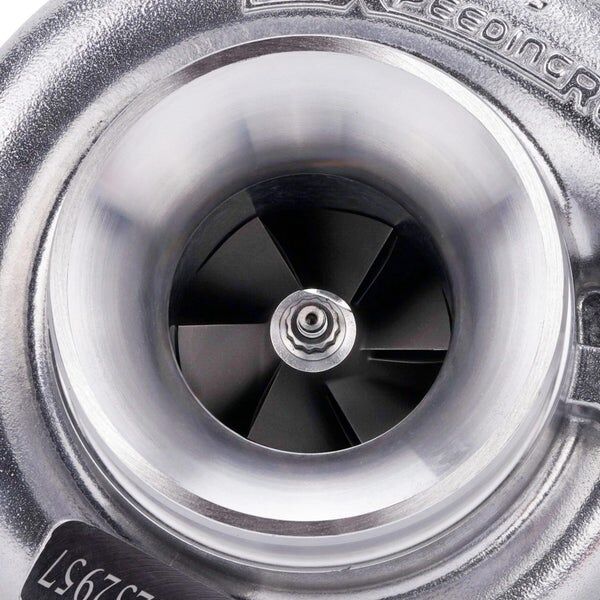

Cast aluminum compressor blades with outstanding air tightness and corrosion resistance.
Precision-manufactured dimensions and premium build quality requiring minimal vehicle modification for installation.
100% Dynamically Balanced via VSR machine testing.
Important note
Installation requires professional mechanical expertise; we recommend fitting to be completed by certified professional technicians.
Should any fitting mismatch occur, contact our support and prepare your vehicle specification details for reference.
Installation manual is not included; professional installation is strongly advised.
This unit has no internal wastegate; an external wastegate must be pre-installed on your exhaust manifold.
