Fitment
For Mazda CX-7 2.3L MZR DISI 2.3 Turbo L3-VDT engine; 190kW 258HP 2006-2014
For Mazdaspeed 3 2.3L with MZR DISI 2.3 Turbo L3-VDT engine; 190kW 258HP 2006-2014
For Mazdaspeed 6 2.3L with MZR DISI 2.3 Turbo L3-VDT engine; 190kW 258HP 2006-2014
Engine: For Mazda MZR DISI Turbo L3-VDT; 2261ccm 190kW 258HP

Turbo Model
K04  K0422-582  K0422-581  K0422-583;

Part Number
53047109904  53047109907  L33L13700B  L33L13700C  L3Y11370ZC  L3Y41370ZC  L3Y31370ZC  L3YC1370Z  L33L13700F; L133L13700F; L3YC1370ZA

Specification
Turbo Model:K0422-582
Engine:DISI L3-VDT
Cooled Type:Oil+Water cooled
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Horsepower: 196KW/263hp
Condition: Brand New

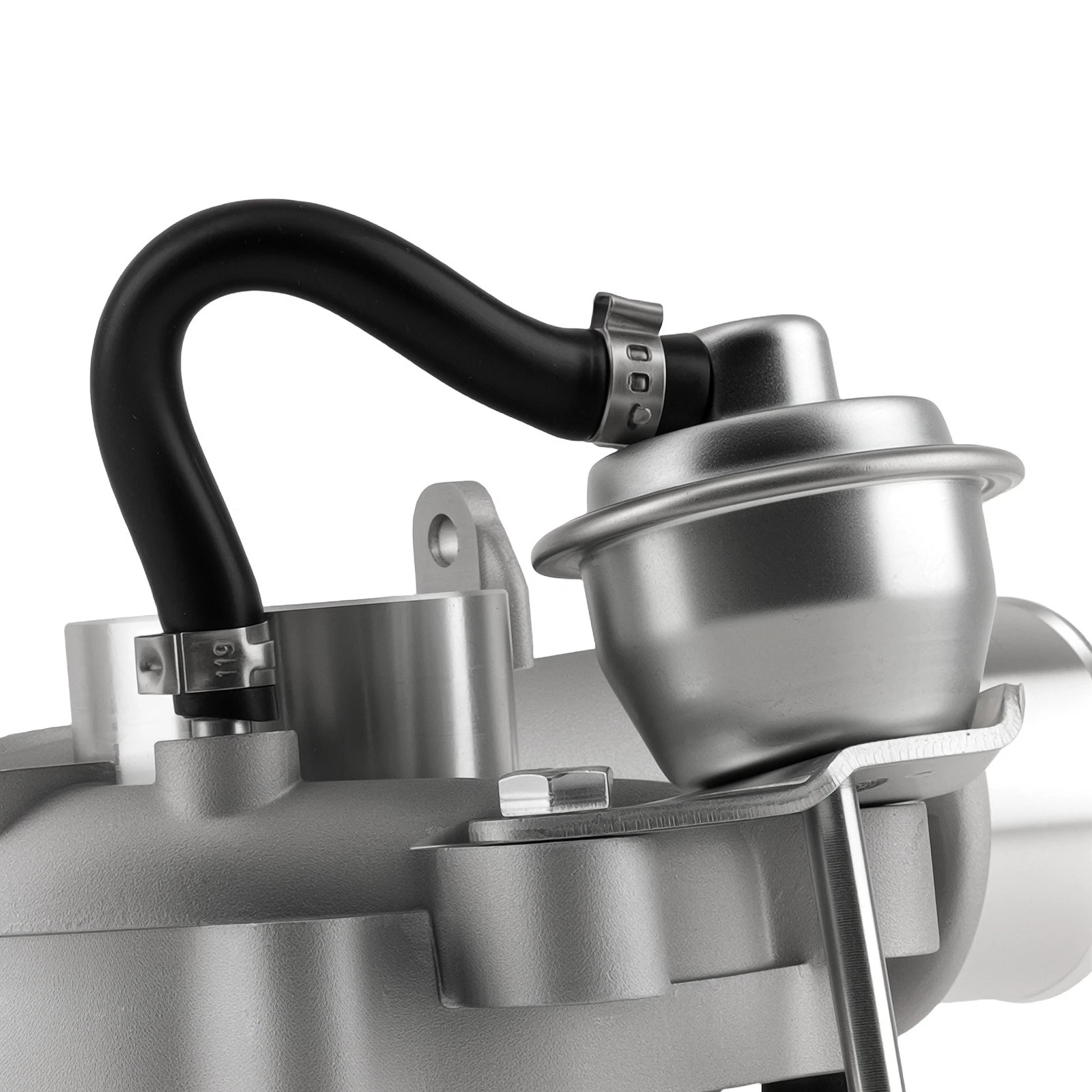

Actuator Type: Vacuum Actuator
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Package Size:26x 25x 24 cm
Package Weight: 7400g

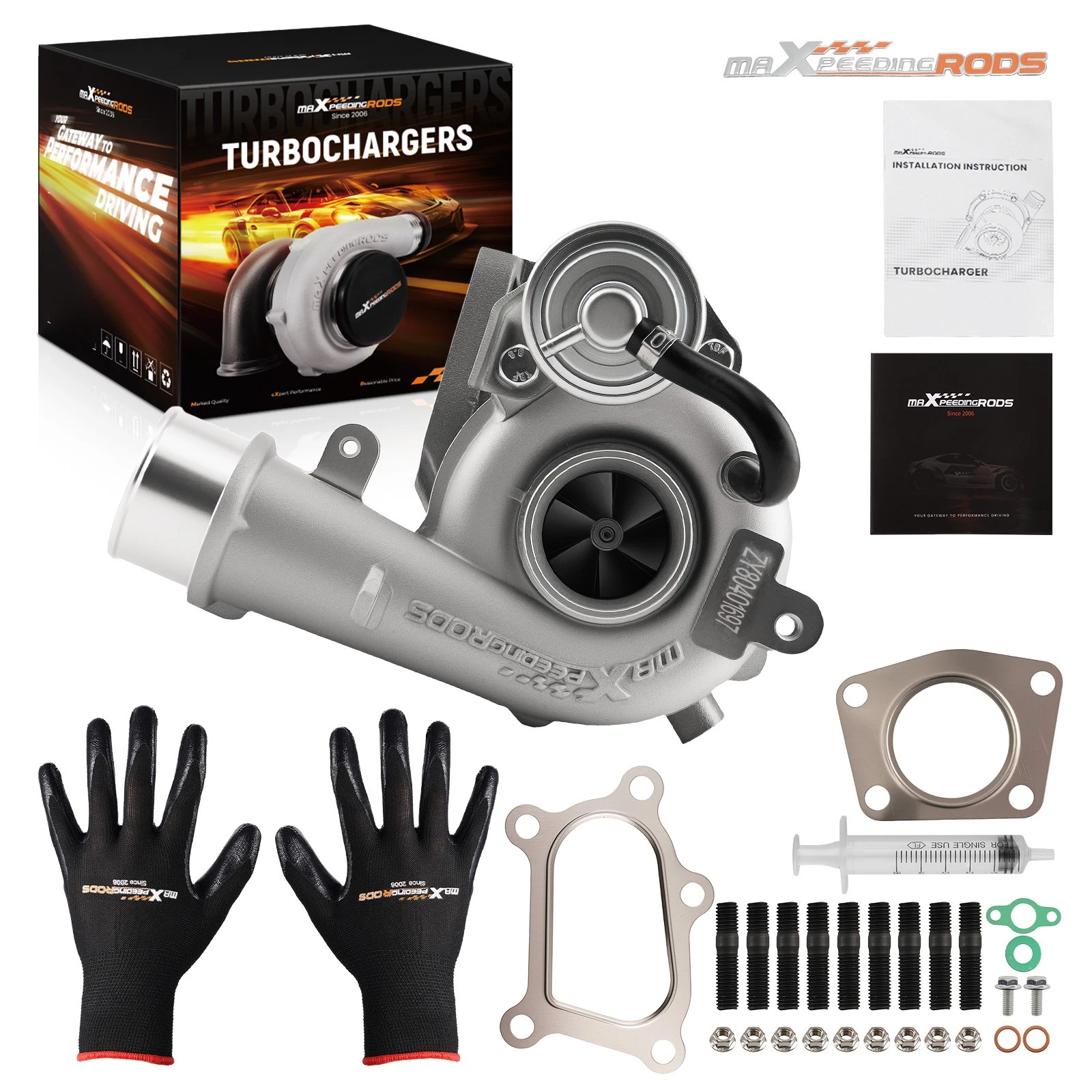

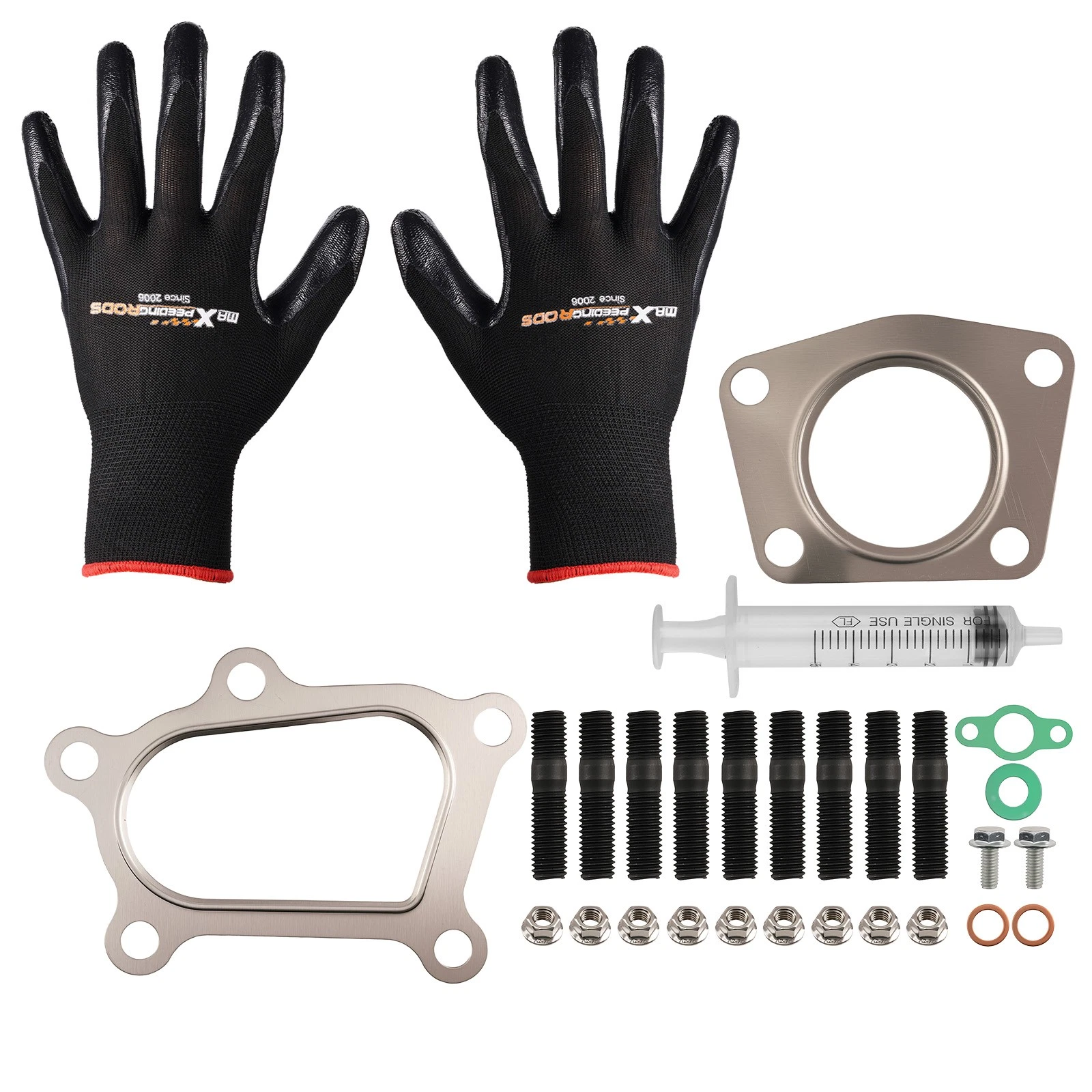

Accessories: You will receive the parts exactly as shown in the picture above

Features
* Product Material*
1. Turbine housing :Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel:K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing:ZL104 aluminum with lightweight

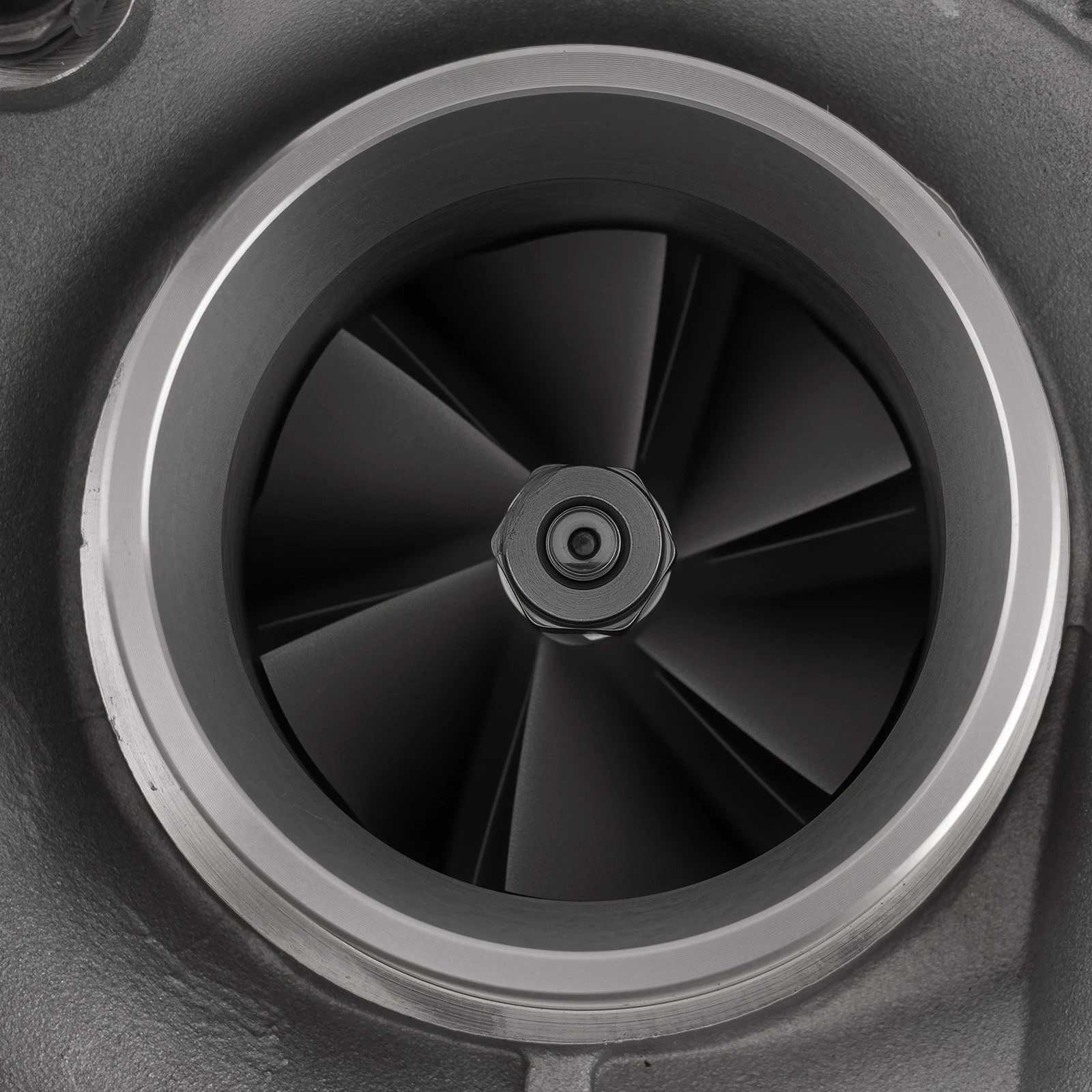

4. Compressor wheel:Cast aluminium blades – superior air tightness & corrosion resistance
* Product*
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage*
1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

SKU MTV-maX-083
Brand MAX
