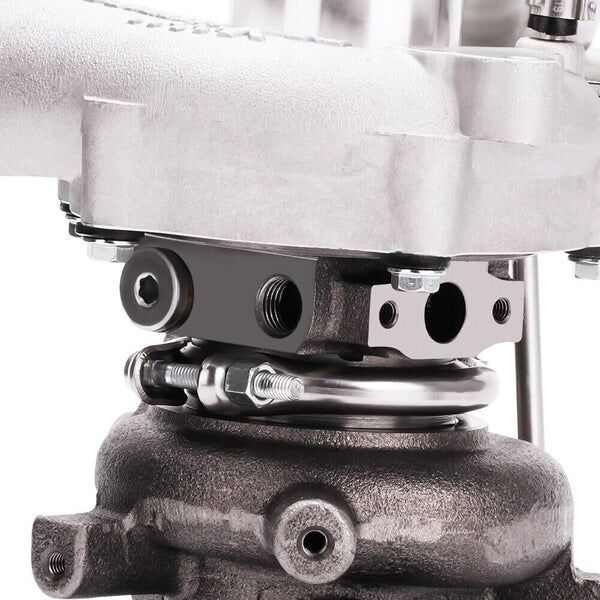

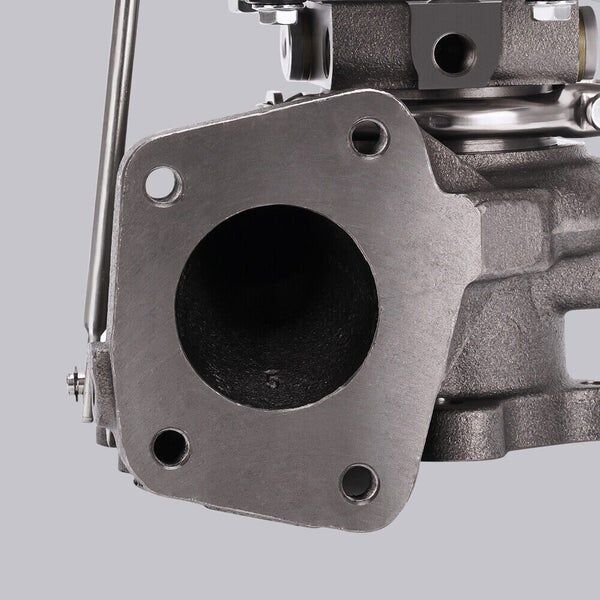

K0422-582 583 Turbo for Mazda 3 6 CX-7 MZR DISI 2.3L L3-VDT 06-14 53047109904
SKU code: 53047109904-NPVL
Application
Engine: For Mazda MZR DISI Turbo L3-VDT; 2261ccm 190kW 258HP
2006-2014 For Mazda CX-7 2.3L MZR DISI 2.3 Turbo L3-VDT engine; 190kW 258HP
2006-2014 For Mazdaspeed 3 2.3L with MZR DISI 2.3 Turbo L3-VDT engine; 190kW 258HP
2006-2014 For Mazdaspeed 6 2.3L with MZR DISI 2.3 Turbo L3-VDT engine; 190kW 258HP
K04 K0422-582 K0422-581 K0422-583;
53047109904 53047109907 L33L13700B L33L13700C L3Y11370ZC L3Y41370ZC L3Y31370ZC L3YC1370Z L33L13700F; L133L13700F; L3YC1370ZA
Engine：DISI L3-VDT
Cooled Type：Oil+Water cooled
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Horsepower: 196KW/263hp
Condition: Brand New
Actuator Type: Vacuum Actuator
Turbo Type: Individual
Universal Fitment: No
Finish: Matte

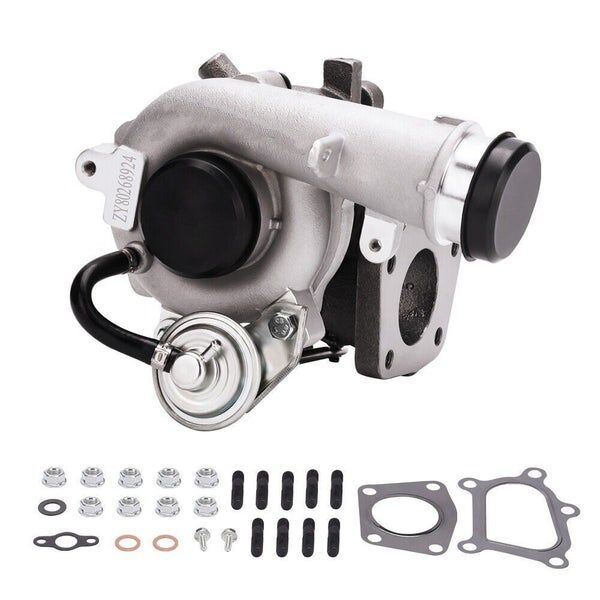

Accessories: You will receive the parts exactly as shown in the picture above
1x Turbocharger
4x Oil Feed / Return Gaskets
1x Turbo Exhaust Gasket
1x Turbo Outlet Flange Gasket
9x Stud bolt& nut
2x Compressor bolt
1x Gloves
1x Manual
1x Brochure
1x Sticker
Feature
* Product Material *
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

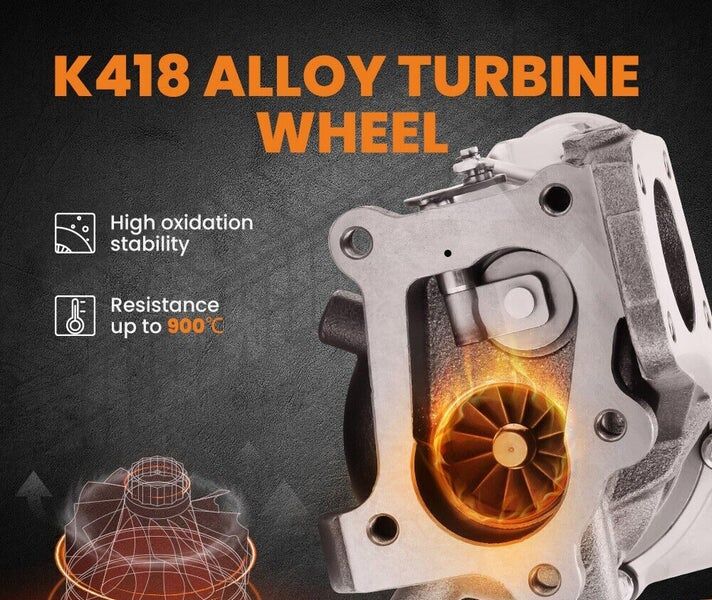

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

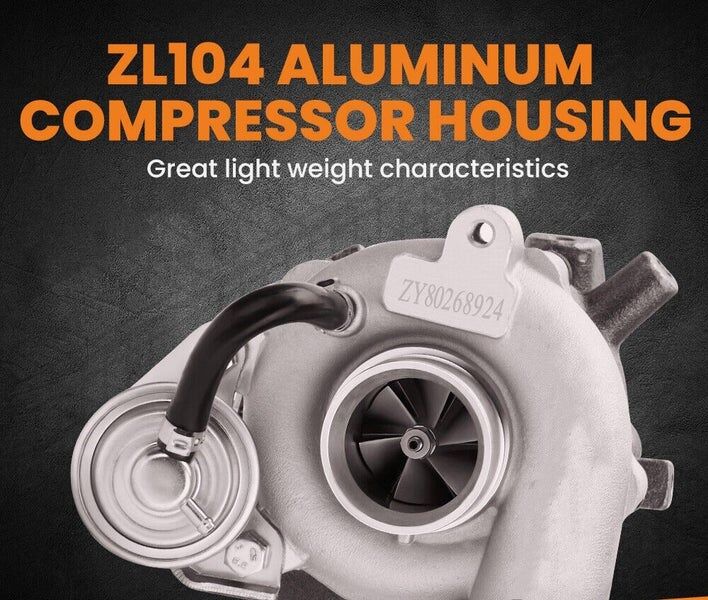

3. Compressor housing：ZL104 aluminum with lightweight

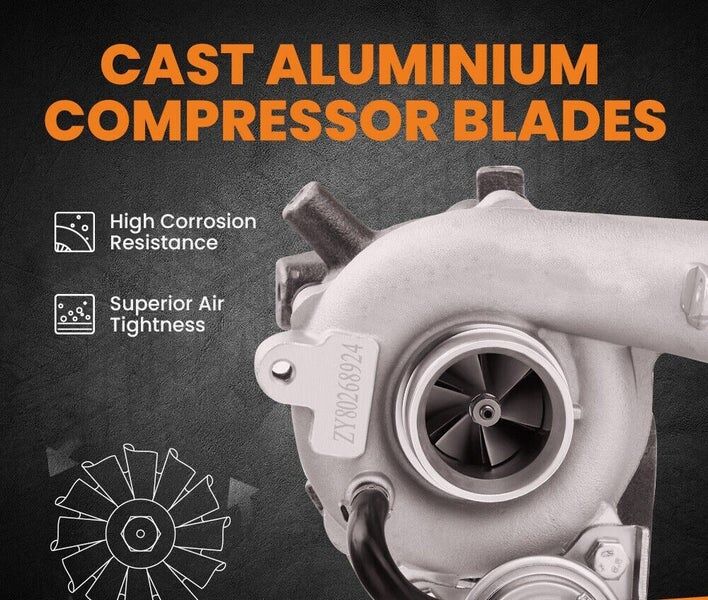

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance
* Product *
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage *
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
| SKU | 53047109904-NPVL |
| Brand | MAX PEEDING RODS |
| Shipping Weight | 7.5000kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.260m |
| Shipping Length | 0.260m |
| Shipping Cubic | 0.017576000m3 |
