Fitment

Perfect for all 4/6 cylinder and 2.5L-6.0L engines Capable of Boosting Horse Power up to 600HP



Note

Please confirm that there is enough space in your car to install this turbo before purchasing.

Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

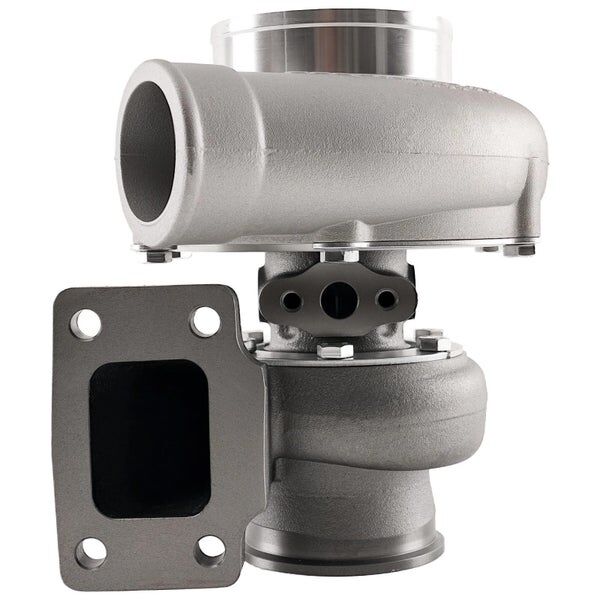

Specification

Turbine Side

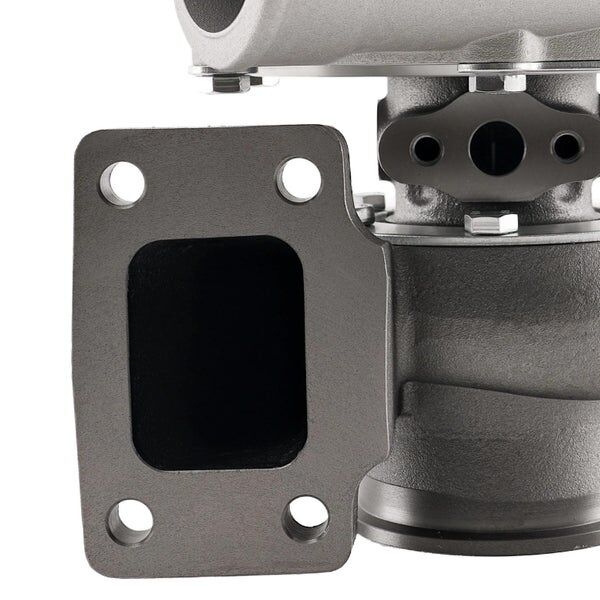

Exhaust Inlet Flange: T3 Flange

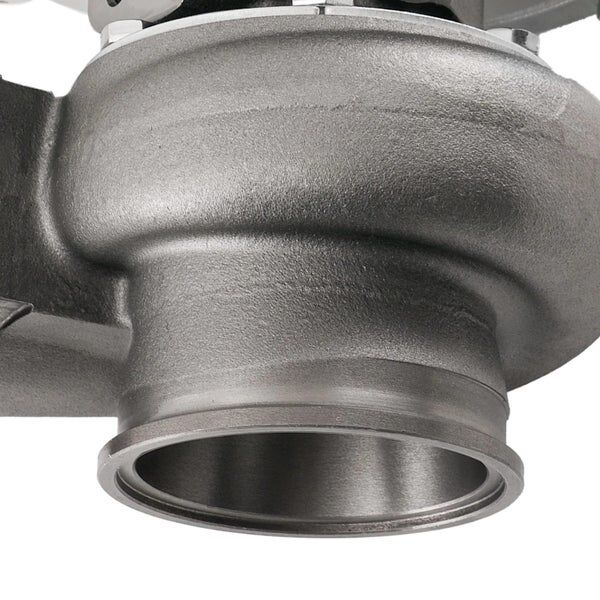

Exhaust Outlet Flange: V-Band

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Side

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type

Wet Float Thrust bearing: 270 degree

Cooling Type: Water + Oil Cooling

Horse Power: Up to 600HP

Turbo Type: Individual

Universal Fitment: Yes

Finish:Matte

Wastegate:Without Wastegate

Oil feed/inlet: M107/16-24

Oil drian/outlet: 2M81.25

Water inlet/outlet: M14 1.5

Maximum PSI: 22

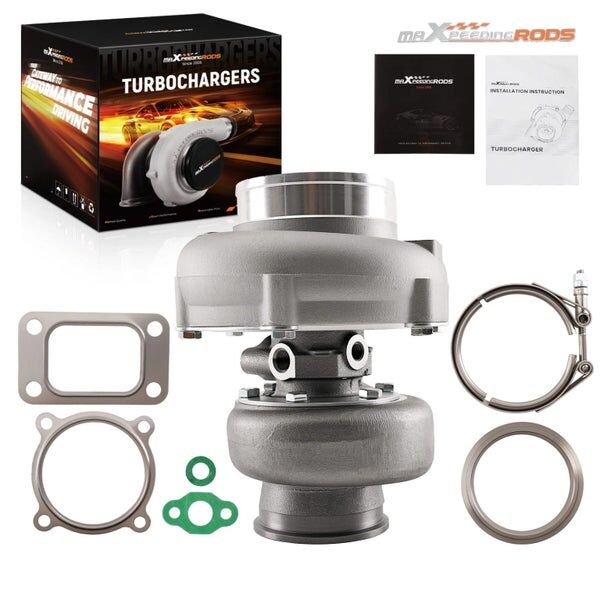

Package included

1x Turbocharger

2x Flange gaskets

2x Oil feed/drain gaskets

1x V-Band flange adapter ring & Clamp

1x Manual

1x Brochure

1x Sticker

Note

Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

Make sure the oil drain line is lower than the turbo itself.

Gasoline car must install a water cooling device to avoid overheating.

Ensure exhaust outlet are well sealed by welding

This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
