Fitment
For BMW 3 (E90) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 318d, 320d, 325d, 330d, 335d 2004-2011
For BMW 3 Touring (E91) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 320d, 325d, 330d, 335d 2004-2012
Note:
1) This product fit RWD vehicle only!
2) We suggest adding washers to avoid the engine bar and drilling the rear OE shock top mount upper part a little bigger to a diameter of 12mm.
Standard Technical Specifications
Damping adjustable Not available
Camber adjustable Not available
Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front 10 kg/mm (560 lbs/in)
Spring Rate Rear 8 kg/mm (448 lbs/in)
Spring length Front 200 mm
Spring length Rear 180mm
Spring Preload advised 7-10 mm
Coilover overall length Front 485mm-520mm
Coilover overall length Rear 500mm-570mm
Shock type Twin tube

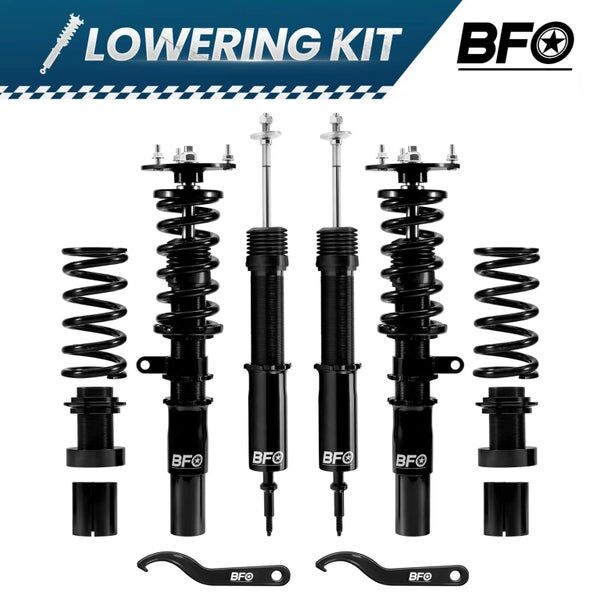

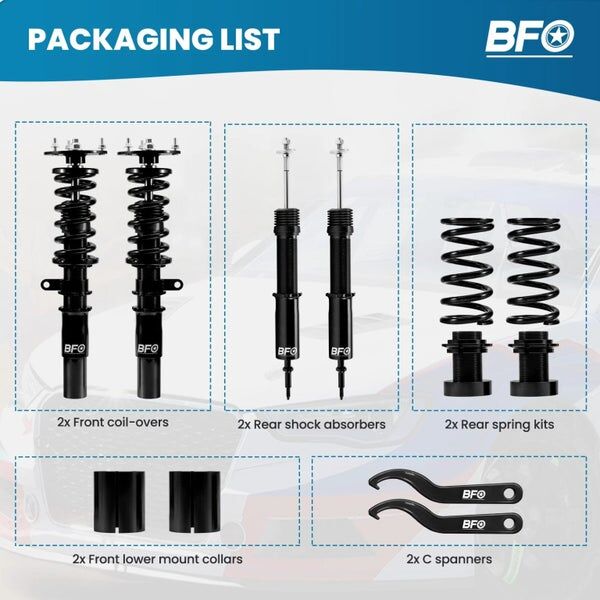

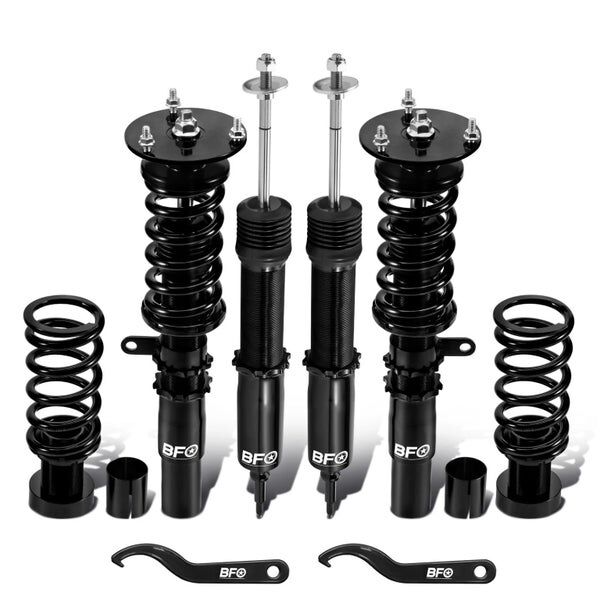

Package included

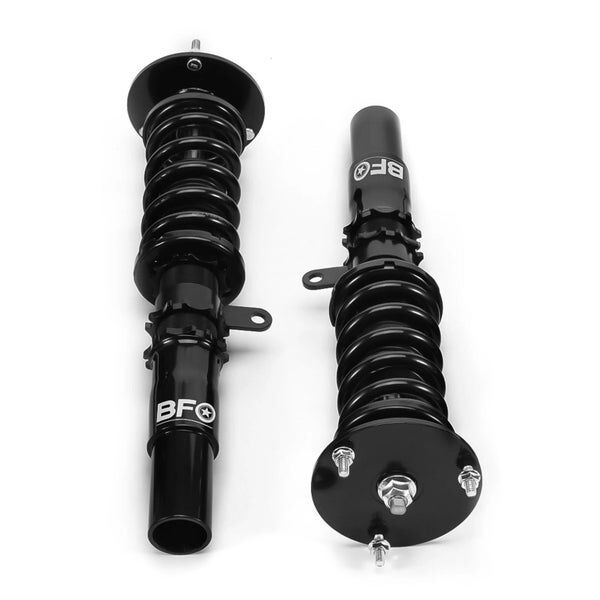

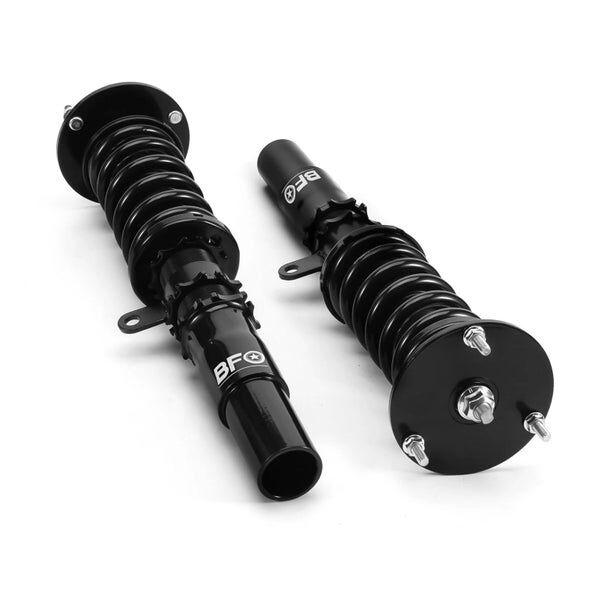

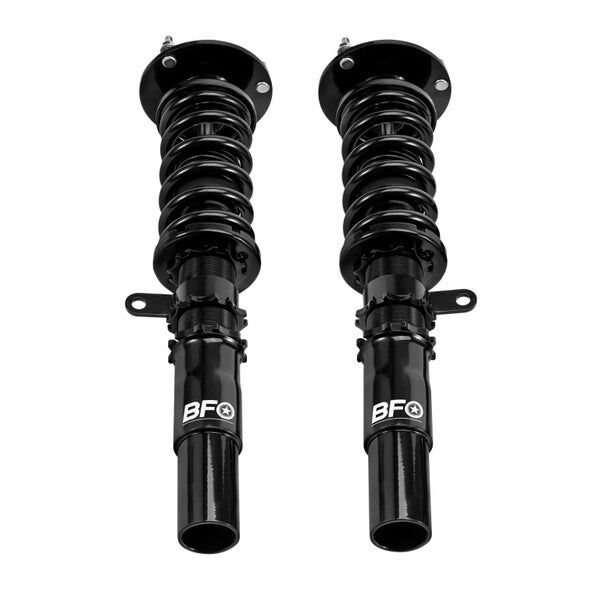

2x Front coil-overs

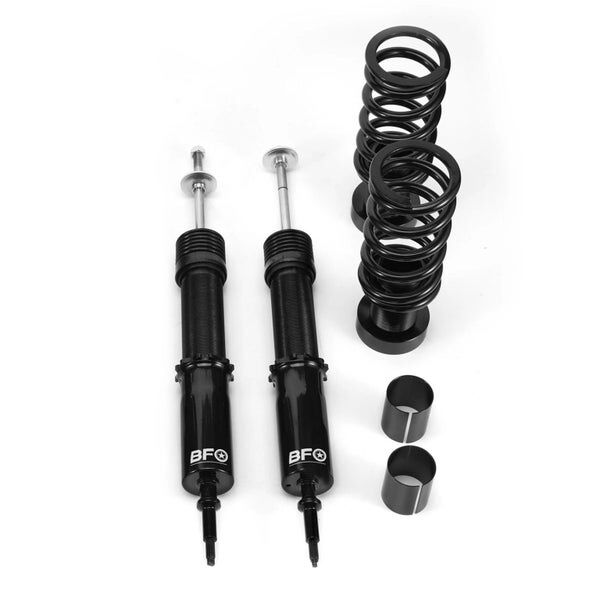

2x Rear coil-overs
1x Allen wrench
2x C spanners
Feature
Self-design structure and new manufacturing system to give more customers good coil-overs without breaking the bank.
Height adjustable---lower your car 25-75mm (depending on vehicle models) to get a performance ride
Independent Ride Height and Spring Pre-load Adjustments
Twin-Tube System for Comfortable Ride on Streets
Coated finish to avoid rust

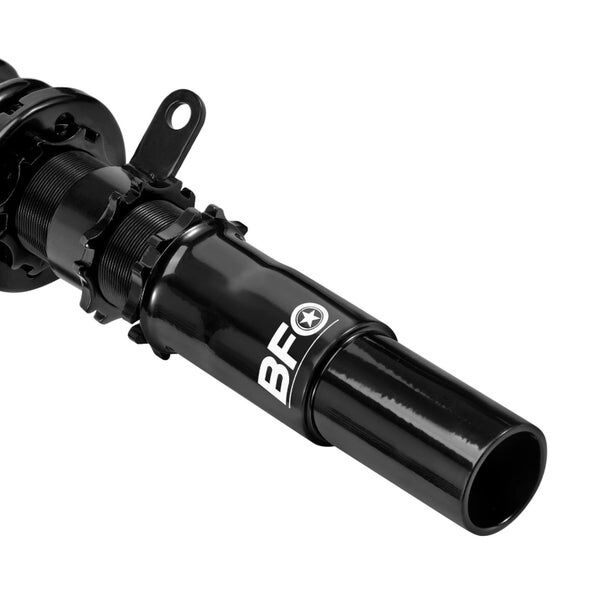

Heavy Duty Steel Lower Mounts
Simple install, easy to adjust.
