Application

For Lexus ES300 1997-2001 Exclude Adjustable Suspension

For Lexus ES300 1995-1996 ALL

For Lexus ES300 1992-1994 w/Sealed Struts

For Toyota Avalon 1995-2003 ALL

For Toyota Camry 1995-2001 ALL

For Toyota Camry 1992-1994 ALL w/Sealed Struts

For Toyota Solara 1999-2003 ALL

Features

Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

Adjustable pre-load spring tension to reduce the shaking motion to a certain extentAdjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

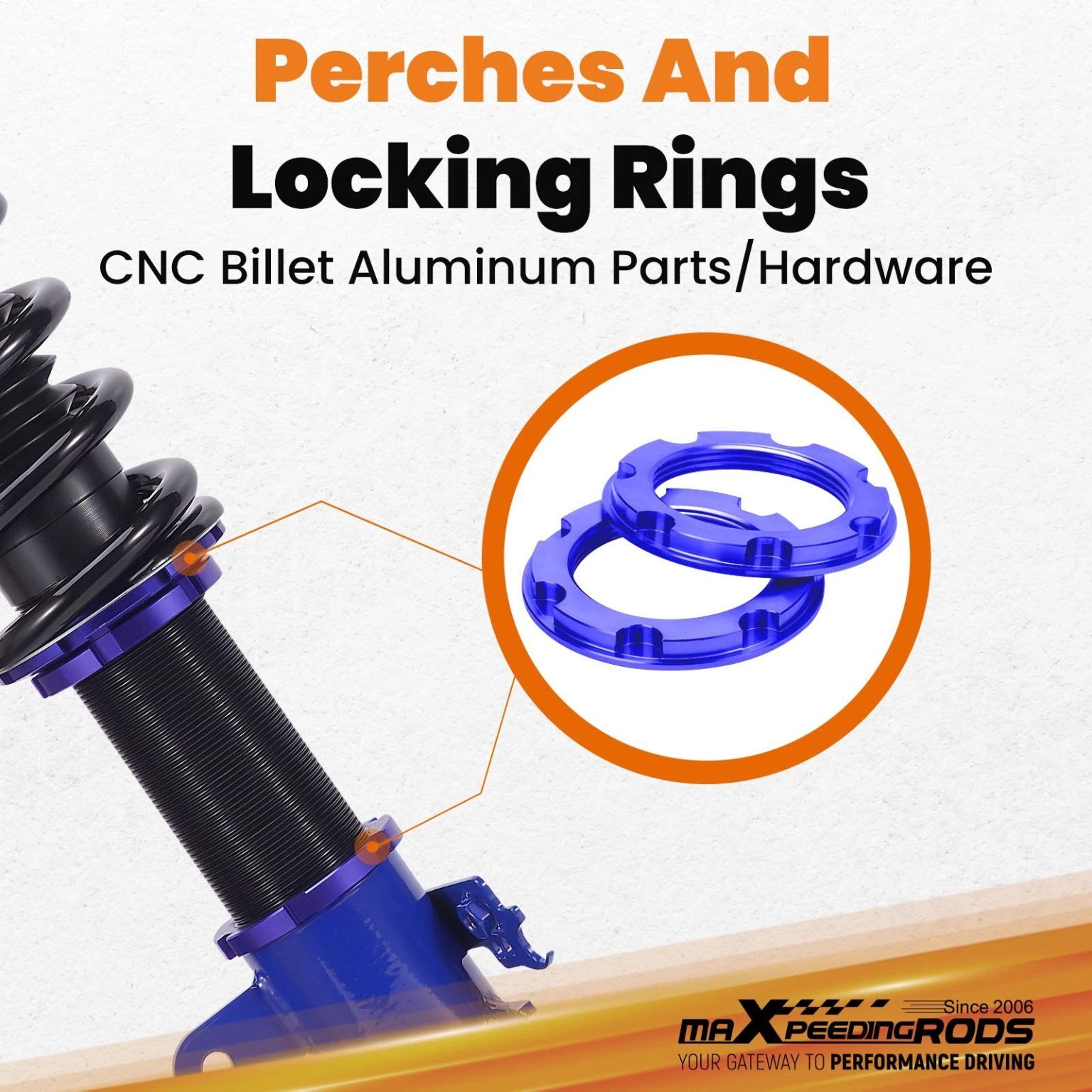

CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

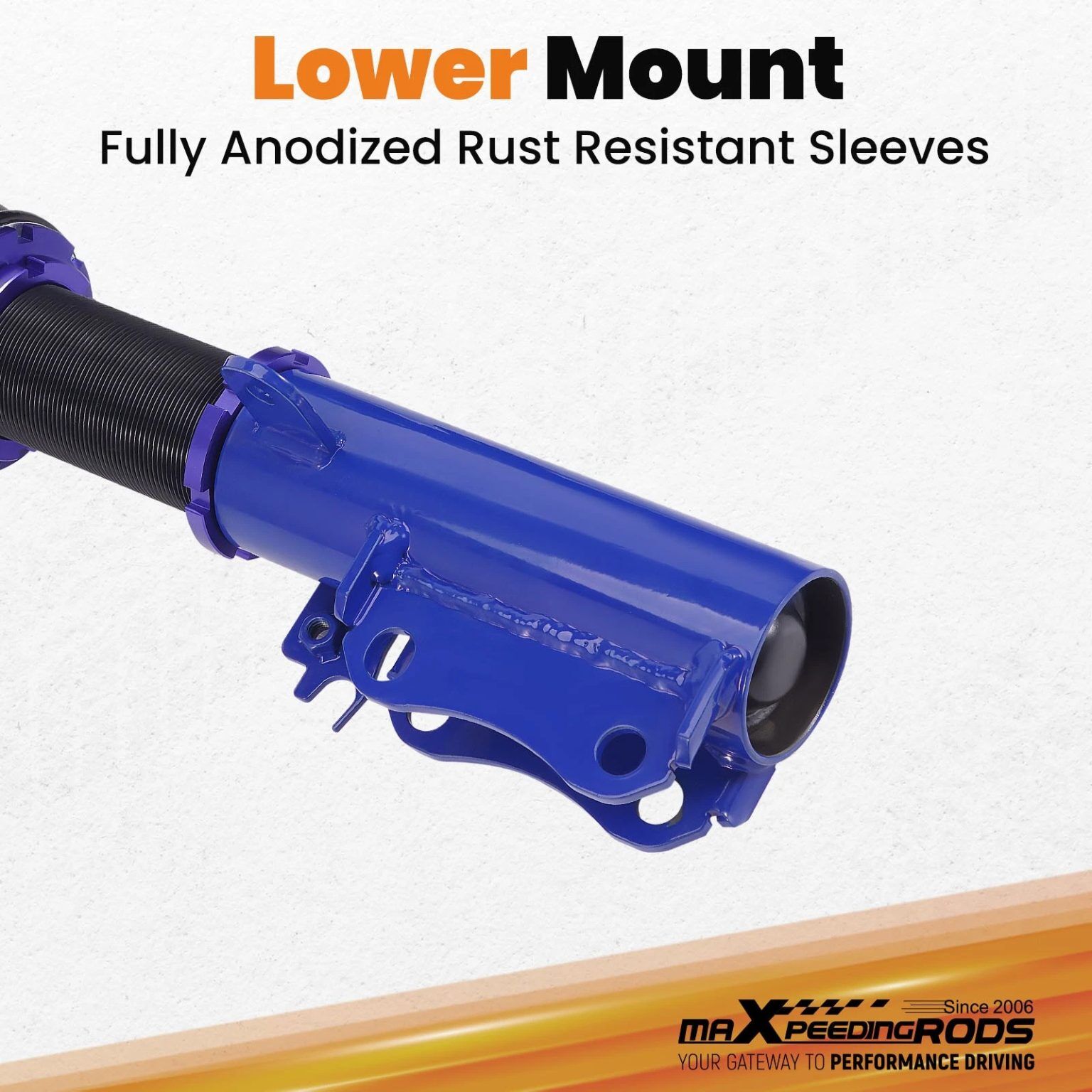

Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

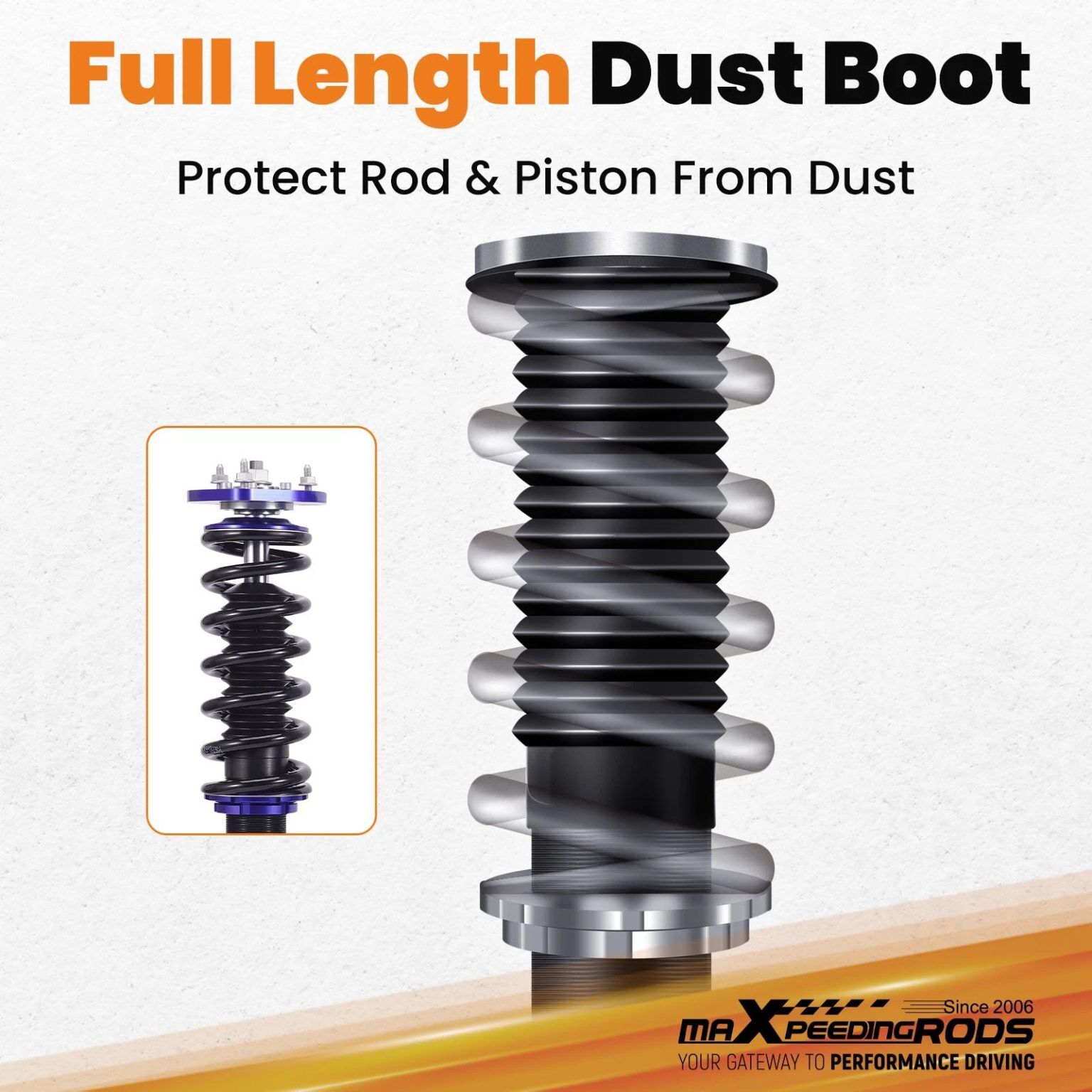

All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

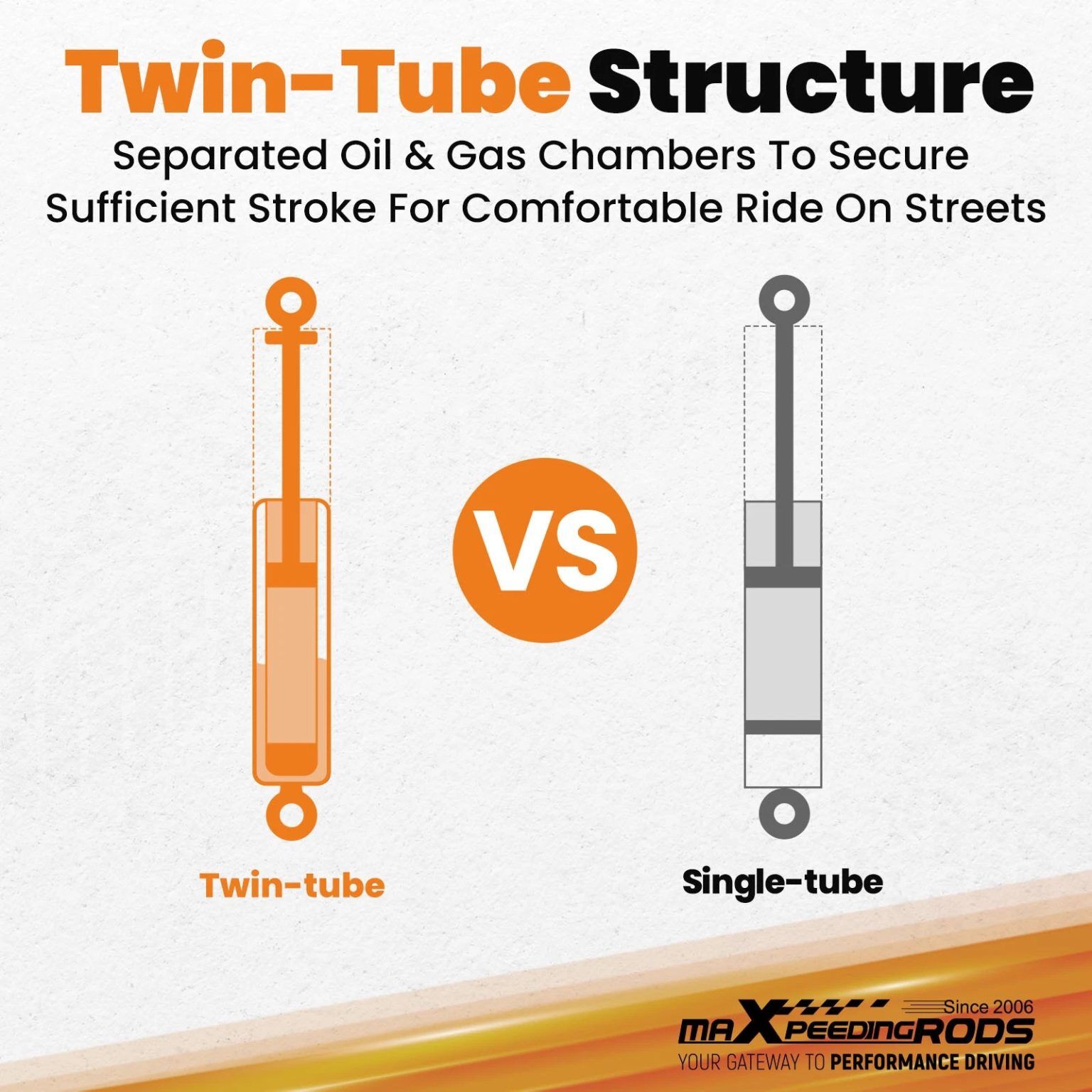

Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

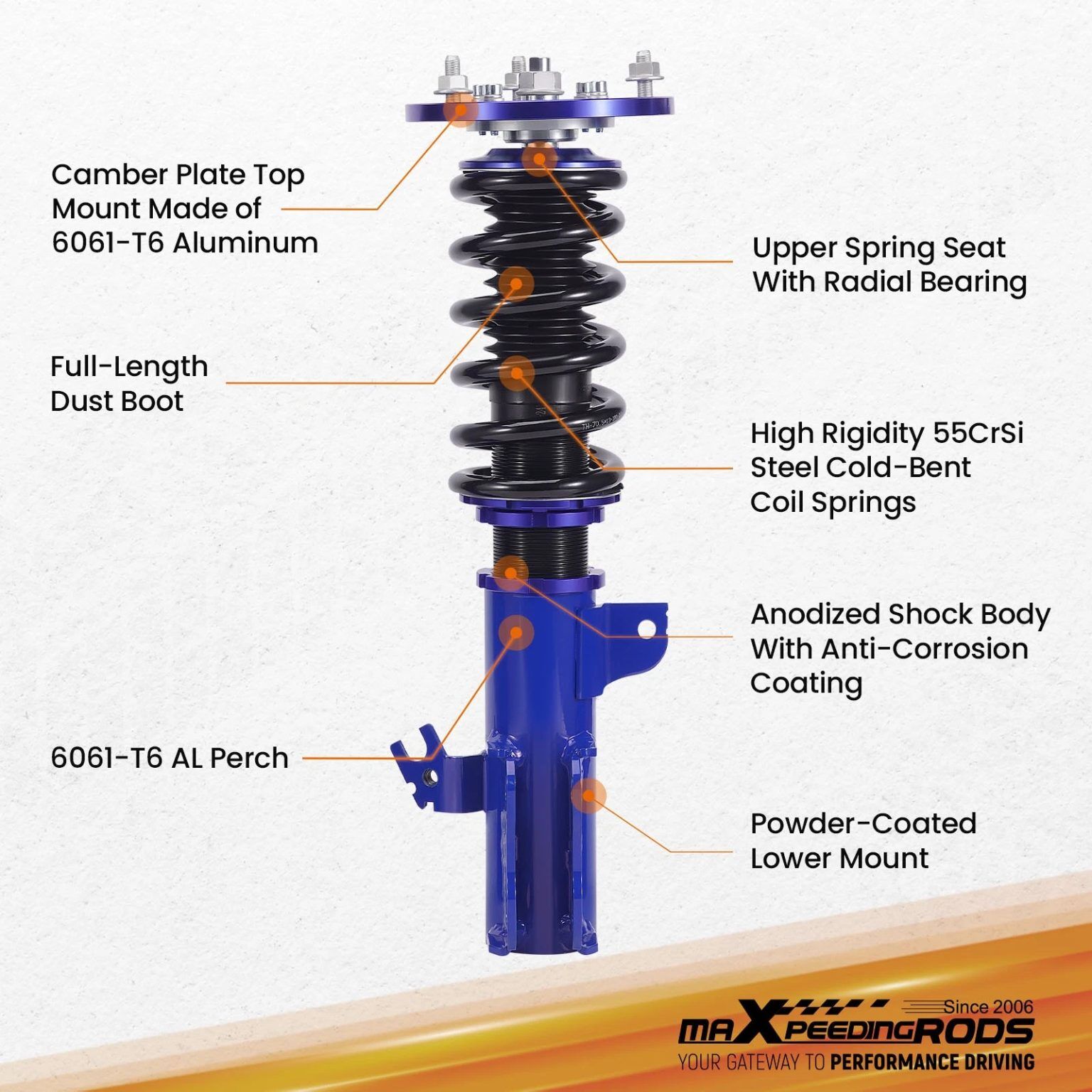

Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Standard Technical Specifications

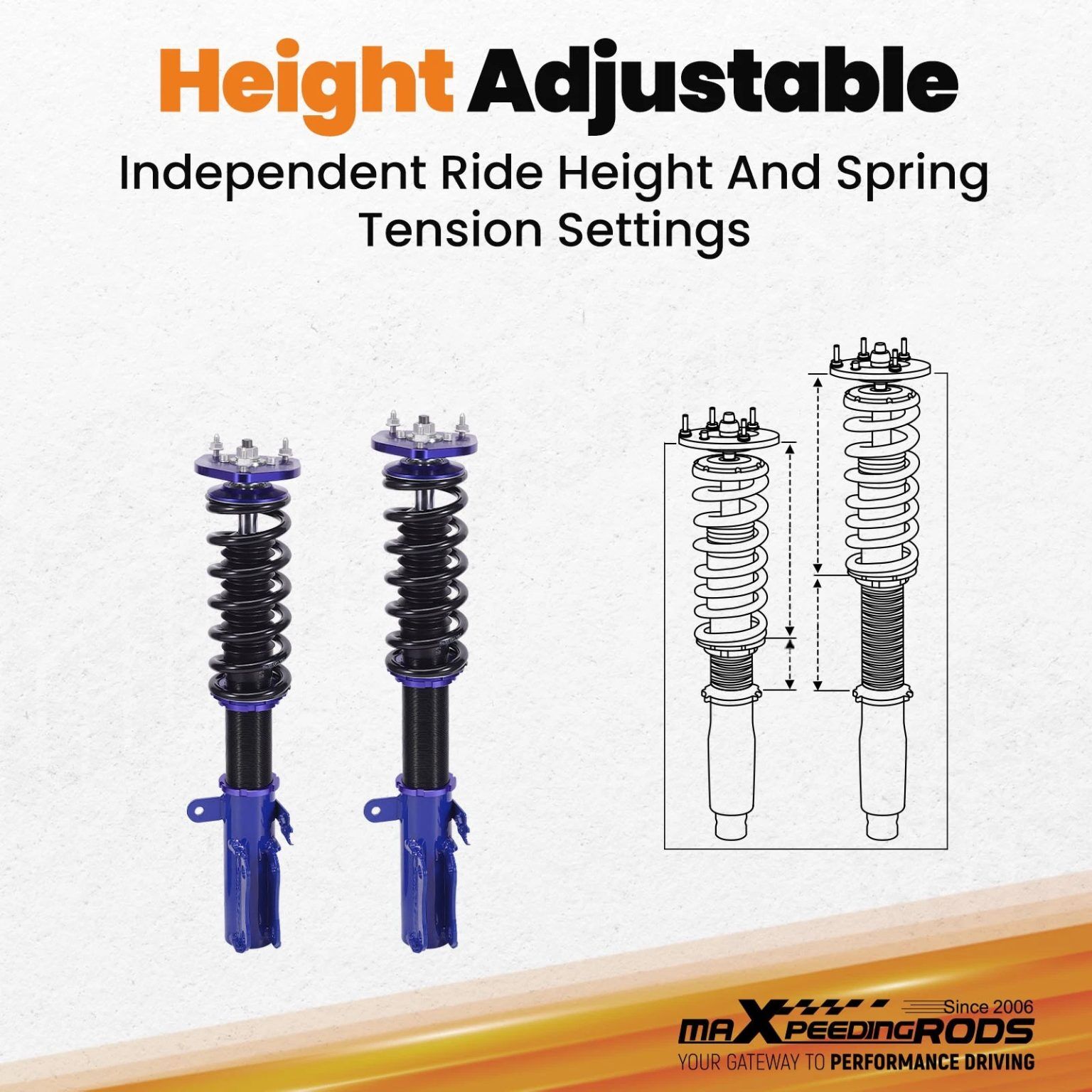

Height adjustable Yes, lowering 25-75mm depending on the vehicle models

Front top mount Pillow ball with camber plate

Rear top mount Pillow ball

Spring Rate Front 10 kg/mm (560 lbs/in)

Spring Rate Rear 6 kg/mm (336 lbs/in)Front spring inner diameter 70.5 mm

Rear spring inner diameter 70.5 mm

Spring length Front 180 mm

Spring length Rear 230 mm

Spring Preload advised: 7-10 mm

Damping adjustable Not available

Camber adjustable Available

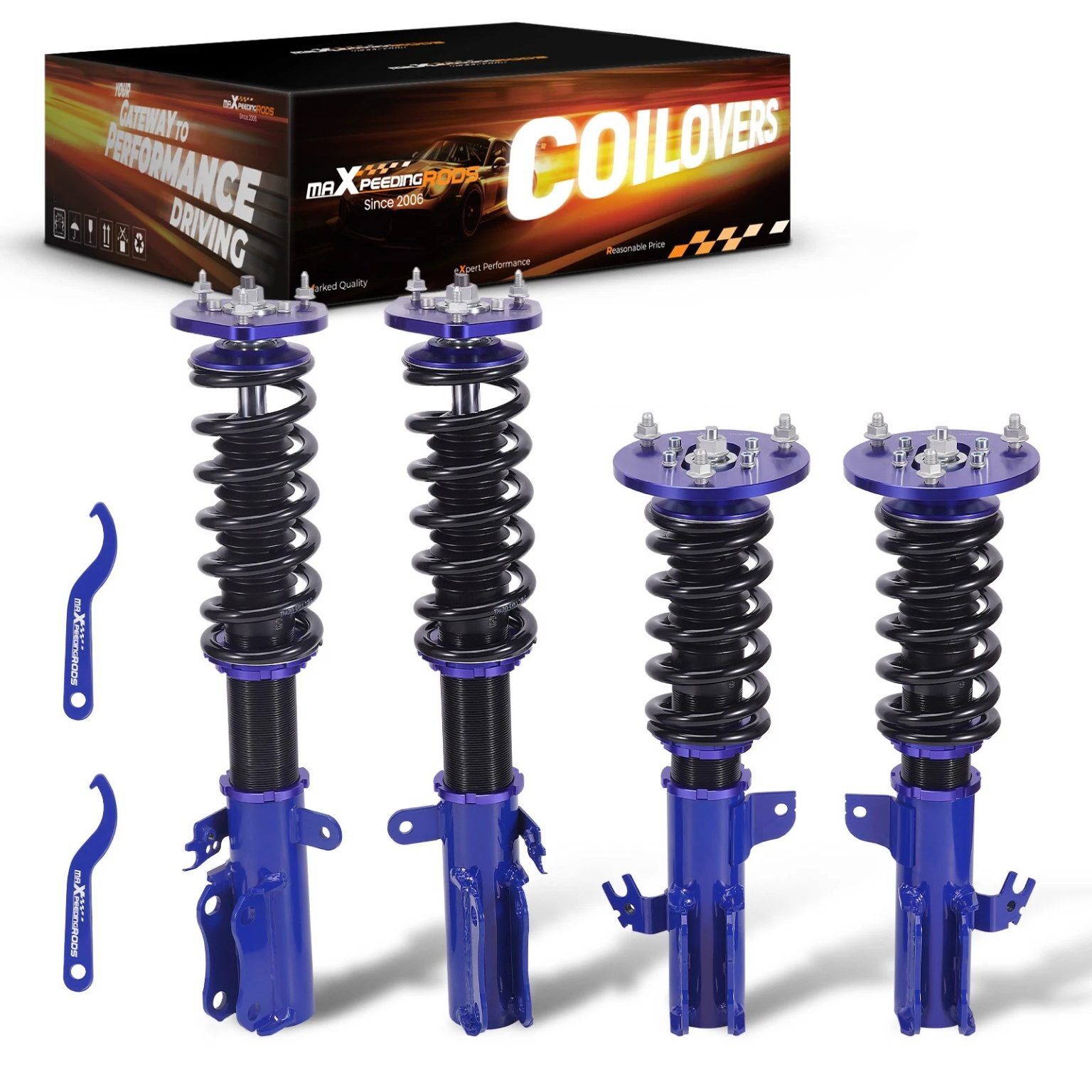

Package included

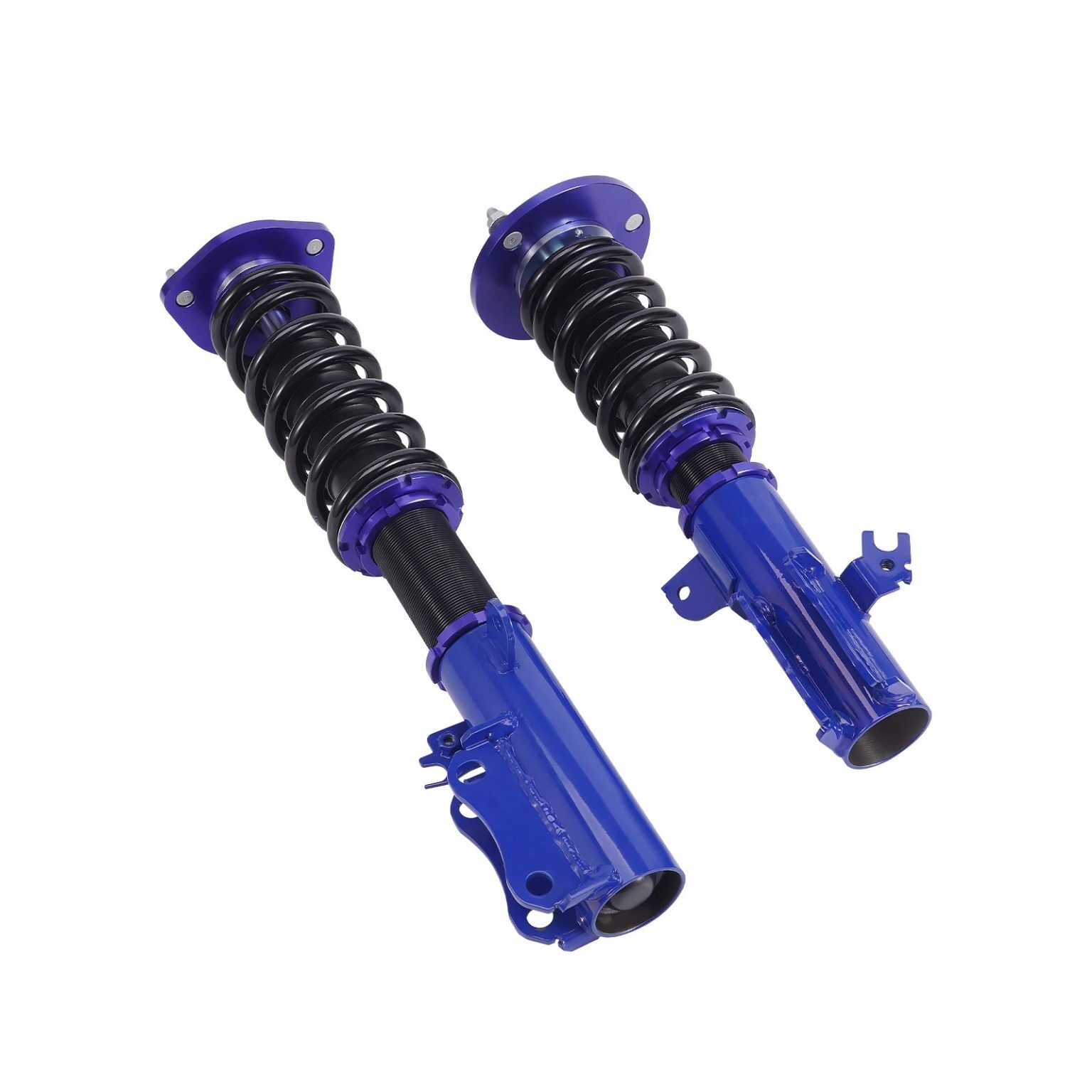

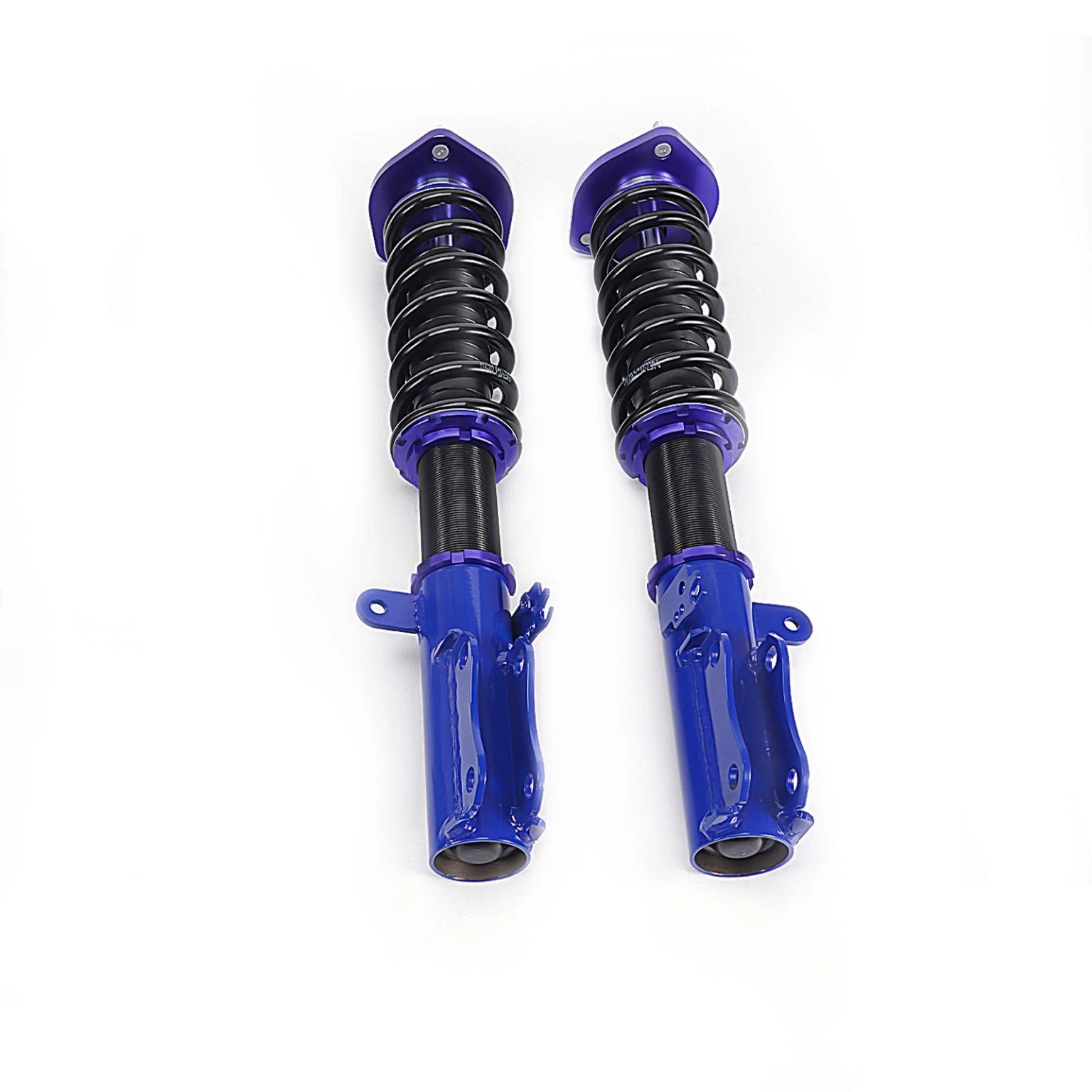

2x Front coil-overs

2x Rear coil-overs

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.Impact wrench is prohibited during the installation, it will loosen or damage the product.

Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
