Fitment
For BMW 3 (E46) 4-door sedan 318i,330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
For BMW 3 2-door Convertible (E46) 318i,330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
For BMW 3 2-door Coupe (E46) 318i,320ci; 325ci; 330ci;320cd; 330cd;  (02/1999-12/2006)
For BMW 3 Touring 5-door wagon/estate (E46) 316i; 318i,325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)
Fits for BMW E46 3-Series, But will not fit for xi/xd  4 wheel drive and M3 Model

Specifications

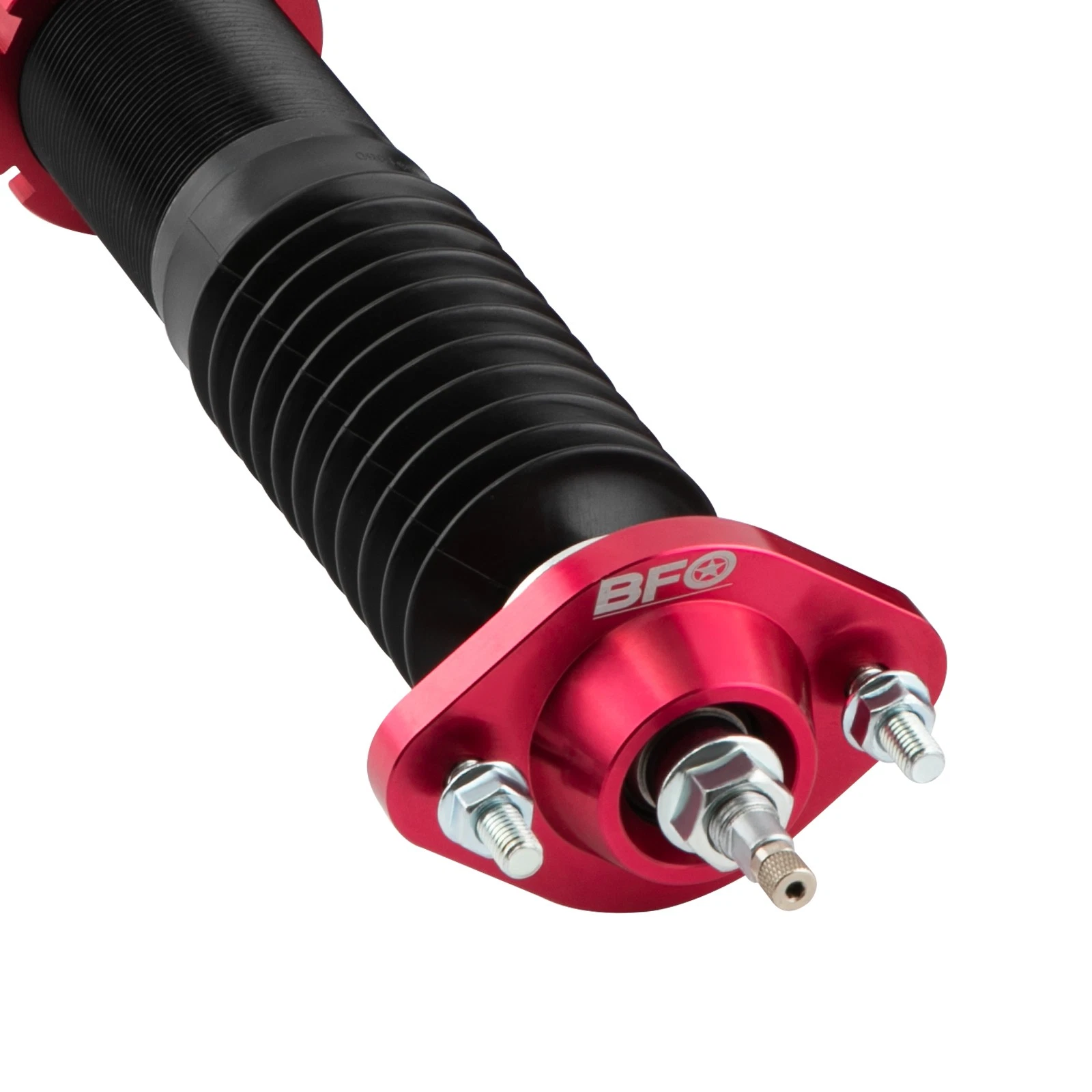

Top mounts: Front pillow ball top mounts with camber plate

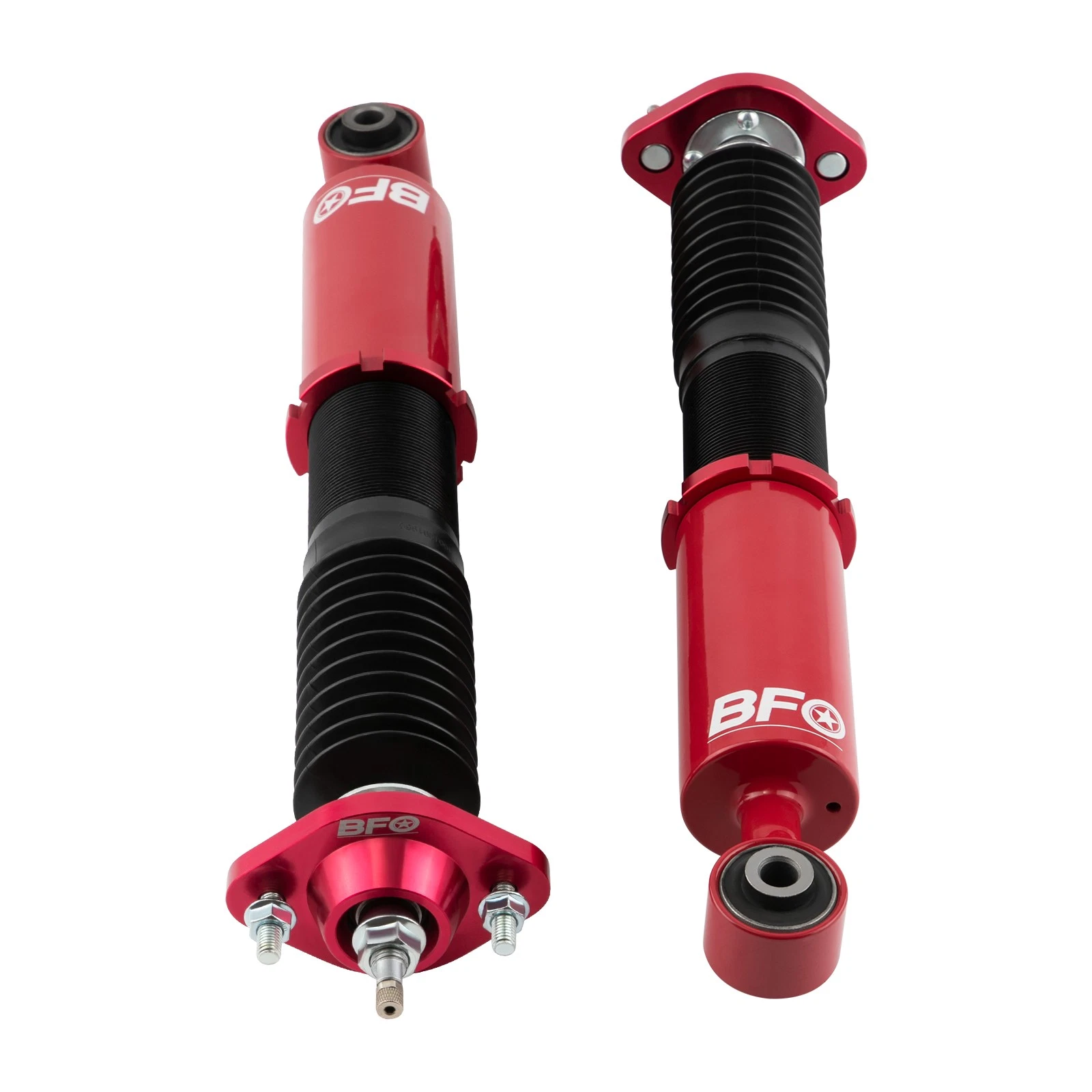

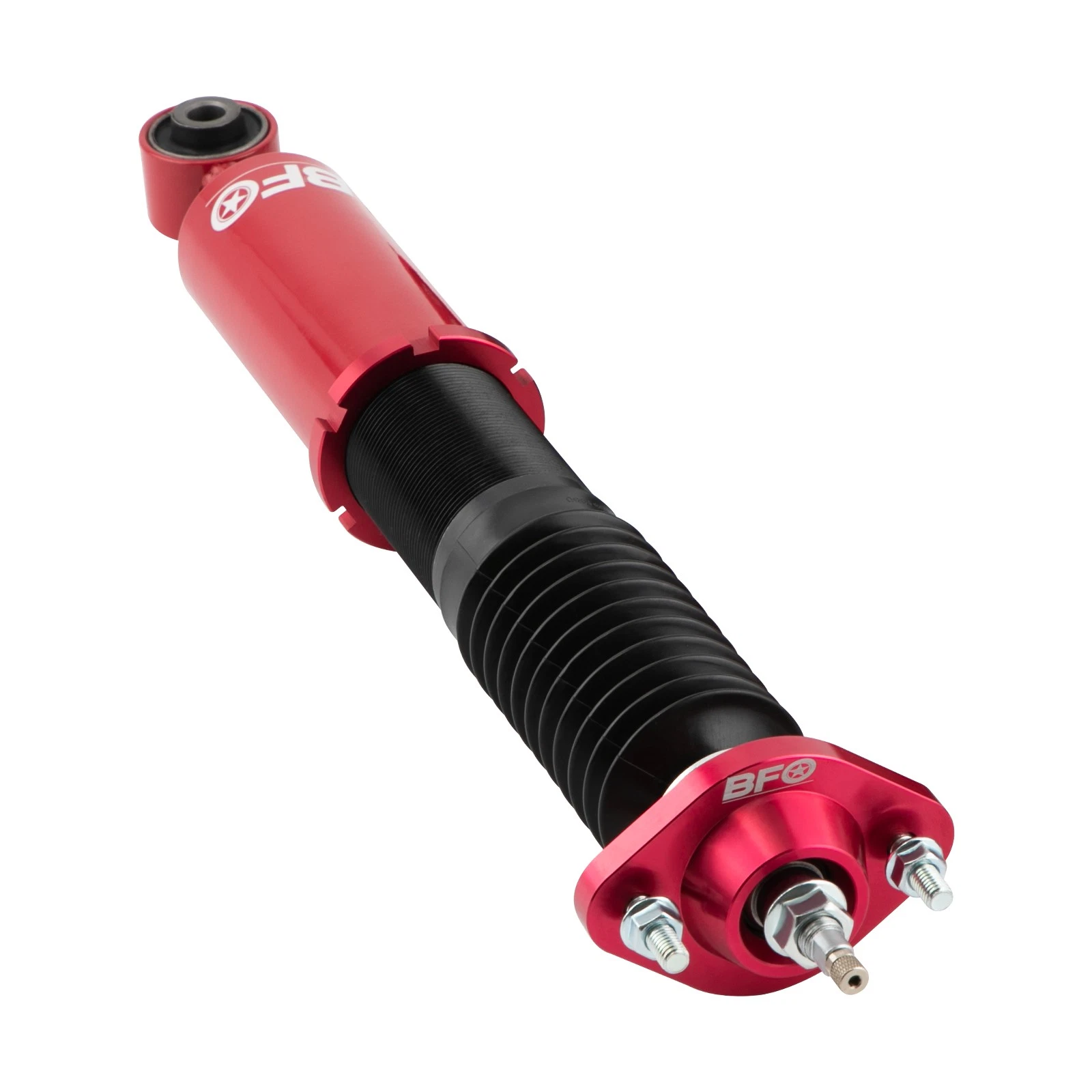

Top mounts: Rear pillow ball top mount
Damping: 24 levels rebound damping adjustable
Spring rate: front  8kg/mm
Spring rate: rear   7kg/mm
Adjustable height: Yes lowering 1'' to 3''
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Red body with white spring

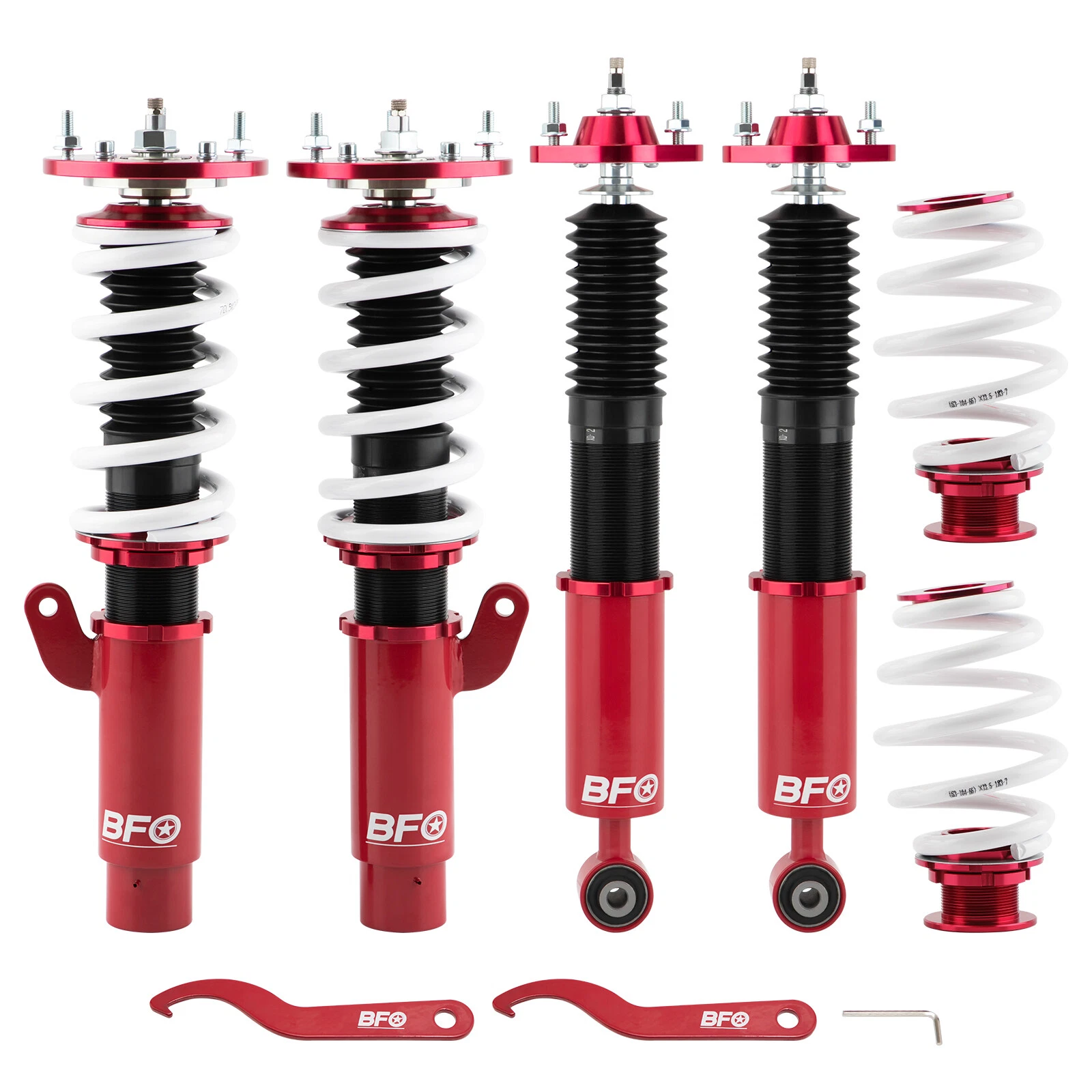

Package included
Coilovers for 2 front and 2 rear
A pair wrench for height adjustment

Features
Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance
A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Twin-Tube structure allows sufficient stroke within the shock absorber
Separate height adjustment does not affect damper stroke
High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
Height Adjustment tools included
Camber plate top mounts help to eliminate the need for a separate camber kit
Pillow ball top mount - It improves the steering feel and response
Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
Full rebuildable

SKU MTV-maX-183
Brand MAX
