Fitment

For DDC-MTU Truck with Series 60 Engine 2000-2008

For Navistar Truck with Series 60 Engine 2000-2008

For Int Harvester Truck with Series 60 Engine 2000-2008

For 4.0L-6.0L Car engine



Part Number

171702,  171703,  171691,  171701,  23518588
23518567,  23518597,  23523197,  2585838C91
S400SX4,    S475,    S400,    T6,

Specifications

Turbo Model:   S400S062
Engine Code:   Series 60
Hosepower:     500-1050 HP

Turbine:
Turbine Inducer:   95.7mm
Turbine Exducer:   88.1mm
Turbine Trim: 84.7

Turbine A/R: 1.32
Turbine Wheel:  10 Blades

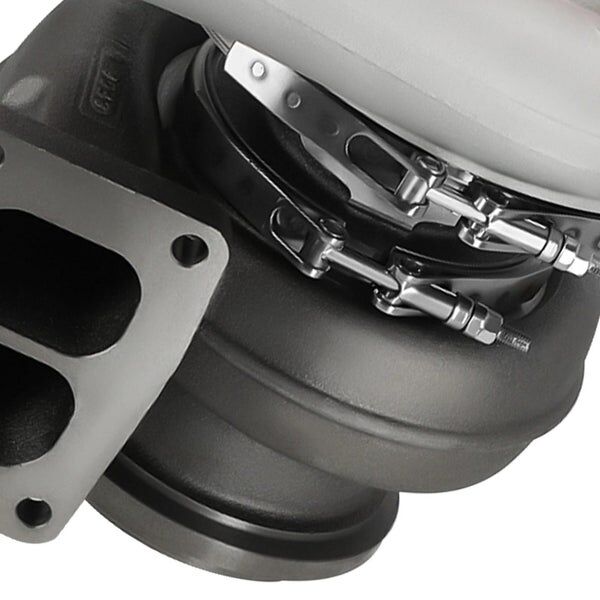

Turbine Exhaust Inlet:  Twin Scroll T6 Flange
Turbine Exhaust Outlet:   5″ for Marmon S400
Compressor :

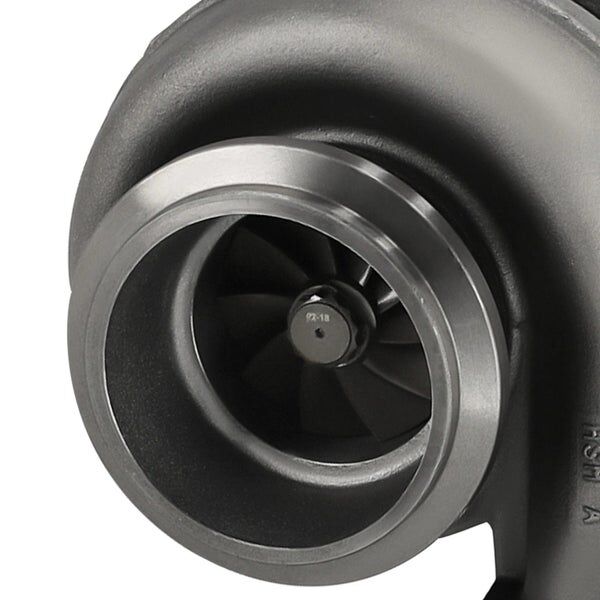

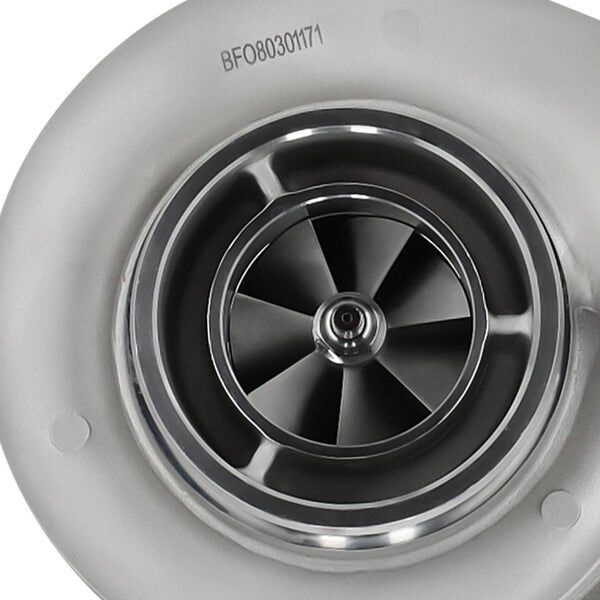

 Compressor Inducer:  74.5mm
Compressor Exducer: 107mm
Compressor Trim:   48.5
Compressor Wheel:  7+7 Blades

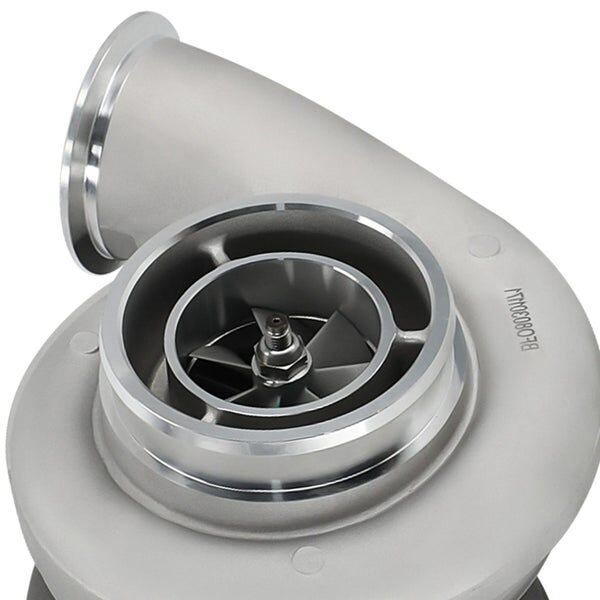

Compressor air inlet:  5.00" ported anti-surge

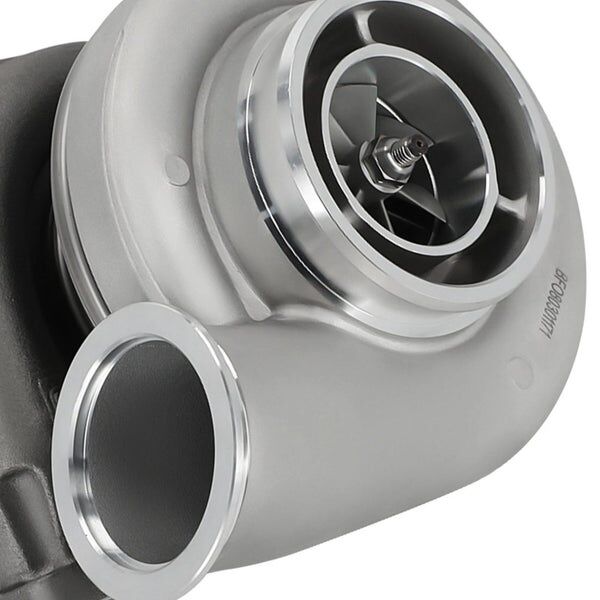

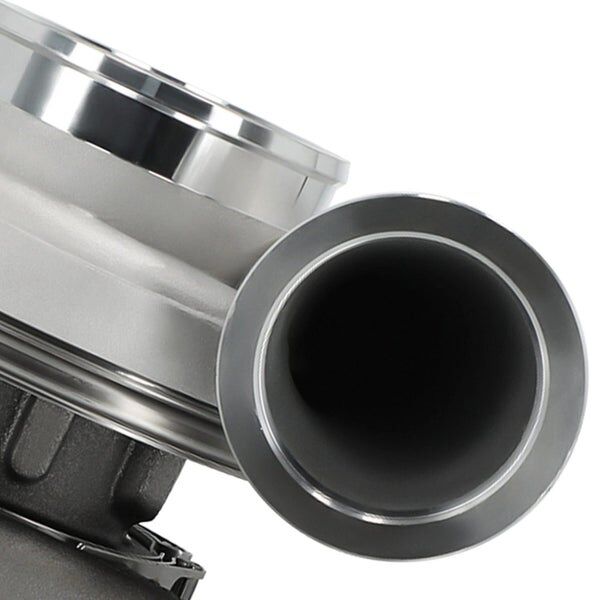

Compressor Air Outlet:  4.21" charge pipe outlet

Cooling Type:Oil Cooling
Oil Inlet: 1/4"-19 & M8H
Oil Outlet: 2*M8*1
Wastegate:Without Wastegate
Bearing Type:  Journal Bearing / Floating Bearing
Condition:  Brand New

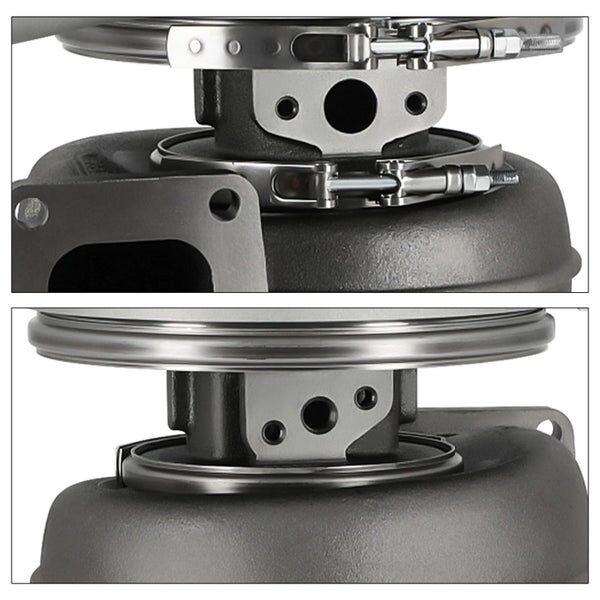

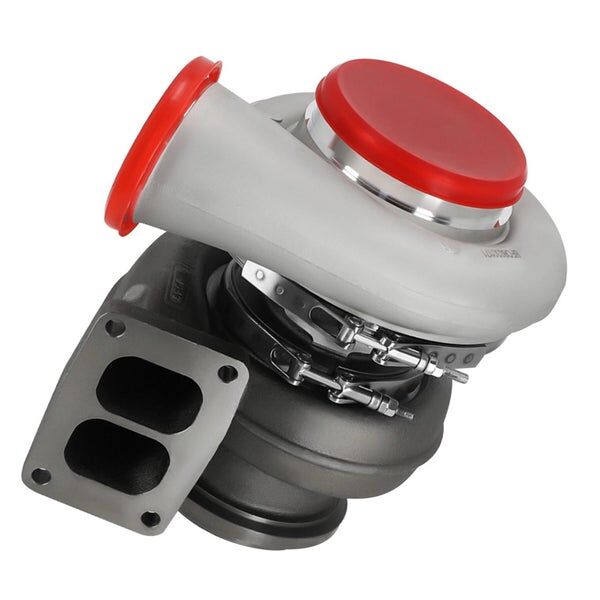

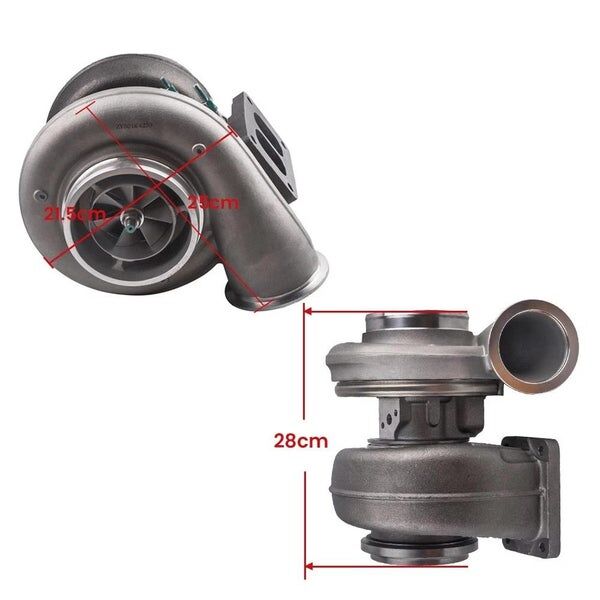

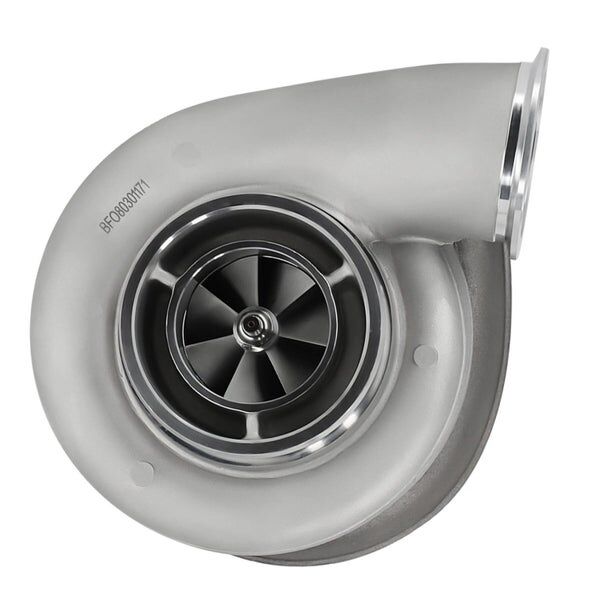

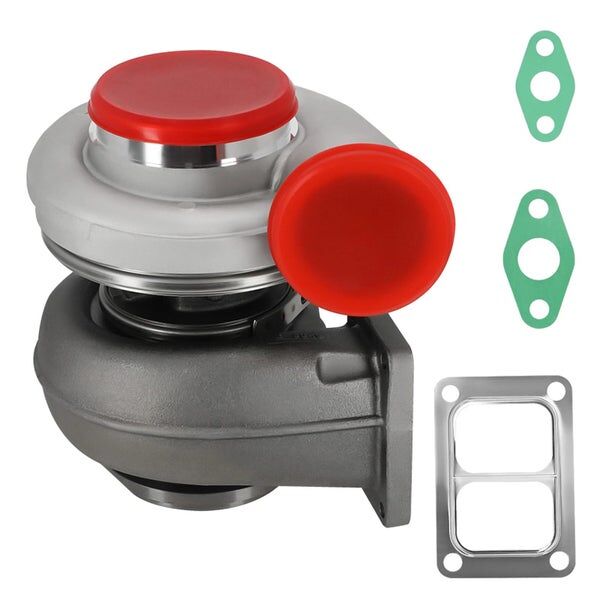

Accessories: You will get exactly as shown in the picture above

 Notice

* Professional installation is highly recommended (No Instruction Included)

*This is a universal turbo,some modification may be required.

SKU MTV-maX-223
Brand MAX PEEDING RODS
