Application

For Honda Civic VX 1.5L SOHC VTEC-E I-4 92HP D15Z1 1992-1995

For Honda Civic DX/LX 1.6L SOHC I-4 106HP D16Y7 1996-2000

For Honda Civic HX 1.6L SOHC VTEC-E I-4 115HP D16Y5 1996-2000

For Honda Civic EX 1.6L SOHC VTEC I-4 127HP D16Y8 1996-2000

For Honda Civic CX 1.5L SOHC I-4 70HP D15B8 1992-1995

For Honda Civic EX/Si 1.6L SOHC VTEC I-4 125HP D16Z6 1992-1995

For Honda CRX DX 1.5L SOHC I-4 92HP D15B2 1988-1991

For Honda CRX HF 1.5L SOHC I-4 70HP D15B6 1988-1991

For Honda CRX Si 1.6L SOHC I-4 108HP D16A6 1988-1991

For Honda Del Sol S 1.5L SOHC I-4 102HP D15B7 1993-1995

For Honda Del Sol Si 1.6L SOHC VTEC I-4 125HP D16Z6 1993-1997

For Honda Del Sol S 1.6L SOHC I-4 106HP D16Y7 96-97

Specification

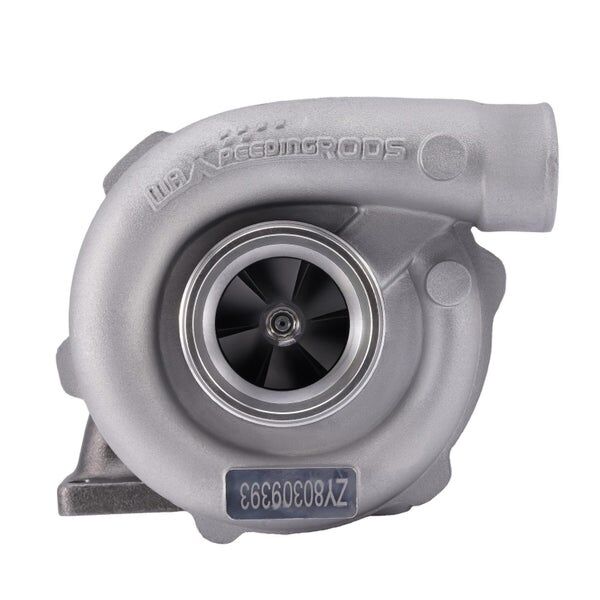

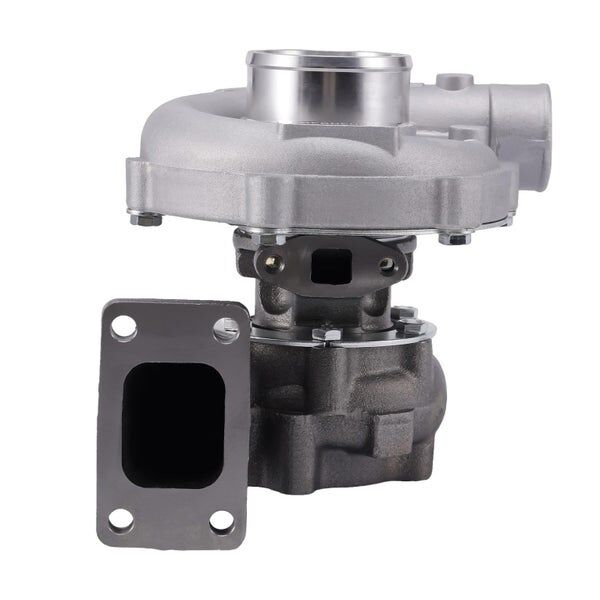

1x T3/T4 Turbocharger

Horse Power: Up to 400 HP

Compressor Inlet Diameter: 72mm(2.8")

Compressor Outlet Diameter: 53mm（2"）

Oil Inlet: 1/8 NPT

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet (pipe) Flange: 5 bolt Flange

Turbine Trim: 74.2

Turbine Inducer Diameter: 64.8 mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.63

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.5

Bearing: Wet Float Bearing

Turbocharger Overall size: 270*220*220

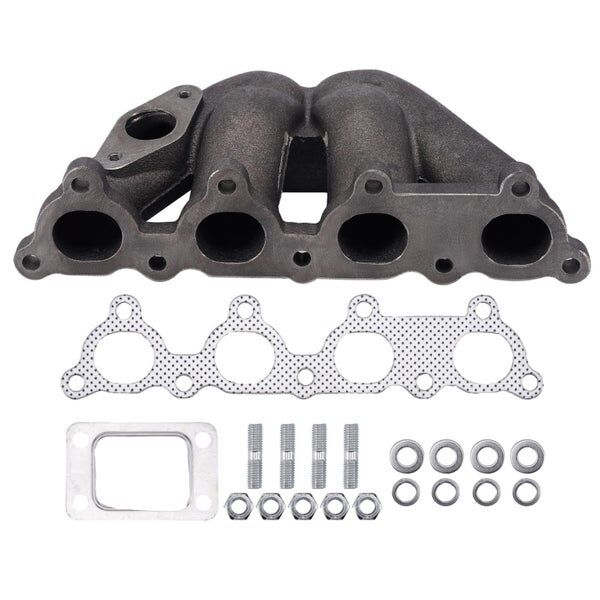

1x Exhaust Manifold

Material: Cast Iron

Inlet diameter: 38mm

1x Intercooler

Inlet size is 2.5 inch.

core size: 21*7*2.5

Overall Size 27'' x 7'' x 2.5'' inch.

Support up to 350 hp for this small intercooler size - tube and fin style .

1x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP.

1x 35/38MM Wastegate: 35/38mm External Waste Gate Kit

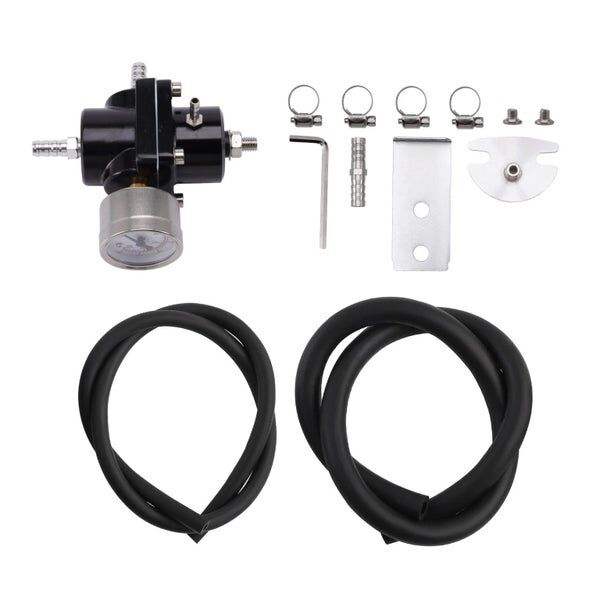

1x Fuel Regulator：All Accessories are Included for Installation.

1x Oil Catch Can

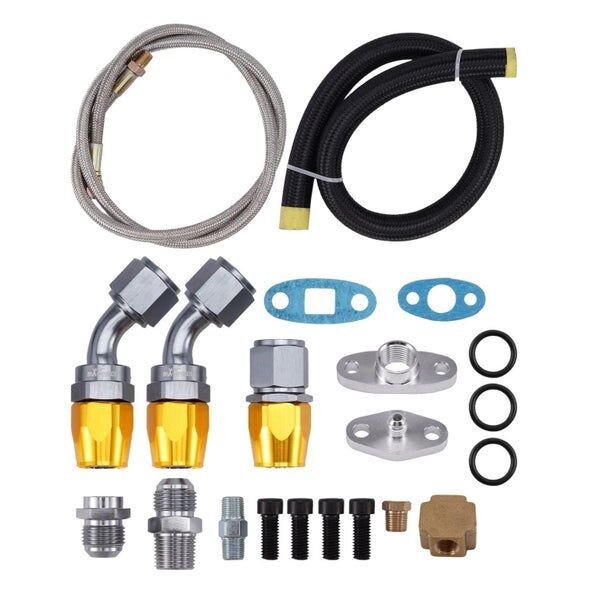

1x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbocharger to the oil pan. The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.

Material: Stainless Steel Braided

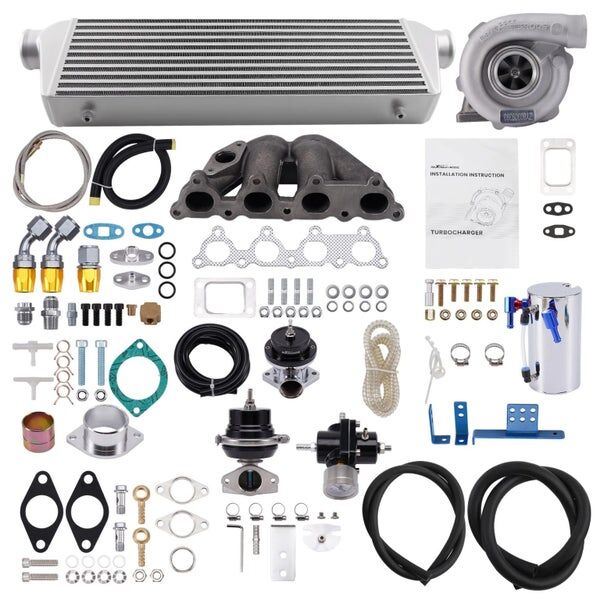

Package Include

1x T3/T4 Turbocharger

1x Intercooler

1x Oil Feed / Return Line

1x 35/38mm Wastegate

1x Type-S Blow Off Valve

1x Oil Catch Can

1x Fuel Regulator

1x Exhaust Manifold

(You will get exactly as shown in the picture)

Features

1. Turbocharger:

* Capable of Boosting Horse Power up to 400+ HP

* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃

* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃

* Cast aluminium blades with good gas tightness and corrosion resistance.

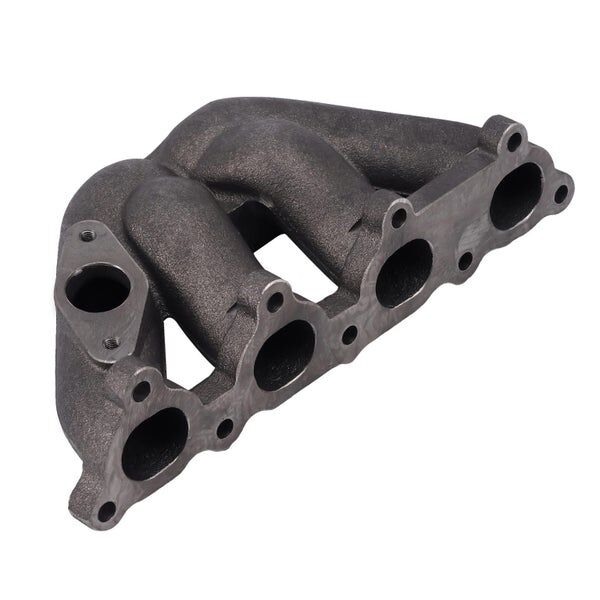

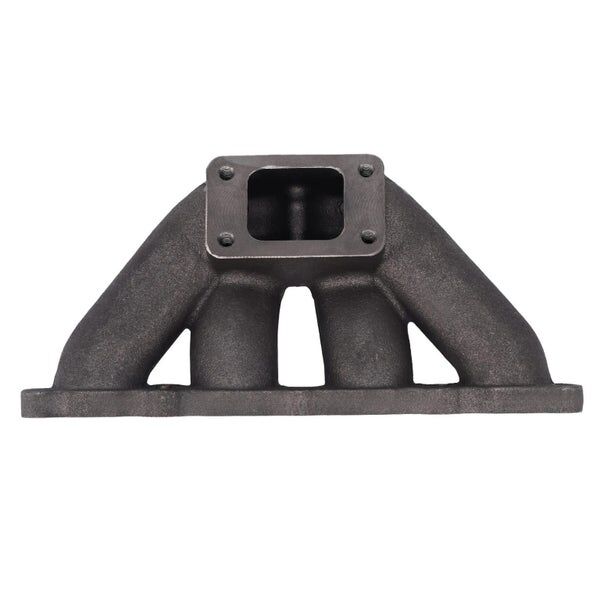

2. Exhaust Manifold

*Direct replacement

*Replaces original manifolds that are cracked from thermal expansion and contraction

3. Intercooler

* Core size:21*7*2.5 cools down the turbocharged air efficiently

* Lightweight aluminum racing intercooler

* Strong TIG welds will support high PSI levels

4. Turbo Oil returen /Feeding line kit

* Stainless Steel Braided

* Includes complete install kit

* It helps circulate oil from the turbocharger to the oil pan.

* The kit provides a anodized look

* gives a best cooling on your turbo and long lasting life.

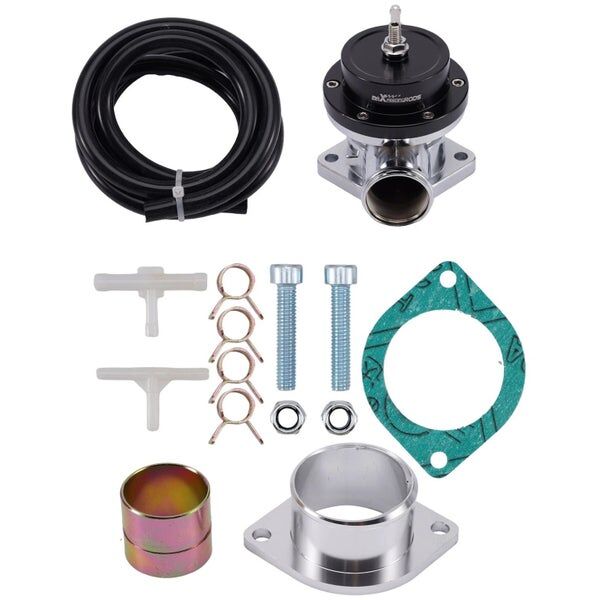

5. Blow Off Valve Kit

* CNC Billet Aluminum Type RS Style Blow off Valve

* Easy Mount Piping Set Included For Bolt-On.

* Including all necessary hardwares.

* easily adjustable to prevent both permature boost leakage and compressor surge.

* Fast response One For Low And High Boost Pressure.

* Quality design will not leak under high boost conditions

* Flanges can be installed at user discretion

6. 38MM Wastegate

* Most reliable wastegates For competition vehicles.

* accurate boost control

* high quality appearance features Dual port design

* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.

7. Oil catch can

* Made with High Quality Aluminum for Enhanced Strength and Durability

8. Turbo Boost Gauge

* Red LED Illuminated Needles.

* Comes with All the Wiring Necessary for Installation.

* All Accessories are Included for Installation.

* Accurately monitor boost pressures from the turbo system

* Back lit for use at night time

Note:Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
