Fitment
For Nissan Patrol GR GQ Y60 4.2 L TD42 Diesel & Turbo diesel
For TB42, TD45, TB45 engine
As far as we know, the port configurations are the same. Please give us your message for the picutre with dimensions and we suggest you to double confirm the fitment with a mechanic before buying.

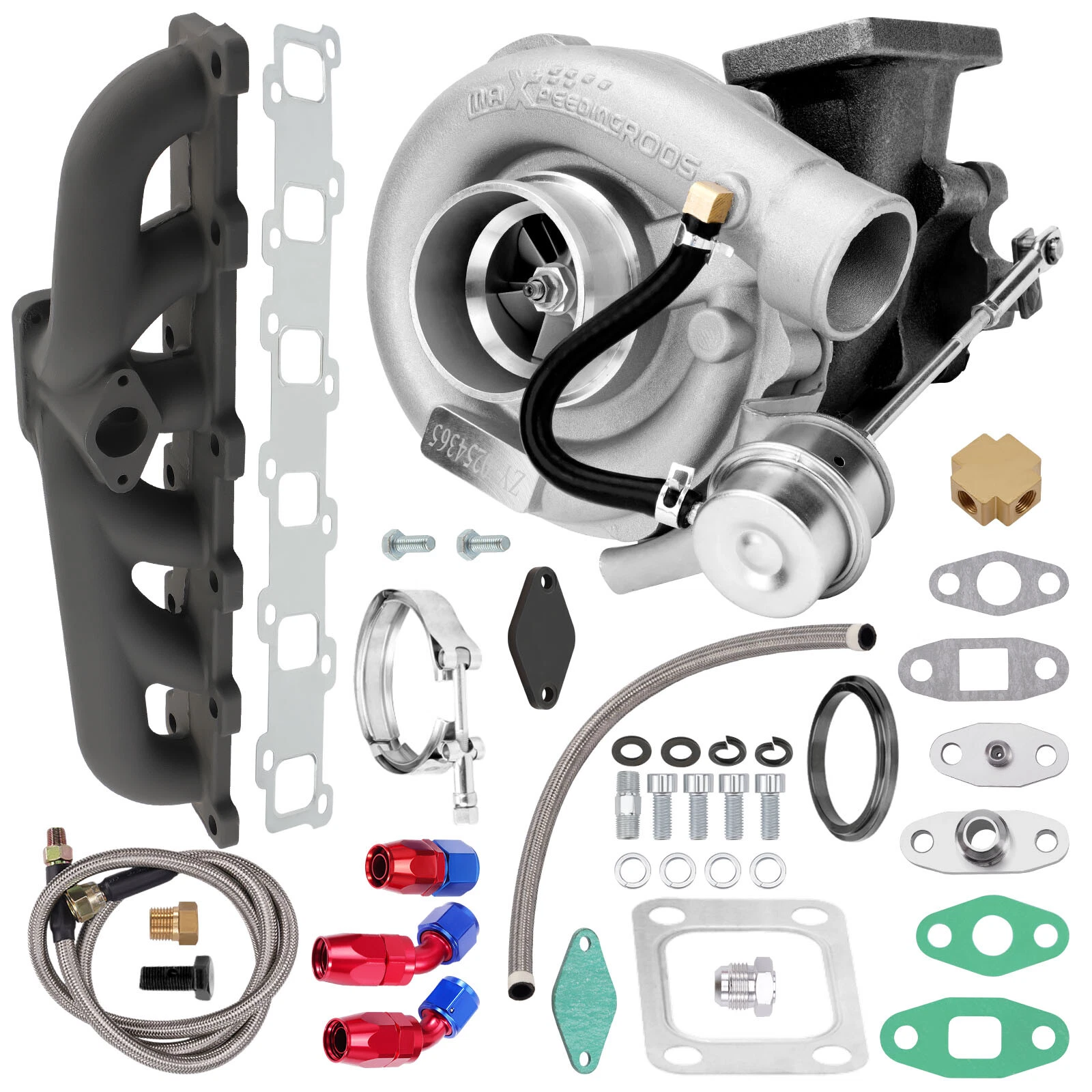

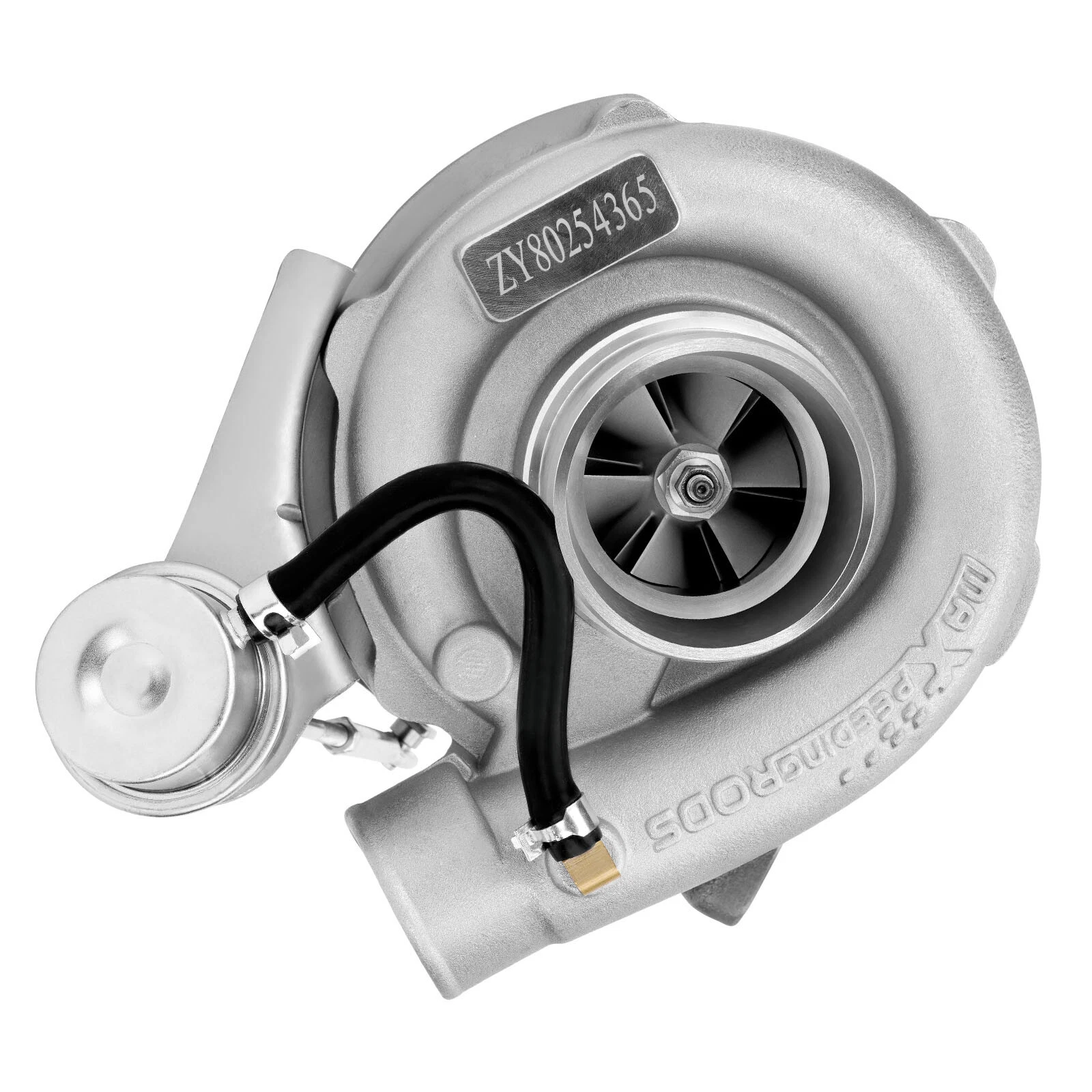

Turbo Details

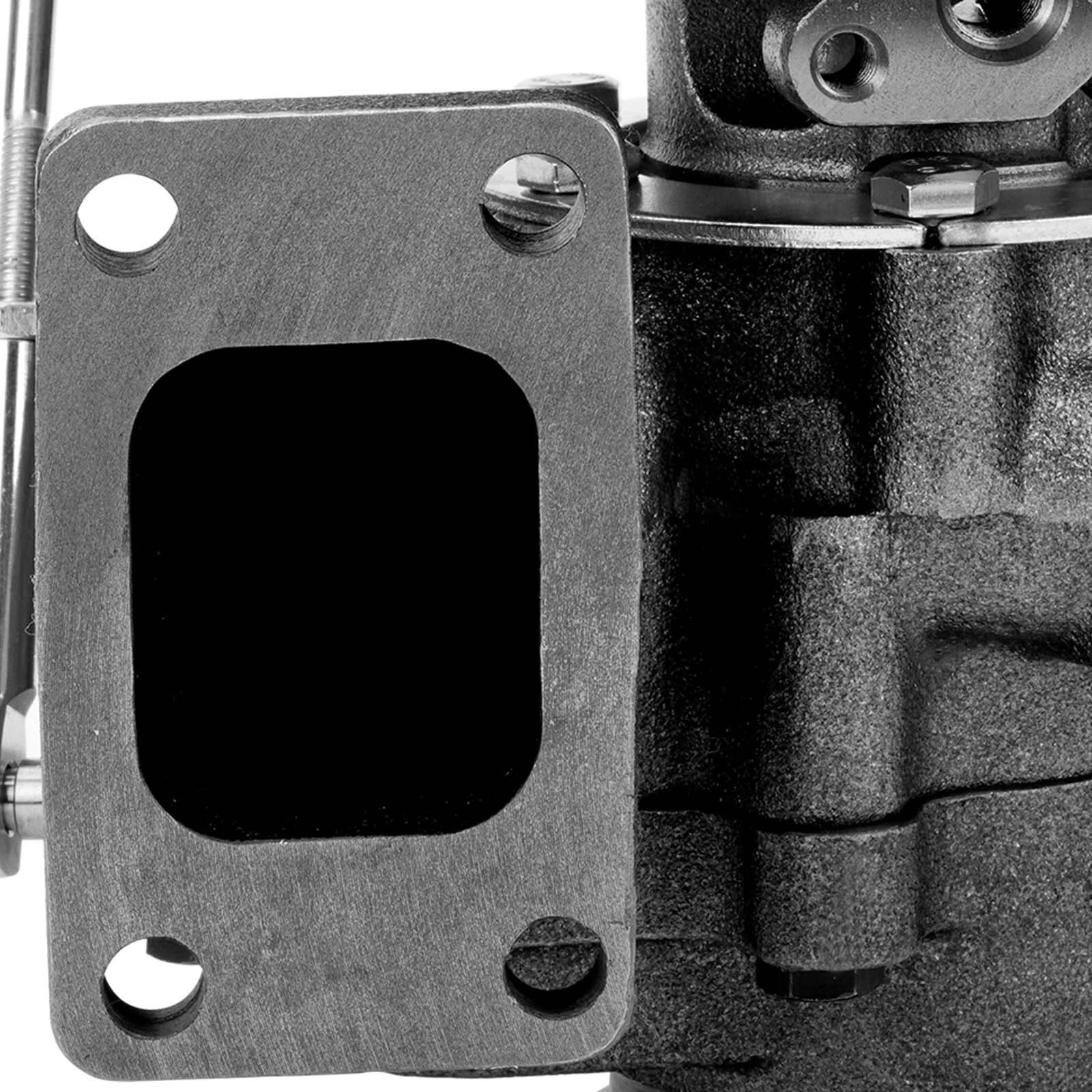

Turbo flange: T3
Mount type: top mount / high mount
External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)
Cooled Type: Oil cooled
Bearing: Journal bearing
Turbine port:  V band
Waste gate actuator     : Adjustable from 7.5psi - 14.53 psi
Housr Power: 300-400 HP

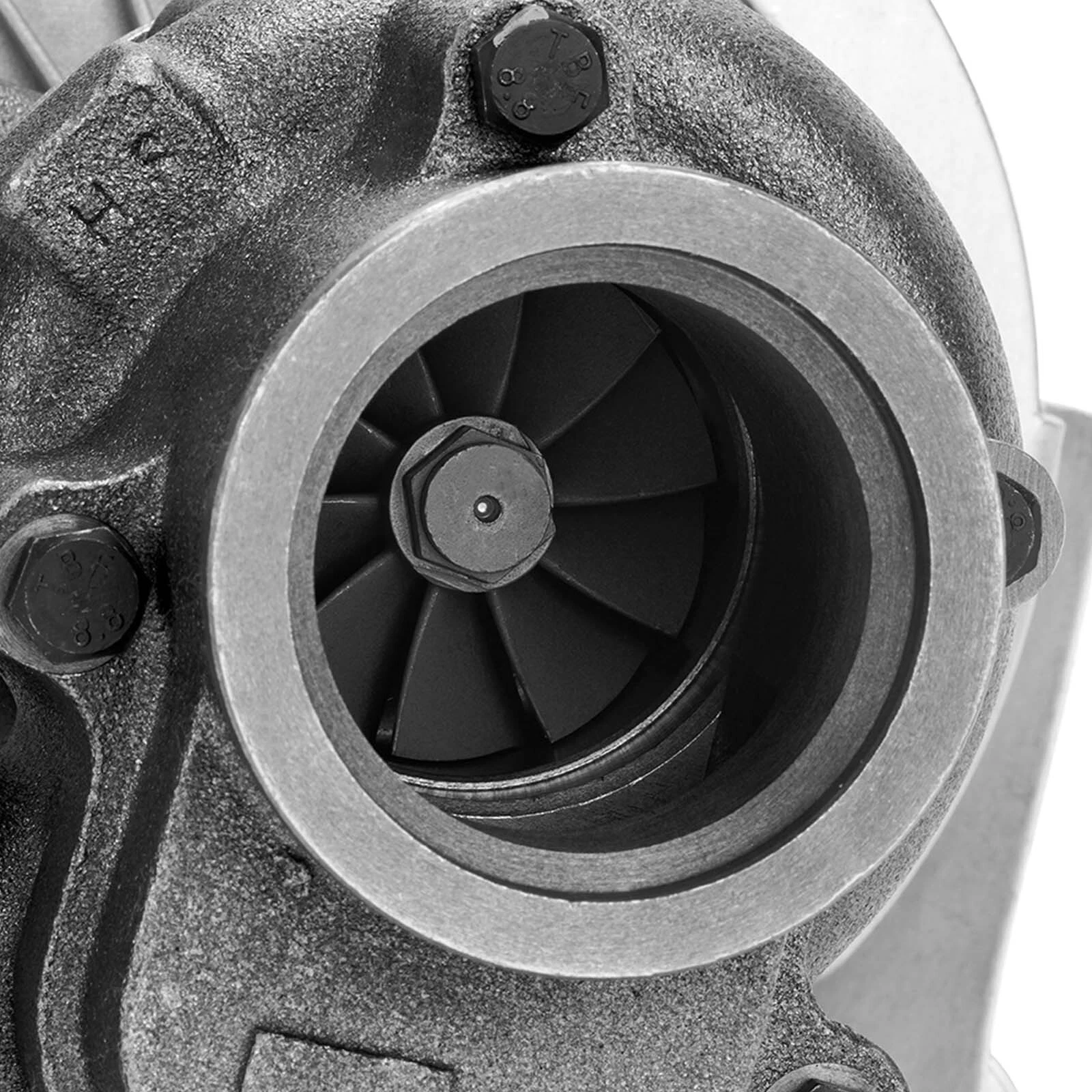

Compressor Wheel: A / R: 0.5 ||Ind:50.5 mm|| Exd:76 mm|| Trim: 44.2
Turbiner Wheel: A / R:0.63 ||Ind:65.5 mm|| Exd:55.9 mm|| Trim: 72.8

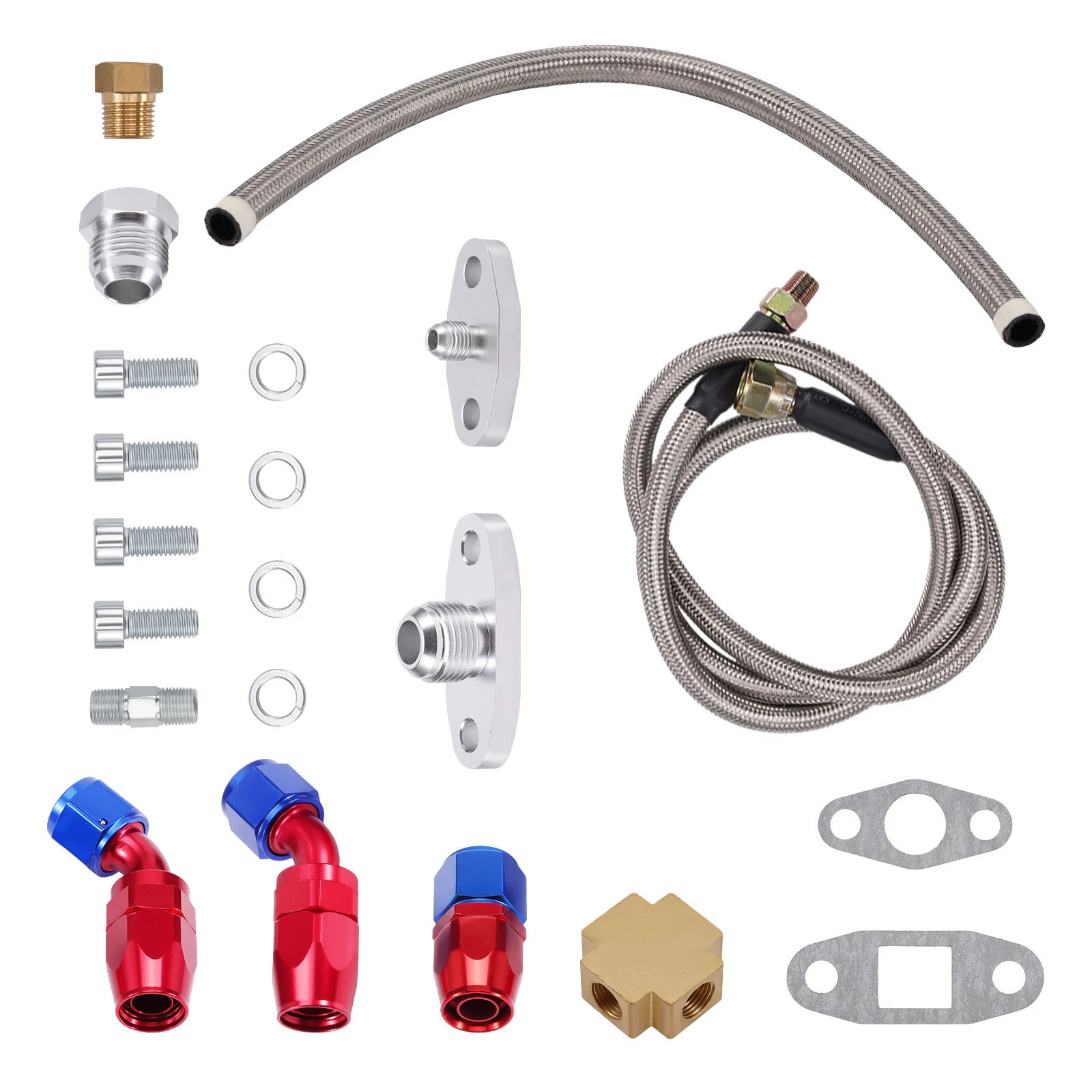

Oil Feed Oil Return Lines Details
Oil return line length: 550mm
Oil return line inner diameter: ¢21
Oil feed line length: 1000mm
Oil feed line inner diameter: ¢14

Note
Many dealers and customers have bought this kit. According to their feedbacks, they match well. However, modification may be required.
This oil line kit is an aftermarket kit. Not all the component parts will be direclt bolt on your car. You may still need some accessaries of your OEM oil line kit.
No instruction will be included; professional installation and alignment is recommended.

SKU MTV-maX-025
Brand MAX
Shipping Weight 25.0000kg
