Fitment
For Holden Commodore VE Sedan 2006-2013
For Holden Commodore VE Wagon 2008-2013
For Holden Commodore VE  Ute  2007-2013

Note
The coilovers kit will "Lower your car" and does not keep to the original ride height.
All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
Impact wrench is prohibited during the installation, it will loosen or damage the product.
Examine the clearance between tires and suspension. (The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
We suggest regular maintenance for the coil-over, spray with some WD40 every 3–4 months will keep it smooth and clean, which helps to extend the lifetime.

Standard Technical Specifications
Top mounts Front and rear OE top mounts required
Damping adjustable Not available
Camber adjustable Not available
Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Front Spring Rate 7 kg/mm (392 lbs/in)
Rear Spring Rate 8 kg/mm (448 lbs/in)
Spring length Front 200 mm
Spring length Rear 185 mm
Spring Preload advised 7-10 mm

Package Included

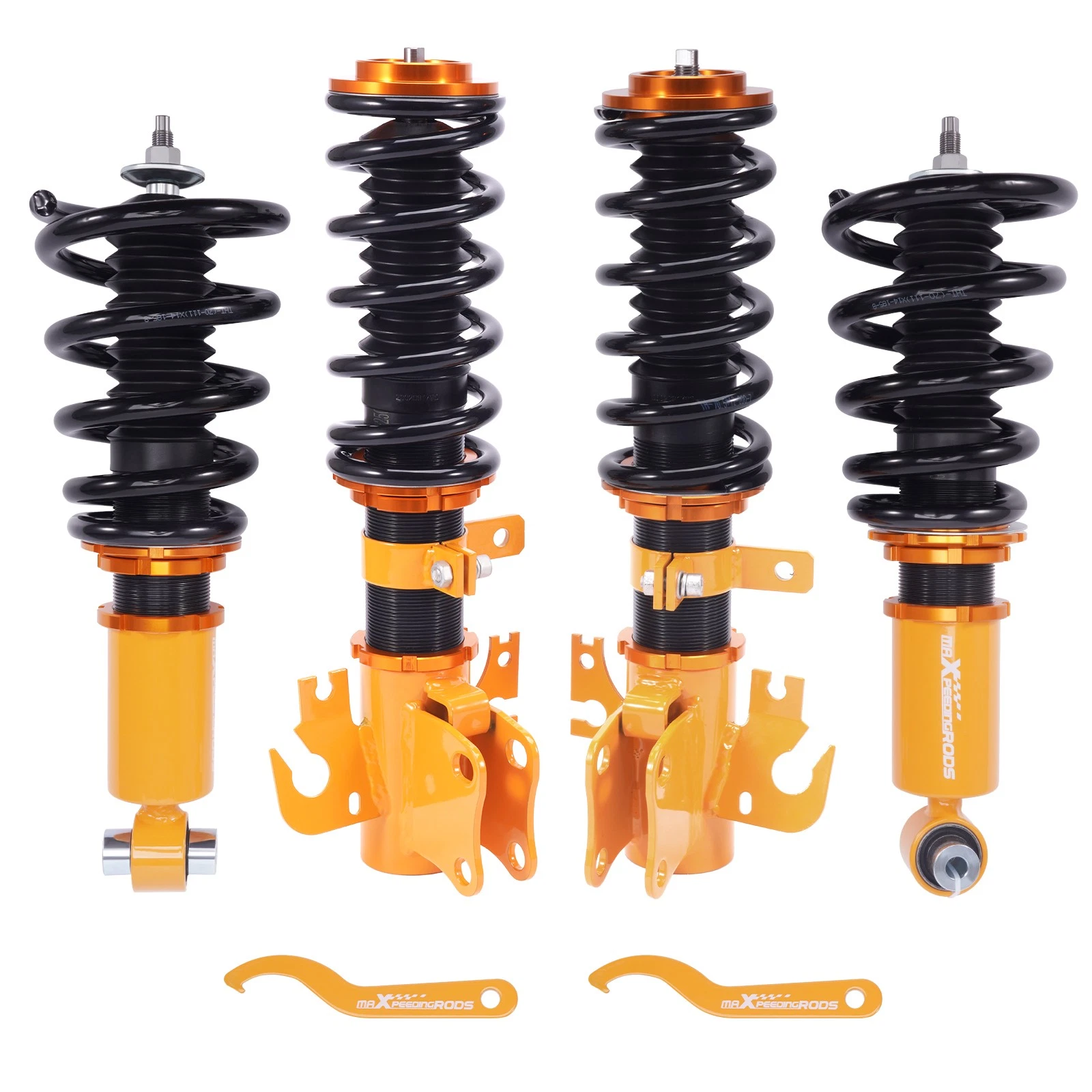

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment
(Note: no top mounts included.)
