Fitment
For Holden Commodore Third generation 1997-2007
For Holden Commodore VT / VT II Sedan Wagon 1997-2000
For Holden VX Commodore Berlina Calais Sedan Wagon 2000-2002  (Not fit VX executive sedan 3.8l v6)
For Holden VY Commodore Sedan Wagon 2002-2004
For Holden VZ Commodore Sedan Wagon 2004-2007 (Not fit VZ 3.6L V6, SV6, SV8, Executive model )

Important Note:
Don't fit for Ute model
for VT II , VX I series and some VZ, where the drop link connect to the suspension have different style, please check before place an order.
The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specification
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping : Not adjustable
Top mounts: Front and rear OE top mounts required
Camber adjustable: Not available
Spring Rate Front: 7 kg/mm (392 lbs/in)
Spring Rate Rear: 13 kg/mm (728 lbs/in)
Spring length Front: 200 mm
Spring length Rear: 160 mm
Spring Preload advised: 7-10 mm
Shock Type: Twin tube

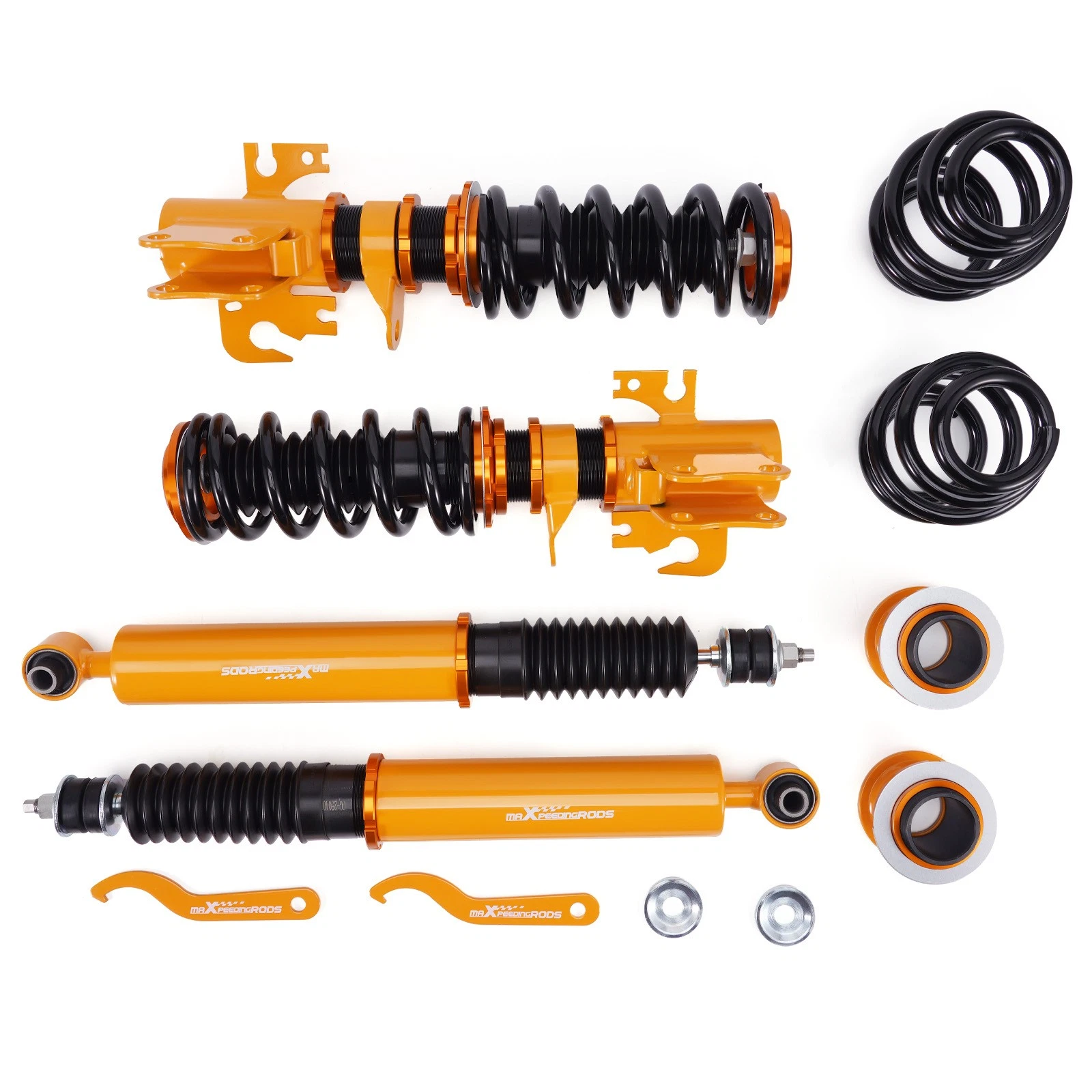

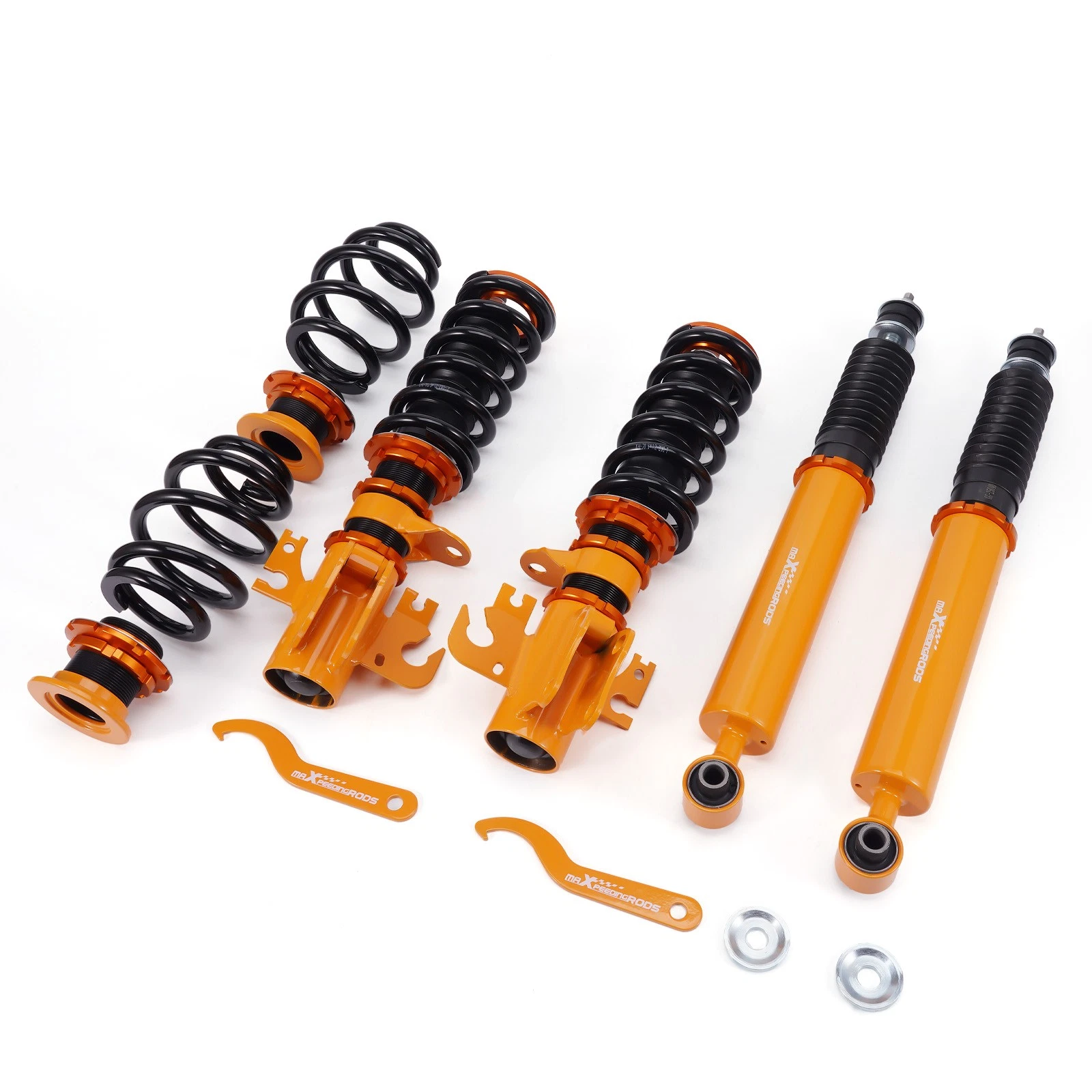

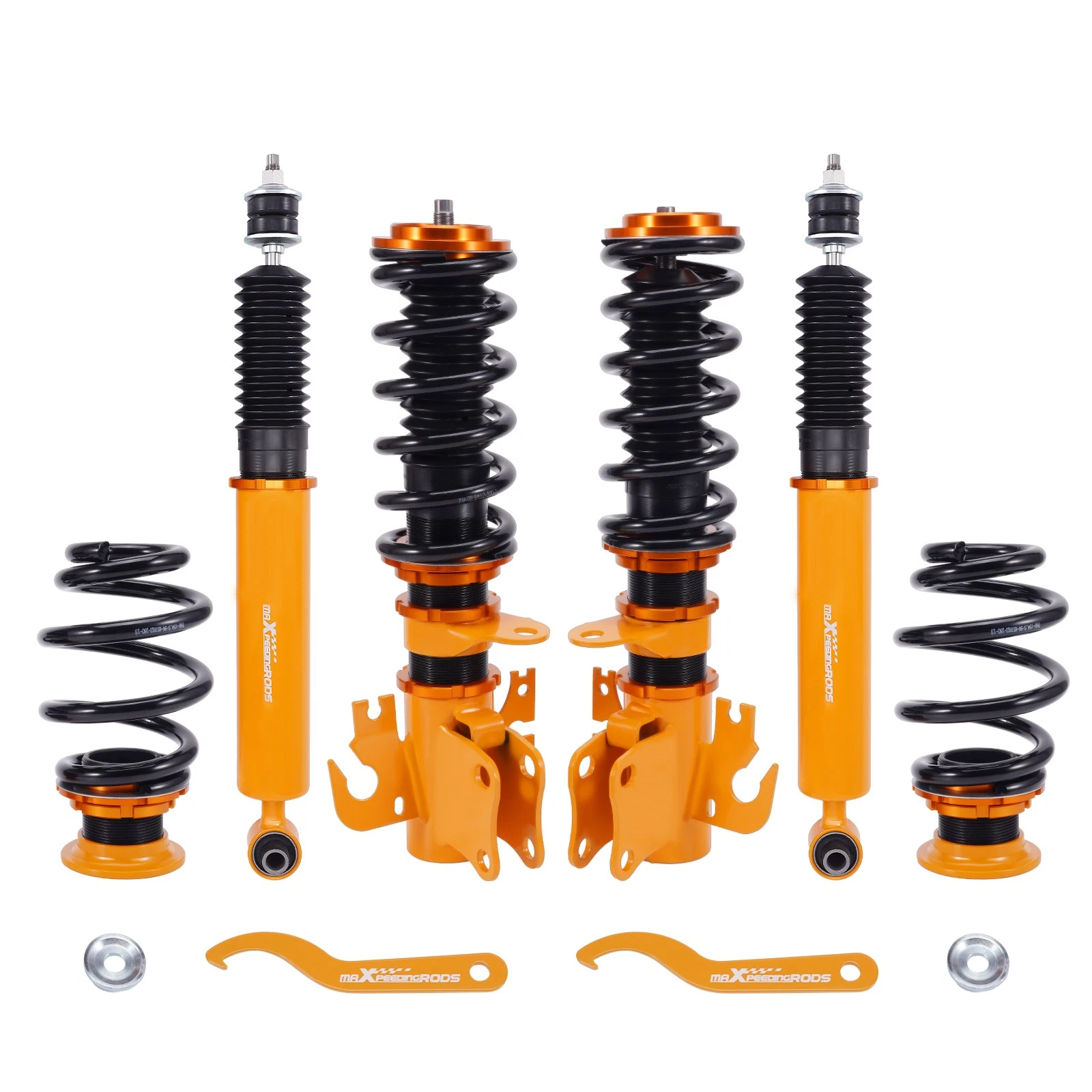

Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners

Dimension
Package size : 71*51*20 cm
Weight: 25700 g

Note
All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
Impact wrench is prohibited during the installation, it will loosen or damage the product.
Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
