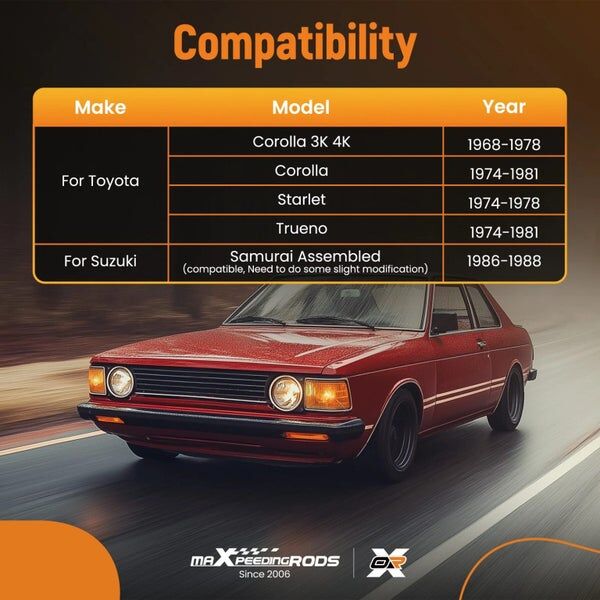

Fitment

For Toyota Corolla 3K 4K 1968-1978

For Toyota Corolla 1974-1981

For Toyota Starlet 1974 - 1978

For Toyota Trueno 1974-1981

For Suzuki Sierra (SJ410, SJ413) 1986-1988 (Jimny Samurai Assembled) (compatible, Need to do some slight modification)

Reference Part  Number

21100-24034, 21100-24035, 21100-24045,

2110024034, 2110024035, 2110024045

Specification

Materia:Aluminum Alloy

Vehicle Service Type:Car

Choke Type:Manual Choke

Barrel Count:2

Mounting Flange Type: Bolt On

Fuel Type: Gasoline

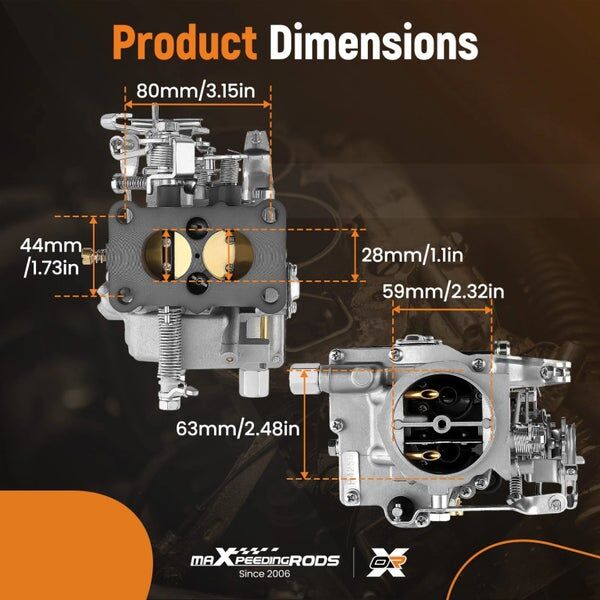

Bolt Hole Spacing Length & Width:80mmx44mm (Center To Center)

Intake Side Diameter: 28 mm (Two Same)

Air Filter Mount Inner Diameter: 59 mm

Air Filter Mount Outer Diameter: 63 mm

Venturi Diameter: 21/25mm

Placement: The intake pipe between the air filter and the engine of the car

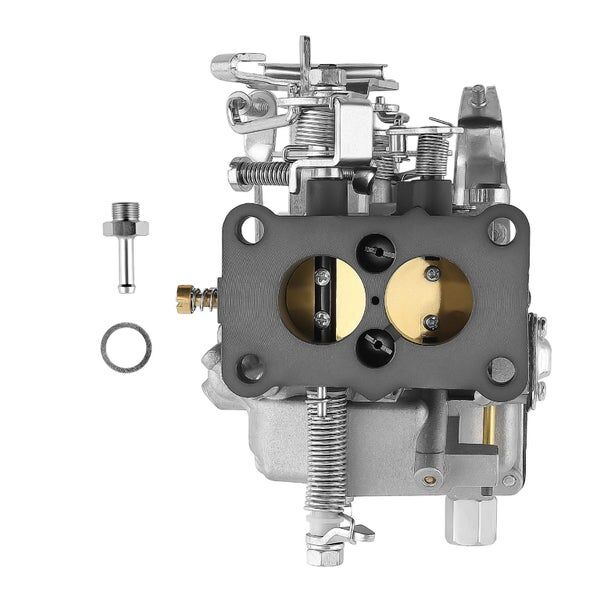

Package includes:

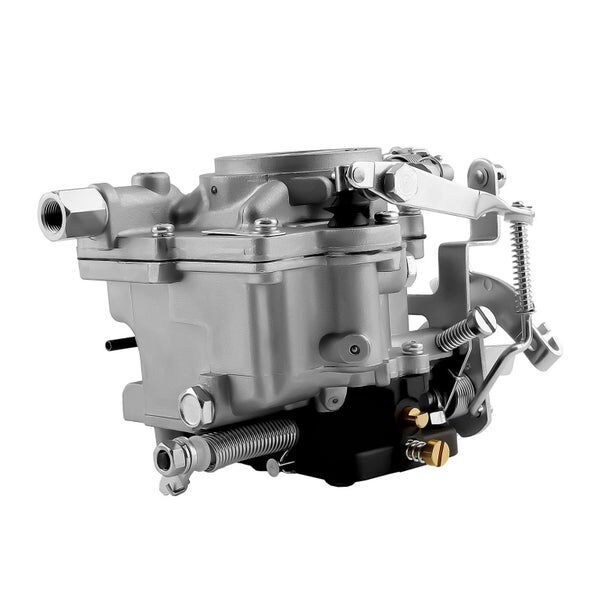

1* Carburetor

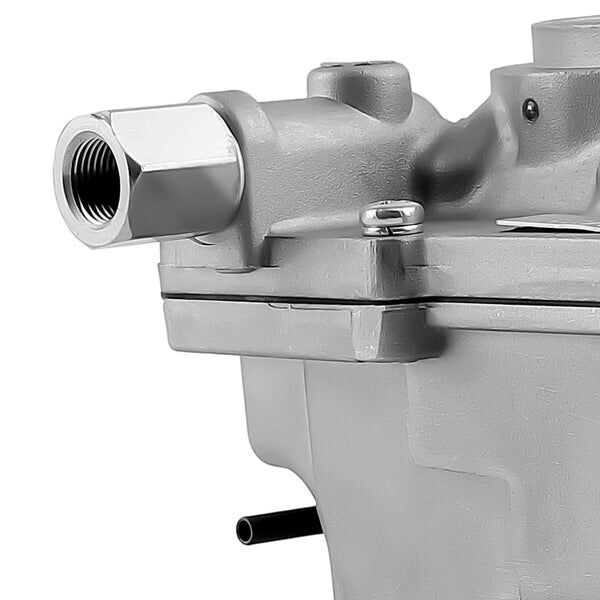

1*  threaded bushing for the gasoline inlet

Features:

1.Easy replacement:100% Tested For good reliability and performance, Direct installation, No adjustment Needed

2.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors

3.FUNCTION - Solve problems such as engine lack of power and low fuel efficiency, engine backfiring and overheating and hard starting

Notice:

* The oil channels of carburetors will be blocked without cleaning

* Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors

* Please confirm your old part number and car engine before purchase

* Professional installation is highly recommended (No Instruction Included)
