OEM Part Numbers

34216776925, 34216782725 34216776926, 34216782726

Specification

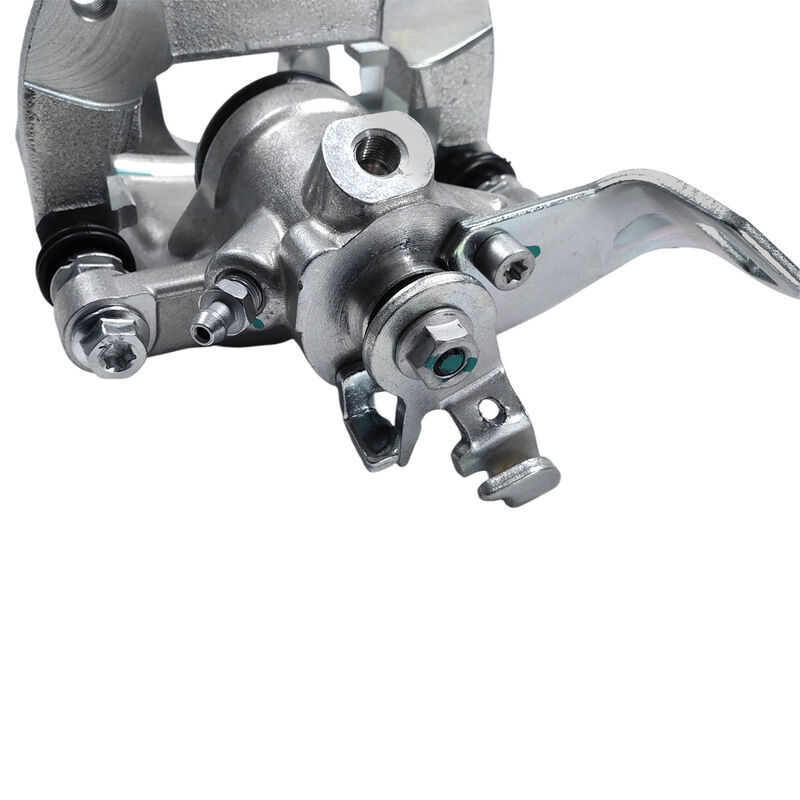

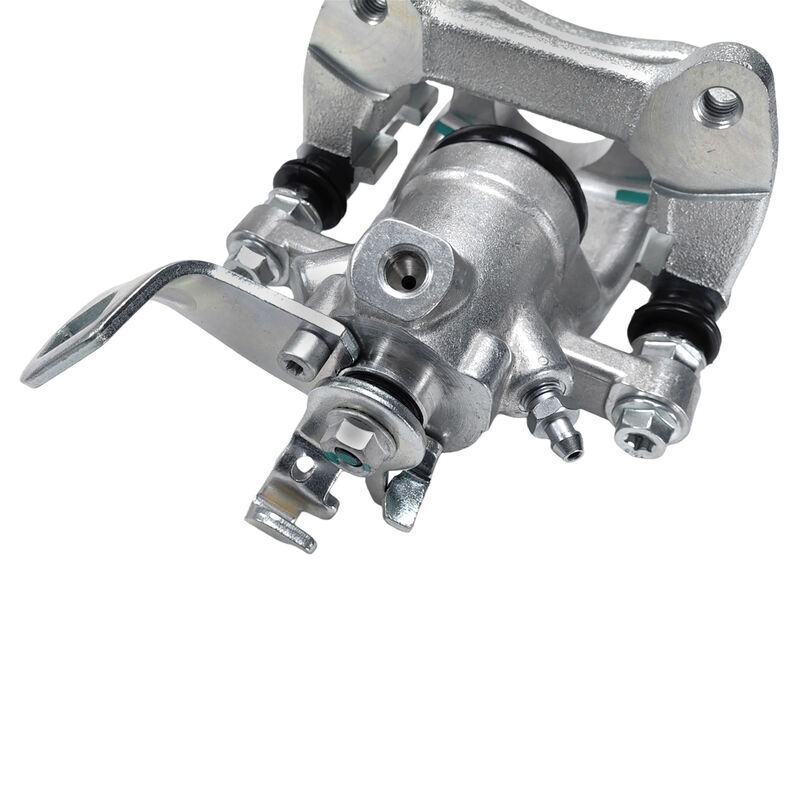

Type：Brake Caliper

Brake Caliper Type：1 Piston

Brake System：TRW

Position：Rear Left And Right, Passenger And Driver Side

Caliper Material：Aluminium

Piston Material：Metal

Note：With Bracket

Piston Diameter [mm]：36

Brake Disc Thickness [mm]：10

Distance Of Bracket Hole Diameter [mm]：90

Bleeder Port Size：M10x1.0

Inlet Port Size：M10x1.0

Mounting Bolts Included：No

Installation Hardware Included：Yes

Fitment

Fit For Mini Clubman R55 1.6L N14 B16 AB,N14 B16 A Wagon 2007-2013

Fit For Mini Clubman R55 1.6L N16 B16 A,N12 B16 A Wagon 2007-2013

Fit For Mini Clubman R55 1.6L N16 B16 A Wagon 2010-2014

Fit For Mini Clubman R55 1.6L N18 B16 A Wagon 2010-2014

Fit For Mini R56 1.6L N12 B16 A Hatchback 2006-2008

Fit For Mini R56 1.6L 9HZ (DV6TED4),W16 D16 (9HZ) Hatchback 2006-2010

Fit For Mini R56 1.6L N14 B16 AB,N14 B16 A Hatchback 2006-2010

Fit For Mini R56 1.6L N18 B16 C,N14 B16 C Hatchback 2007-2013

Fit For Mini R56 1.6L N16 B16 A Hatchback 2009-2013

Fit For Mini R56 1.6L N18 B16 A Hatchback 2010-2013

Fit For Mini R56 1.6L N47 C16 A Hatchback 2010-2013

Fit For Mini R56 2.0L N47 C20 A Hatchback 2011-2013

Fit For Mini R57 1.6L N12 B16 A Convertible 2007-2015

Fit For Mini R57 1.6L N14 B16 AB,N14 B16 A Convertible 2008-2010

Fit For Mini R57 1.6L N18 B16 C,N14 B16 C Convertible 2008-2015

Fit For Mini R57 1.6L N16 B16 A Convertible 2009-2015

Fit For Mini R57 1.6L N18 B16 A Convertible 2010-2015

Fit For Mini R58 1.6L N16 B16 A Coupe 2010-2015

Fit For Mini R58 1.6L N18 B16 A Coupe 2010-2015

Fit For Mini R59 1.6L N16 B16 A Roadster 2011-2015

Fit For Mini R59 1.6L N18 B16 A Roadster 2011-2015

Package

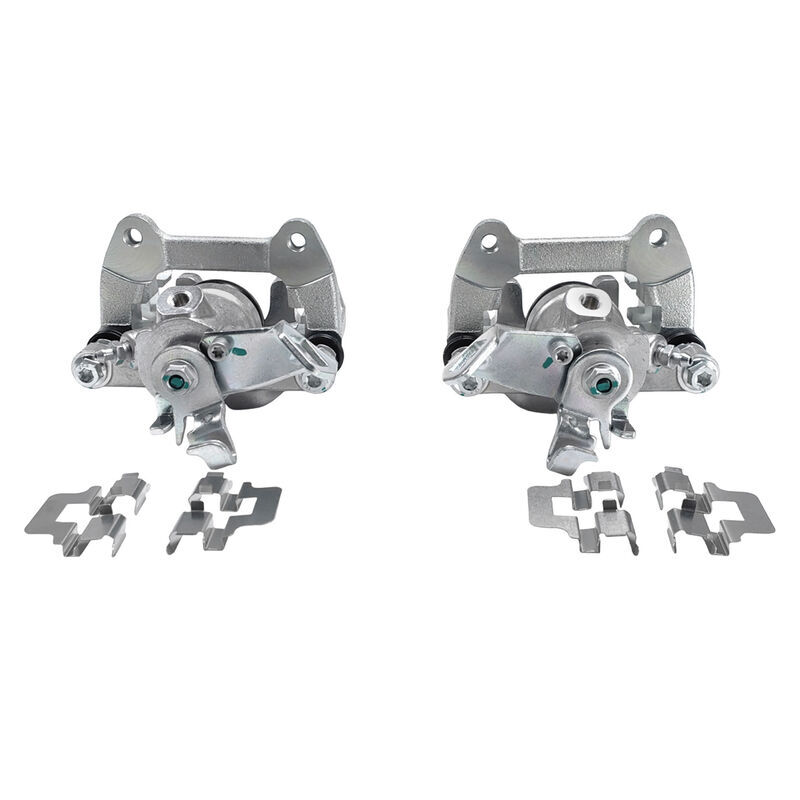

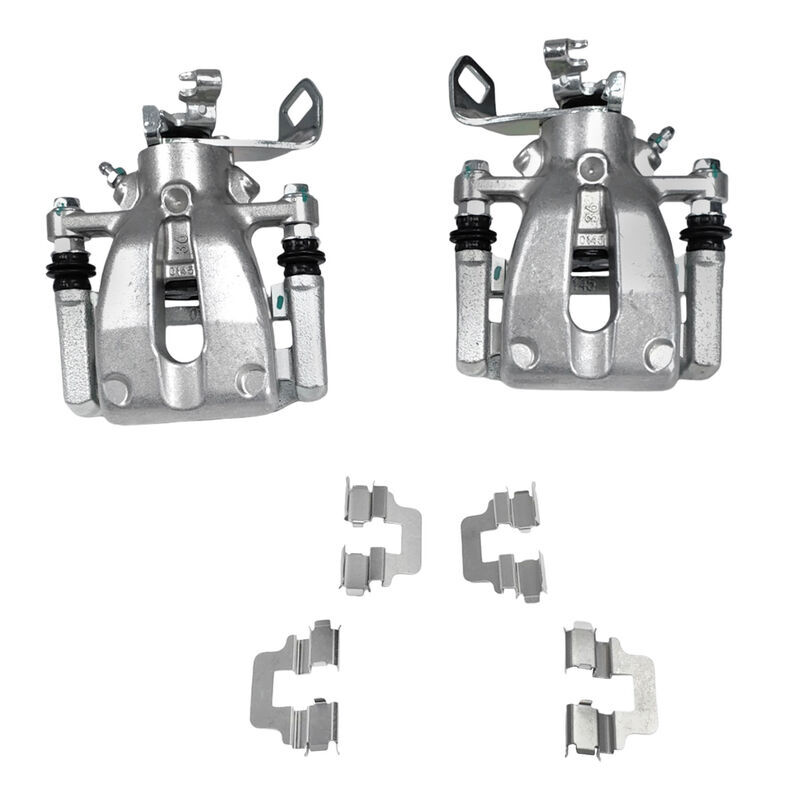

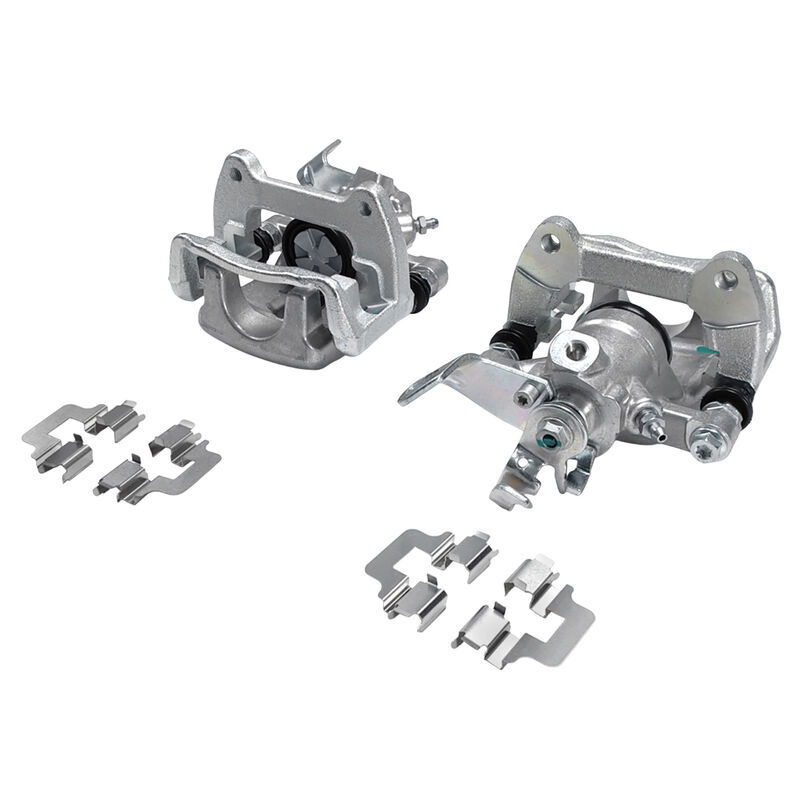

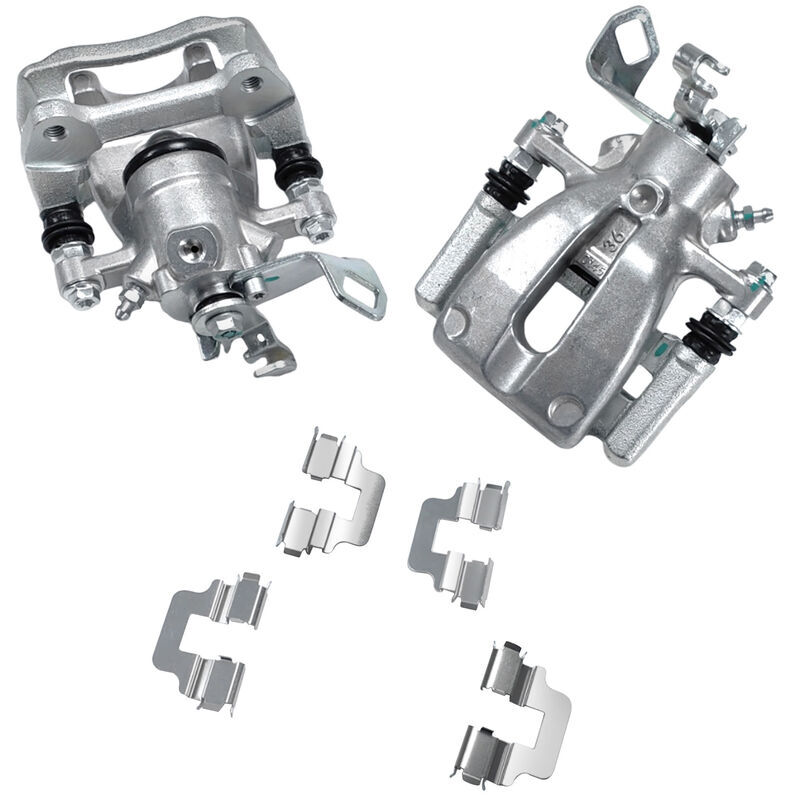

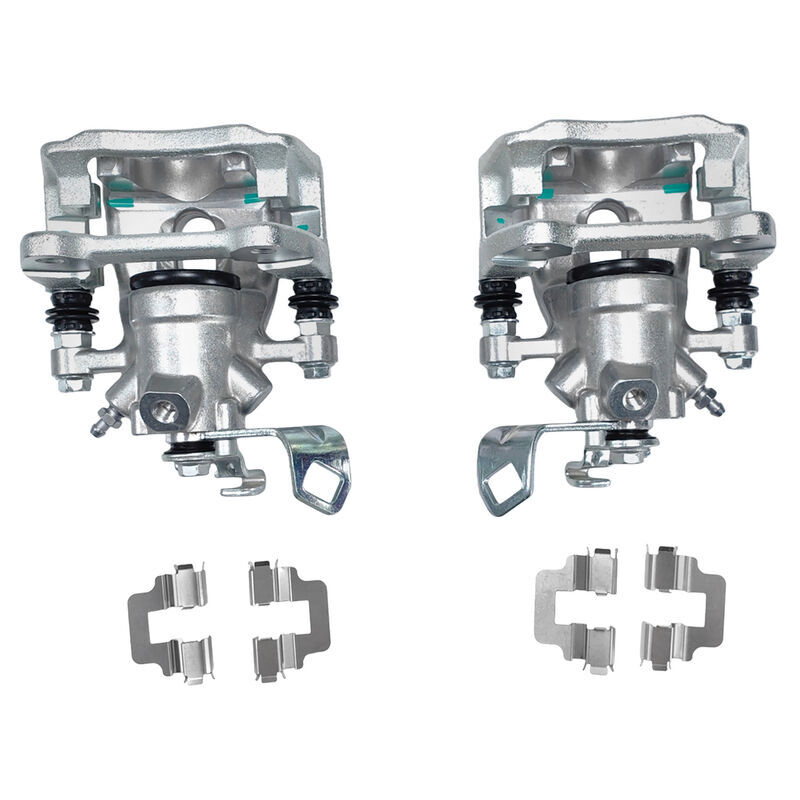

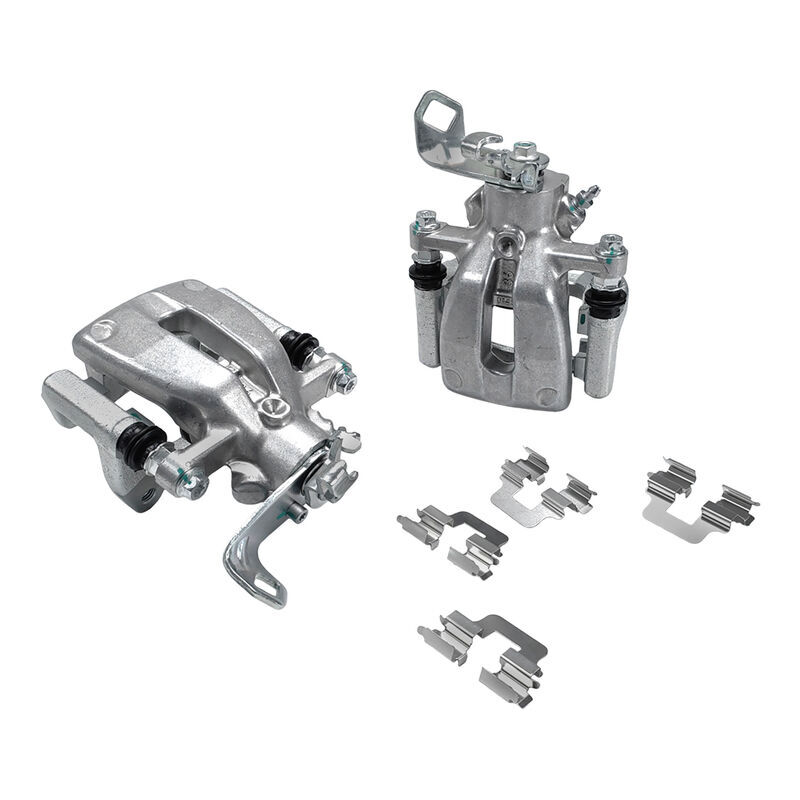

2 x Rear Brake Calipers (Left & Right Hand Side)
