OEM Part Numbers

Fit For Suzuki LTZ400

Cylinder：11210-29F20-0F0

Cylinder Base Gasket：11241-29F10, 11241-29F11

Cylinder Head Gasket：11141-29F01

Chain Tensioner Gasket：

Piston：12111-29F00-0F0

Pin, Piston：12151-24F10

Ring Set, Piston：12140-29F00

Circlips, Piston：09381-20004

Head Cover Washser：11191-13E00

Washers(4)：09160-10082 10.5x19x2.0

Fit For Kawasaki KFX400

Cylinder：11005-S007

Cylinder Base Gasket：11061-S070, 11061-S091

Cylinder Head Gasket：11004-S006

Chain Tensioner Gasket：11061-S073

Piston：13001-S006

Pin, Piston：13002-S006

Ring Set, Piston：13008-S008

Circlips, Piston：92033-S040

Washers(4)：92200-S009 10.5x19x2.0

Washer：92200-S015

Fit For Arctic Cat DVX400

Cylinder：3402-844

Cylinder Head Gasket：3402-841

Chain Tensioner Gasket：3402-137

Piston：3402-846

Ring Set, Piston：3502-011

Circlips, Piston：3003-439, 3402-845, 3402-847, 3402-841

Specification

Type：Engine Rebuild Kit

Displacement：434cc

Bore Type：Big Bore

Bore Size：94.00mm

Stroke：62.60mm

Fitment

Fit For Suzuki DR-Z400 2000-2021

Fit For Suzuki DRZ400SM 2005-2009/2013-2021

Fit For Suzuki DRZ400S 2000-2009/2011-2021

Fit For Suzuki DRZ400E 2000-2007

Fit For Suzuki LTZ 400 Quadsport Z400 2003-2014

Fit For Kawasaki KFX400 2003-2006

Fit For Arctic Cat DVX 400 2004-2008

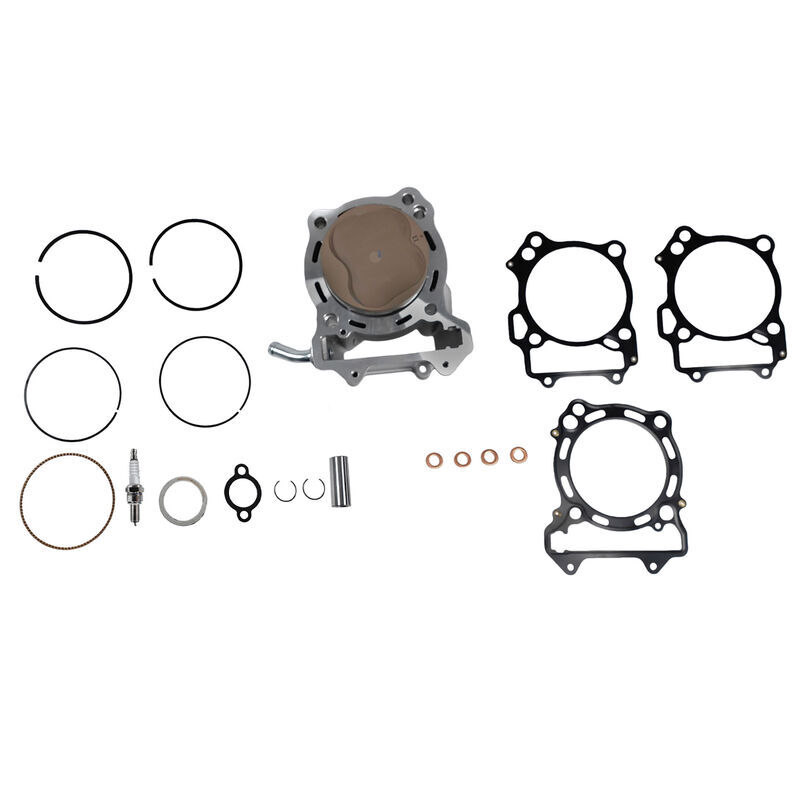

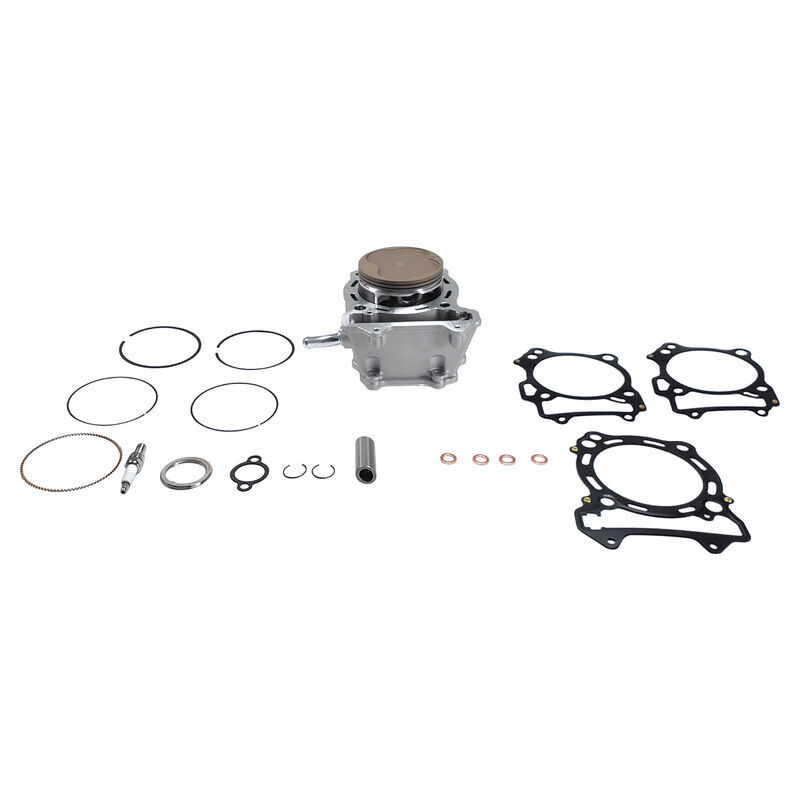

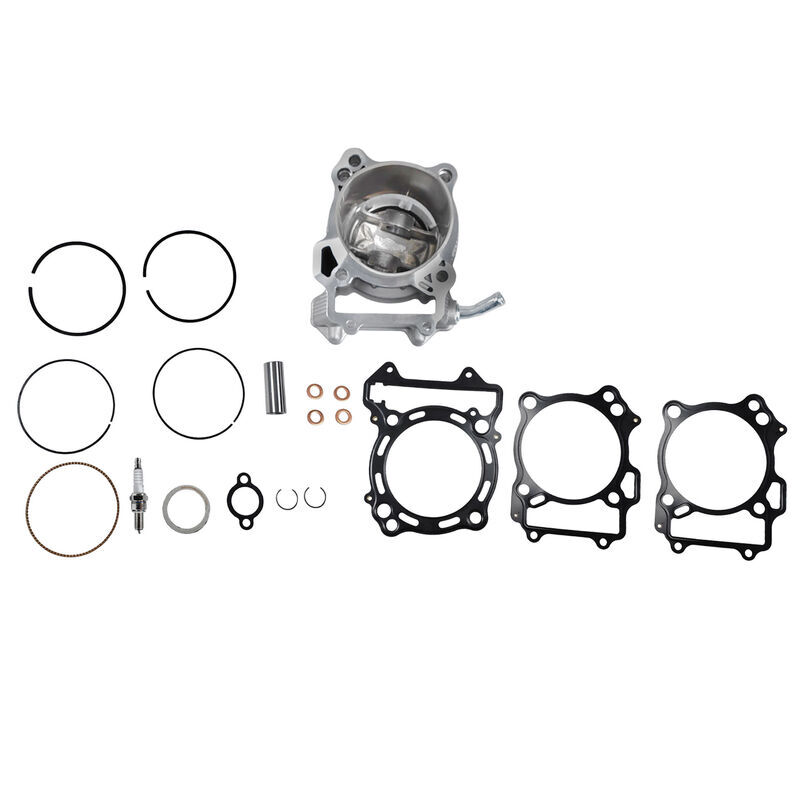

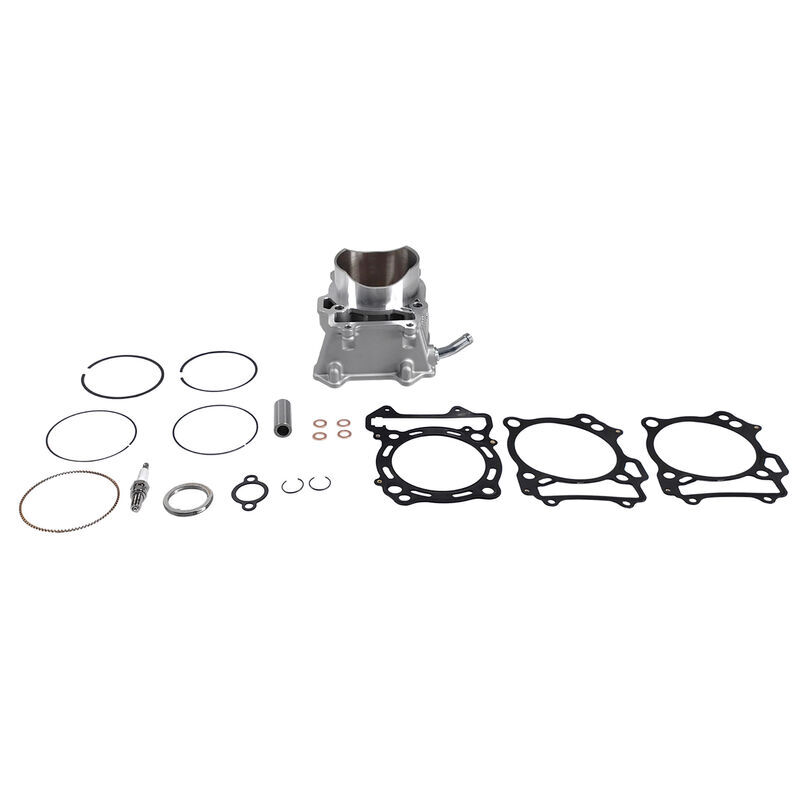

Package

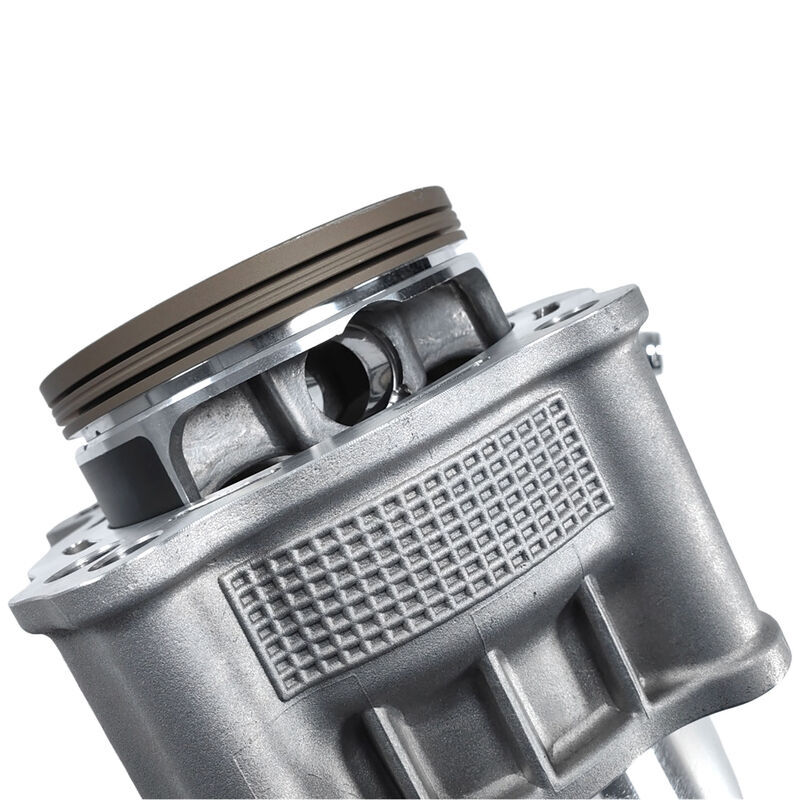

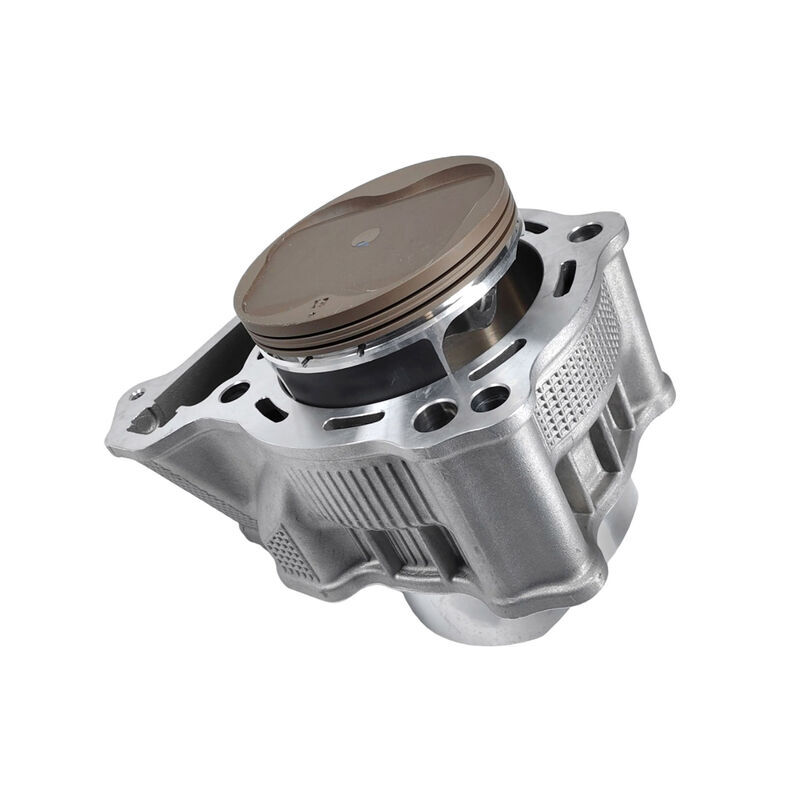

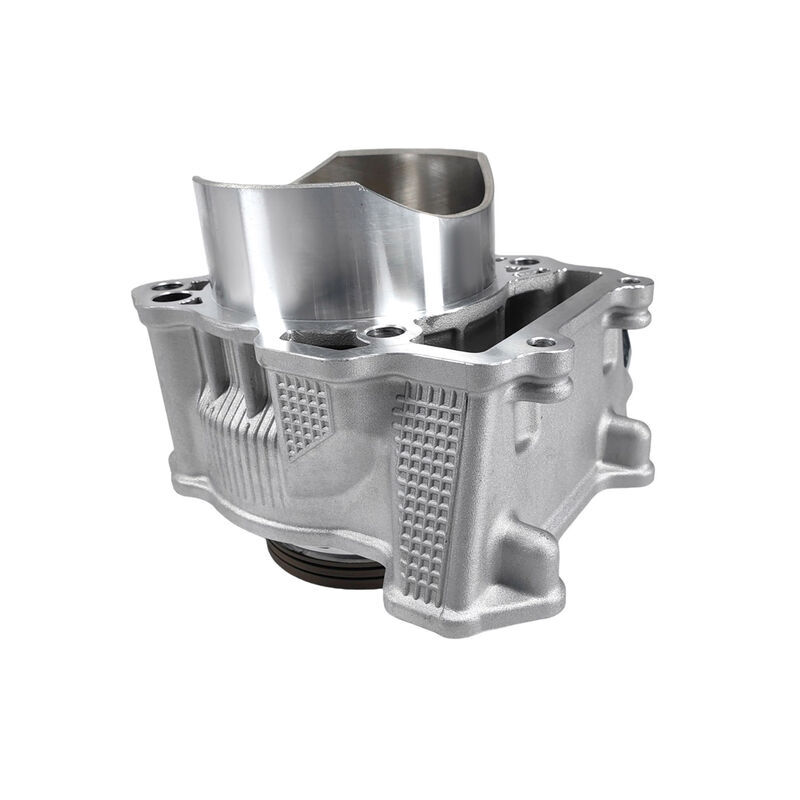

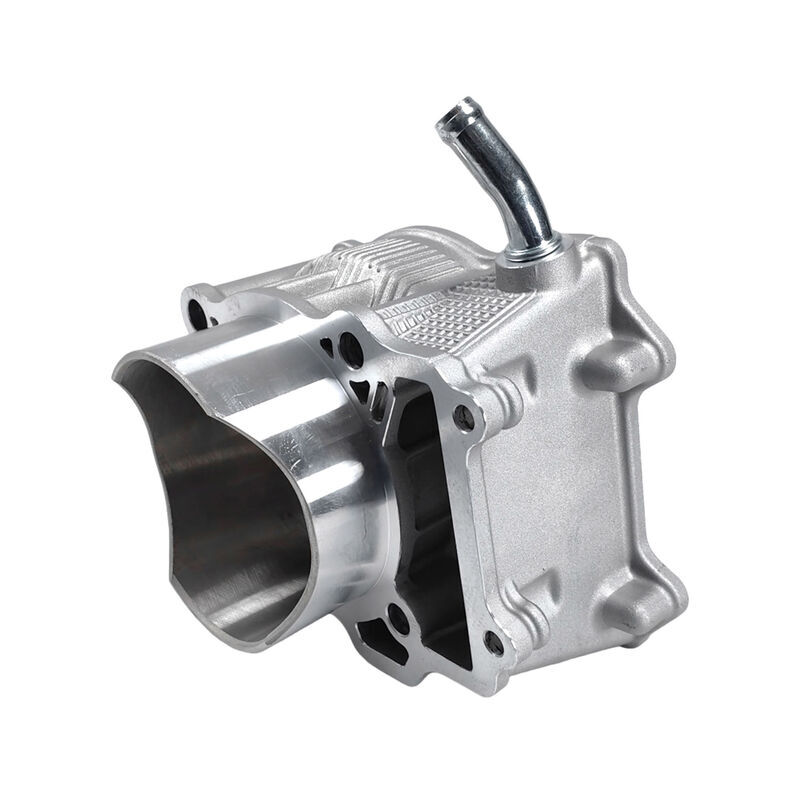

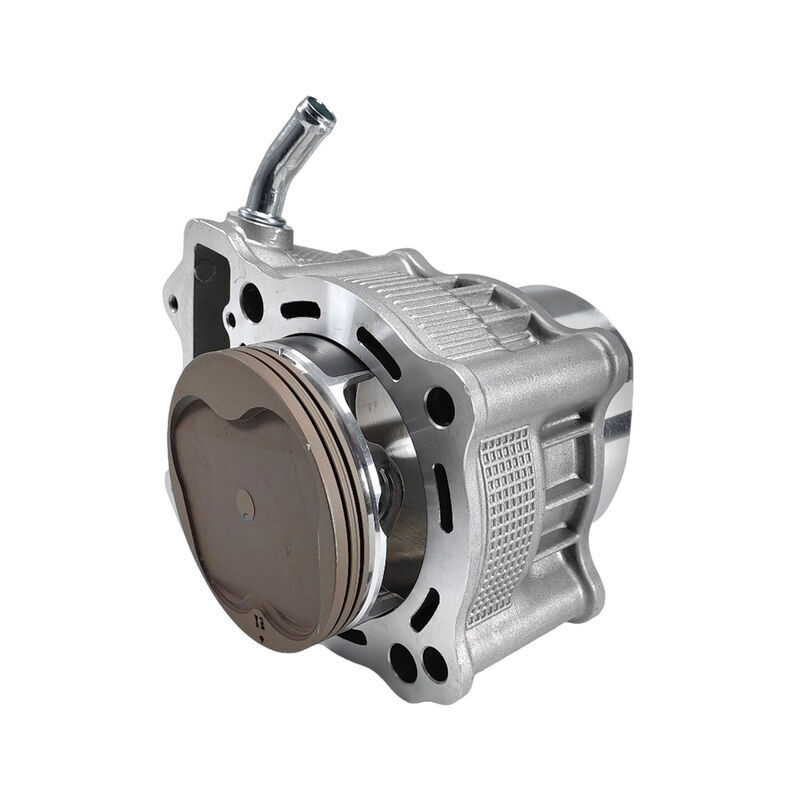

1 x 94mm Cylinder & Piston

1 x Piston Ring Set

1 x Wristpin

1 x Circlip(2)

2 x Cylinder Base Gasket

1 x Cylinder Head Gasket

1 x Chain Tensioner Gasket

1 x Head Cover Washser

4 x Valve Washers

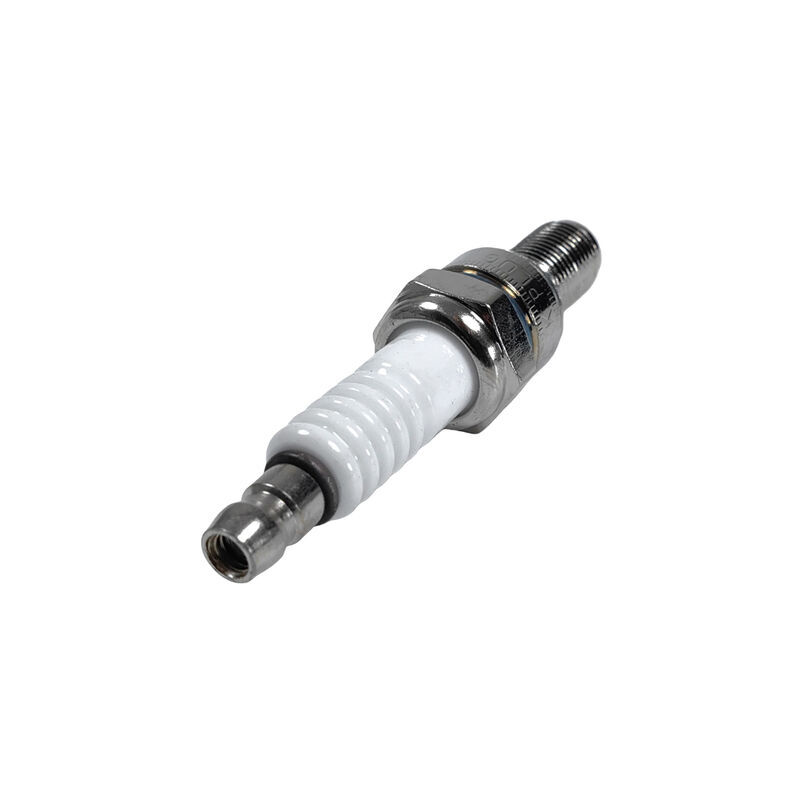

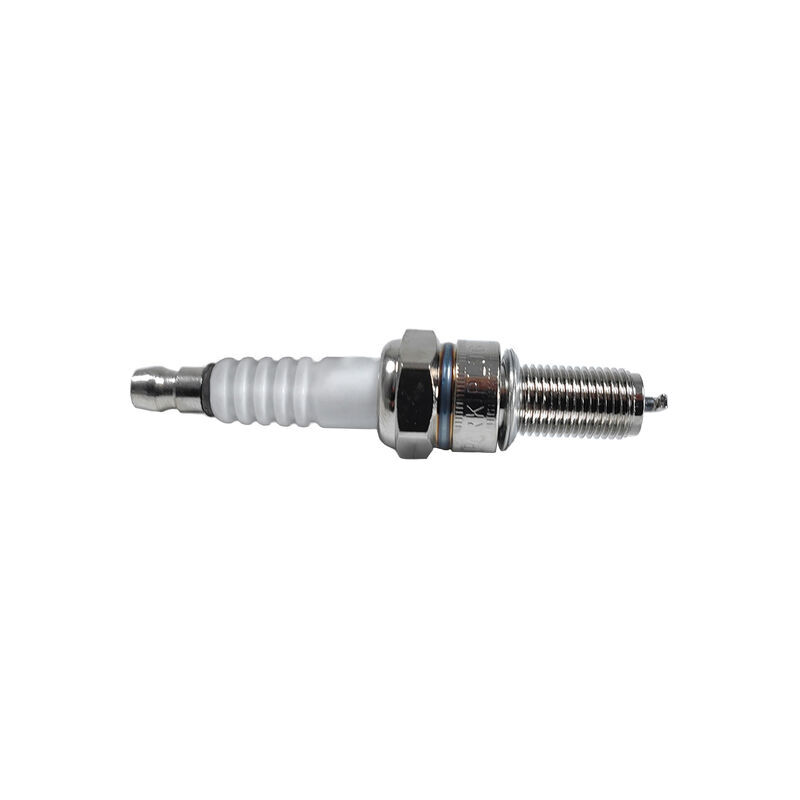

1 x Spark Plug

(As Photos)
