Fitment

Fit For Holden 253, 304, 308 V8 Engines

Fit For Holden HT HG HQ HJ HX HZ WB Auto & Manual Transmission

Fit For Holden Torana LH LX Auto & Manual Transmission

Fit For Holden Commodore VB VC VH VK VL VN VP VR Auto & Manual Transmission

Note:Will Not Fit For Holden Commodore VS.



Specification

Replace Part Number:AF4250-5308

Starter Style:Mini Denso Style

Starter Finish:Powder Coated Black For Extra Corrosion Protection

High Heat Resistance To Help Eliminate Hot Start Problems

4.44:1 Gear Reduction For Maximum Torque

Starter Rotation:Standard

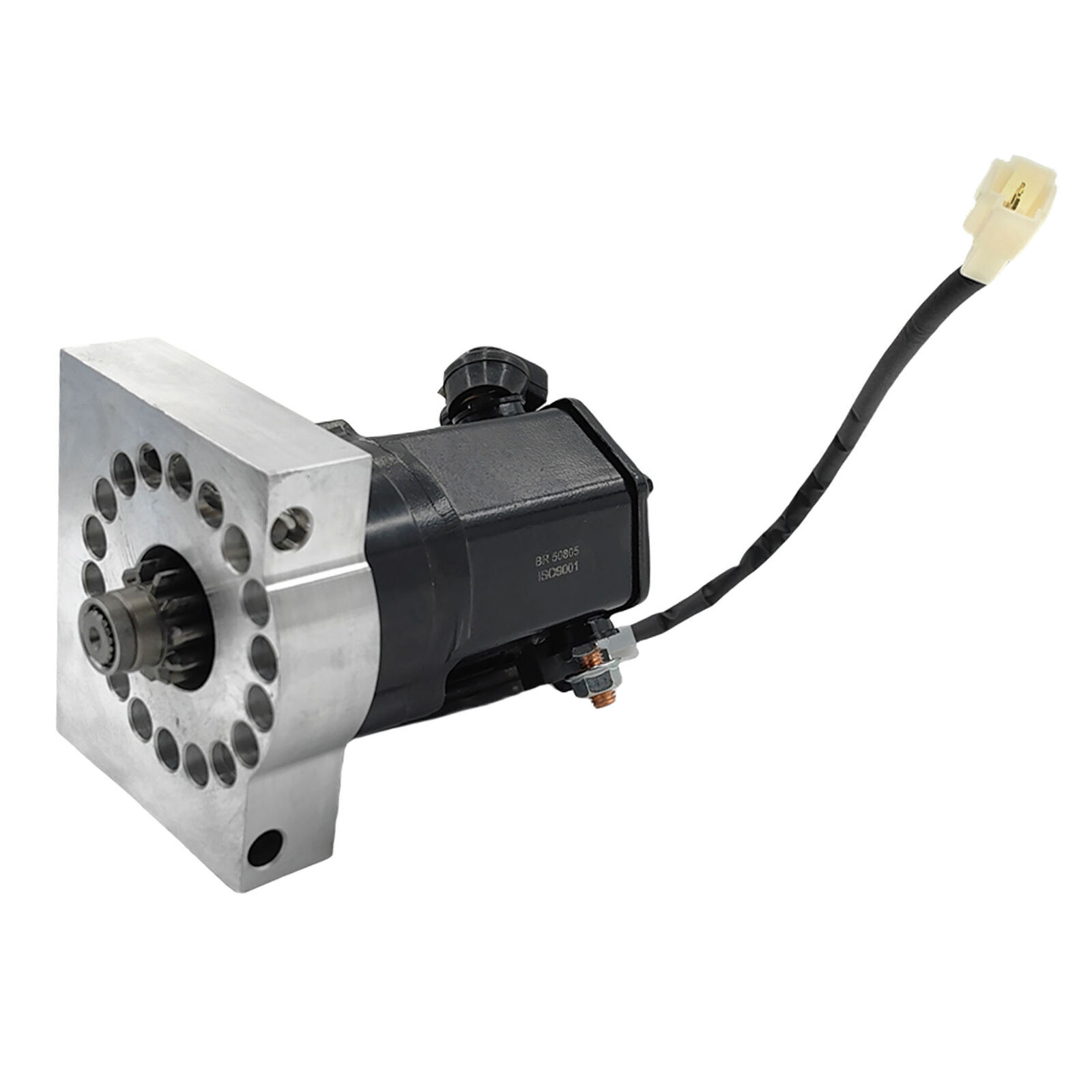

CNC Machined Adjustable Mounting Block For Maximum Clearance

Power Point In Between Block And Starter, Instead Of Between Starter And Headers As Many Other Brands Do, To Allow For Tight Clearances, And Heat Protection To Wiring

Heavy Duty Bearing Holds Drive Assembly For Long Life And Accurate Pinion Alignment

Maximum Recommended Compression Ratio Is A Huge 14:1

Voltage:12 Volts

Power Rating:1.9 HP / 1.4 KW

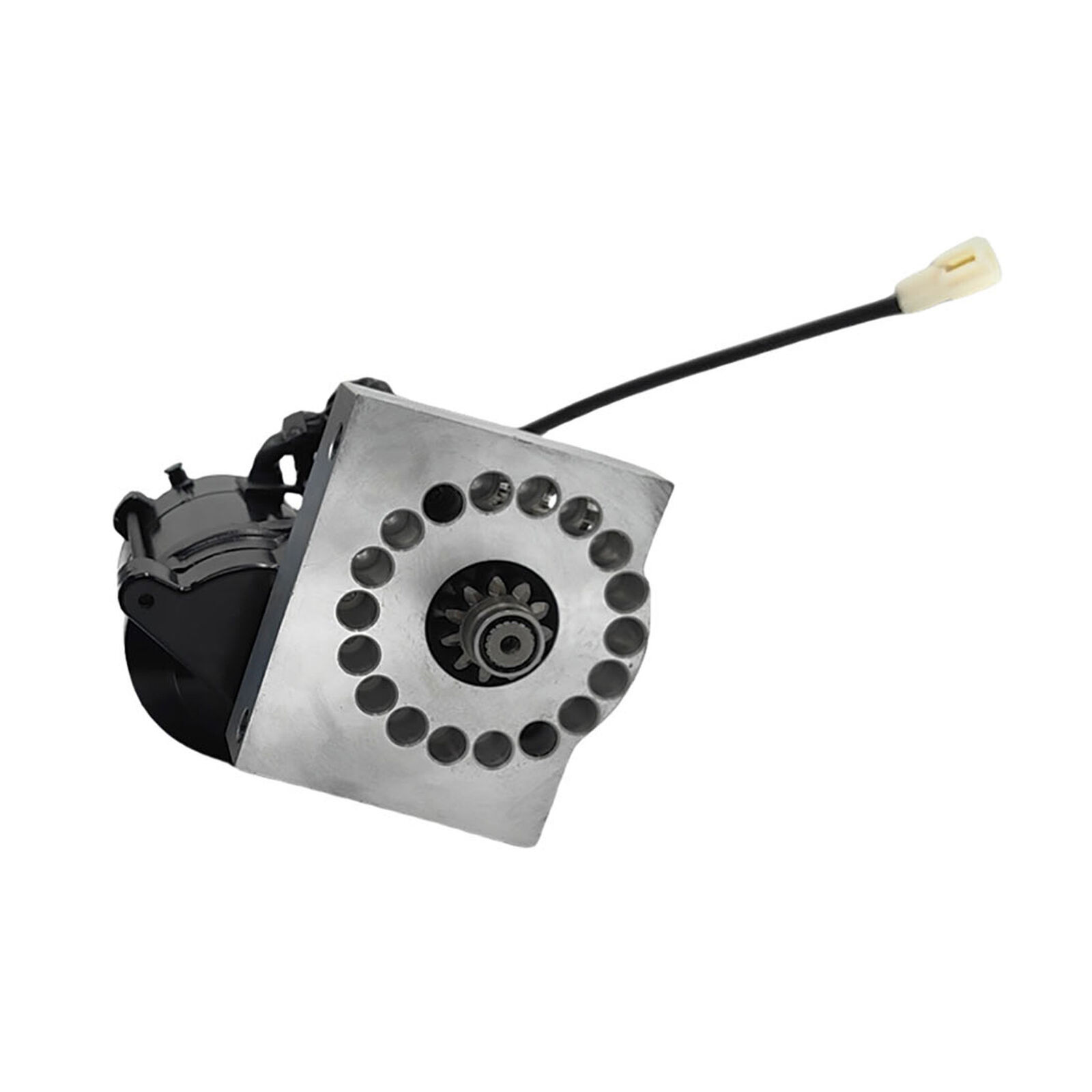

Pinion Tooth Count:11

Pinion Diameter:Approximately 29mm

Mounting Holes Centre To Centre:83mm

Overall Length:189mm

Overall Height:135mm

Overall Width:139mm



Note

Please Check With Pictures / Numbers / Specs Before Ordering.



Package

1 x Starter Motor

SKU STSMOTOR-HN29
Brand META V PARTS
Shipping Weight 4.3500kg
Shipping Width 0.190m
Shipping Height 0.150m
Shipping Length 0.280m
Shipping Cubic 0.007980000m3
